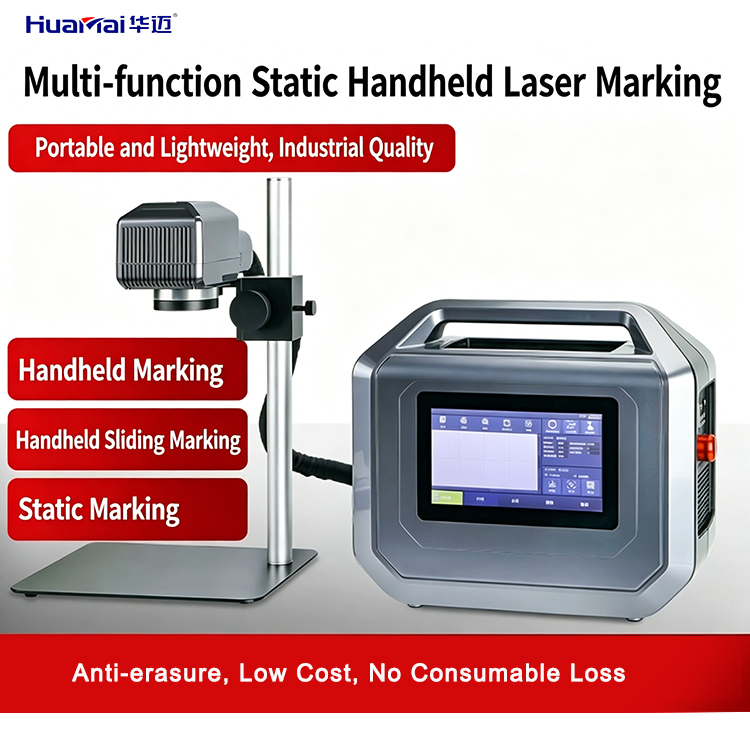

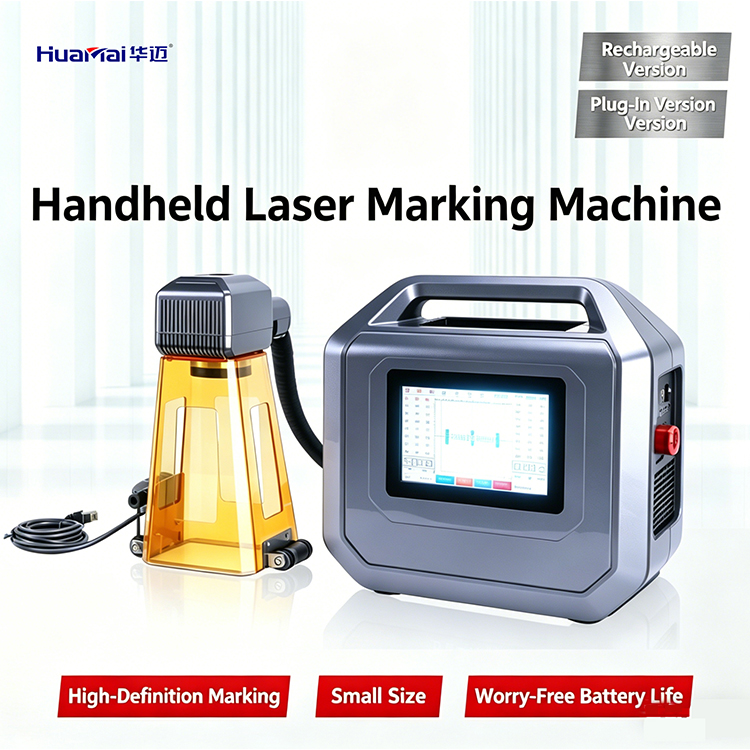

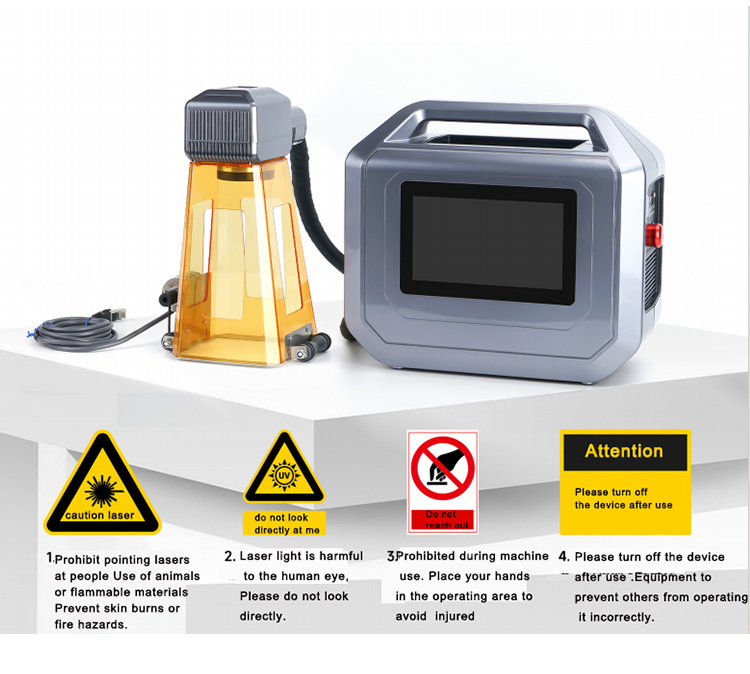

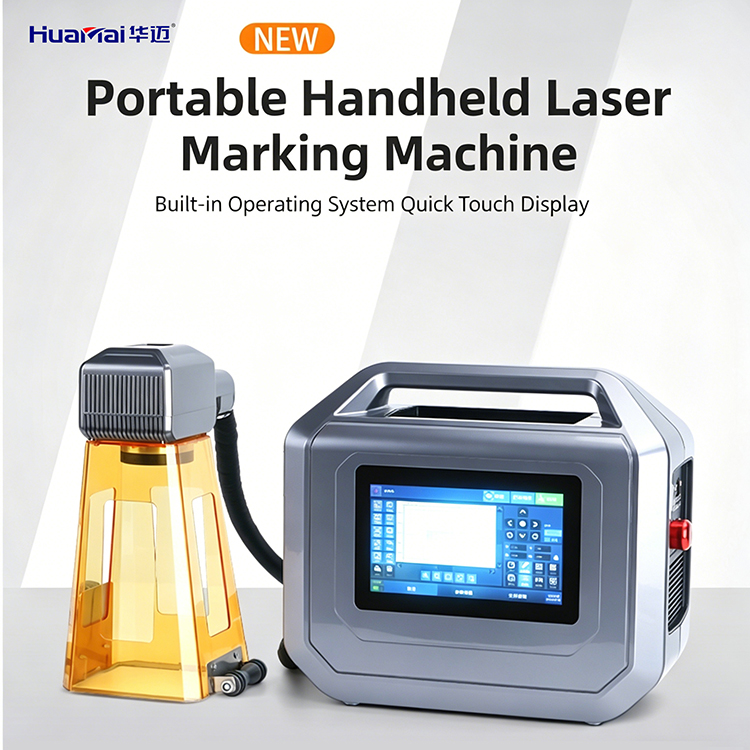

Portable Handheld Fiber Laser Marking Machine for Metal, Stainless Steel, Aluminum. 20W/30W High Speed Laser Engraver for VIN, Jewelry, Tools. Easy Operation, Wireless Control Perfect for Outdoor & Industrial Marking.
| Laser | Fiber laser generator (second-generation) |
| Output power | 20W/30W/50W |

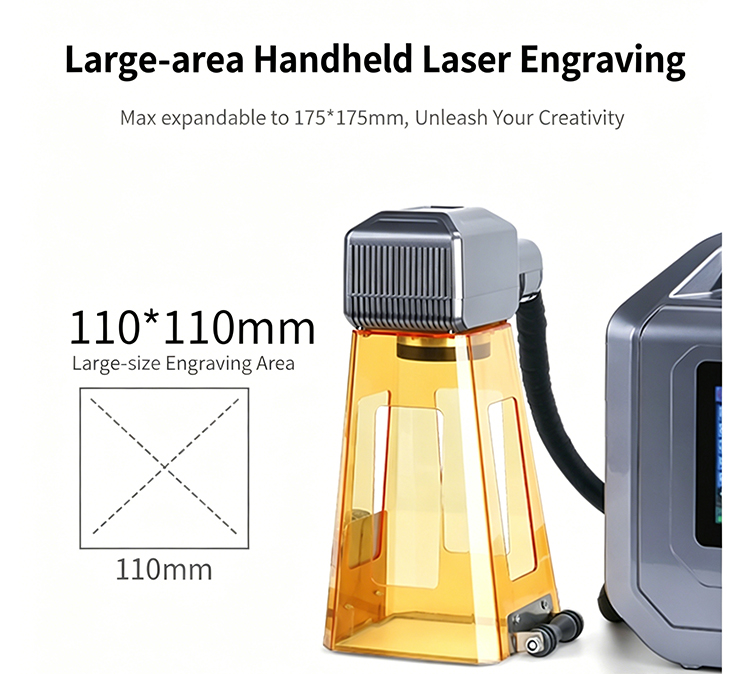

| Marking range | 100x100mm, 150x150mm, 175x175mm |
| Deflection mirror | High precision dual dimensional scanning system |
| Laser wavelength | 1064nm |
| Marking speed | ≤7000mm/s |
| Operating system | Linux system |
| Marking and engraving type | Dot matrix and vector all-in-one machine |
| Line width | 0.03mm |
| Repetitive positioning accuracy | 0.01mm |
| Positioning method | Red light positioning and focusing |
| Number of engraved character lines | Any row within the effective marking range |
| Print speed | 800 characters (related to material and printing content) |
| Font | Standard character libraries for Chinese, English, numbers, traditional Chinese, etc |
| File format | BMP, DXF, HPGL, JPEG, PLT |

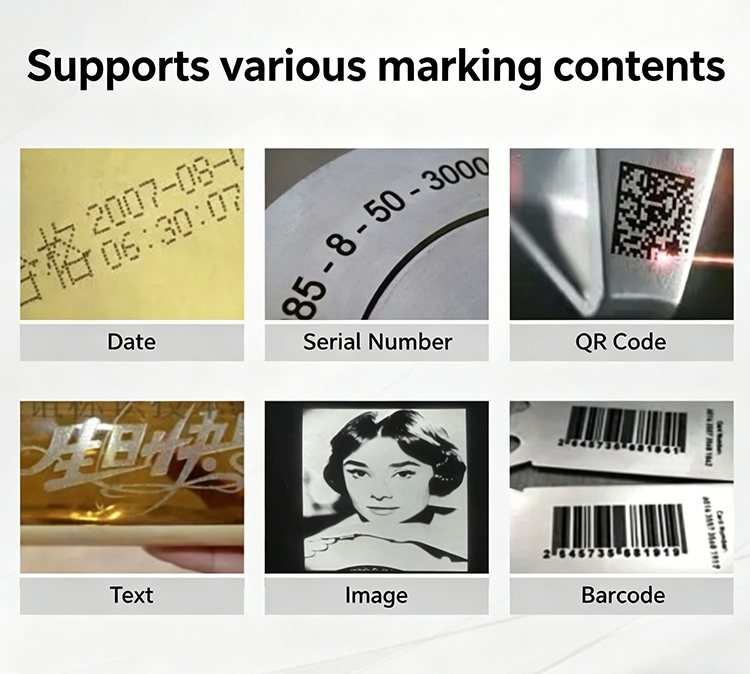

| Barcode | CODE39, CODE128, CODE126, QR |
| Power supply | 222Wh 10AH |
| Total power consumption | ≤250W |
| Operating temperature of the whole machine | 0-40°C |

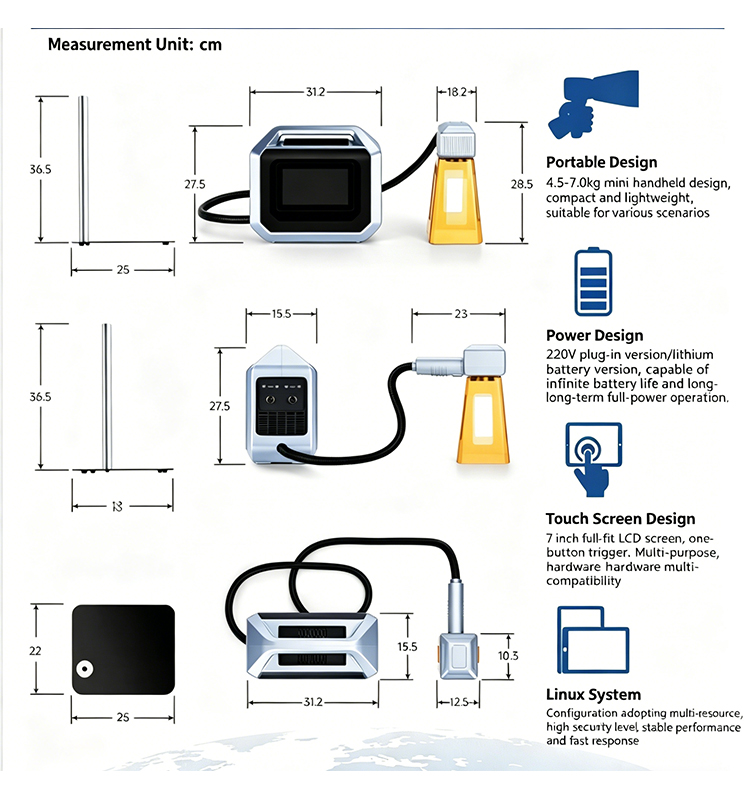

| Total weight | 4.5-7.0kg (plug-in version 4.5-6kg, battery version 5.5-7kg) |
| Customized Service | Customized according to customers requirements |

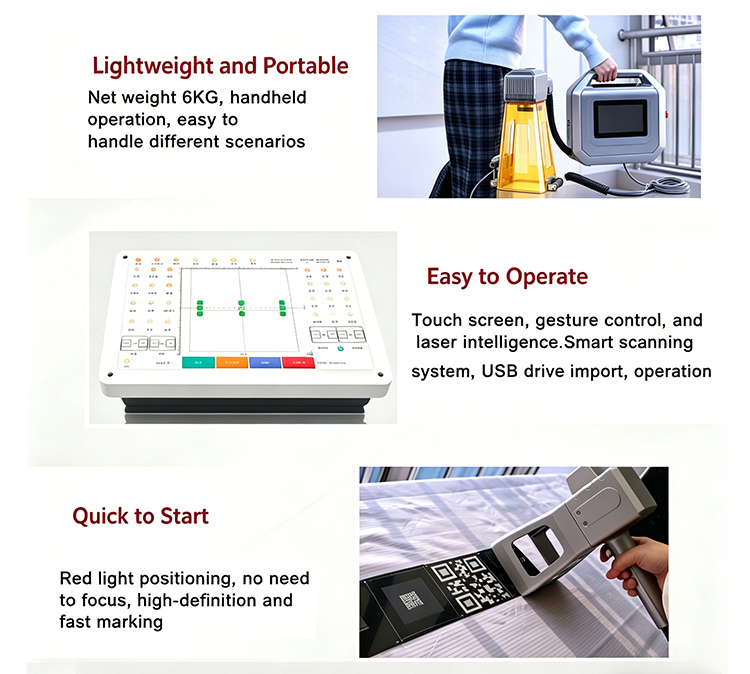

The operating system is simple, and the layout is flexible and convenient. It supports multiple languages and is fully compatible with standard software such as AutoCAD, CorelDRAW, and Photoshop.
Engineered for endurance, it has a long lifespan and can work continuously for 24 hours.

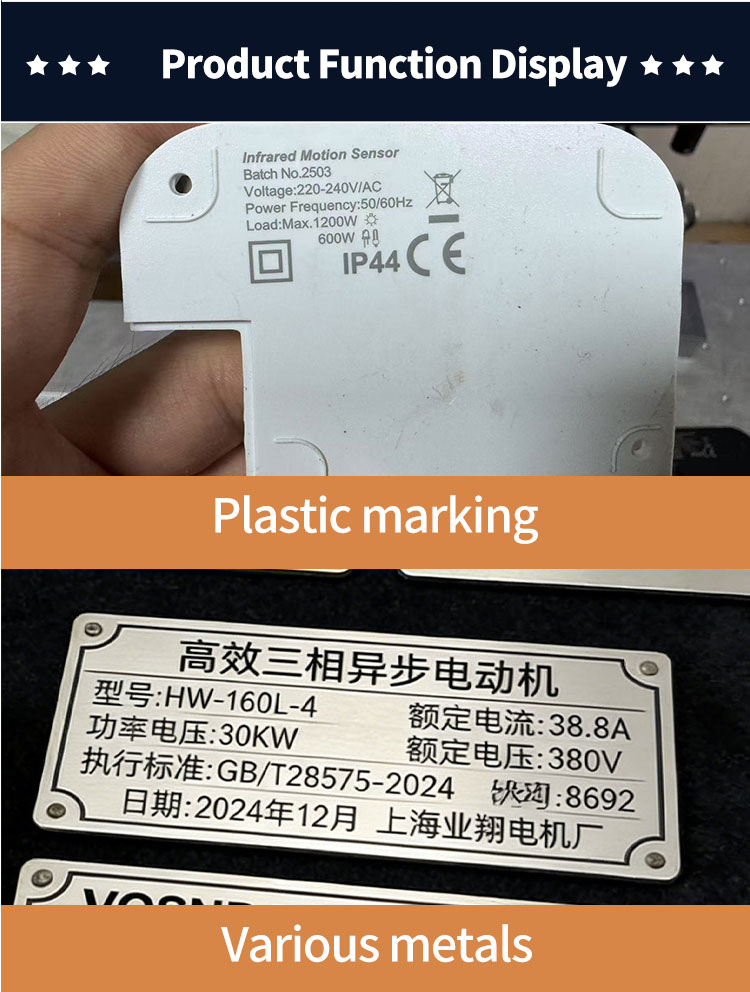

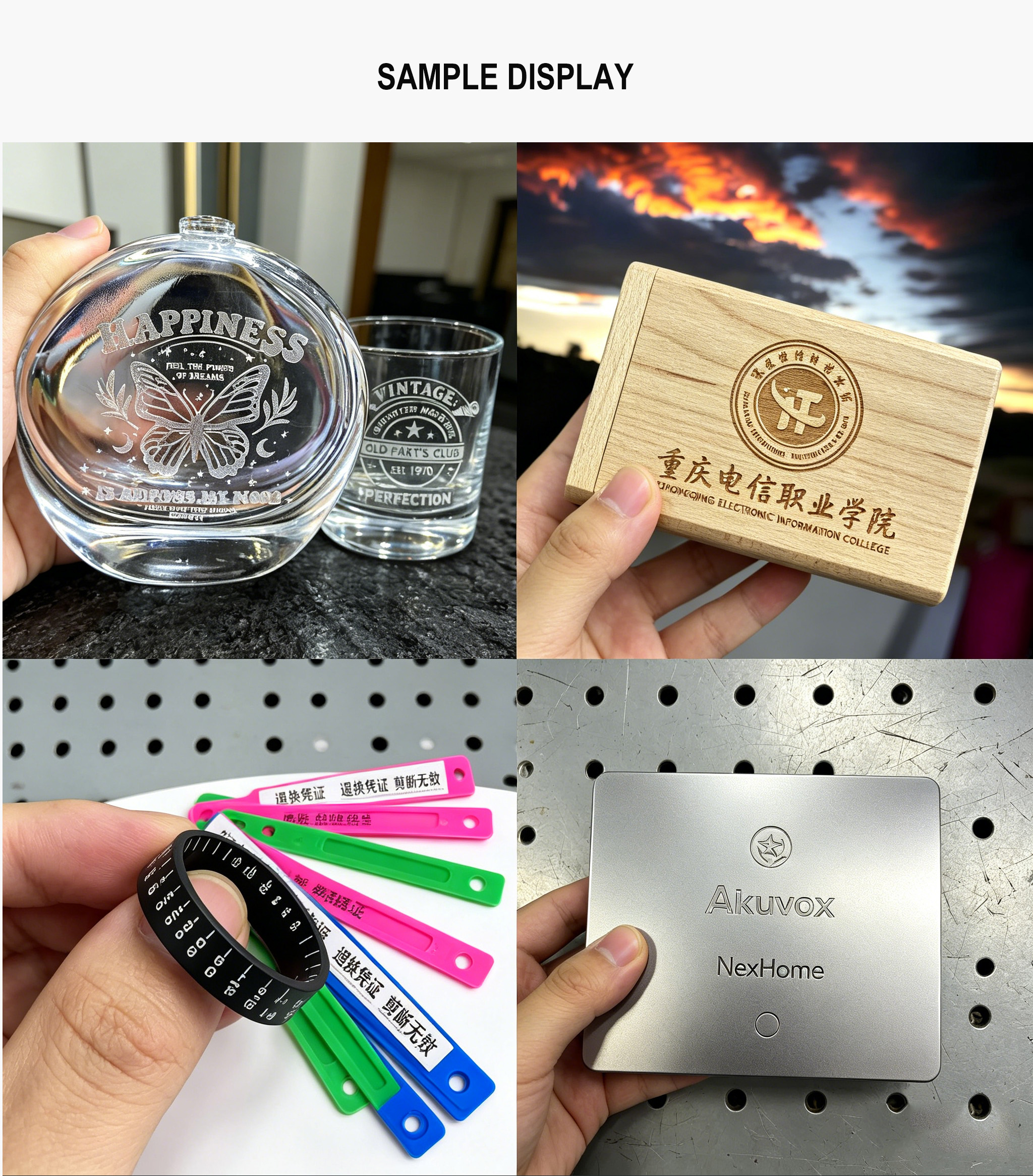

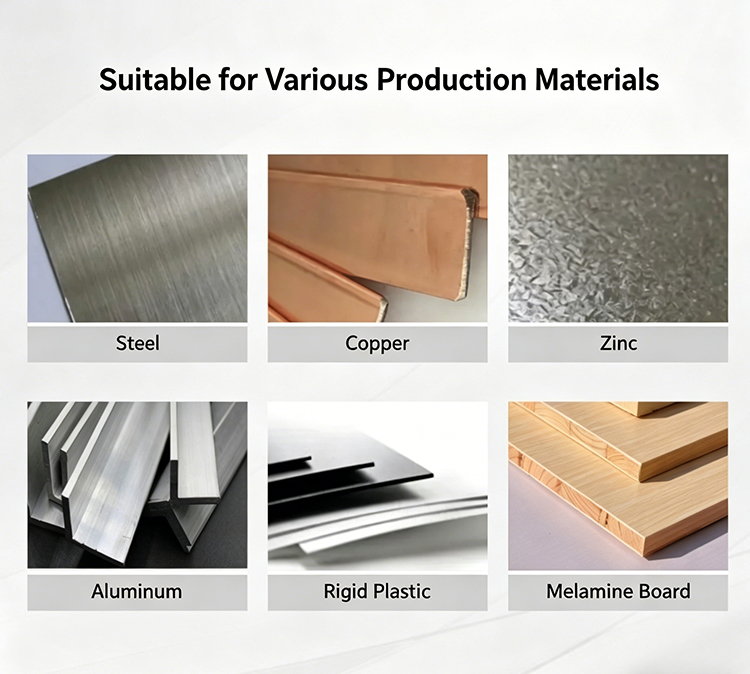

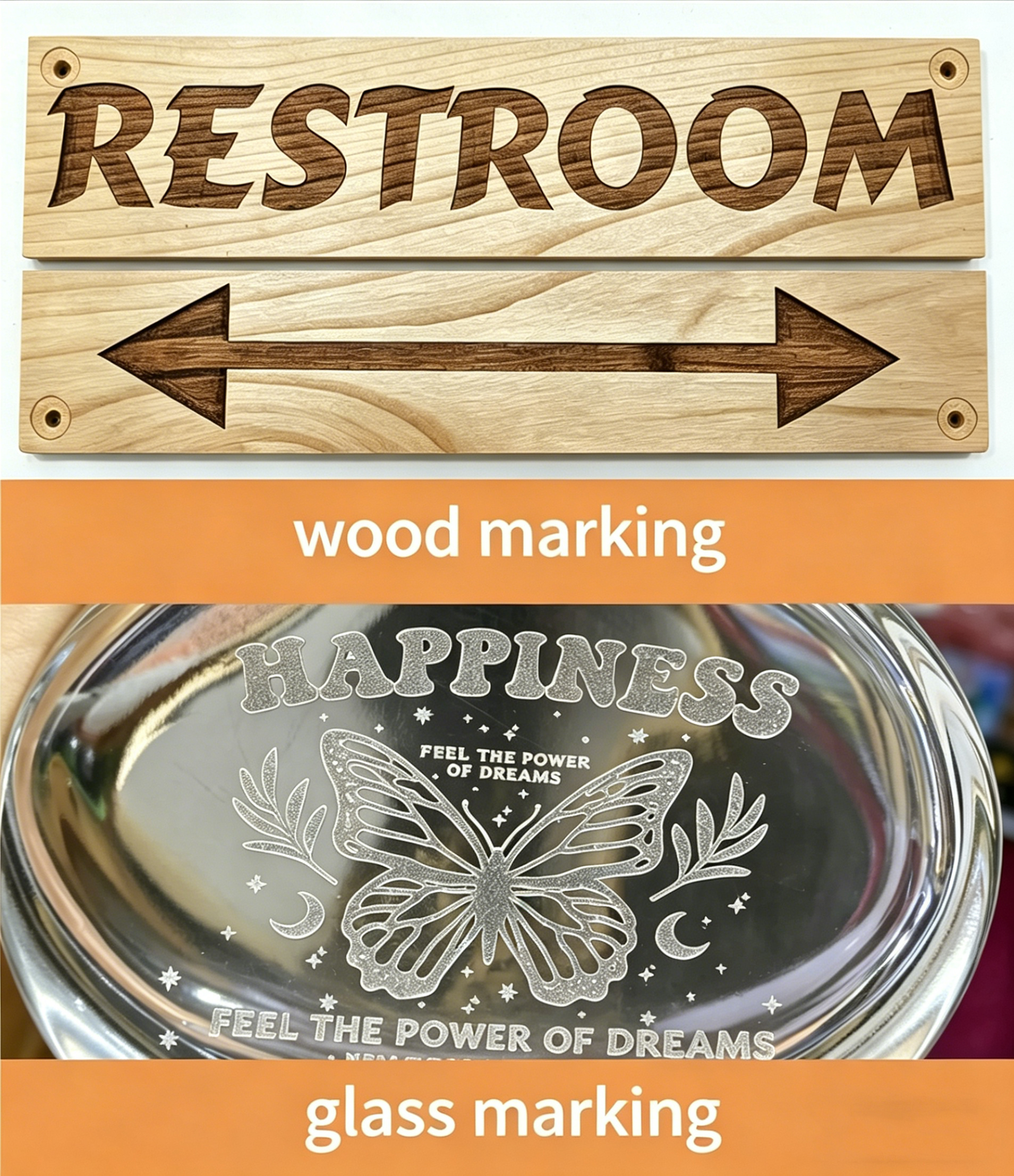

It can mark various materials, including wood, plastic, glass, and metal. Note that different materials require different power settings for optimal results.
We are a comprehensive enterprise integrating laser equipment research and development, production, sales, and after-sales. We have advanced planar and three-dimensional cutting technology and complete metal cutting and welding solutions.
According to the actual processing needs of customers, we have developed various types of laser equipment, including laser cutting machines, laser marking machines, laser welding machines, and laser cleaning machines. These systems are widely used in aerospace, machinery manufacturing, oil pipeline, sheet metal processing, and other industries.
Our comprehensive product quality monitoring and after-sales support systems ensure high-end quality and professional services. We adhere to the concept of innovation and are committed to providing integrated laser applications for users around the world.
