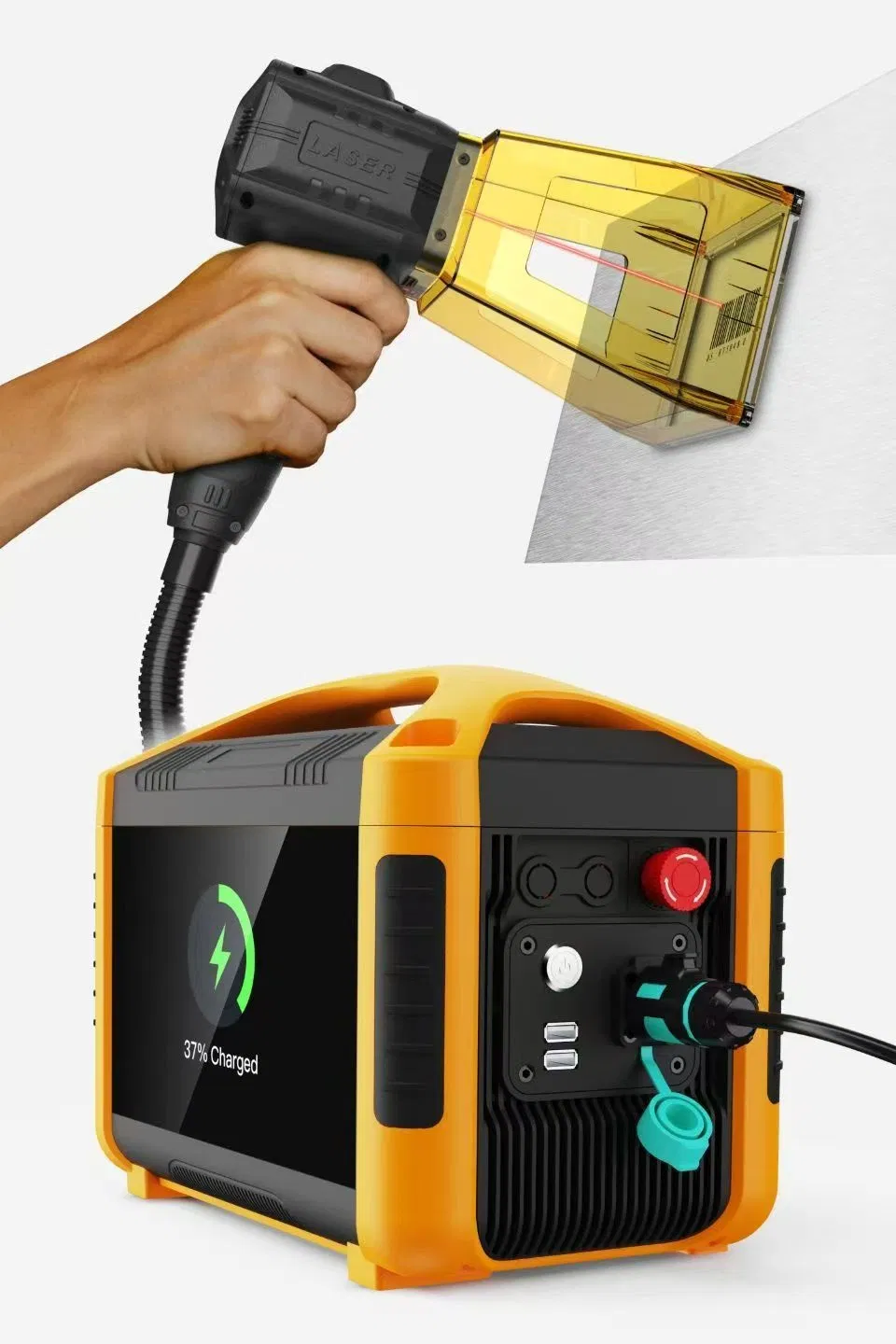

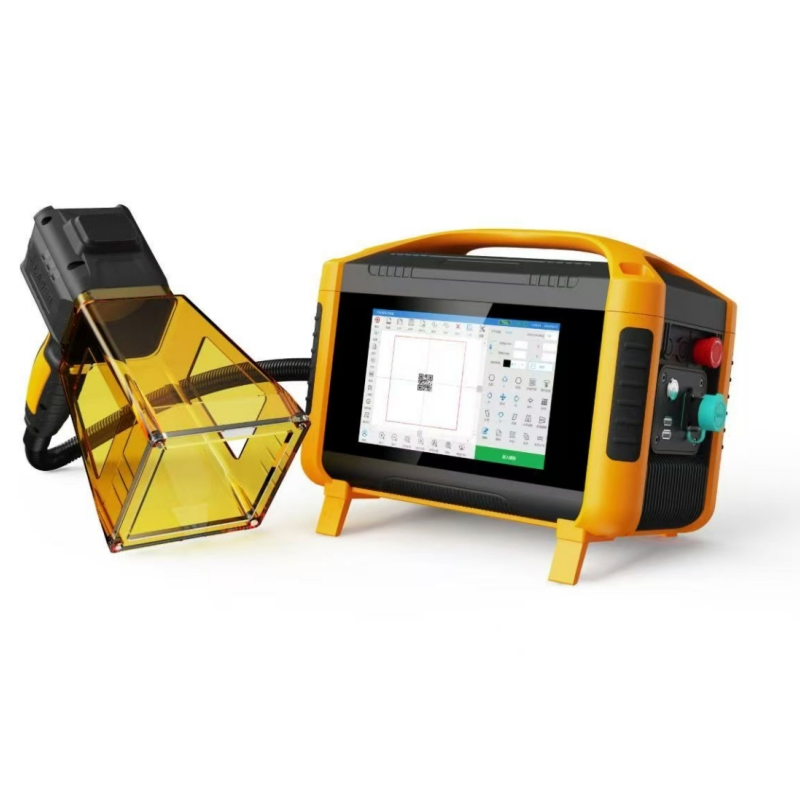

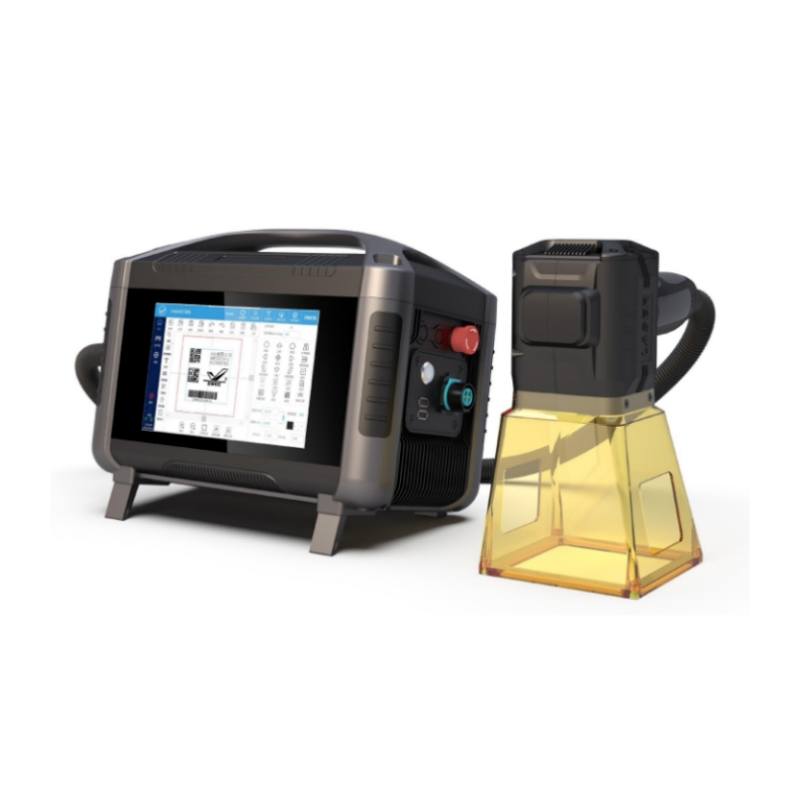

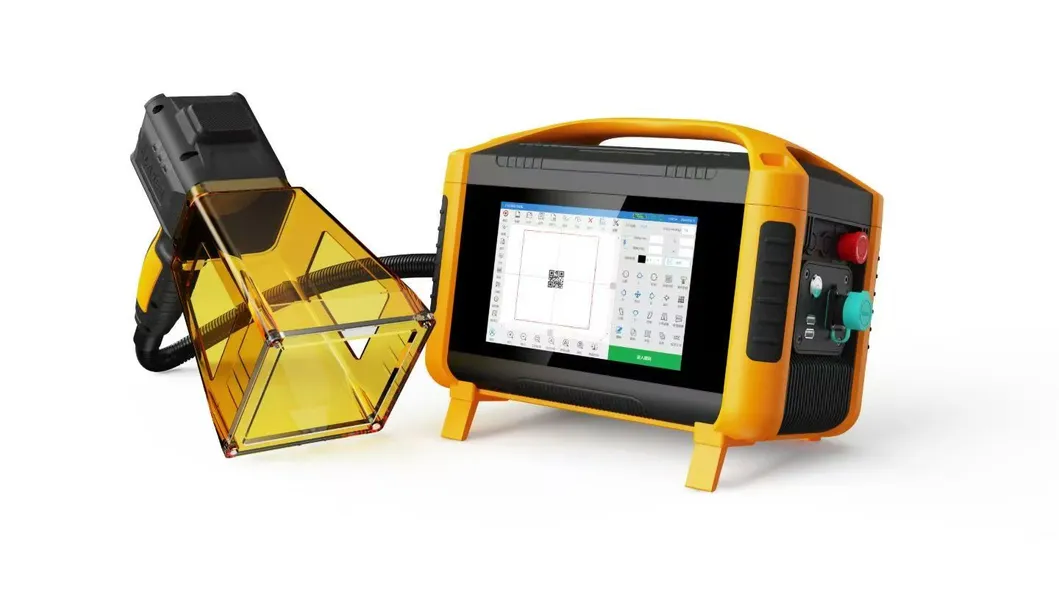

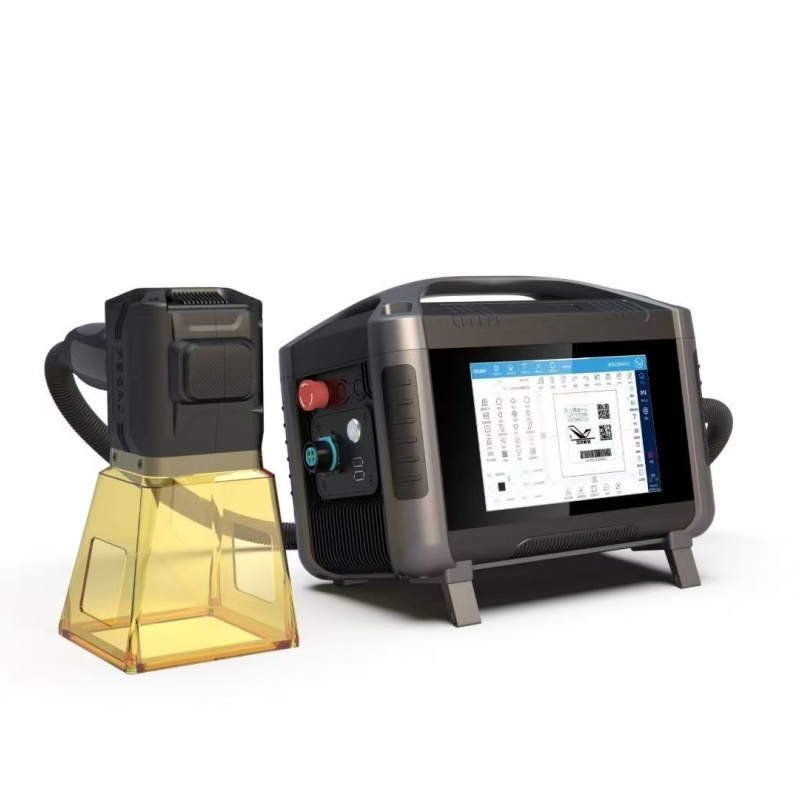

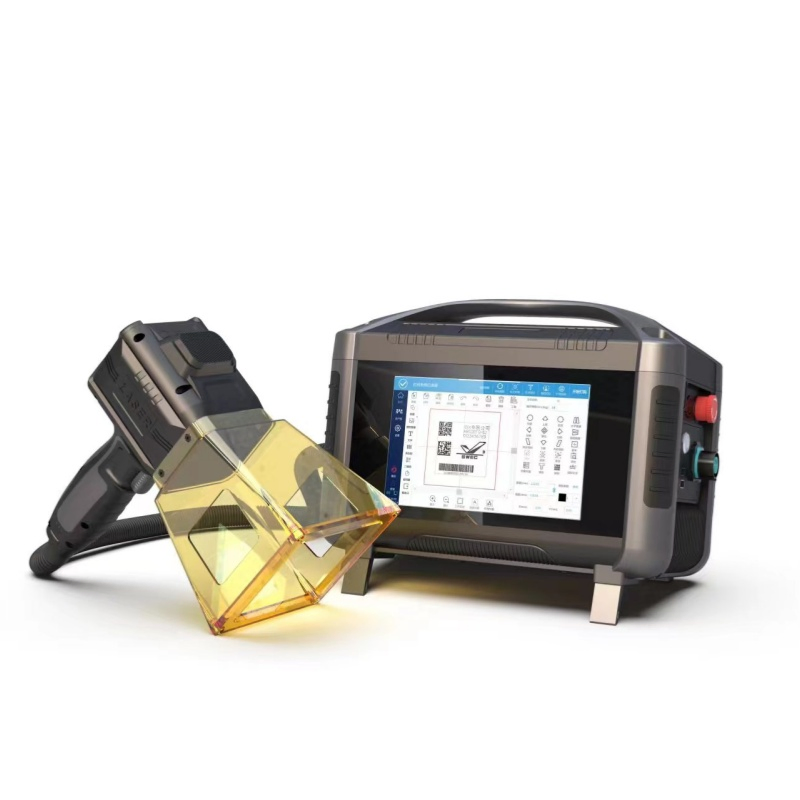

Experience the pinnacle of innovation with our new industrial-grade small laser marking machine. Crafted with the latest integrated technology, this marvel took two years to perfect and has been tested rigorously by over 100 satisfied customers. This sleek 6 kg micro-marking powerhouse effortlessly replaces the bulky 150 kg traditional equipment, eradicating the challenges often faced in after-sales service. Through our commitment to standardized mass production, we deliver consistent quality while dramatically slashing costs. Witness the transformation of the laser marking industry into the realm of miniaturization, significantly cutting down on logistics and after-sales expenses, thereby offering manufacturing companies an unparalleled competitive edge.
Application Details:
This exceptional machine finds its niche in the realm of fine engraving and high-precision products. It's ideal for precision equipment, auto parts, hardware, tools, accessories, electronic components, food packaging, integrated circuits (IC), electrical appliances, mobile communications, jewelry, and more. Enhance your production capabilities with precision and finesse.
Support Languages:
Arabic, English, Persian, French, German, Italian, Japanese, Korean, Portuguese, Russian, Simplified Chinese, Spanish, Thai, Traditional Chinese, Turkish, Vietnamese, Polish, Czech, Romanian, Slovak
Product Performance Standards
| Serial Number | Name |
|---|---|
| GB 7247-87 | Radiation safety of laser products, the need for equipment classification and user guidance |
| GB10320-88 | Electrical Safety of Laser Equipment and Facilities |
| ISO9000-3 | International software standards |
| IEC 536 | Classification of protection against electric shock for electrical and electronic equipment |
Technical Parameters
| Parameter | Value |
|---|---|
| Laser | Fiber laser generator (second generation) |
| Output power | 20W / 30W / 50W |
| Marking range | 100x100mm, 150x150mm, 175x175mm |
| Deflection shock mirror | High-precision two-dimensional scanning system |
| Laser wavelength | 1064nm |
| Marking speed | ≤7000mm/s |
| Operating system | Linux system |
| Marking line type | Dot matrix, vector integrated machine |
| Line width | 0.03mm |
| Repeat positioning accuracy | 0.01mm |
| Positioning method | Red light positioning and focusing |
| Number of lines to be engraved | Any line within the effective marking range |
| Printing speed | 800 characters (depending on material and printing content) |
| Font | Standard fonts for Chinese, English, numbers, Traditional Chinese, etc. |
| File format | BMP, DXF, HPGL, JPEG, PLT |
| Barcode | CODE39, CODE128, CODE126, QR |
| Power supply | 110V/220VAC, 333Wh 15Ah |
| Machine power consumption | ≤250W |
| Whole machine operating temperature | 0-40°C |

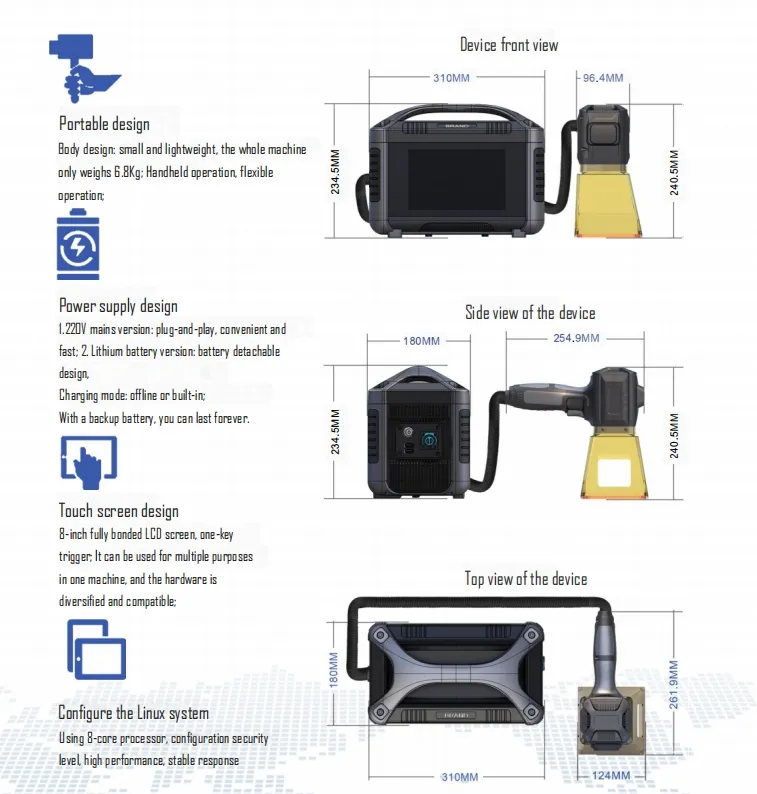

| Overall machine weight | 5-7.0kg (plug-in version: 5.5-6kg, battery version: 6-7kg) |
Laser Source Specifications
| Specification | Fiber Laser Generator |
|---|---|
| Output power | 20W / 30W / 50W |
| Maximum linear marking speed | <=7000 mm/s |
| Laser wavelength | 1064 nm |
| Marking range | 100*100mm, 150*150mm, 175*175mm |
| Operating system | Linux system |
| Line width | 0.03mm |
| Repeatability | 0.01mm |
| File format | BMP, DXF, HPGL, JPEG, PLT |
| Barcode | CODE39, CODE128, CODE126, QR |
| Power supply | 110V/220VAC, 333WH 15AH |
| Power consumption | <=250W |
| Operating temperature | 0-40°C |
Don't worry! Just tell us what materials you want to process (e.g., wood, metal, acrylic) and your intended applications (e.g., cutting, engraving). Based on your needs, we'll recommend the best machine model and provide a perfect solution.
We provide an English manual and instructional videos with the machine. If you need further assistance, our engineers offer free remote guidance via WeChat, Skype, or video call. For on-site support (charges apply), we can also arrange an engineer to assist you.
Simply send us photos or videos of the problem, and we'll provide free replacement parts (if covered under warranty). Additionally, we offer lifelong free technical support - just contact us anytime for help!
This machine is specifically optimized for metals and various plastic materials. It is ideal for engraving precision equipment, auto parts, hardware, tools, electronic components, and jewelry.
The system utilizes an integrated Air Cooling setup, which keeps the machine portable and light. It operates optimally at a temperature range of 0 to 40 degrees Celsius.
The machine operates on a reliable Linux system. It supports vector and image formats including BMP, DXF, HPGL, JPEG, and PLT, as well as barcode standards like CODE39, CODE128, CODE126, and QR codes.
