1 / 5
| PRODUCT PARAMETER | ||||

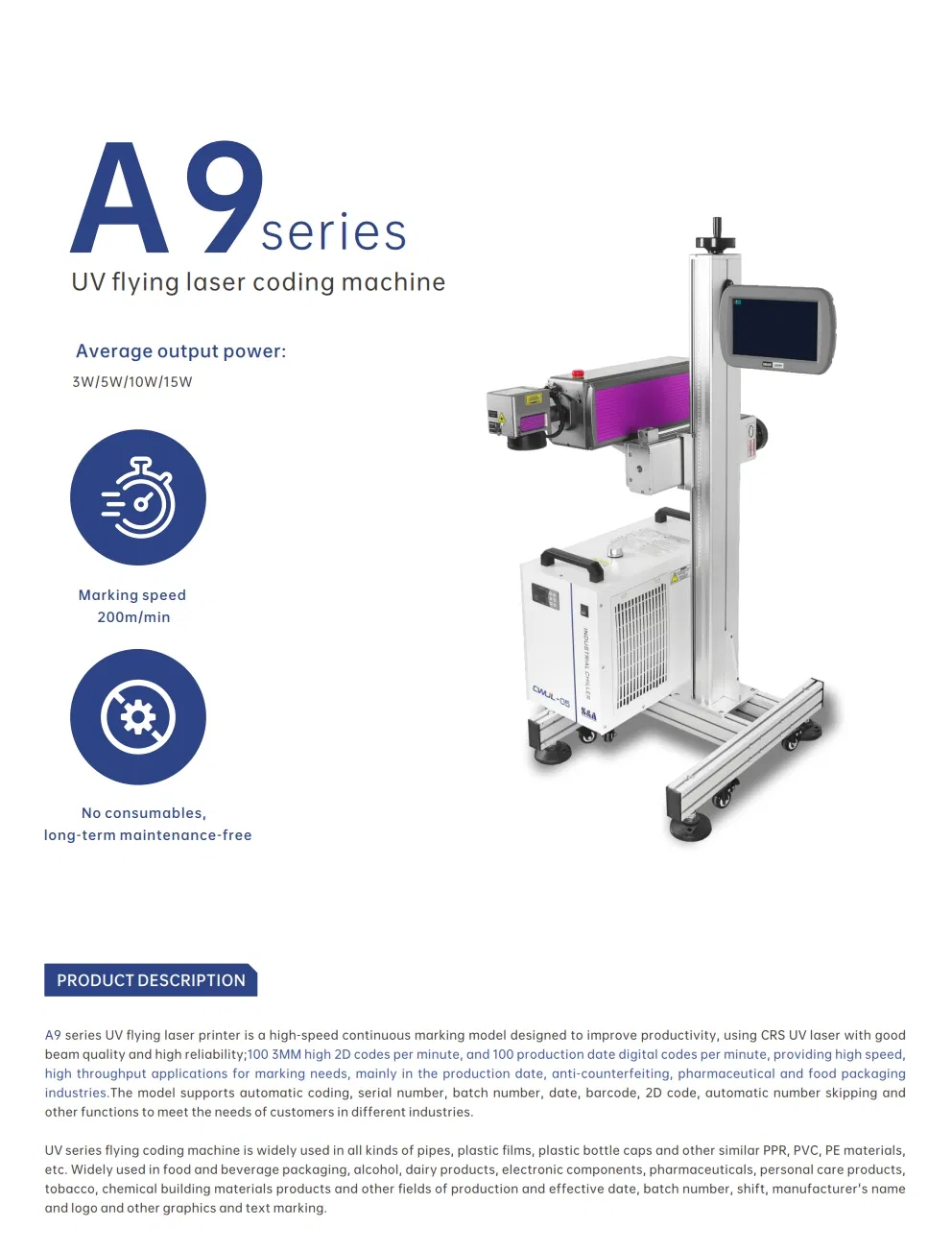

| Model Series | A Series | |||
| Model | Model | A9-K03 | A9-K05 | A9-K10 |
| Laser parameters | Laser Model | 3M | 5M | 10M |
| Output power | 3W | 5W | 10W | |
| Beam quality M² | ≤2 | ≤2 | ≤2 | |
| Pulse repetition frequency | 2-200 kHz | |||
| Laser wavelength | 355nm | |||
| Output power stability | <5% | |||
| Design life | Approx. 20,000 operating hours (non-life time) | |||
| Optical properties | Marking range | 50-300mm (Range optional) | ||
| Engraving depth | ≤1mm (Depends on power and time) | |||
| Engraving speed | ≤10000mm/s | |||
| Repetition accuracy | ±0.002 | |||
| Minimum marker line width | 0.1mm | |||
| Minimum character height | 0.15mm | |||
| Usage environment | Cooling method | Water cooling | ||
| System power supply | 1200W / 220V / 50Hz (Connectable to 110V) | |||
| Temperature humidity | 0-40°, 30%sRH≤85%, Air conditioning is required for out-of-range use | |||
| Oil mist, condensation | Not allowed | |||
| Other parameters | Operating System | Flying coding system | ||
| File format | The software supports text, 2D codes, bar codes, running numbers, graphics and other marking content | |||

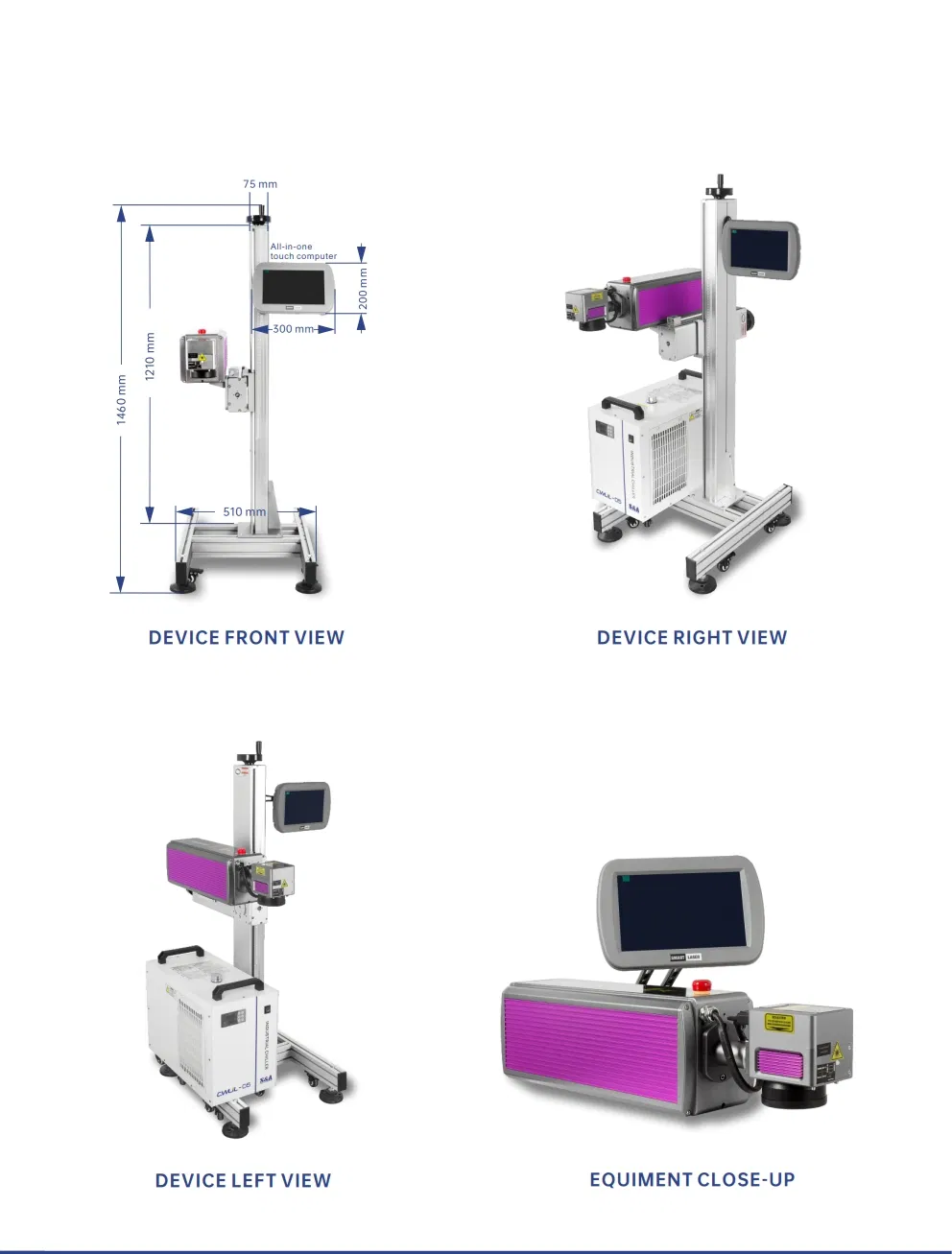

| External dimensions | 660X510X1460 mm | |||
| Packing size | Mainframe: 780X330X280 mm Stand: 1340X340X240 mm | |||
| Net weight of the whole machine | About 16.3KG; including the bracket about 39.8KG | |||
| Gross weight | About 19.3KG; including the bracket about 45.1KG | |||
