Kinray Laser
1 / 5
Nonmetal co2 laser cutting and engrave machine
| Model | VML1309X(H)2H(M) | VML1610X(H)2H(M) | VML1812X(H)2H(M) |
|---|---|---|---|
| Working Area | 1300*900mm | 1600*1000mm | 1800*1200mm |
| Laser Power | 60w/80w/100w/130w//150w | ||
| Laser Type | CO2 Sealed Laser Tube,10.6μm | ||
| Cooling Type | Water Cooling | ||
| Engraving Speed | 0-60000mm/min | ||
| Cutting Speed | 0-40000mm/min | ||
| Laser Output Control | 0-100% Set by Software | ||
| Min.Engraving Size | Chinese:2.0mm*2.0mm,English Letter:1.0mm*1.0mm | ||
| Highest Scanning Precision | 4000DPI | ||
| Locating Accuracy | ≤+0.01mm | ||
| Controlling Software | DSP Control System | ||
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | ||
| Compatible Software | CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc. | ||
| Color Separation | Yes | ||
| Drive System | High-precision 3-phase Stepper Motor | ||
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | ||
| Power Supply | AC110V/220V+10%,50HZ/60HZ | ||
| Working Environment | Temperature:0-45C,Humidity5-95%(No Condensate Water) | ||
What materials can this CO2 laser machine cut and engrave?
This machine is designed for processing nonmetal materials. It is widely used in industries such as leather, carpentry, domestic decor, printing & packaging, crafts, and advertising.
What are the available working area dimensions?
We offer three main models with different working area sizes: VML1309X (1300*900mm), VML1610X (1600*1000mm), and VML1812X (1800*1200mm).
What is the lifespan and warranty of the laser tube?
The machine has an extensive working life of up to 100,000 hours. The laser tube itself comes with a 10-month warranty, and the main machine features a 2-year warranty.
What software options are compatible with the machine?
It utilizes a professional DSP Control System and is highly compatible with industry-standard design software, including CorelDraw, Photoshop, AutoCAD, and Tajima.
What cooling system does the CO2 laser machine require?
The machine is built with an efficient water-cooling system that keeps the laser tube at an optimal temperature for stable operation during long-term projects.

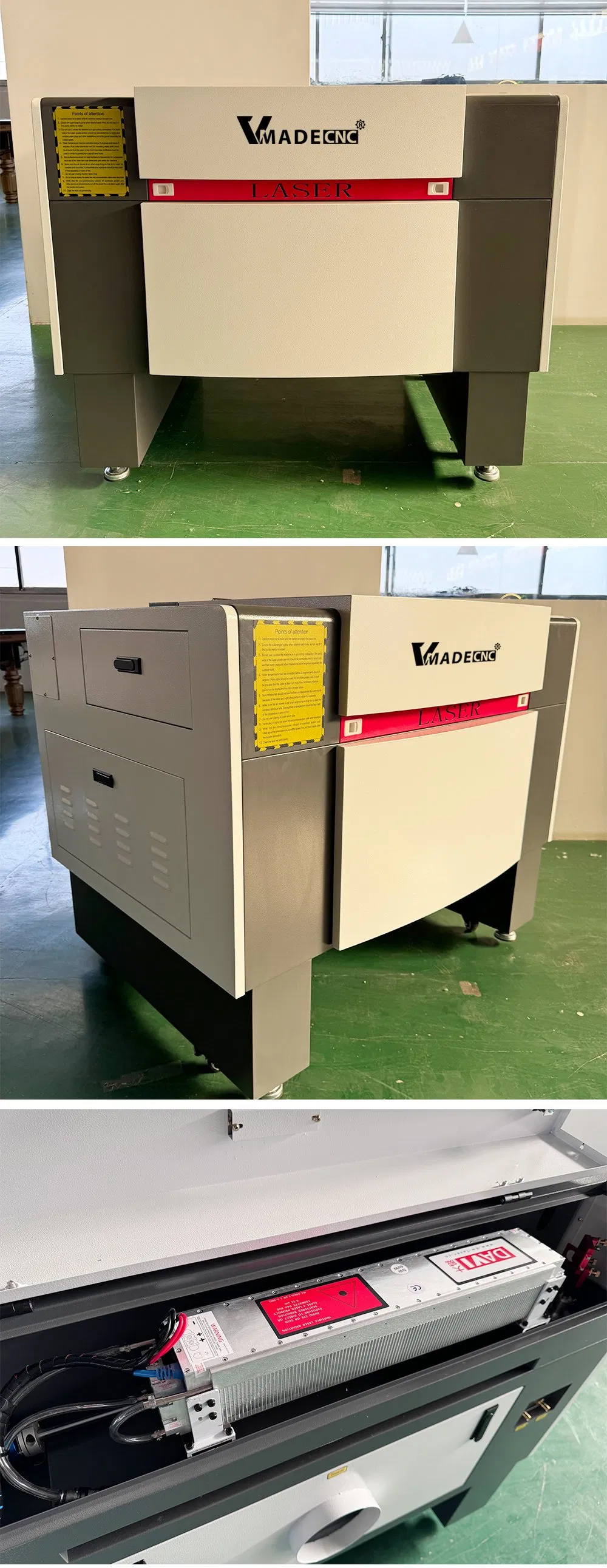

How is the laser machine packaged for shipment?
The machine is safely enclosed in a robust wooden box designed for sea freight. This ensures maximum protection during loading, transit, and unloading processes.
