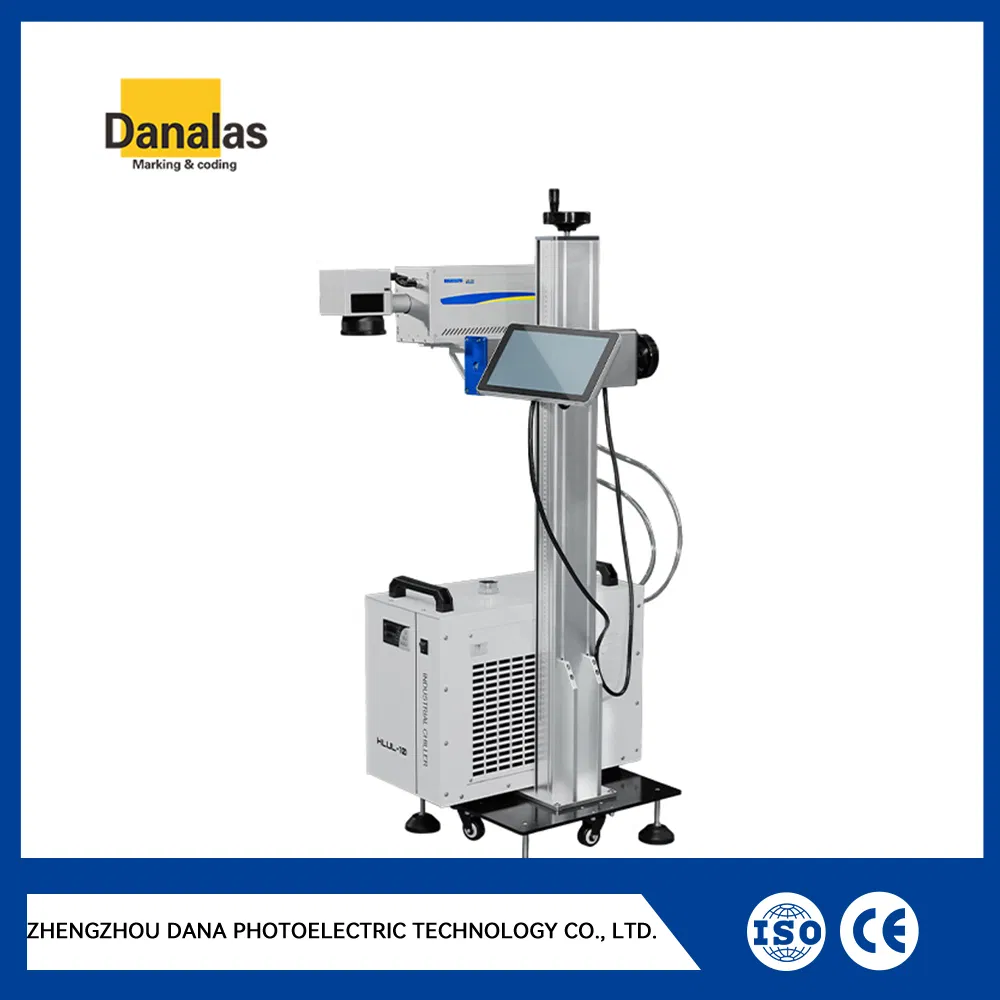

F20 series UV Laser Marking Machines
The F20 series UV laser marking machine excels in ultra-fine marking on production lines. The Ultraviolet laser's minute focus spot enables exceptionally fine printing, making it ideal for detailed marking on food and pharmaceutical packaging materials.

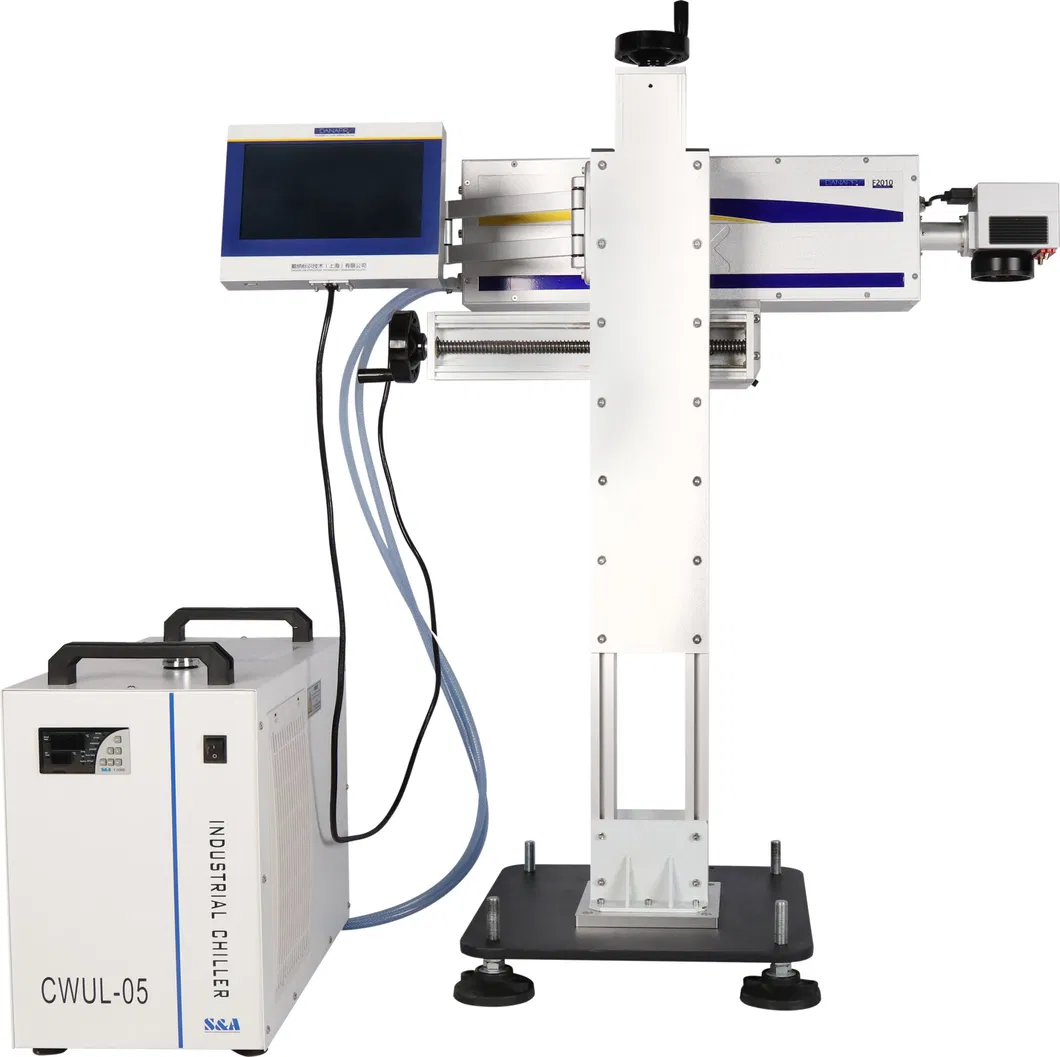

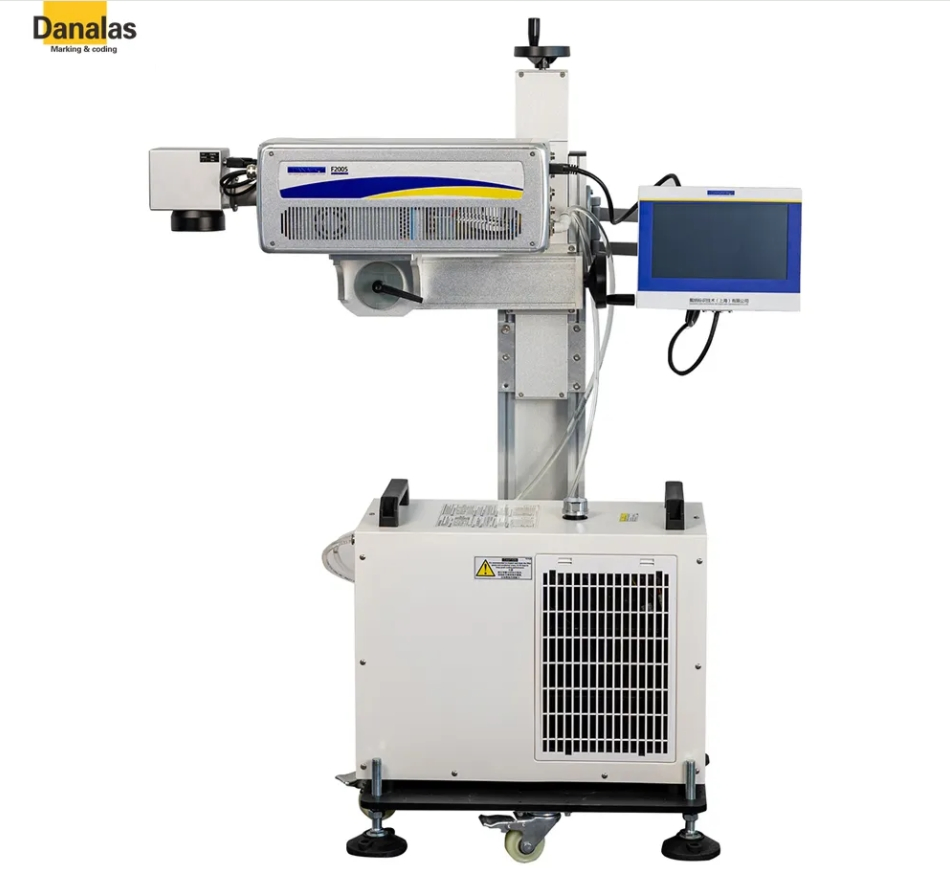

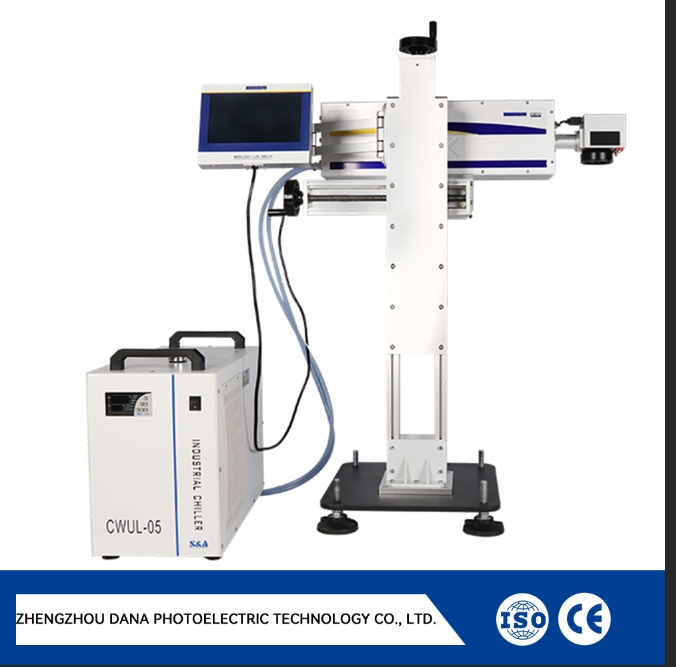

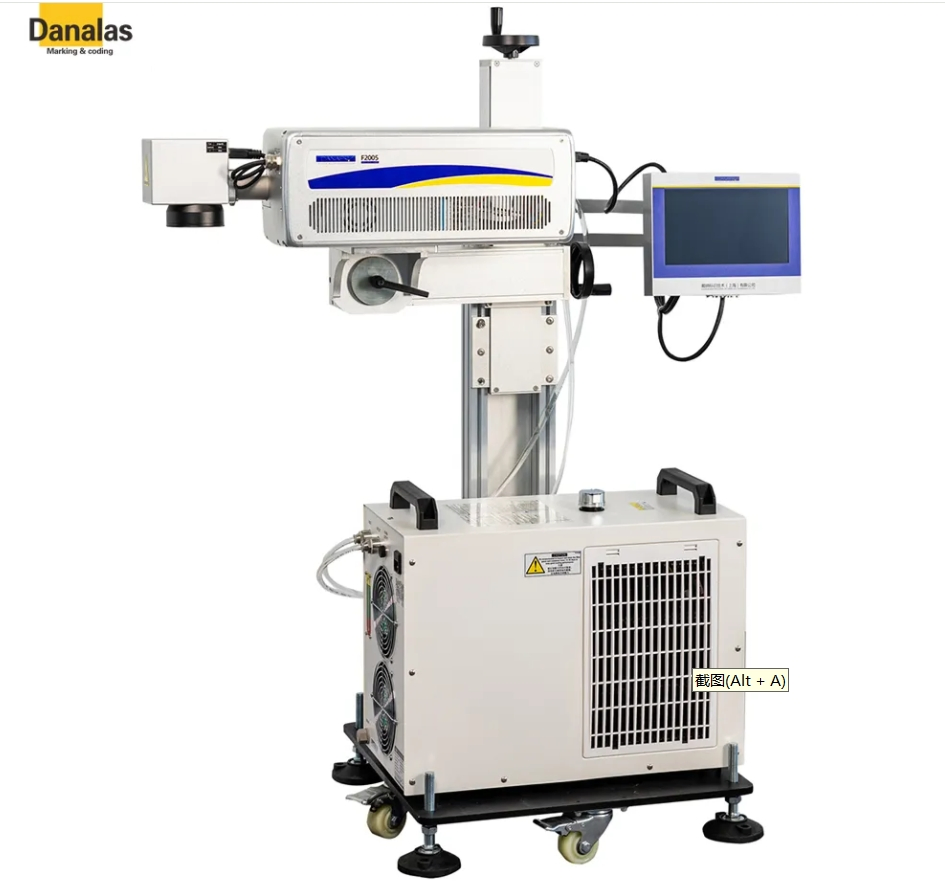

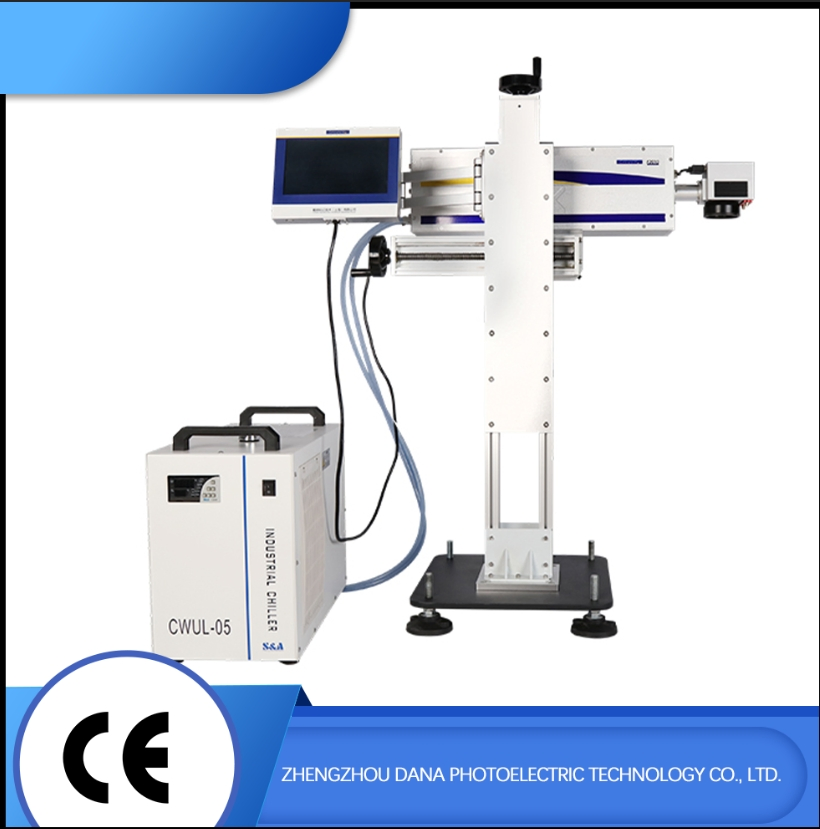

1. The F20 series UV laser marking machine comprises a UV laser, Galvanometer, Field mirror, Touch-Screen Controller, and system support, with an aluminum shell for stability and durability. Additionally, it offers optional water cooling or air cooling systems tailored to the environmental needs of workshops.
2. The ultraviolet laser, with a wavelength of 355nm, achieves its marking effect by directly interrupting the molecular chains of materials using short-wavelength light. This method significantly reduces mechanical and thermal deformation (cold processing), making it particularly suitable for materials that are sensitive to thermal radiation.
3. The system incorporates an automatic coding function, capable of generating variable data such as serial numbers, batch numbers, and dates tailored to user requirements. It is compatible with popular software applications including AUTOCAD, CORELDRAW, PHOTOSHOP, CAXA, and others. It supports a wide range of file formats including PLT, PCX, DXF, BMP, and more.
4. The machine offers four selectable power levels to meet the requirements of different materials, marking speed, and marking effect.
Compared with CO2 laser and fiber laser, UV laser has thinner printing lines, and can print small 2D codes on compact packaging.
Utilizes a narrow laser pulse width. Short processing time yields minimal thermal effect, keeping materials free from deformation or burning.
Expands flexibility with a maximum marking range up to 500*500 mm.
Supports customizable combination of marking content, including barcodes, text, graphics, and 2D codes.

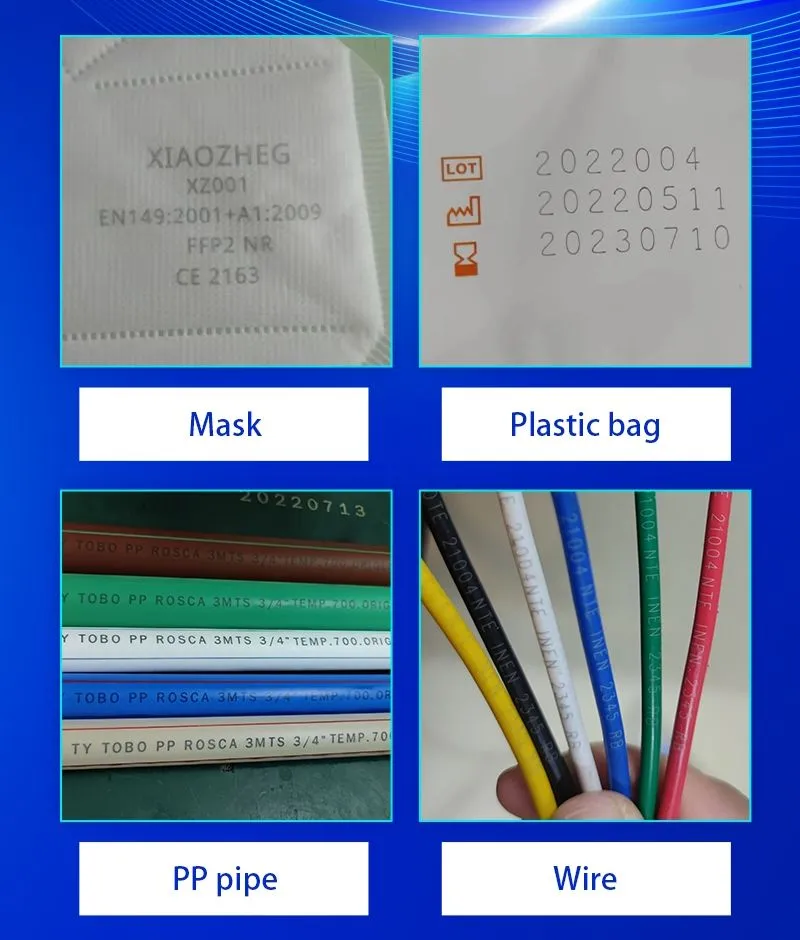

The UV Laser Marking Machine is applicable for various metal and non-metal materials. It is widely used in industries such as piping, cable, food and beverages, pharmaceuticals, medical products, and more.
| F2020 UV Laser Marking Machine Specification | |
|---|---|
| Laser-type | Ultraviolet Laser Wavelength: 355nm, 30000hrs continuous working time |
| Laser Power Class | 20W |
| Focal Length | 220mm (Standard) |
| Maximum line marking speed | 25m-30m/min (according to the marking content and requirements) |
| Marking Parameters | |
| Marking Field | 110mm×110mm; Max: 500×500mm |
| Marking lines | Set any line numbers within the valid marking range |
| Minimum Line Width | 0.01mm |
| Production Line Speed | Depending on the marking content |
| Character Height | 0.4-70mm |
| Typeface | Single line, Dot matrix, True Type |
| Marking Content | Text, Graphics, Barcode, Two-dimensional code, Dynamic serial number, real-time clock, TXT file, RS232 Communication data |
| Marking Angle | Any Angle, adjustable in 4 dimensions |
| Operation Interface | |
| Monitor | Industrial Touchscreen |
| Operating Language | Chinese, English and other Languages |
| Operating System | Linux |
| Input Method | Handwriting |
| Working Environment Requirements | |
| Protection Degree | ≥IP54 |
| Cooling | Water-Cooling |
| Working Temperature | -5-45ºC |
| Working Humidity | 80% RH, Non-Condensing |
| Power Supply | 220V, 1KVA |
Offering specialized coding equipment designed to deliver high-quality coding performance at reasonable costs. The comprehensive product lineup features state-of-the-art CO2 laser marking machines, UV laser marking machines, Fiber laser marking machines, and industrial printing systems suited for multiple complex dynamic production environments.
The UV laser operates with a minute focus spot and a wavelength of 355nm. This short wavelength breaks molecular chains directly through "cold processing" instead of thermal melting, preventing material burning, deformation, or mechanical stress. This makes it perfect for delicate and ultra-fine print markings on packaging materials.
It is highly effective on nonmetal materials and various metals. It is commonly used in industries for pipelines, cables, food/beverage plastic packaging, and medical containers.
The machine has a maximum line marking speed of 25m-30m/min depending on the specific content and requirements. The standard marking field is 110mm×110mm, and it can be configured up to a maximum of 500×500mm.
The marking system is fully compatible with popular software packages like AutoCAD, CorelDRAW, Photoshop, CAXA, etc. It supports diverse file formats including PLT, PCX, DXF, BMP, and more, allowing easy integration of barcodes, 2D codes, and custom graphics.
The machine operates in temperatures ranging from -5°C to 45°C with a relative humidity level up to 80% (non-condensing). It features an ingress protection degree of ≥IP54 and uses a water-cooling system to ensure continuous, stable operation.
