Product Description

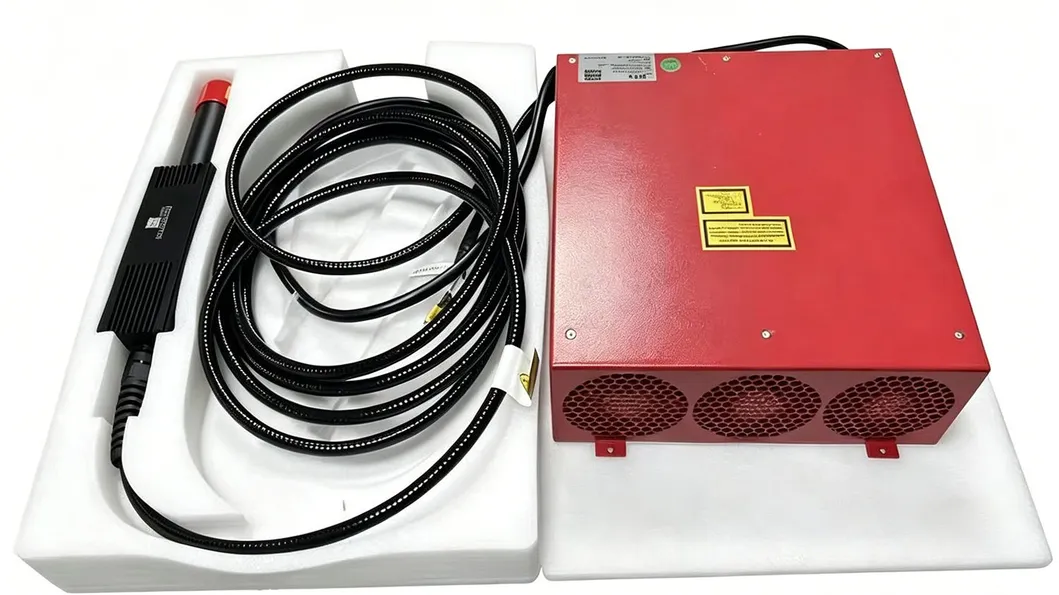

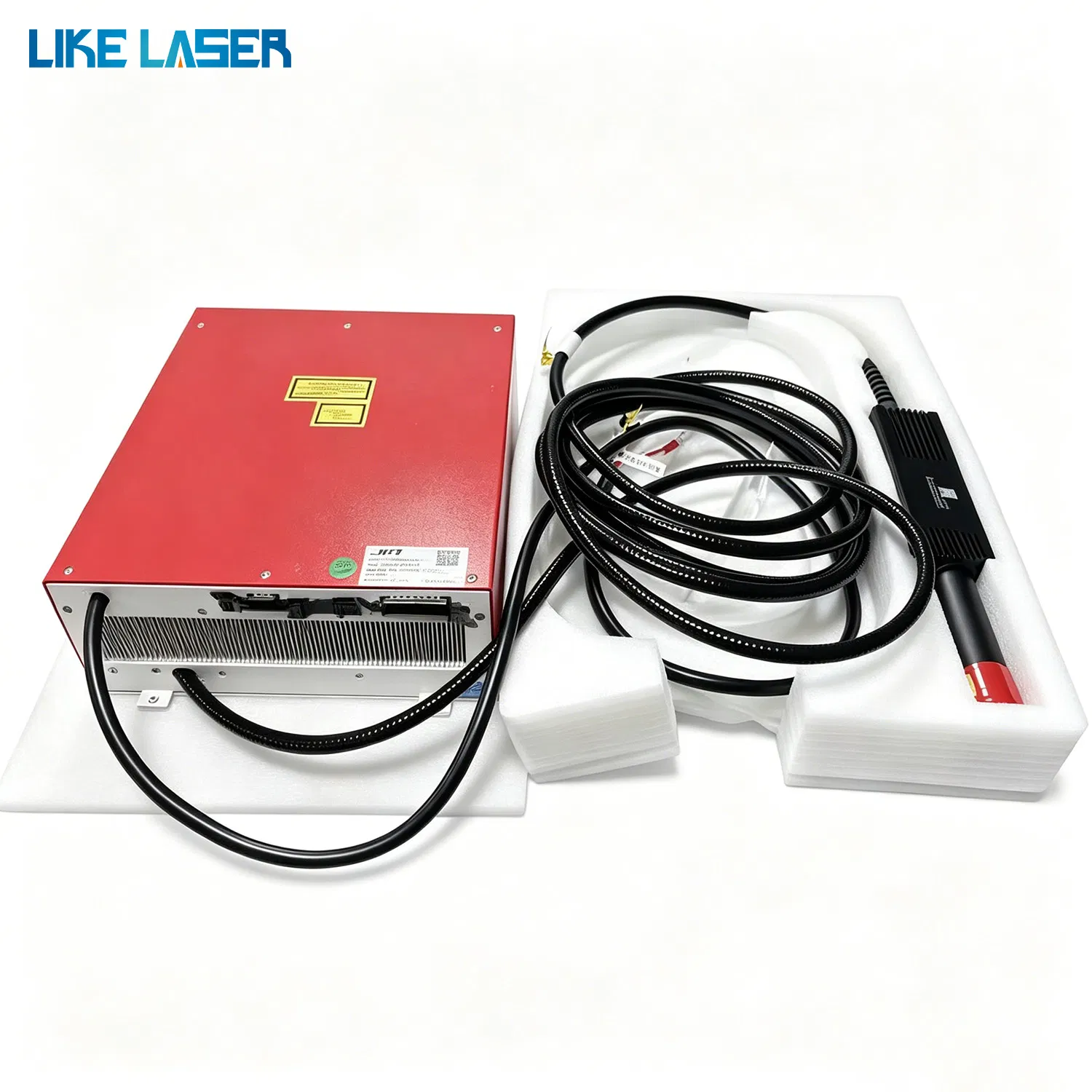

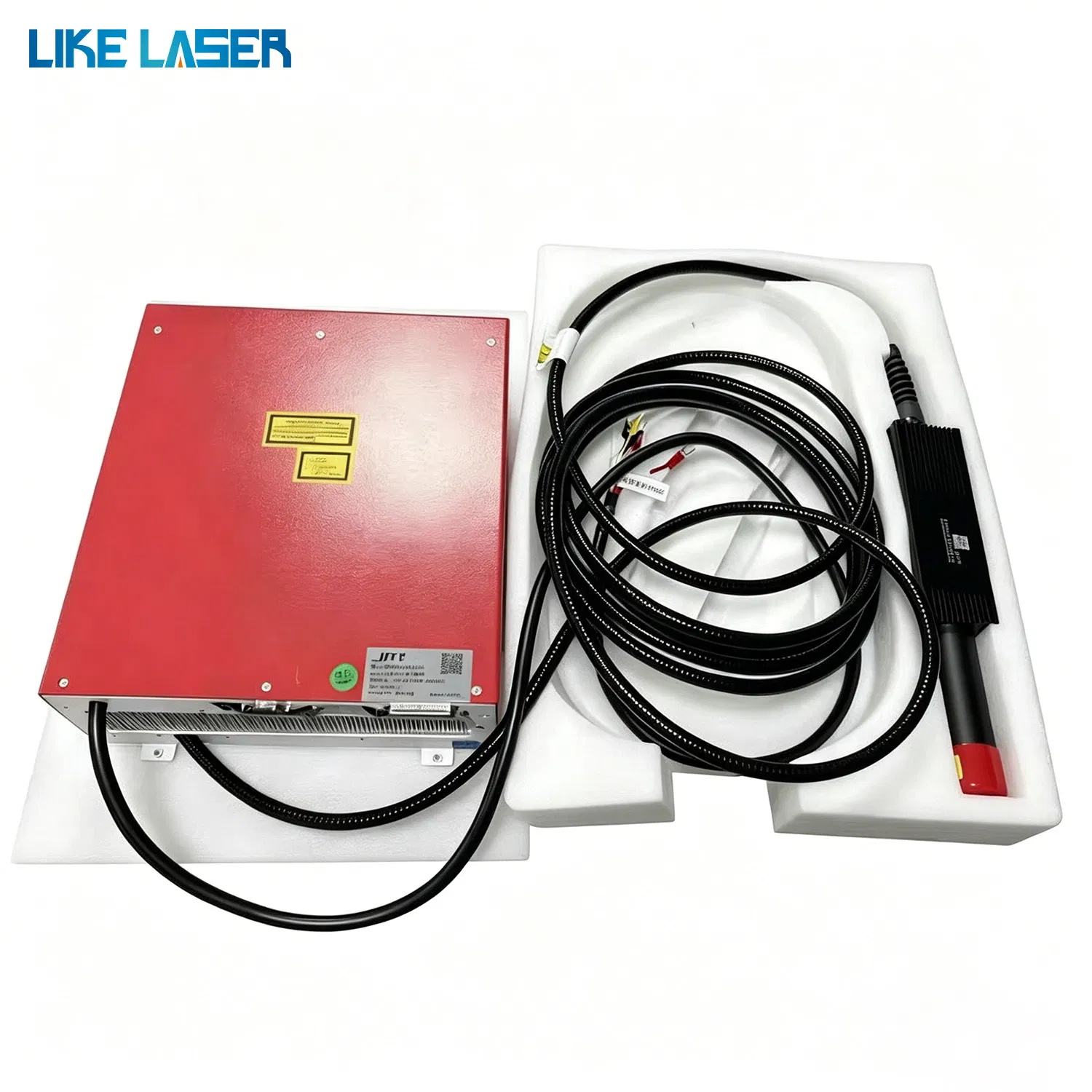

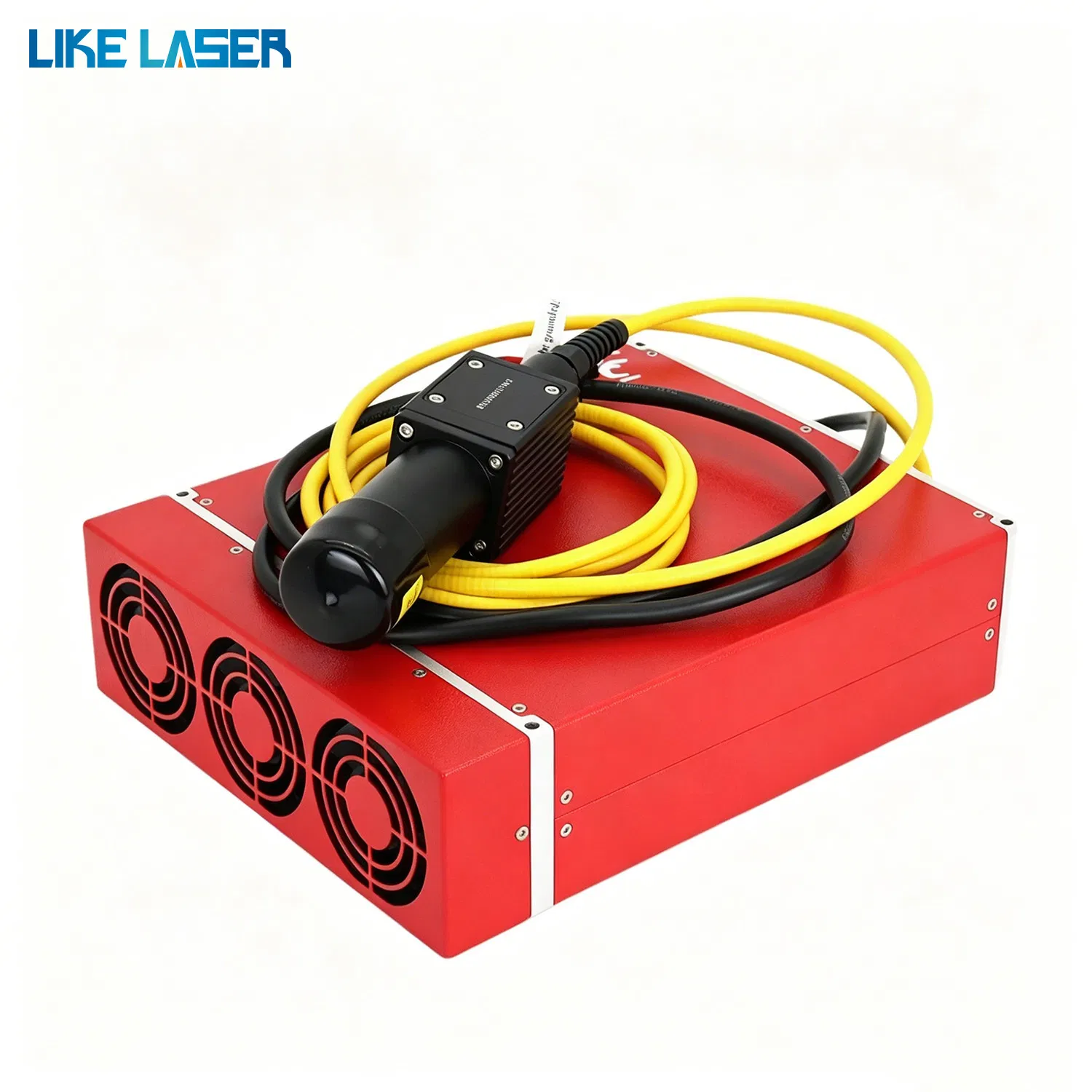

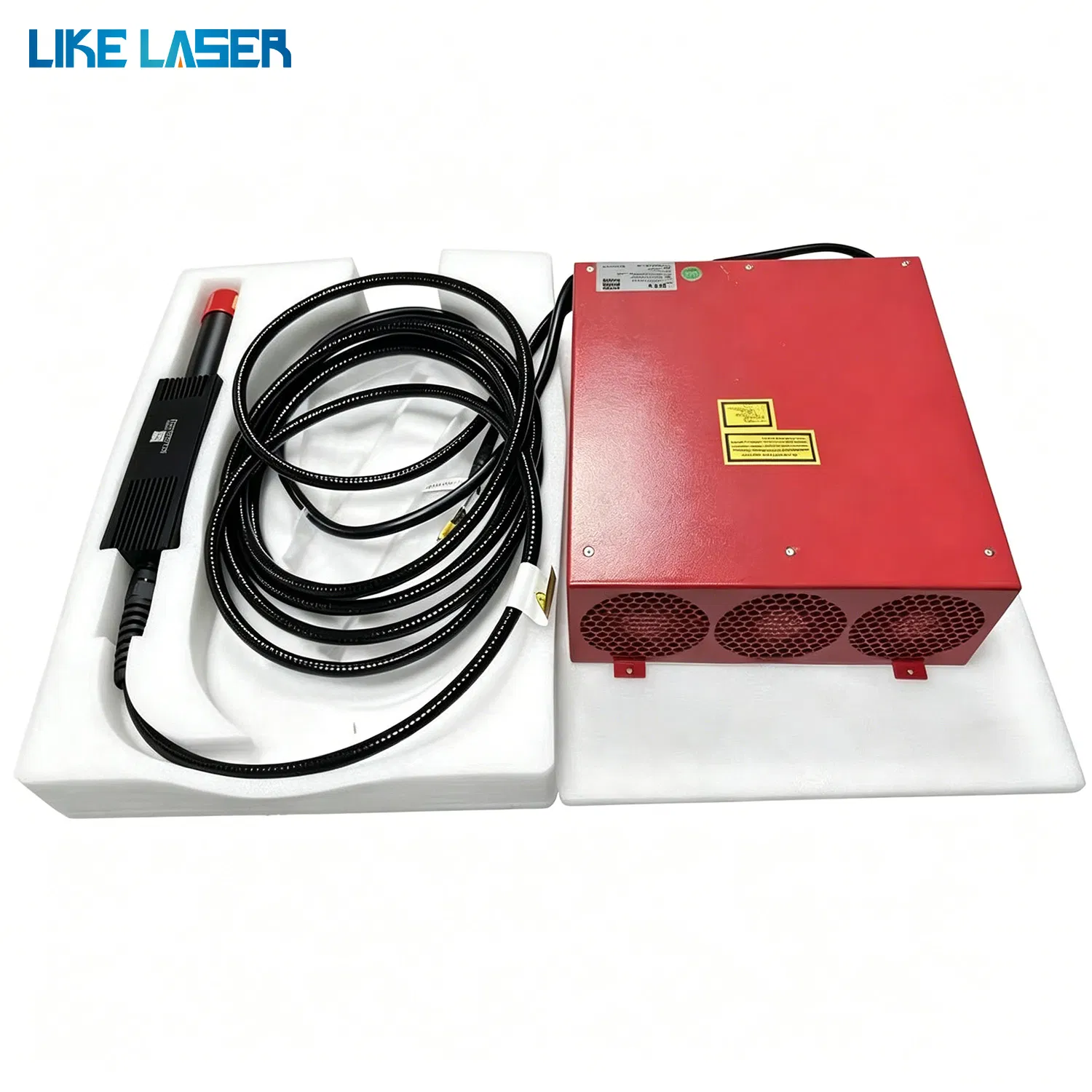

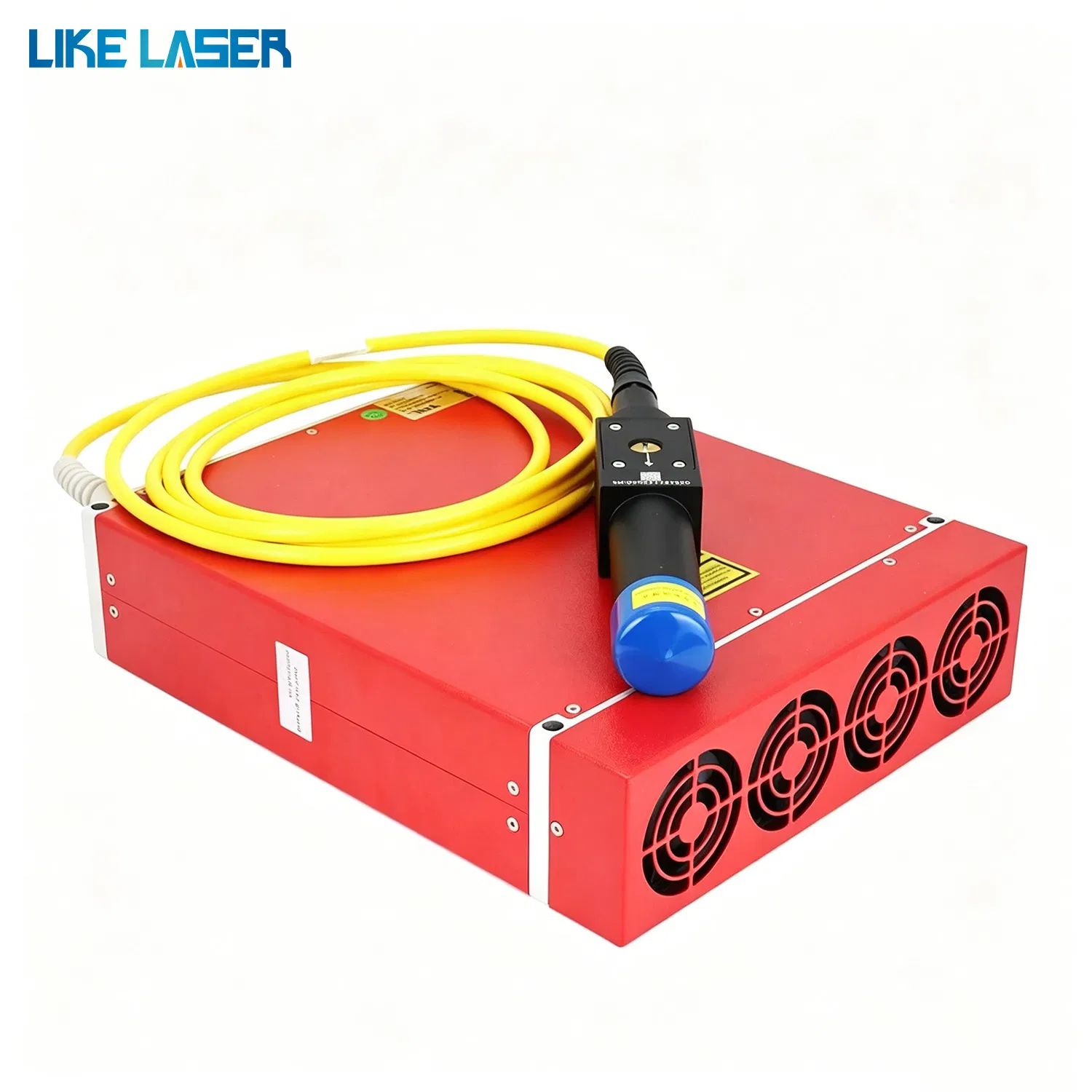

JPT M7 20-100W MOPA pulse width fiber laser module fiber laser marking machine laser source. JPT's M7 20-100W is a high-performance MOPA pulsed fiber laser with high power output, excellent beam quality, and flexible pulse control capabilities. It is compact and lightweight, and is widely used in precision marking and industrial processing fields.
This series adopts advanced MOPA architecture to achieve independent adjustment of pulse frequency and pulse width, while ensuring high peak power and balancing machining accuracy and consistency. The product includes multi power configurations ranging from 20W to 100W, with air cooling design, compact structure, and high reliability, suitable for applications such as high-speed marking, deep carving, color marking, and precision microfabrication.
Application
Aluminum oxide surface is polished, titanium plate is colored, plastic plate is labeled, metal frosted surface is polished, metal foil is welded, frame number is deeply engraved, stainless steel is colored, and pole piece is cut.
Product Parameters
ID

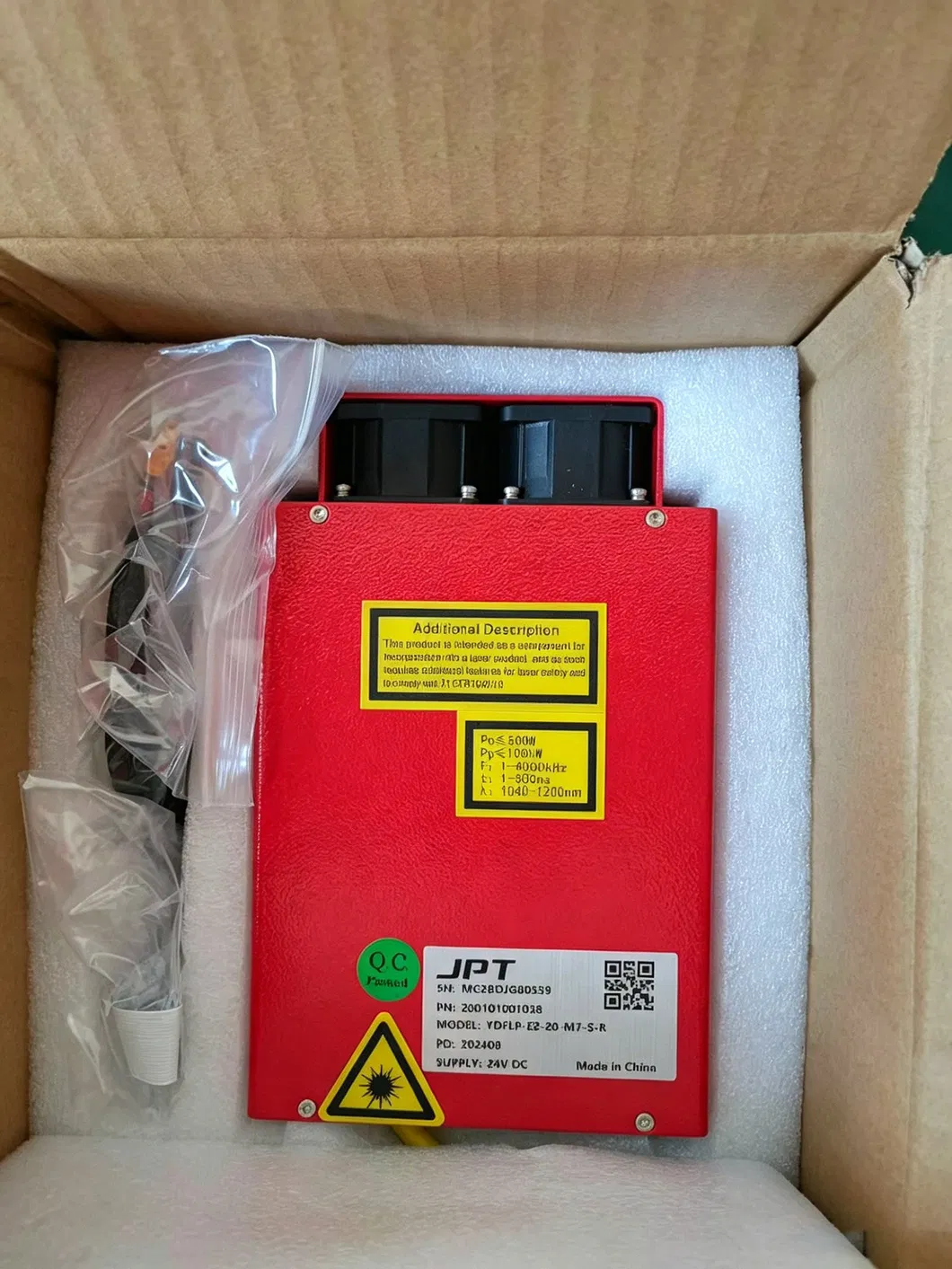

YDFLP-E2-20-M7-S-R
YDFLP-E2-30-M7-S-R
YDFLP-E2-60-M7-M-R
YDFLP-E2-100-M7-M-R
Beam quality (M ²)
< 1.5
< 1.5
< 1.5
< 1.6
Armor cable length (m)
2
2
2
3
Average output power (W)
20
30
60
100w
Maximum pulse energy (mJ)
1
1
2
1.5
Adjustable frequency range (kHz)
1 ~ 4000
1 ~ 4000
1 ~ 4000
1 ~ 4000
Pulse width (ns)
2 ~ 500
2 ~ 500
2 ~ 500
2 ~ 500
cooling method
air cooling
air cooling
air cooling
air cooling
Working voltage (V)
24(DC)
24(DC)
24(DC)
24(DC)
Maximum power consumption (W)
95
110
230
340
Environmental supply power (W)
≥ 120
≥ 180
≥ 280
≥ 450
Center wavelength (nm)
1064
1064
1064
1064
Spectral width @ 3dB (nm)
< 15
< 15
< 15
< 15
Beam diameter (mm)
7.0 ± 1.0
7.0 ± 1.0
7.0 ± 1.0
7.0 ± 1.0
Net weight (kg)
1.86
1.86
4.1
8.2
Dimensions L × W × H (mm)
188 × 110 × 85.5
188 × 110 × 85.5
253.3 × 205 × 75
336 × 255 × 90
Packaging & Shipping

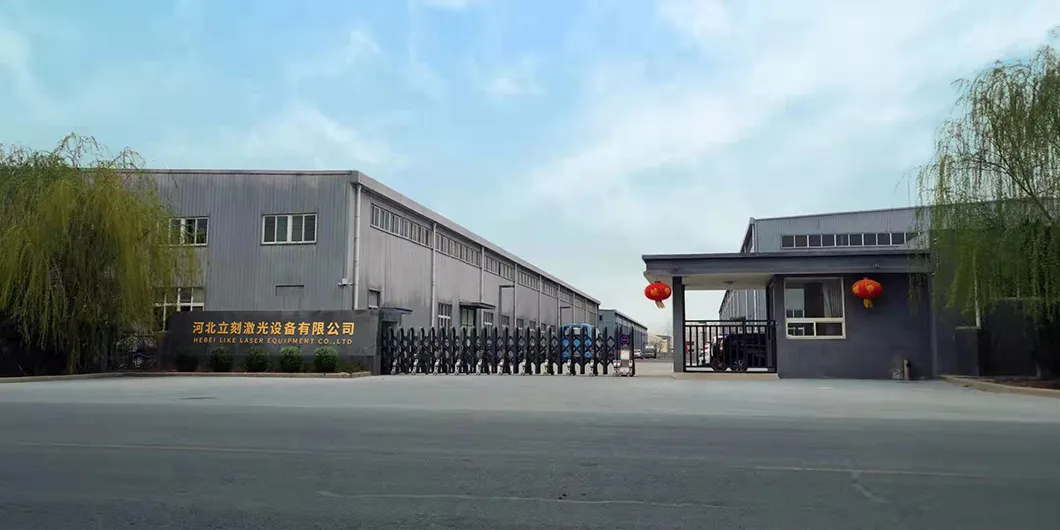

Production & Quality Control
Frequently Asked Questions
QWhat is a MOPA pulse width fiber laser source?
MOPA (Master Oscillator Power Amplifier) lasers allow independent adjustment of pulse duration (width) and frequency. This capability provides much higher flexibility and precision compared to standard Q-switched fiber lasers.
QWhat are the main application areas for JPT M7?
The JPT M7 is widely used for stripping anode oxide layers, metal surface texturing, color marking on stainless steel and titanium, sheet metal cutting, foil welding, deep metal engraving, and precision marking on plastics.
QHow long is the expected operational lifetime of the laser module?
The JPT M7 fiber laser module features an exceptionally long industrial lifetime of approximately 100,000 working hours under appropriate operating and maintenance conditions.
QDoes the laser source require water cooling or special maintenance?
No, the system is designed with an efficient, built-in air cooling mechanism, which keeps the module compact, stable, and completely maintenance-free.
QCan this system achieve color marking on stainless steel?
Yes. Because of its wide adjustable pulse width (2 ns to 500 ns) and frequency control, the JPT M7 can control heat input precisely to generate stable oxide film layers, producing vibrant color marking on stainless steel.
QWhat power configurations are available for the JPT M7 series?
This series is available in 20W, 30W, 60W, and 100W options, allowing you to choose the perfect module matching your specific speed and material depth requirements.
