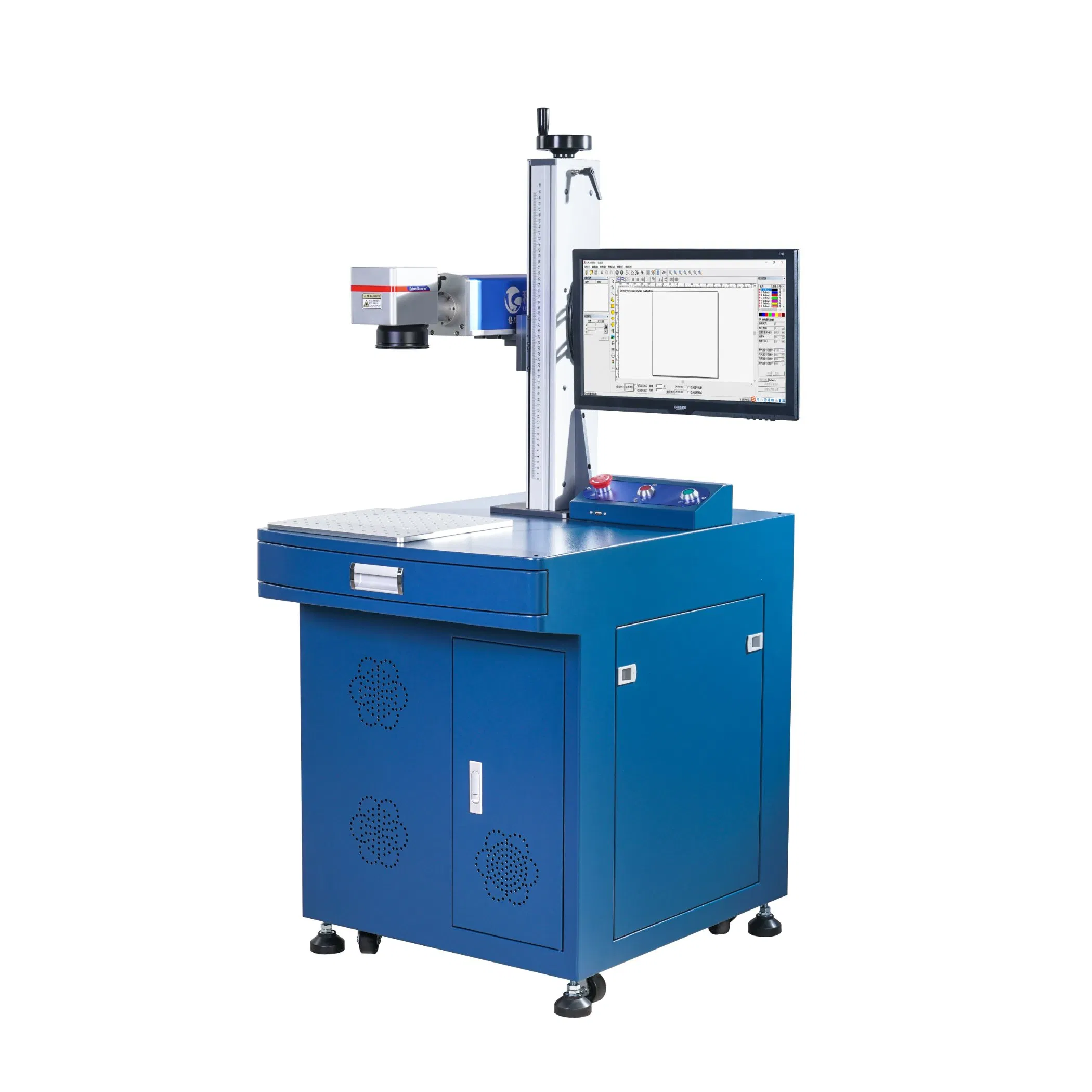

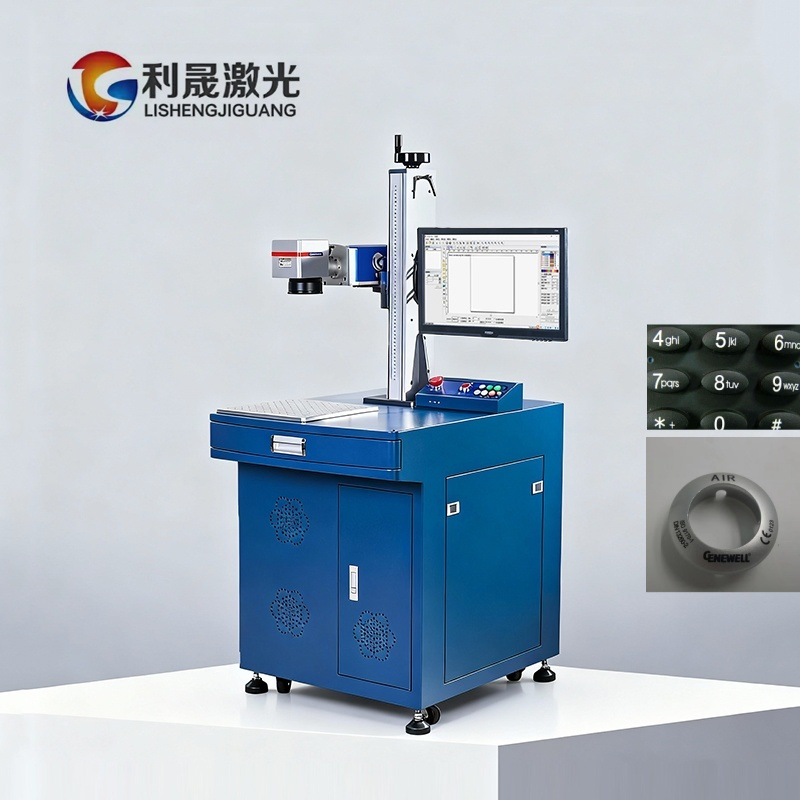

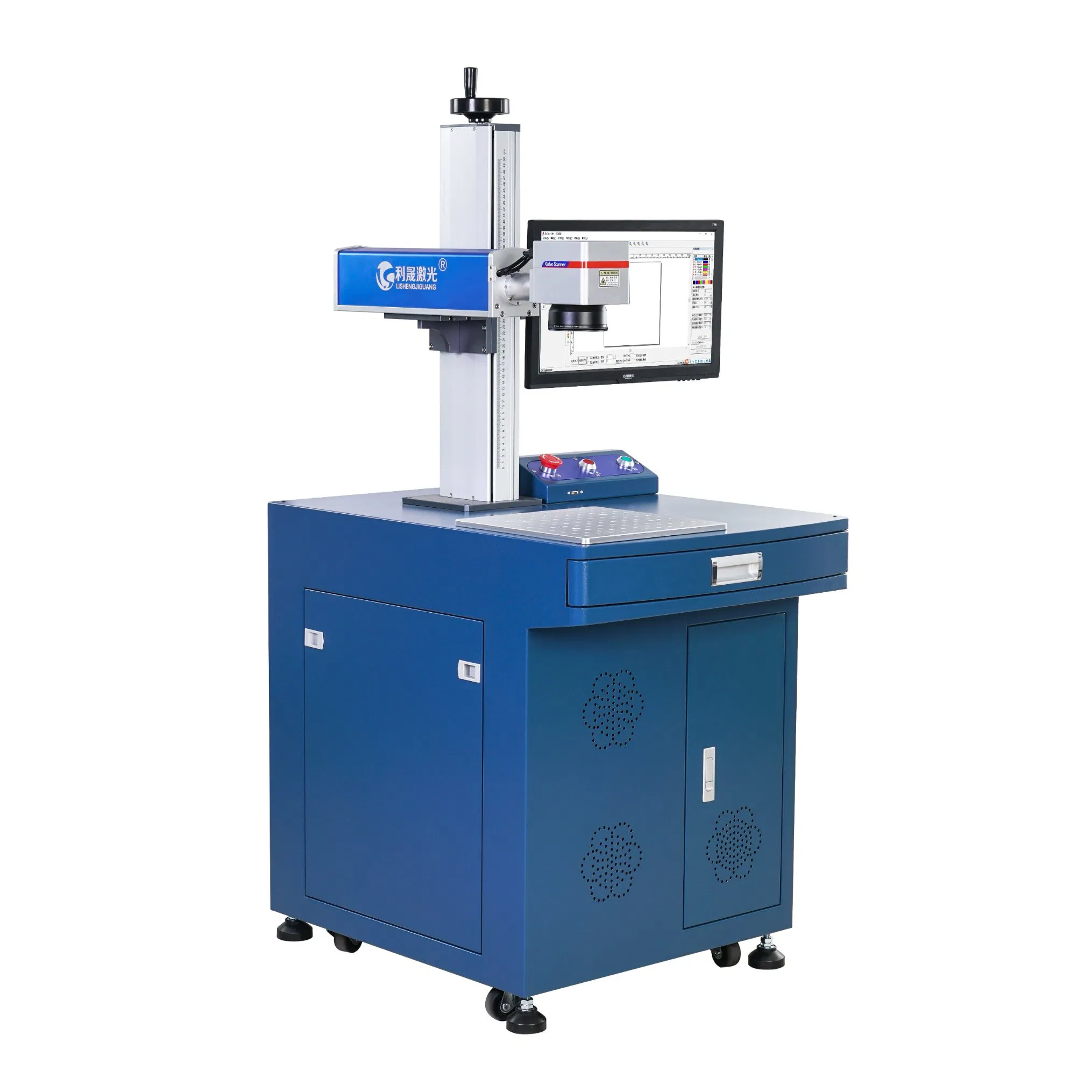

The M-series laser is a high-power fiber laser adopting the master oscillator power amplifier (MOPA) scheme with a direct electrically modulated semiconductor laser as the seed source. It features excellent laser performance and good pulse shape control capability.
Compared with Q-switched fiber lasers, the pulse frequency and pulse width of MOPA fiber lasers are independently controllable. Through the adjustment and combination of these two laser parameters, it can achieve constant high peak power output and is applicable to a wider range of marking substrates. In addition, it turns the impossible of Q-switched lasers into the possible of MOPA lasers, and its higher output power makes it have outstanding advantages in high-speed marking applications.
| Equipment Model | LS-MFB-20W | LS-MFB-30W | LS-MFB-60W | LS-MFB-100W |
|---|---|---|---|---|
| Laser Wavelength | 1064nm | 1064nm | 1064nm | 1064nm |
| Average Output Power | ≥20W | ≥30W | ≥60W | ≥100W |
| Frequency Range | 1KHZ—4000KHZ | 1KHZ—4000KHZ | 1KHZ—4000KHZ | 1KHZ—4000KHZ |
| Pulse Width Range | 2~500ns | 2~500ns | 2~500ns | 2~500ns |
| Maximum Speed | 7000mm/s | 7000mm/s | 7000mm/s | 7000mm/s |
| Repeat Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| Marking Area | 180x180mm | 180x180mm | 180x180mm | 180x180mm |
| Power Consumption | 500W | 650W | 800W | 800W |
| AC Power Supply | 220V/50HZ±10% | 220V/50HZ±10% | 220V/50HZ±10% | 220V/50HZ±10% |
We are a high-tech enterprise dedicated to the integrated development, manufacturing, and sales of high-end optoelectronic and laser industrial equipment. Gathering senior technical personnel in the laser industry, we promote micro-processing and new applications of laser technology in industrial production. Our solutions include Laser Welding Machines, Robot Laser Welding Machines, 3D Large-Format Laser Marking Machines, UV Laser Marking Machines, Fiber Laser Marking Machines, CO2 Laser Marking Machines, Laser Rust Removers, Automated Laser Welding Systems, and Automatic Polishing Equipment.
Adhering to the business philosophy of quality and market reputation, our laser systems are widely applied in 3C manufacturing, mobile digital products, automotive buttons, communication equipment, auto parts, hardware, cutting tools, bearings, precision machinery, and automated processing lines.
Yes, we are a Chinese manufacturer and factory specialized in industrial laser systems.
For standard machines, it takes 7-14 days. For customized machines tailored to specific customer requirements, it takes 15 to 30 days.
We accept various payment methods, including T/T, L/C, and other secure commercial options.
Before ordering, we will provide detailed specifications and configuration options. You can also share your specific processing requirements and material details, and our technical team will recommend the most suitable machine.

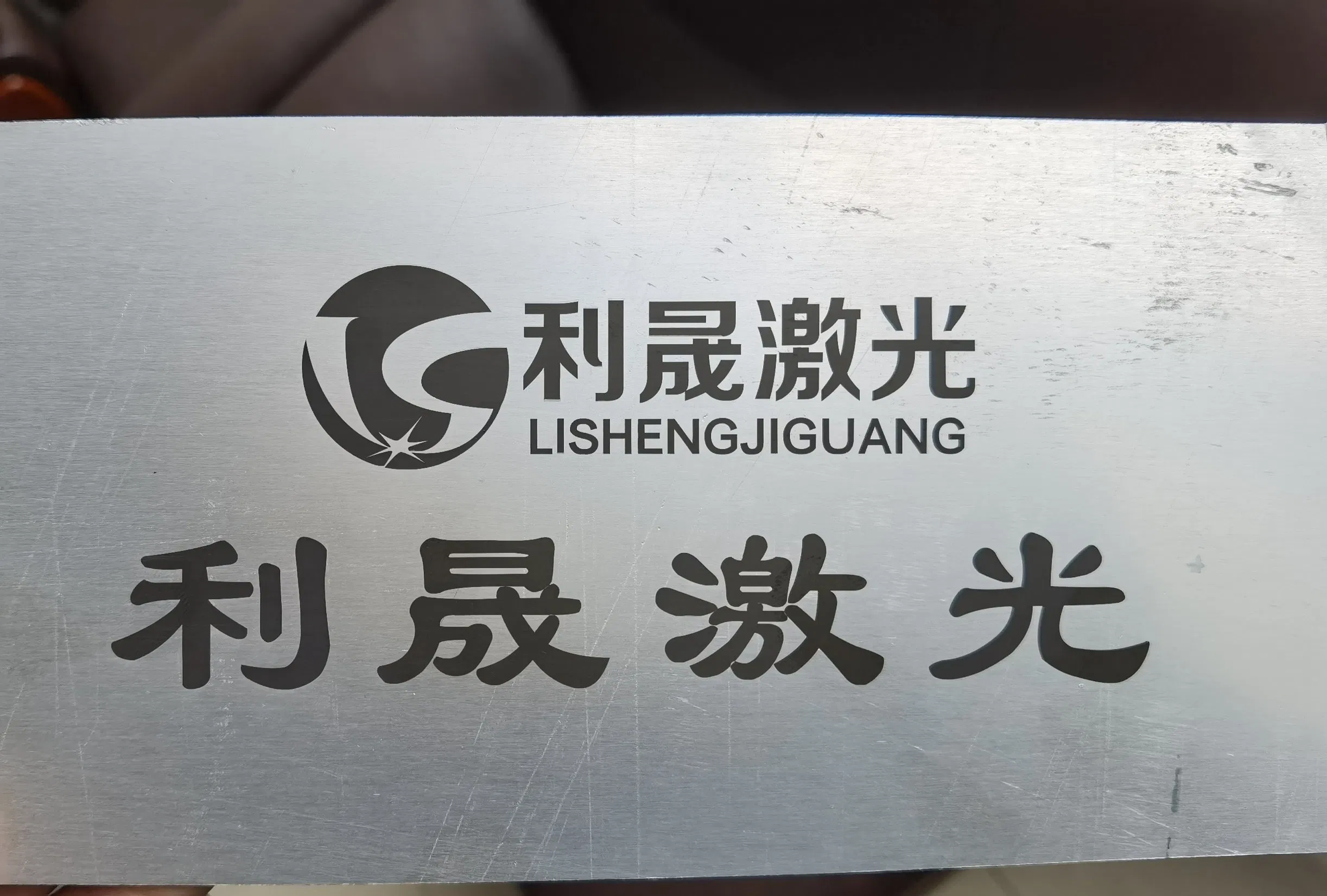

The MOPA fiber laser is suitable for marking both metals (like stainless steel, aluminum, brass) and various nonmetal materials (plastics, silicon, electronic components) with high precision.
MOPA lasers allow independent adjustment of pulse frequency and pulse width. This flexibility enables cleaner color marking on stainless steel, black marking on anodized aluminum, and high-precision processing on sensitive plastics.
