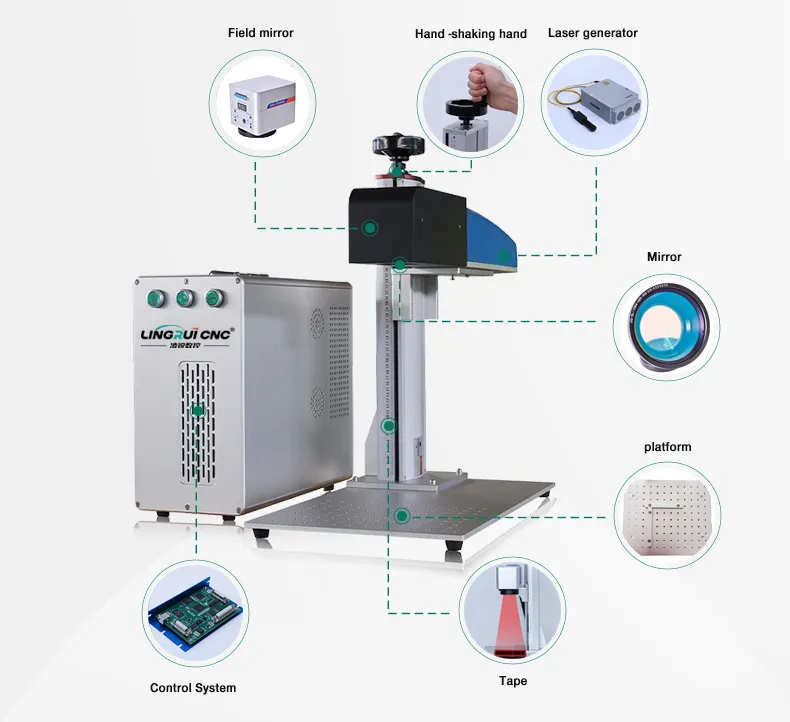

Use SINO-Galvo high-speed mirror, zero drift, fast speed, low volume small temperature, fast running speed. High photoelectric conversion rate, improve work efficiency, stable performance, short response time, high-speed operation and rapid marking stable output, accurate carving, high efficiency, high light transmittance lens ultra-clear and unsatisfactory super large surface, long service life.
Using high-quality field mirrors, you can quickly locate and focus on accurately. Together with the vibration mirror, use the laser to quickly locate and form accurate focus beam. The design and processing are highly designed. All olefins reach the radiation limit. The inner circle of the surface is good, uniform, good stability, high light transmission, high temperature resistance, and do not crack for a long time.
Using Raycus Laser Source, single pulse energy is high, the average output energy is high, the quality of the beam is high, it has the characteristics of peak power, high single pulse energy, and the diameter of light spots. Compared with the traditional laser, the cost is lower and the performance is more stable. The marking efficiency is high, the control center is used to increase the physical lock on the basis of software security guarantee.
Using Raycus Laser Source, single pulse energy is high, the average output energy is high, the quality of the beam is high, it has the characteristics of peak power, high single pulse energy, and the diameter of light spots. Compared with the traditional laser, the cost is lower and the performance is more stable. The marking efficiency is high, the control center is used to increase the physical lock on the basis of software security guarantee.
Equipped with a hand-shaken handle and coordinated with the straight beam standard, you can adjust the appropriate focal length according to the height of the processing product.

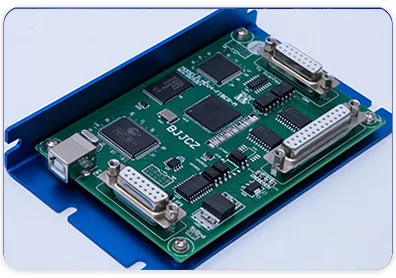

Use JCZ marking machine special control system software to support a variety of software formats, stable systems, powerful functions, easy operation and easy to use, support 32 and 64-bit operating systems such as Win7/Win8/Win10. For the functions, just set it to start working.

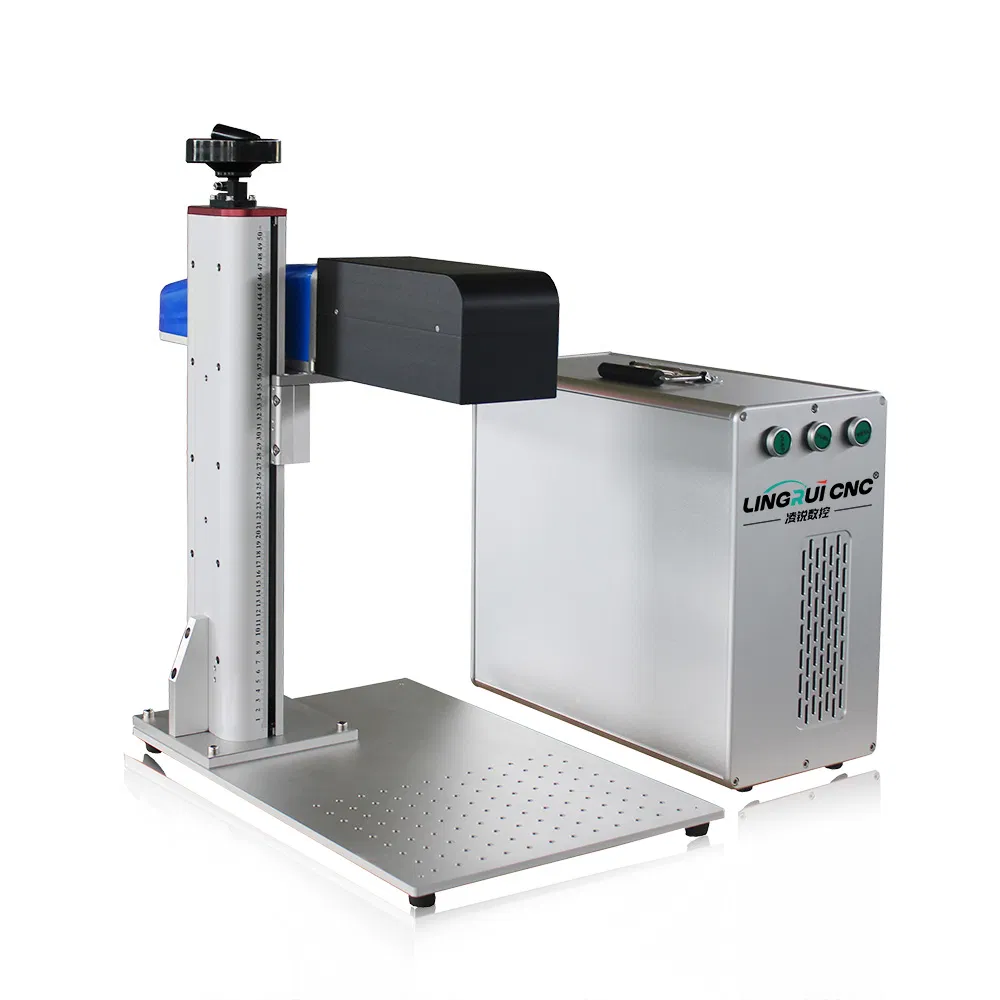

| Model | LR-11-FE |
| Laser Power | 20W/30W/50W/100W/200W/300W |
| Laser Wavelength | 1064nm |
| Fiber Cable Length | 3m |
| Pulse Width | 20ns |
| Repetition Frequency Range | 1-600kHz |
| M2 | <1.8 |
| Max.Single Pulse Energy | 1.25mJ |
| Output Power Stability | <5% |
| Output Beam Diameter | 7±0.5mm |
| Power Range | 0-100% |
| Marking Range | 110*110mm/200*200mm/300*300mm |
| Minimum Line Width | 0.01mm |
| Minimum Character | 0.1mm |
| Marking Speed | ≤7000mm/s |
| Marking Depth | Depend on materials |
| Repeatability Accuracy | ±0.001mm |
| Marking Format | Graphics, text, bar codes, QRcode, automatically date, batch number, serial number, etc. |
| Graphic format supported | Ai, plt, dxf, dst, svg, nc, bmp, jpg, jpeg, gif, tga, png, tiff, tif |
| Working Voltage | 220V±10%/50Hz or 110V±10%/60Hz or Customized |
| Unit Power | <0.5kw |
| Working Environment | Clean and dust free or dust less |
| Working Condition Humidity | 5%-75%, 0-40 degree, free of condensed water |
| Laser lifetime | >100000 hours |
| Net weight | 240kgs |
| Packing Size | 1230*950*1800mm |
We offer a three-year warranty maintenance policy for the entire machine. During the warranty period, if any parts are damaged due to the machine's own reasons, we will provide you with free parts for replacement.
Machine lifetime free maintenance and free software updates. If you need it, our engineers can provide technical support on-site in your country. Before the machine is shipped, we will provide you with comprehensive instructional videos.
7 * 24-hour service, whether on weekdays or weekends, upon receiving a fault report, respond within 10 minutes through online chat, phone, fax, or email, and find the cause of the fault within 60 minutes.
We provide lifelong free technical support, machine installation, drawing and programming, machine operation, machine maintenance, and lifelong after-sales solutions for our customers.
