| Model | SW-FLMB10 | SW-FLMB20 | SW-FLMB30 | SW-FLMB50 | SW-FLMB100 |
| Power | 10W | 20W | 30W | 50W | 100W |
| Beam Quality | M² < 1.3 | M² < 1.3 | M² < 1.5 | M² < 1.5 | M² < 2.0 |
| Laser wavelength | 1064nm | ||||
| Min.Character Size | < 0.5mm | ||||
| Marking range | 100mmx100mm (50mmx50mm~300mmx300mm optional) | ||||
| Engraving line speed | ≤7000mm/s | ||||
| Rated Power | ≤0.5kW | ≤0.5kW | ≤0.8kW | ≤1kW | ≤1kW |
| Power Supply | AC220V±50Hz | ||||
| Cooling System | Air cooling | ||||

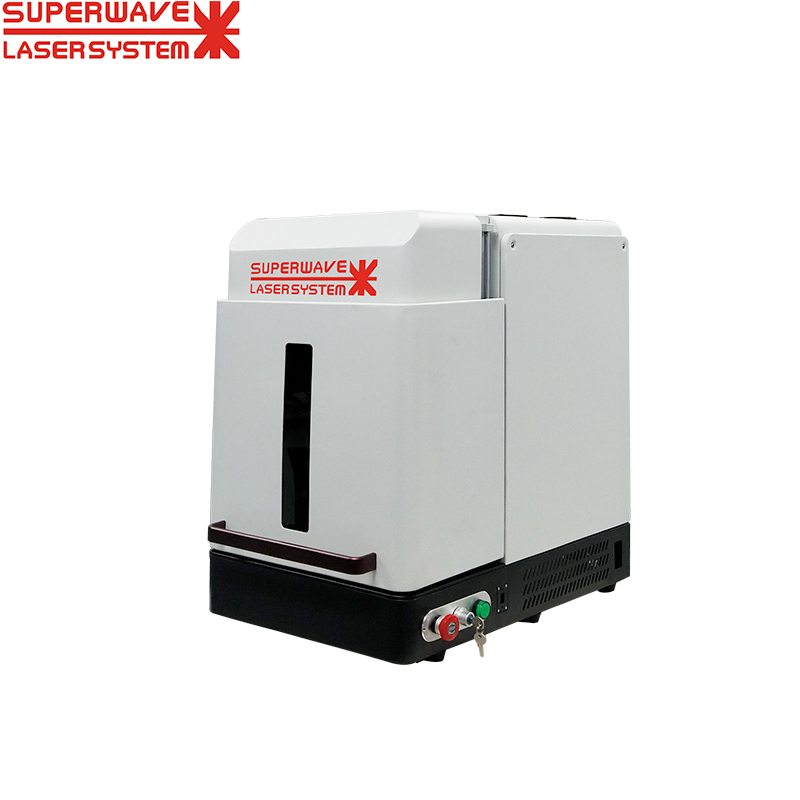

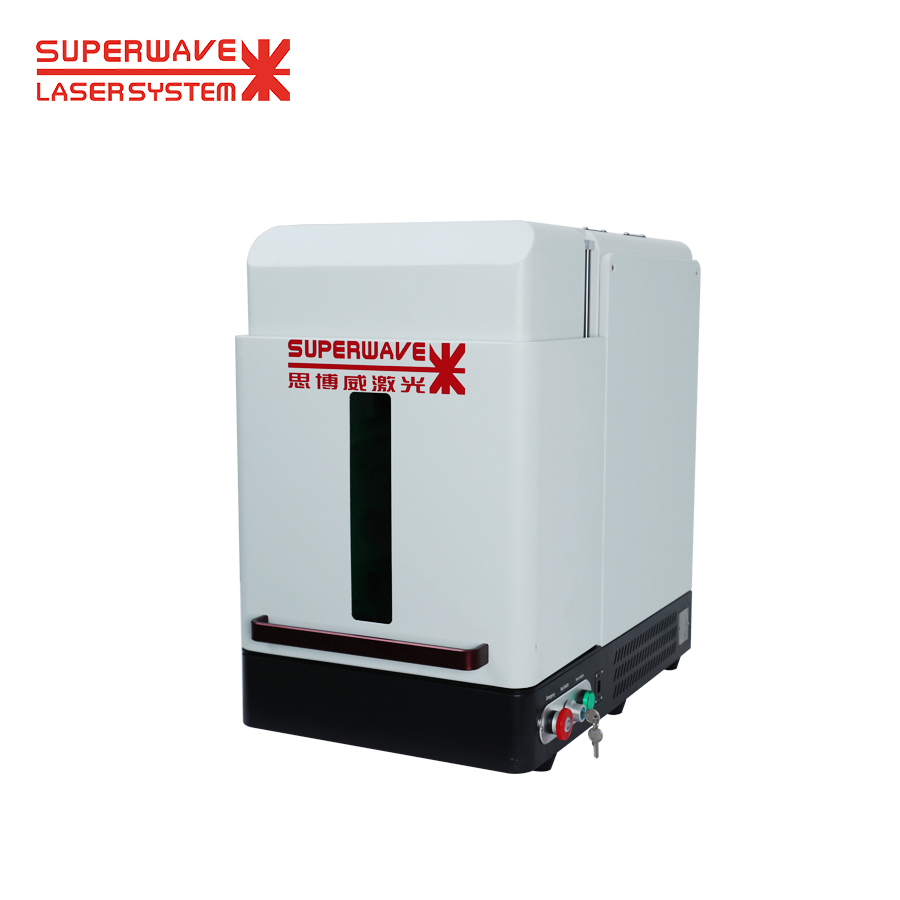

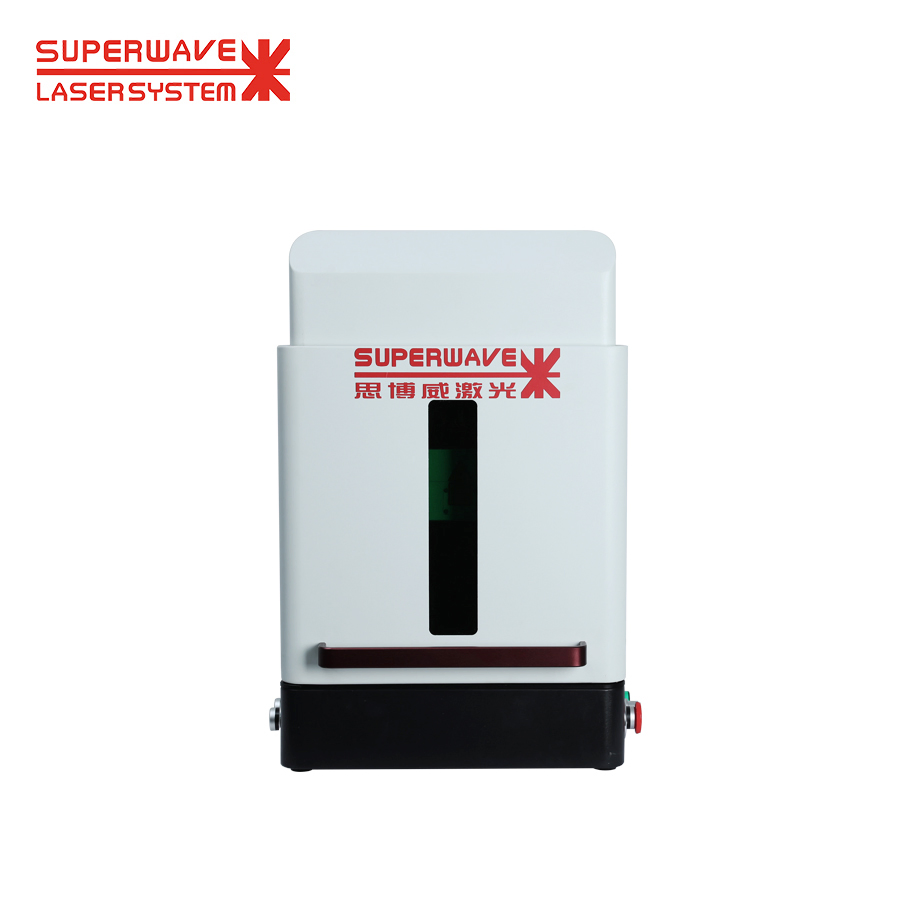

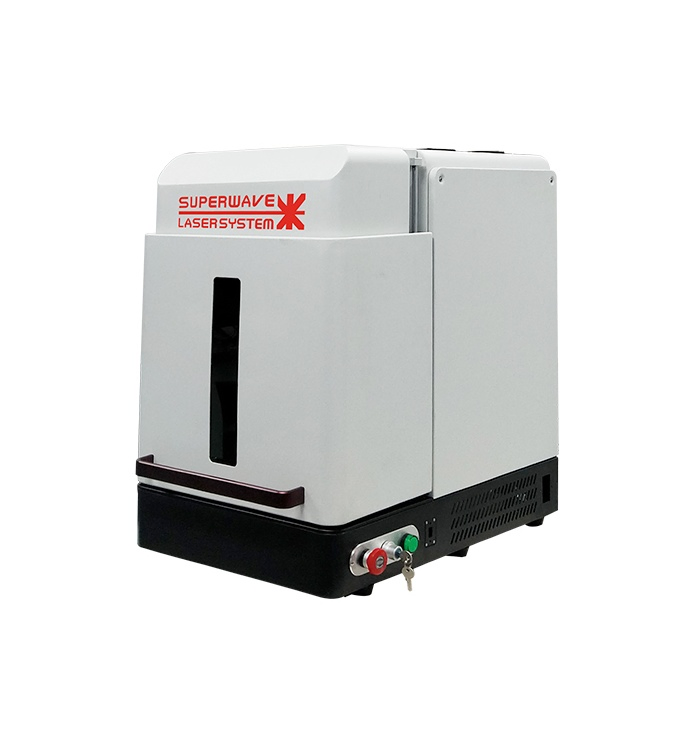

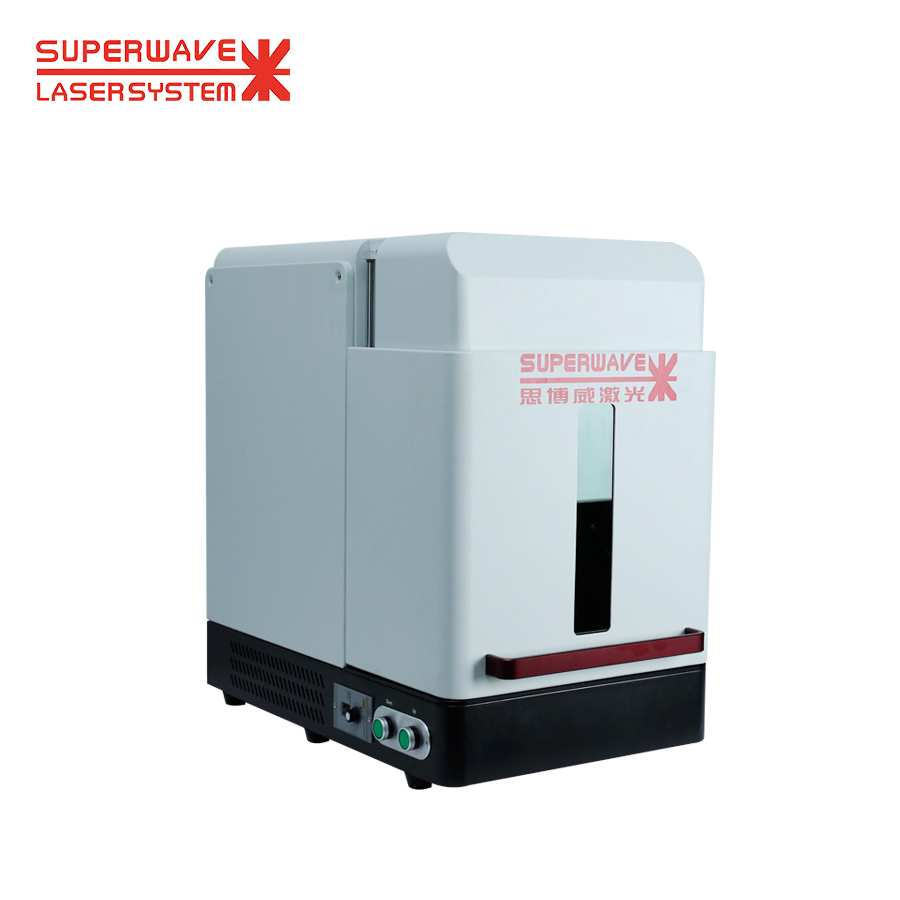

The optical fiber laser markers feature high efficiency in electrical/optical conversion, and wind cooling is employed. The whole system is small in size, with high beam output quality, high reliability, super long service life, and saving energy. The markers are able to engrave beautiful images on metallic and plastic surfaces.

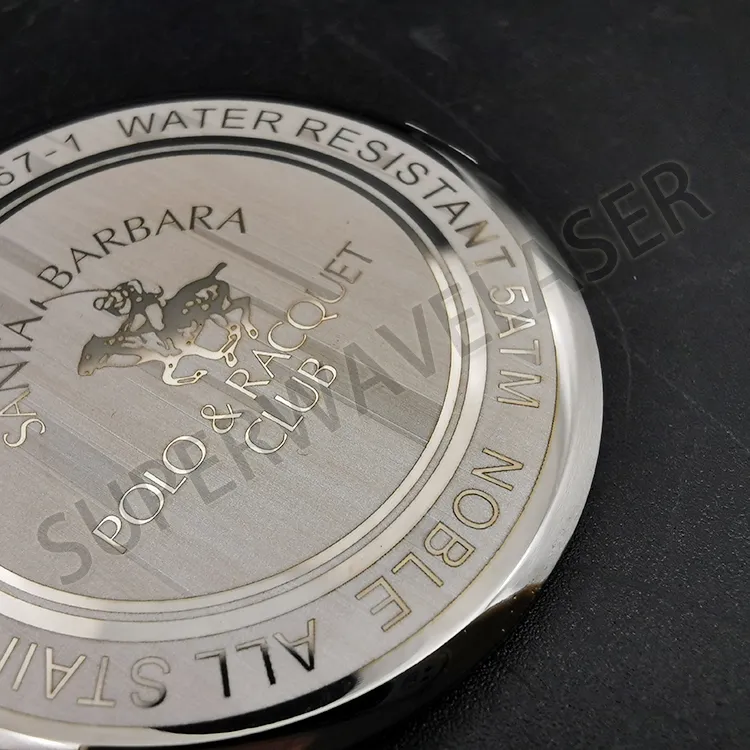

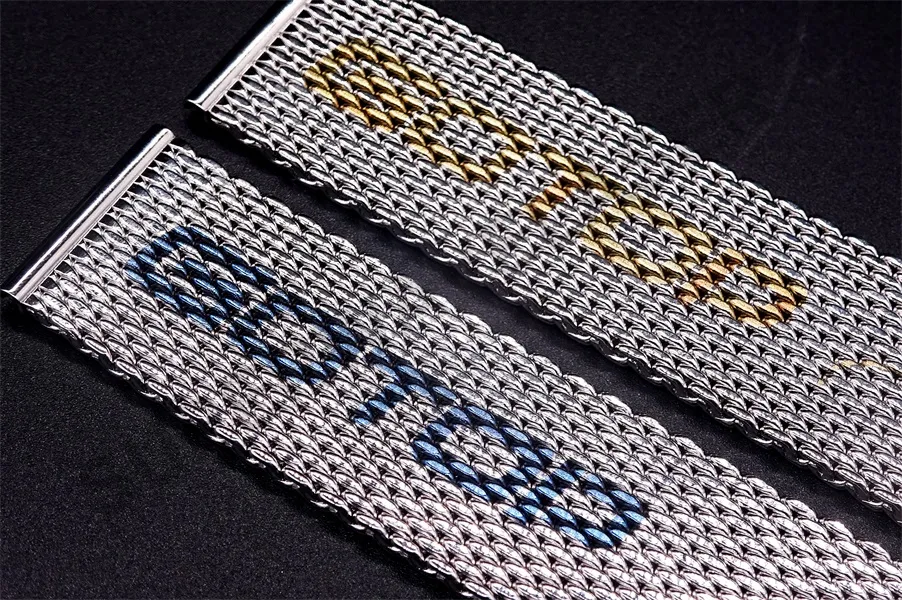

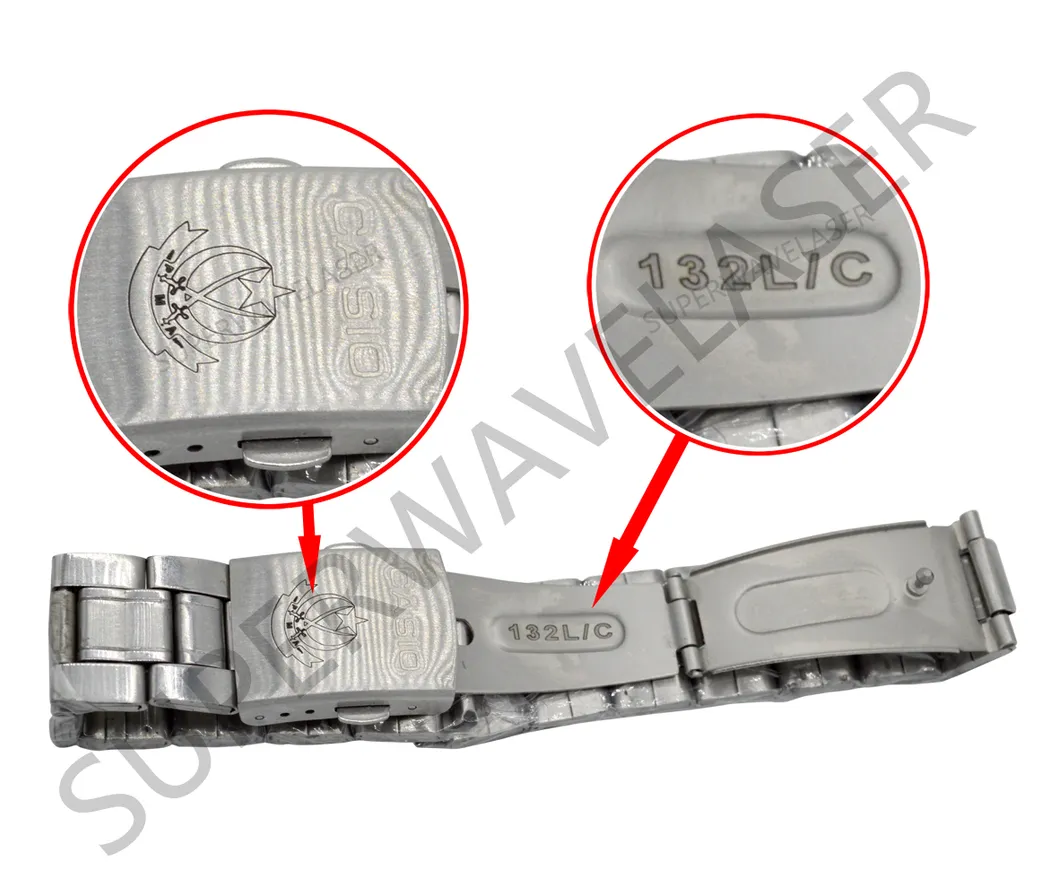

Applicable to fields with high requirements for depth, smoothness and fineness, jewelry, for example, clocks, watches, mould and bitmap marking.
This fiber laser marking machine is highly effective on all metallic materials and various plastic surfaces. It is designed for applications requiring high precision, depth, and smoothness, such as jewelry, watches, molds, and bitmap marking.
The fiber laser system boasts a super-long service life with a laser source life expectancy of approximately 100,000 hours, requiring zero regular maintenance during operations.
The machine configuration is highly flexible and available in power levels including 10W, 20W, 30W, 50W, and 100W. This allows you to choose the exact specification needed for your marking depth and speed requirements.
Yes, we provide a user-friendly English operation manual and instructional video guides to help you operate the machine. Furthermore, engineers can assist you anytime via email or phone call should you have operational questions.
Absolutely. We highly welcome you to send samples to us for test engraving. We will return application sample videos, high-resolution pictures, and can courier the physically engraved samples back to you free of cost.
We support standard international payment options like TT, PayPal, and Western Union. We also support all types of Incoterms to provide you with the most convenient shipping and freight arrangements.
