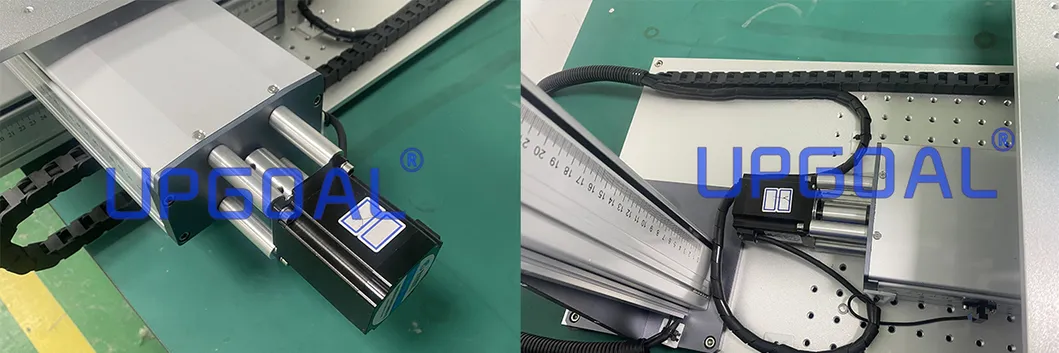

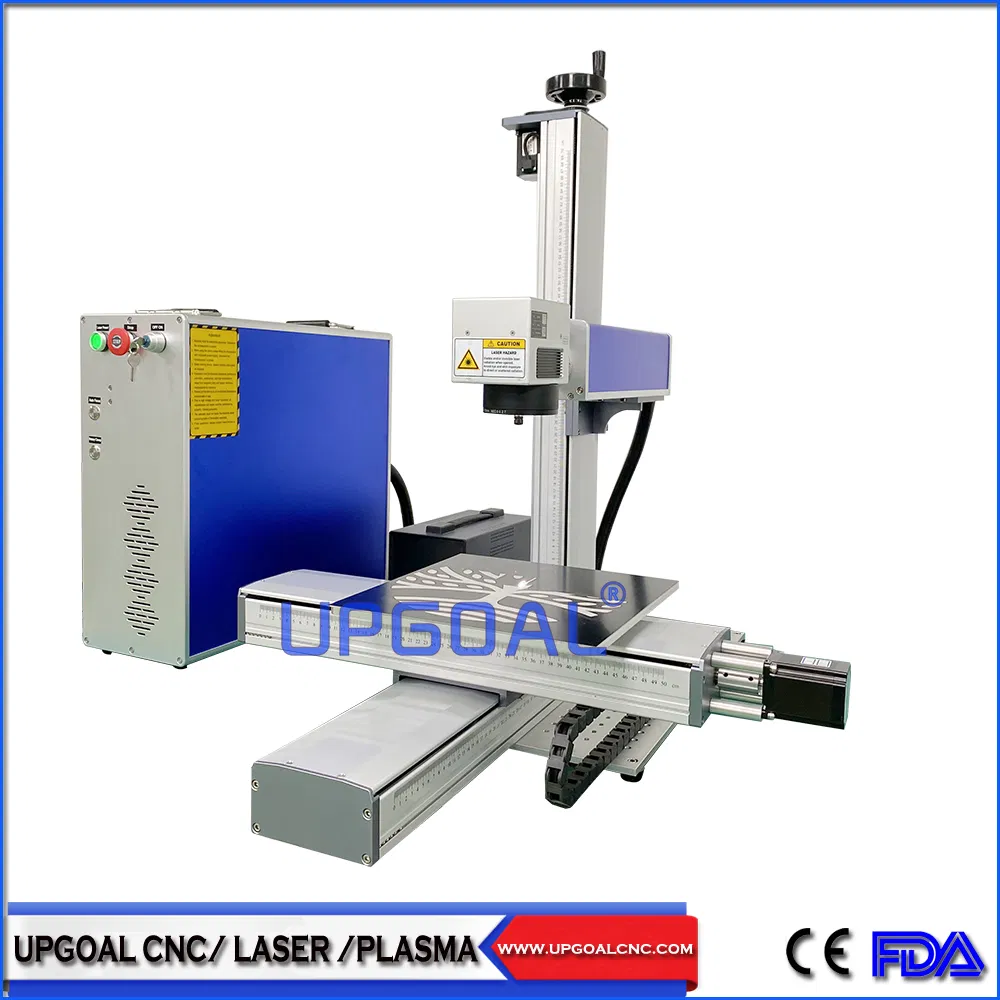

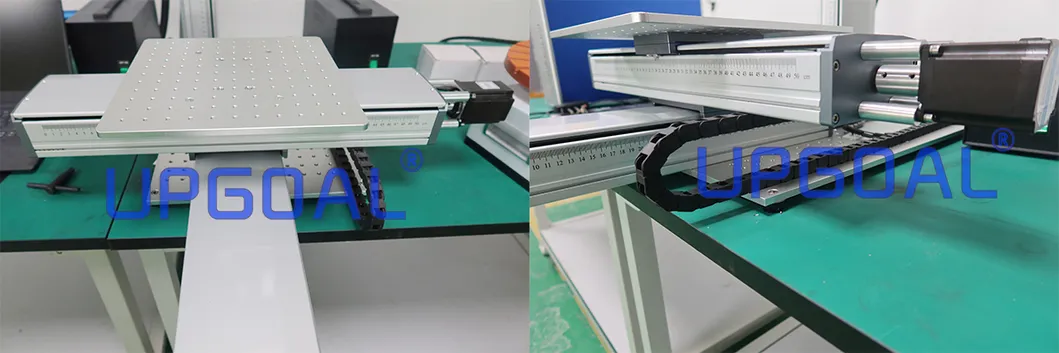

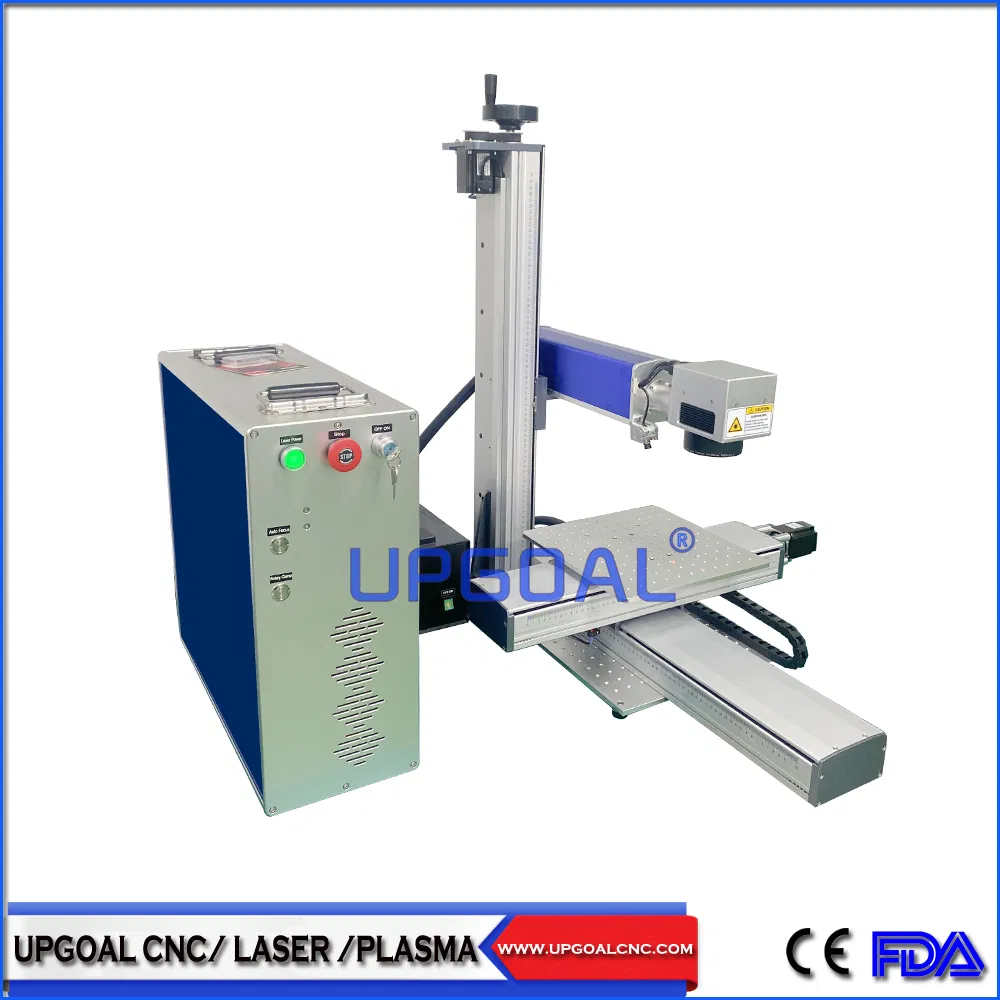

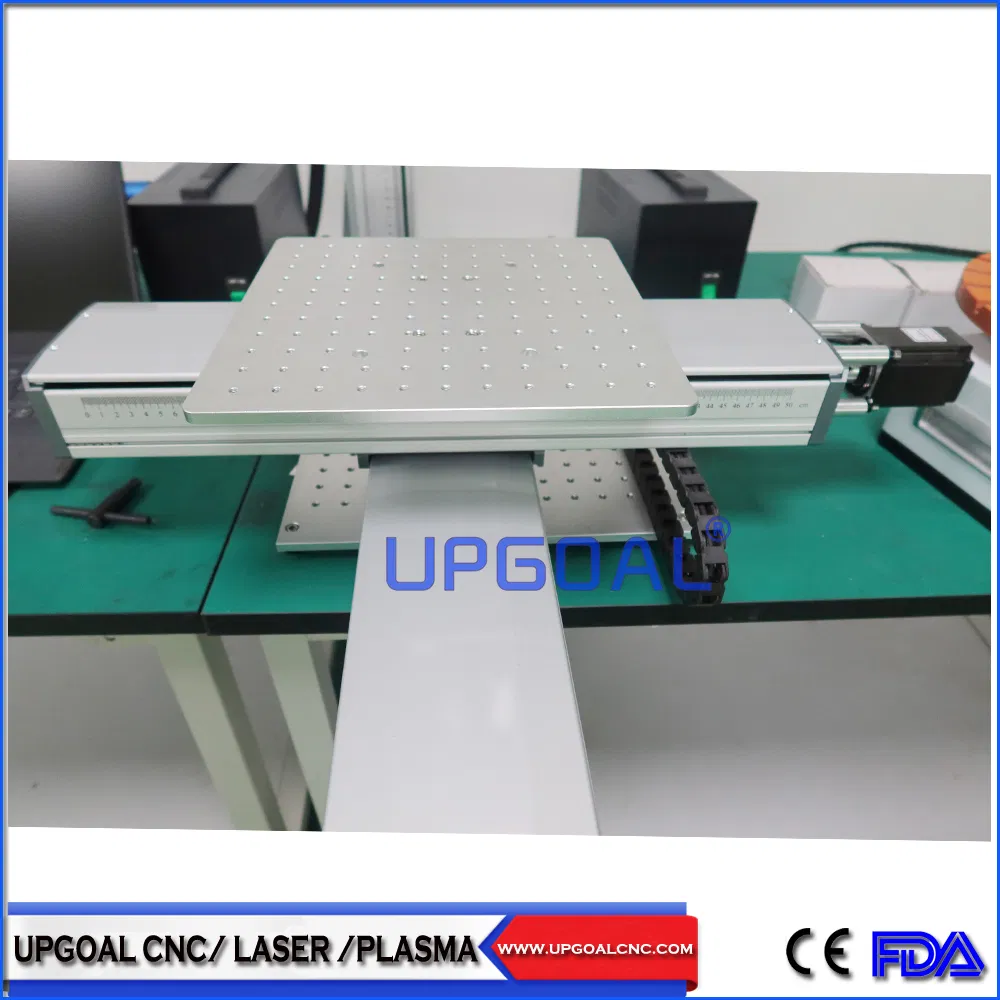

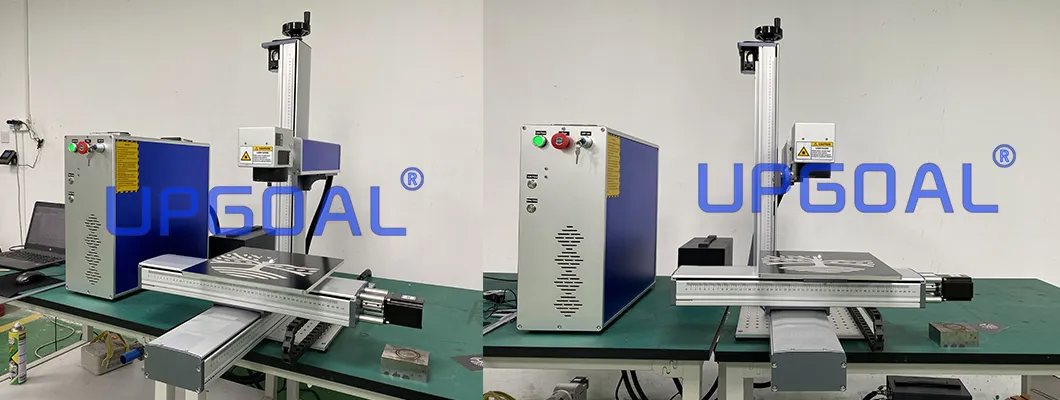

1. Large Working Area with Splicing Module: Large 400*400mm marking area, XY axis with stroke module 500*500mm. It adopts the splicing mobile marking method to satisfy high demands for larger surface areas.

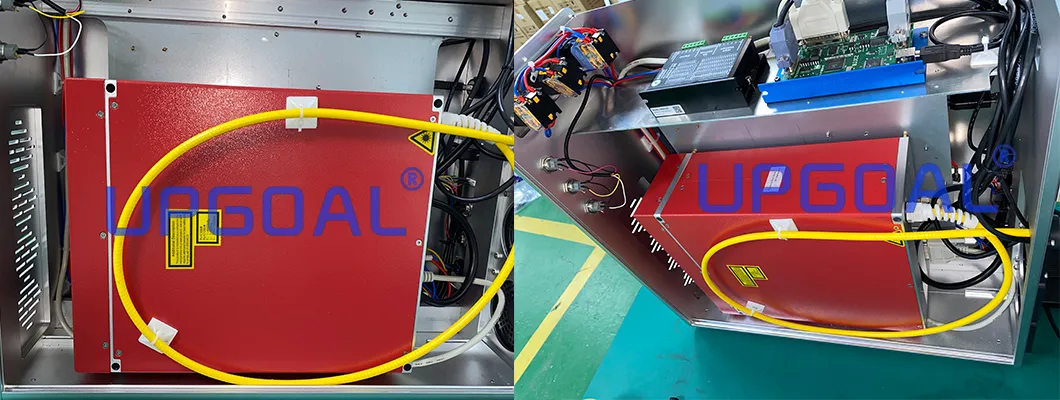

2. Premium JPT MOPA Laser Source: Equipped with a 100W JPT MOPA fiber laser source, providing a fine and thin laser beam to ensure high precision. Paired with a stable slide, it delivers outstanding results for large-size seamless splicing image marking.

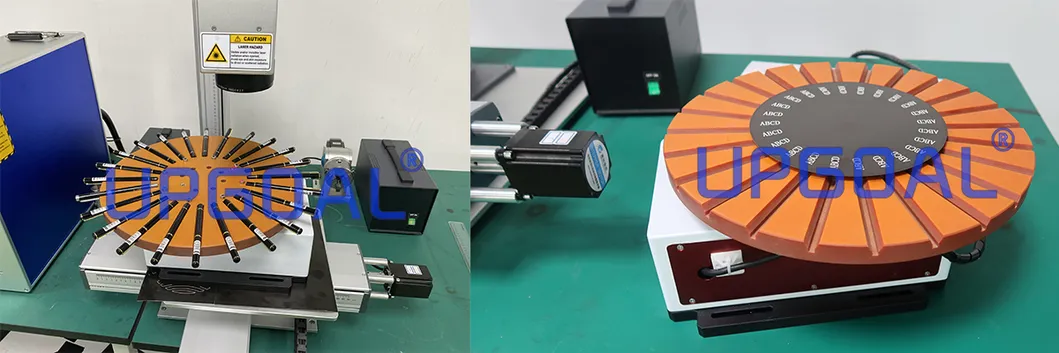

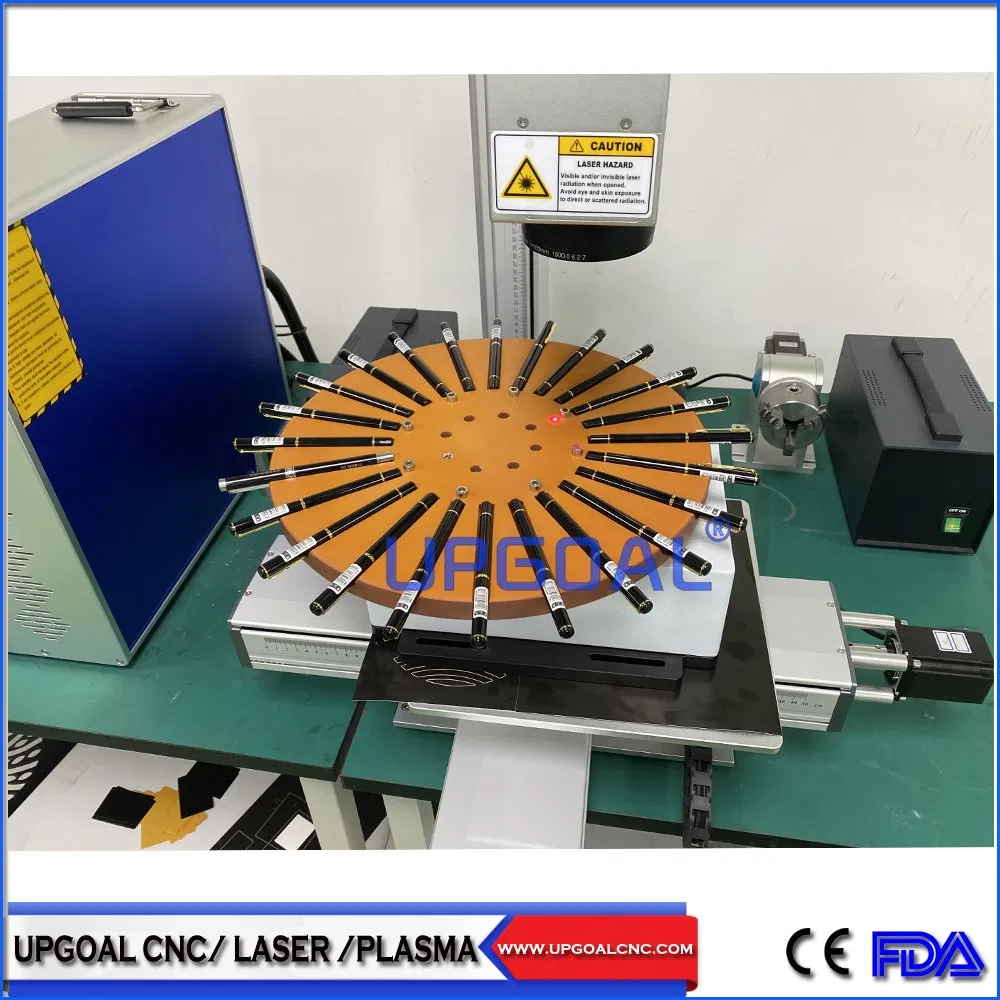

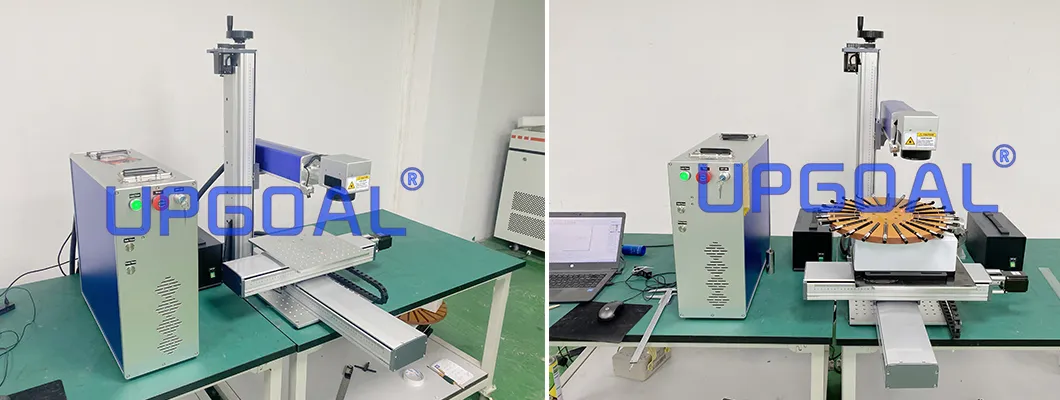

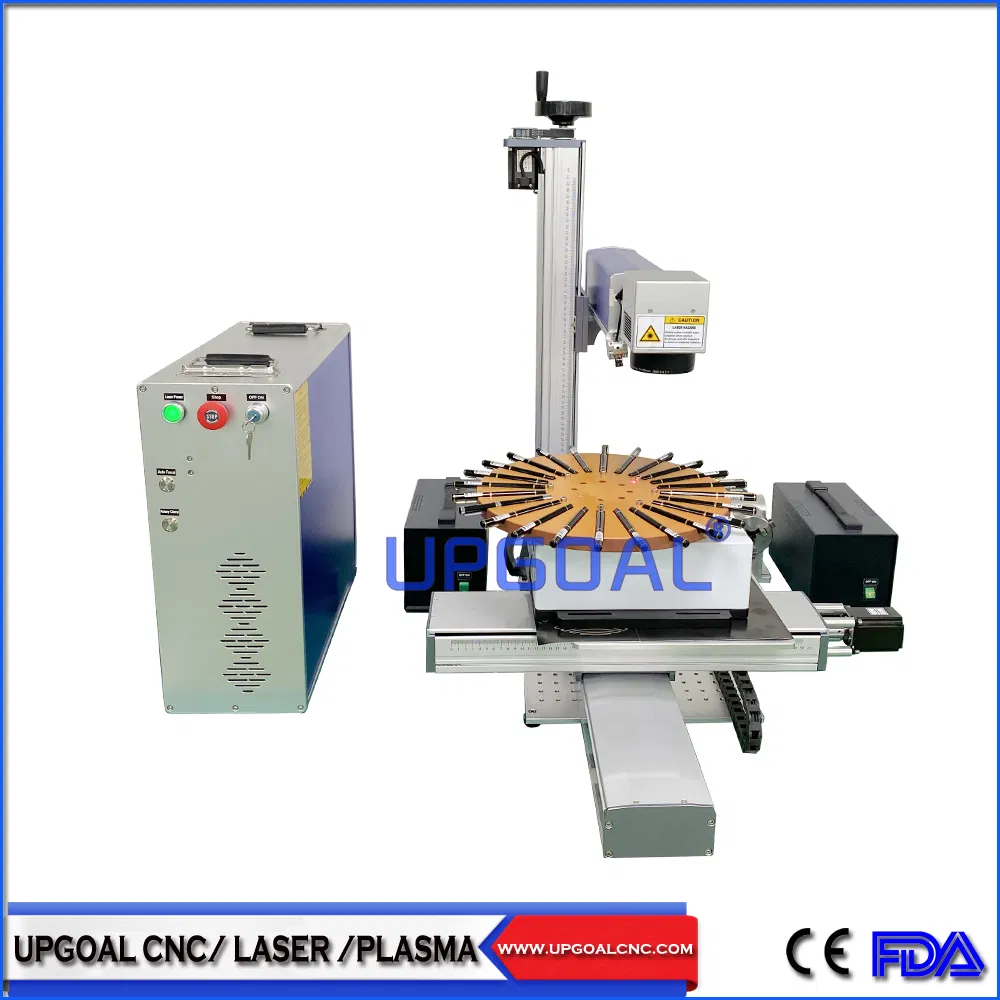

3. High-Efficiency Rotary Disc Table: Comes with a 360-degree turning rotary disc table designed to mark 24 pens at a time, vastly increasing throughput and marking efficiency.

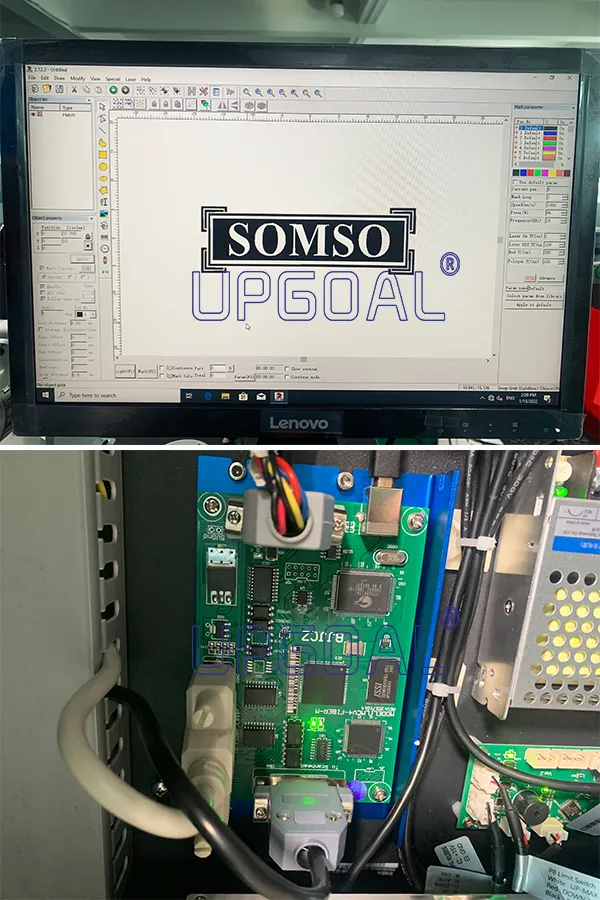

4. Original EzCad Controller: Supports barcodes, graphical designs, text characters, QR codes, and splicing marking. It is compatible with PLT, DXF, BMP, and AI formats, utilizes SHC and TTF fonts, and supports automatic serialization, batch numbering, and real-time date encoding.

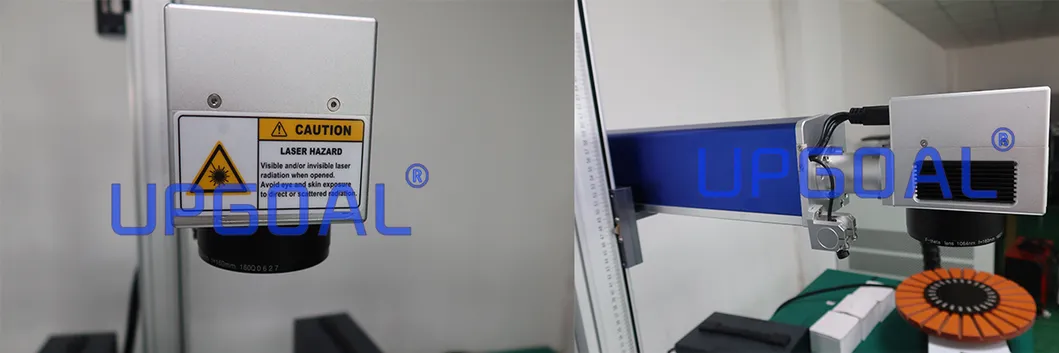

5. High-Speed Digital Galvanometer: Featuring the SINO-GALVO SG2206 series galvanometer and a high-speed scanning lens. It yields clean beam modes, ultra-fine single lines for hyperfine detail, high integration, and exceptionally low malfunction rates for industrial-grade environments.

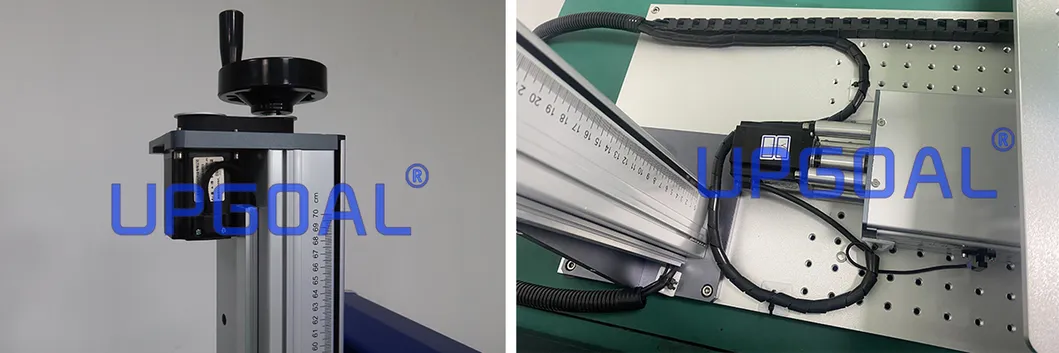

6. Auto-Lifting Z-Axis: Equips an automatic focusing Z-axis to accommodate materials of varying thicknesses easily and quickly.

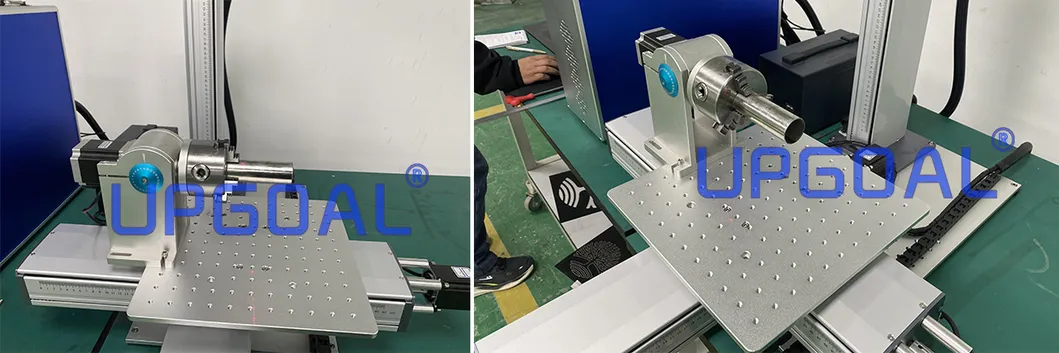

7. D80 Chuck Rotary Axis: Includes a heavy-duty chuck-style rotary axis designed for seamless marking around cylinders and spherical objects.

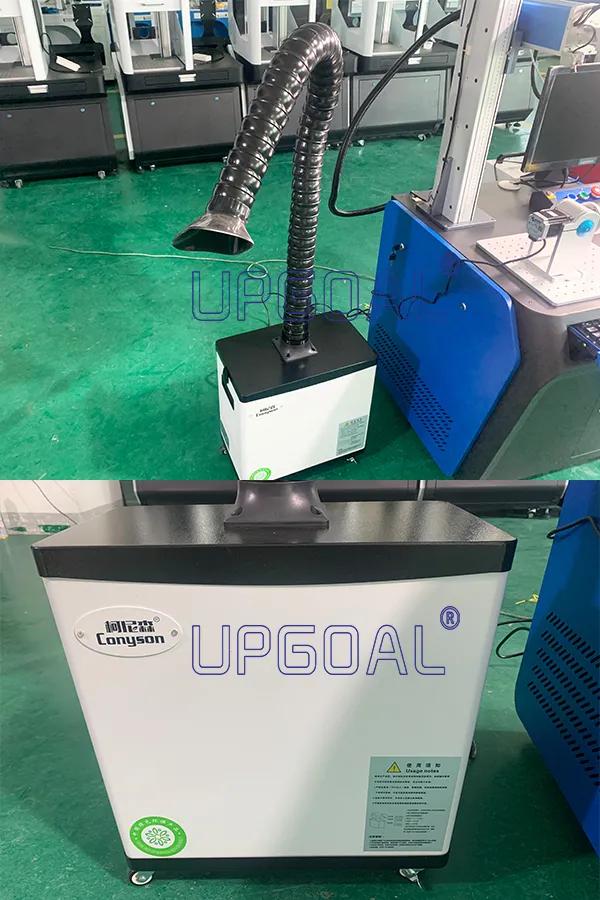

8. Powerful Smoke Purifier: Includes a 100W smoke purifier with a 3-layer filtration system, offering up to 99.99% efficiency for particles down to 0.3um. Features a flexible 360-degree slub tube, high-temperature silicone cover, air regulating valve, and block alarm function.
9. Deep Marking Capability: Capable of deep-marking up to 0.5mm into materials (subject to the substrate), meeting a wide array of deep industrial marking specifications.
10. High Positioning Accuracy: Delivers precise accuracy levels up to 0.001mm.
11. Extremely Long Lifespan: The MOPA fiber laser module has an operational lifetime of up to 100,000 hours, equating to 8-10 years of reliable system life.
12. Low Energy & Zero Consumables: Extremely low running cost at only 0.5kW/hour. Incorporates an integrated air-cooling setup and requires zero general maintenance or consumables.
13. Pre-aligned Optical Path: No manual adjustments are required for the internal laser path.
14. User-Friendly Setup: Supplied with comprehensive step-by-step installation training videos and a operation manual.

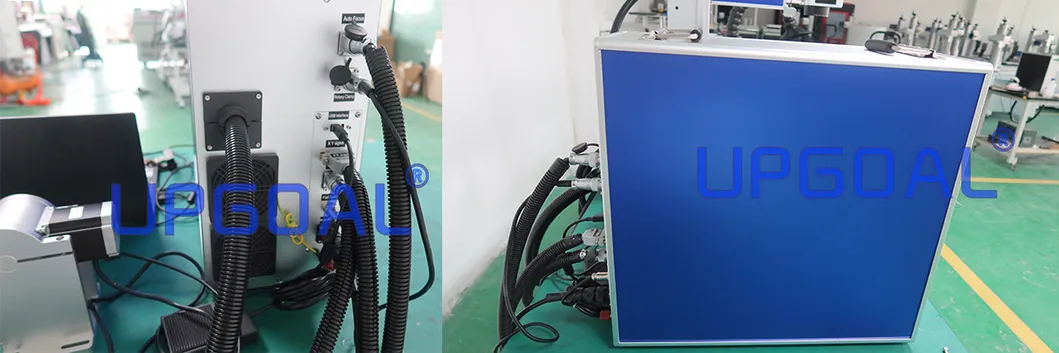

15. Space-Saving Desktop Design: Minimizes workshop space footprint with its integrated layout.
Technical Parameters
Parameter
Details / Specifications
Laser type
MOPA fiber laser
Maximum output laser power
100W (JPT brand)
Wave length of laser
1064nm
Marking scope
400*400mm
Laser sources
Fiber module
Laser Head
High speed scanning head
The minimum focus facula diameter
20μm
Minimal character
0.01mm
Focusing
Auto focusing
Control system
Original EzCad controller, support splicing marking
Marking depth
0.01-5mm (depends on different materials)
Marking line width
0.01-0.1mm
Marking speed
≤7000mm/s
Laser repetition frequency
20kHz~80kHz
Galvanometer
High speed digital galvanometer (SINO-GALVO)
Field lens
Scanning lens (F-THETA)
Cooling method
Air Cooling
Power supply
AC 220V/110V, 50/60Hz, single phase
Support format
PLT, BMP, DXF, JPG, TIF, AI etc
Process Material
All kinds of metal and part of non-metal materials (opaque acrylic/plastic)
Certificate
CE/FDA

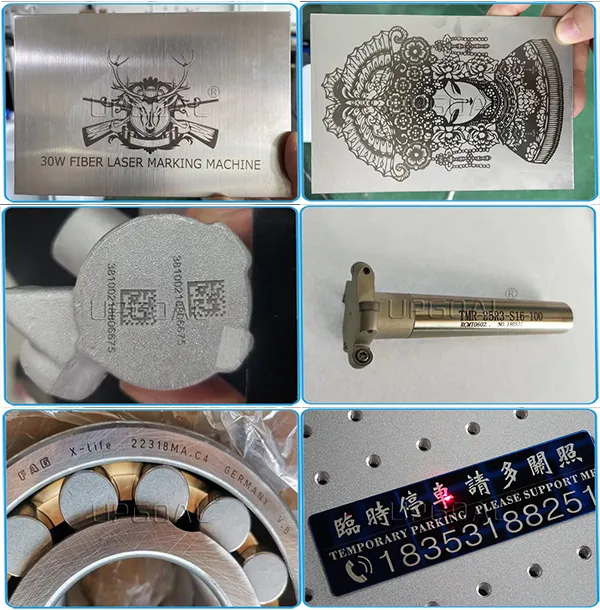

Applications
Electronic and communications products, integrated circuit chip, computer parts and electrical appliance, all kinds of precision component, hardware tool, instrument and meter, aerospace and astronautics, jewelry, horologe, gift, office supply, trademark signs, sanitary ware, kitchen ware, plastic product, metal ornament, fastener, eyeglasses frame, sanitary ware fittings, tableware, food, beverage, alcohol & tobacco, etc. Suitable for all kinds of area graphs and characters' marking, supporting high quality mass production with clear, beautiful, and permanent results.

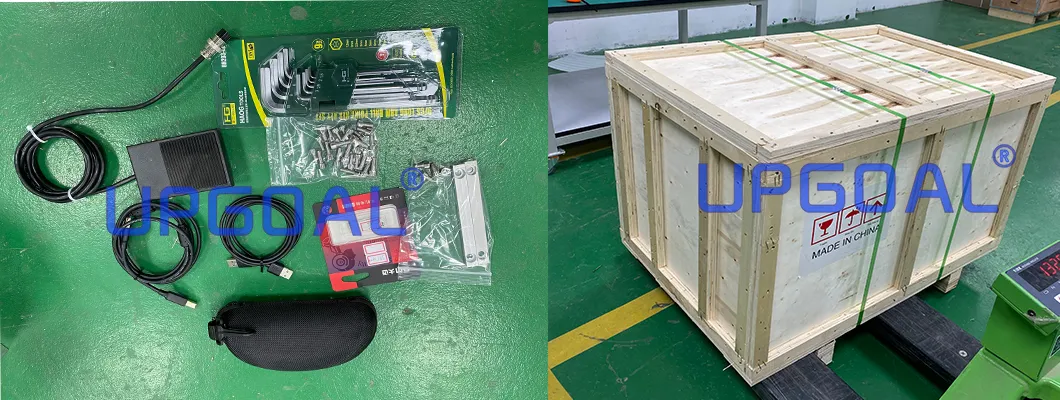

Accessories & Packing
Frequently Asked Questions (FAQ)
What is the advantage of the splicing mobile marking method?
The splicing mobile marking method allows the machine to achieve a large working area of 400*400mm using a 500*500mm stroke module on the XY axis. This system delivers seamless, high-precision results for marking graphics larger than typical single-lens marking scopes.
What kind of materials can this 100W MOPA laser mark on?
This MOPA fiber laser marking machine is highly versatile, capable of processing all kinds of metals (such as steel, aluminum, brass) and parts of non-metal materials like opaque acrylics and plastics.
Does the system include automatic focus capability?
Yes, the machine is equipped with an auto-lifting Z-axis that performs automatic focusing, making it extremely convenient and accurate when switching between materials of different thicknesses.
What accessories are included for cylindrical marking?
For cylindrical and curved surface applications, the machine is equipped with a D80 chuck-type rotary axis and a 360-degree turning rotary disc table capable of holding up to 24 pens at a time for high-speed batch marking.
What are the operating costs and maintenance requirements?
The machine has an exceptionally low power consumption of only 0.5 kW per hour and does not require any consumables. Thanks to its integrated air cooling and pre-aligned optical path design, the system is virtually maintenance-free with a laser lifespan of up to 100,000 hours.
