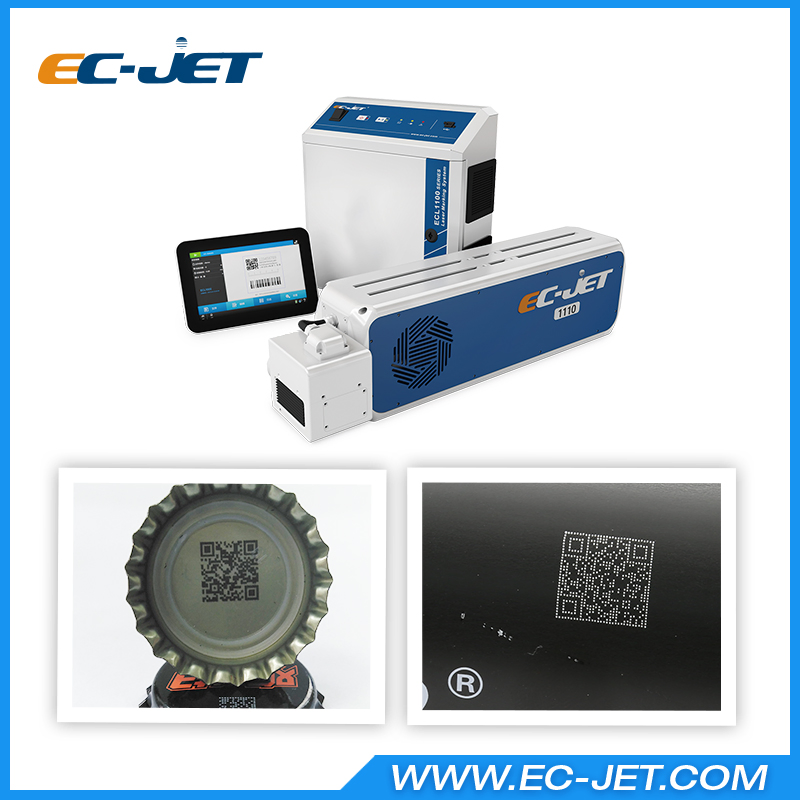

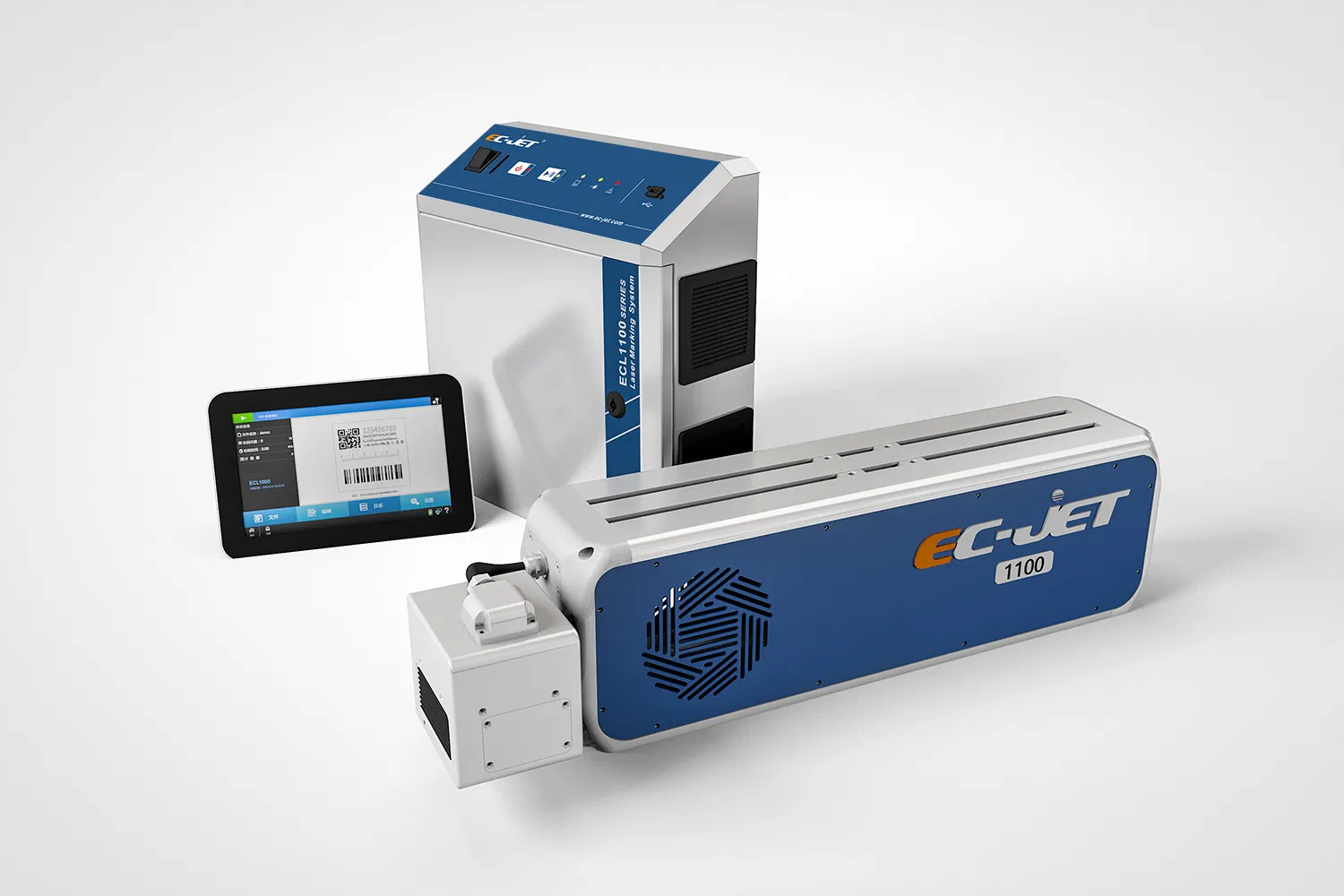

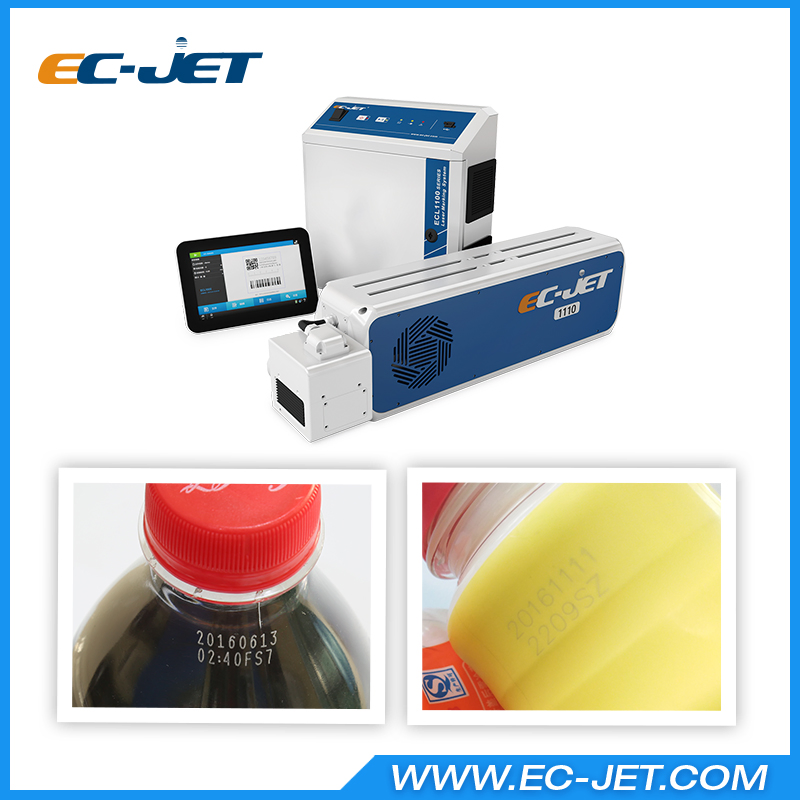

Touch Screen High Speed Printing Date Barcode Fiber Laser Marking Machine (ECL6000)
Touch Screen High Speed Printing Date Barcode Fiber Laser Marking Machine (ECL6000)
Touch Screen High Speed Printing Date Barcode Fiber Laser Marking Machine (ECL6000)
Touch Screen High Speed Printing Date Barcode Fiber Laser Marking Machine (ECL6000)
Touch Screen High Speed Printing Date Barcode Fiber Laser Marking Machine (ECL6000)
1 / 5
Touch Screen High Speed Printing Date Barcode Fiber Laser Marking Machine (ECL6000)
Touch Screen High Speed Printing Date Barcode Fiber Laser Marking Machine (ECL6000)
Touch Screen High Speed Printing Date Barcode Fiber Laser Marking Machine (ECL6000)
Touch Screen High Speed Printing Date Barcode Fiber Laser Marking Machine (ECL6000)
Touch Screen High Speed Printing Date Barcode Fiber Laser Marking Machine (ECL6000)

Touch Screen High Speed Printing Date Barcode Fiber Laser Marking Machine (ECL6000)

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.ECL6000
TypeLaser Marking System
UsageDaily Industrial, Chemical, Drug, Food, Ceramics, Building Materials
Automatic GradeAutomatic
Principle of ClassificationFiber Laser Marking
Application of ClassificationLaser Jet Printer
Working PatternsOn-Line
SuppliesFiber Laser
PackagingBox
Laser TypeFiber
Coding TypeDynamic Coding/Static Coding
Power Supply100~240V AC50/60Hz
Operating System'seq' Operating System
Character Height0.8mm-300mm
Coding RangeFrom 70mm to 300mm
Coding LineWithin the Marking Area
Controller InstallationPortable or Desktop
Protection GradeIP55
Language SupportMulti-Language
Transport PackageCarton
SpecificationCE
HS Code84433250
Production Capacity50000/Year

Product Overview

Laser marking is a non-contact printing method that offers advantages over other technologies including mark quality, permanence and fewer consumables. The line of laser marking systems includes CO2, Fiber and UV laser sources in different power outputs to address a range of substrates and applications. In addition, a comprehensive portfolio of laser accessories including lenses and beam turning units is available to simplify integration into your production lines and maximize the laser's performance.

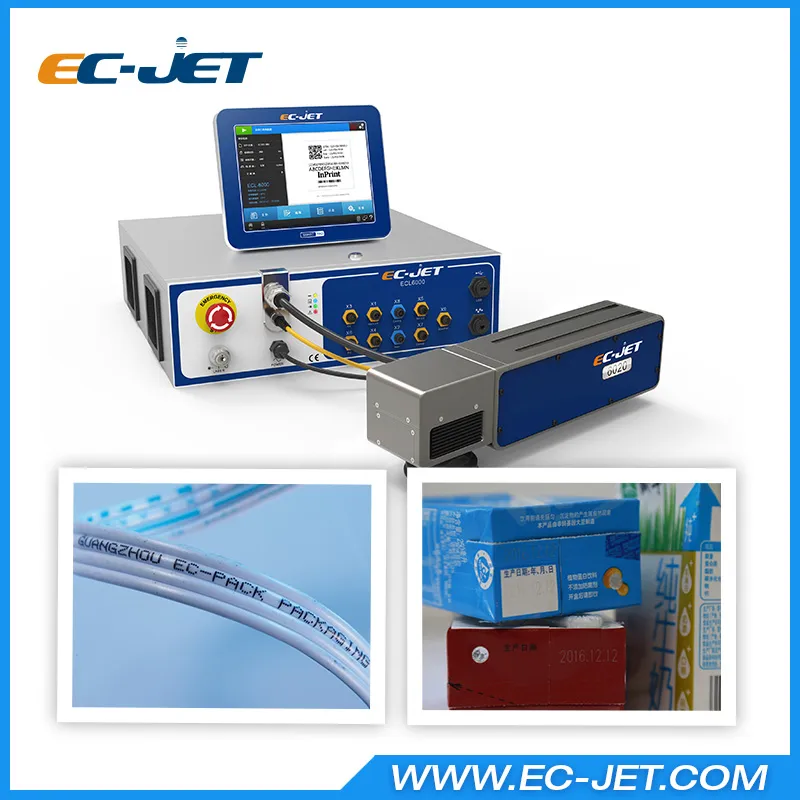

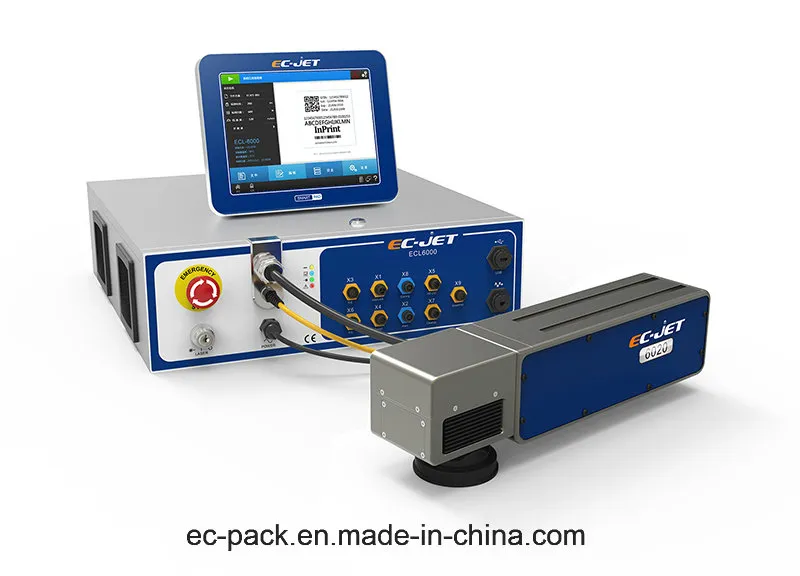

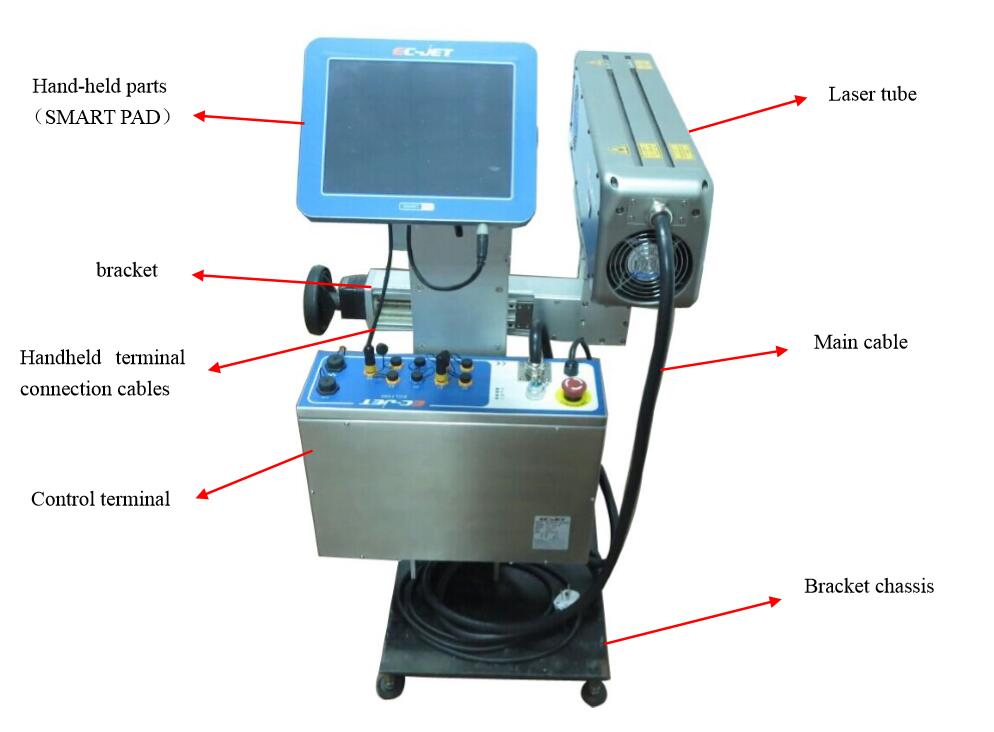

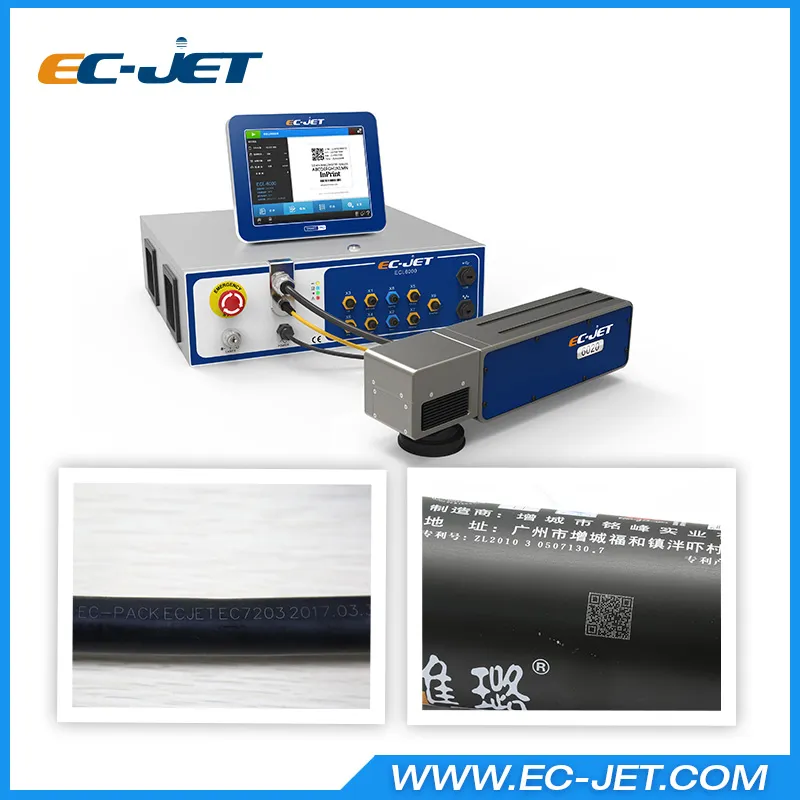

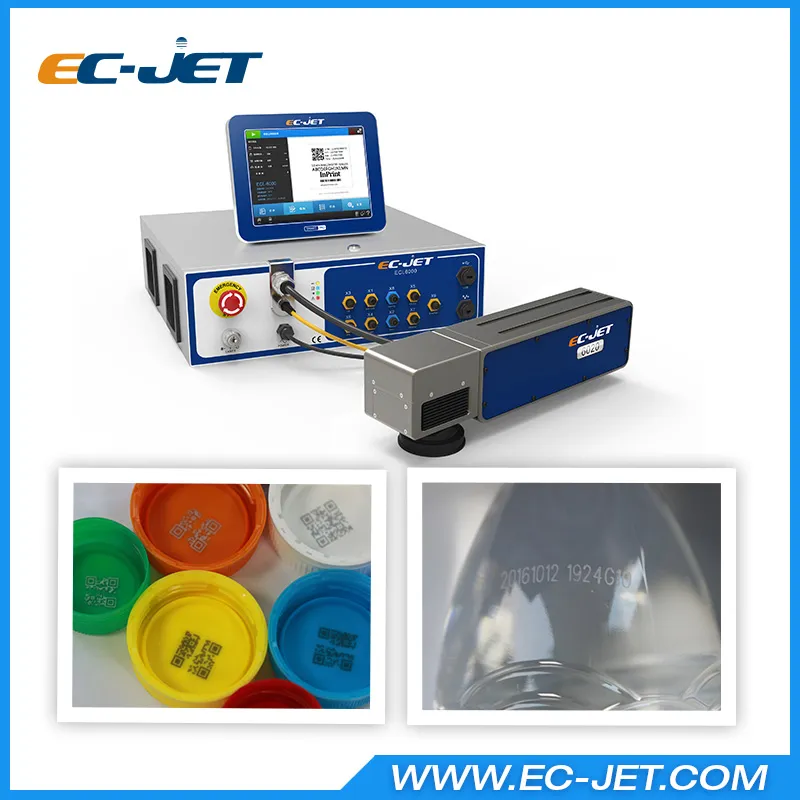

Fiber Laser Marking Machine Front View Touch Screen Laser Printer Laser Marker Details Laser Marking Controller Unit

Schematic Diagram

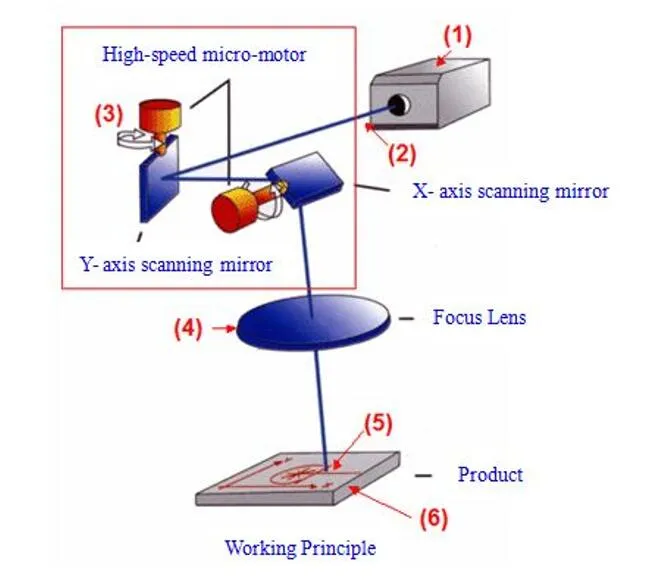

Laser Marking Machine Schematic Diagram

Technical Parameters

Parameter ECL6010 ECL6020 ECL6050
Laser Type Fiber
Coding Type Dynamic coding / Static coding
Laser Power 10W 20W 50W
Coding Line Setting freely within marking area
Character Height 0.8mm - 300mm
Barcode A variety of 1D and 2D barcode types
Graphics Format BMP, DXF, HPG, JPEG and other graphic formats
Text Type Fixed text, serial number, date, counter, shift code, random code
Coding Range Selectable from 70mm to 300mm
Interface 10.4-inch high-precision industrial touch screen
Operating System "SEQ" operating system
Standard Port Synchronous, product detector, external alarm, USB, Ethernet, RS232
Appearance Industrial-grade stainless steel & aluminum shell
Controller Setup Portable or desktop
Operating Temp. 5 - 40ºC
Relative Humidity 10% - 90% (no condensation)
Protection Grade IP55
Power Supply 100~240V AC 50/60Hz
Dimensions (mm) Laser head: 441 * 97 * 108
Controller: 510 * 460 * 150
Handheld Screen: 272 * 21 * 218

Printing Samples

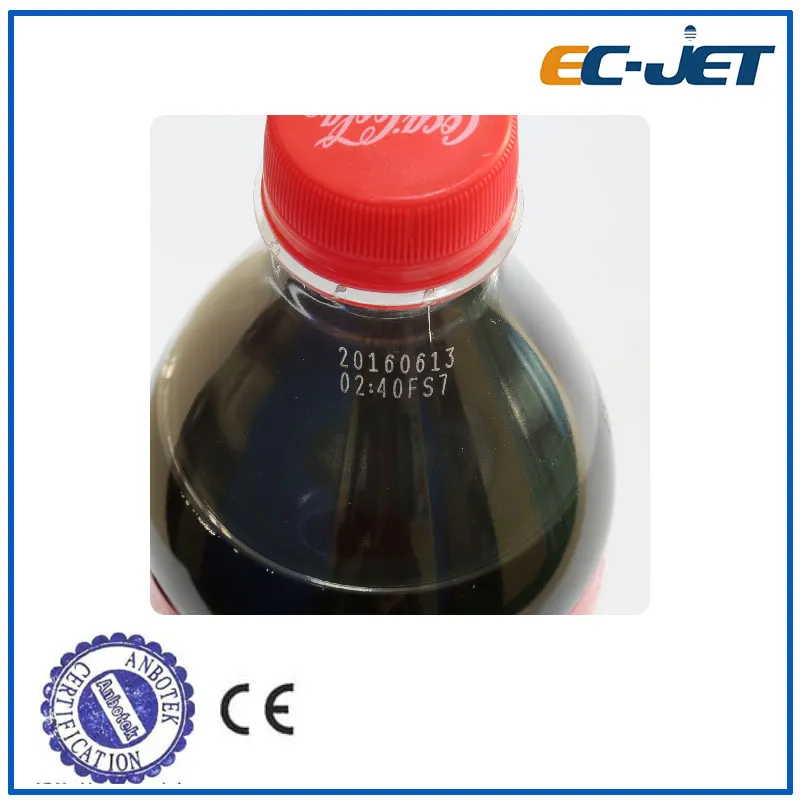

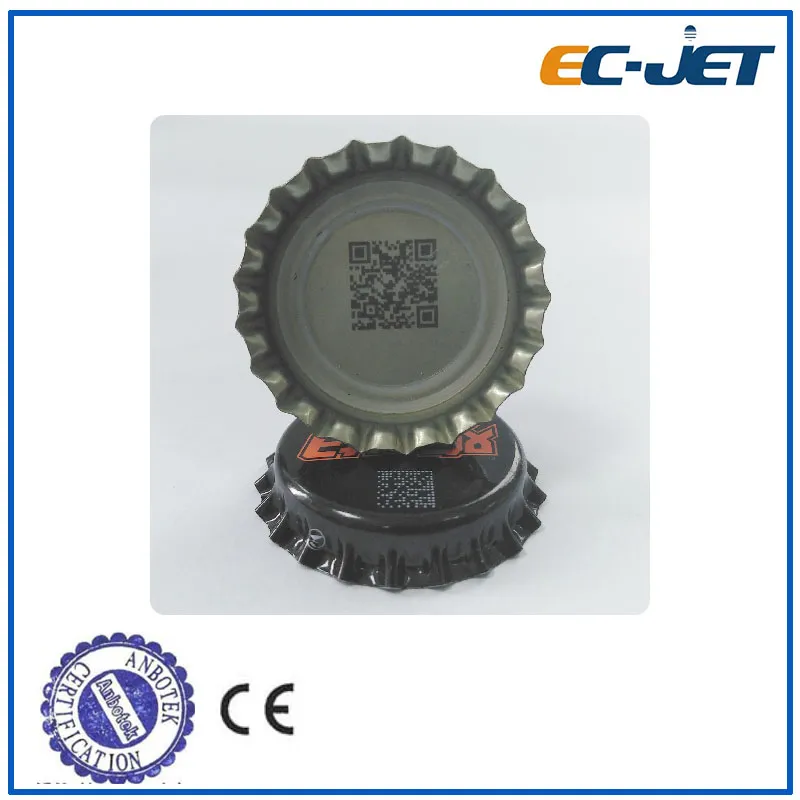

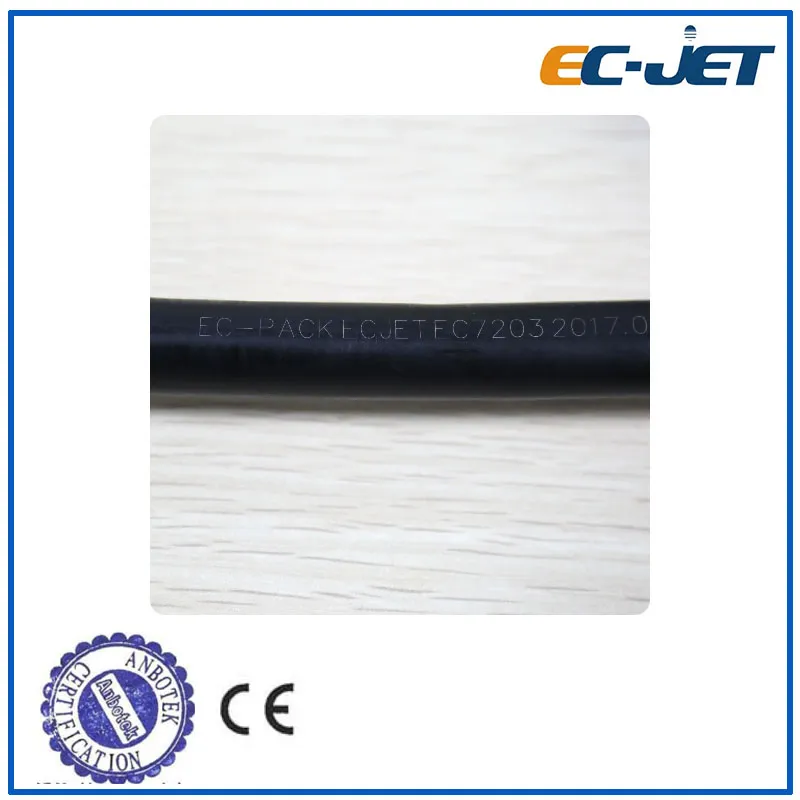

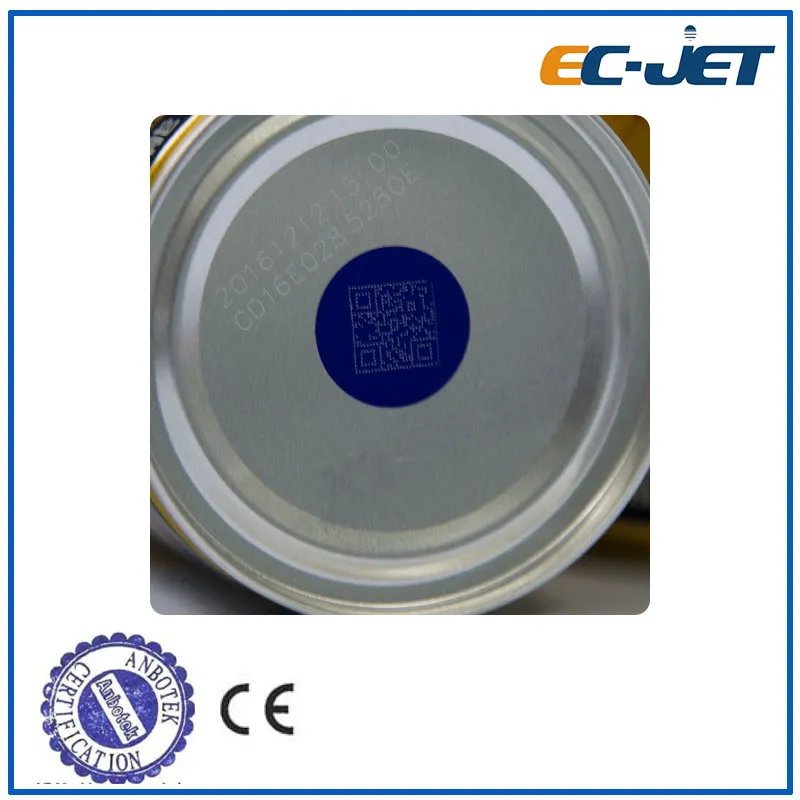

Laser Printing Sample on Steel Laser Printing Sample on Plastic Laser Printing Sample Code Laser Printing Sample QR Code

Quality Certification

CE Certificate for Laser Marking System

Manufacturing Plant

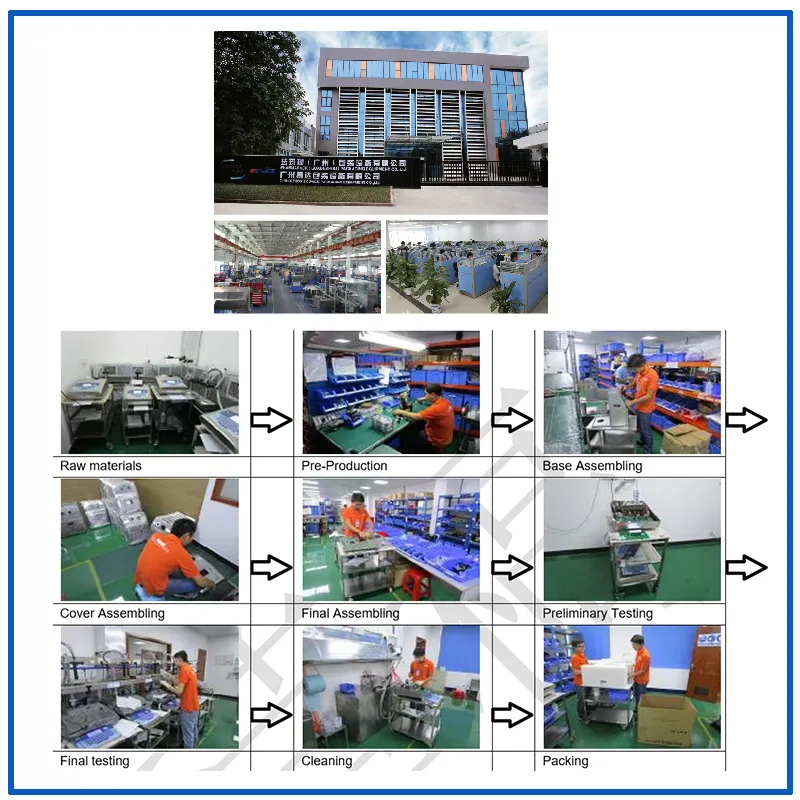

Factory Production Plant

Frequently Asked Questions

Q1: What are the primary advantages of fiber laser marking?
A1: Fiber laser marking is a non-contact process that produces high-quality, permanent marks without requiring inks or other costly consumables, resulting in lower maintenance costs and cleaner operations.
Q2: Which materials can be coded using the ECL6000?
A2: The ECL6000 system is suitable for coding a wide variety of materials used in daily industrial settings, including plastics, metals, ceramics, chemical products, pharmaceuticals, food packaging, and building materials.
Q3: Does the system support dynamic online marking?
A3: Yes, the ECL6000 supports both static and high-speed dynamic (on-the-fly) online coding, making it easy to integrate into existing moving production lines.
Q4: What types of codes and graphics can it print?
A4: It can print fixed text, auto-incrementing serial numbers, production dates, shift codes, batch counters, and random codes. It also supports standard 1D/2D barcodes and various graphic formats such as BMP, DXF, HPG, and JPEG.
Q5: Is an external PC required to operate the laser marking machine?
A5: No, the system comes with an integrated 10.4-inch high-precision industrial touch screen operating the built-in software, allowing standalone operation.
Q6: What is the environmental protection rating of this industrial printer?
A6: The machine has an IP55 protection rating and is housed in an industrial-grade stainless steel and aluminum enclosure, ensuring reliable performance in harsh, dusty, or humid factory environments.
