Applicable materials: Various metals (stainless steel, iron, copper, aluminum, magnesium, zinc, rare metals, alloys, etc.), engineering plastics, electroplating materials, coating materials, spraying materials, inks, ABS, plastic rubber, epoxy resin, mobile phone paint peeling, etc.
Laser marking is characterized by non-contact processing. It can be marked on any special-shaped surface. The work piece will not deform or generate internal stress. It is suitable for marking materials such as metal, plastic, glass, ceramic, wood, leather, etc. The symbol size can range from millimeters to microns, which is of special significance for product anti-counterfeiting.
Laser marking: The basic principles of static marking and flying marking are the same. The main difference lies in the driver software! Flying marking is vector marking, which relies on the movement of the printed object to achieve font engraving. It is often used in conjunction with assembly lines, with fast marking speed and high efficiency. For static marking, the cursor simply forms words on the plane!
| Laser type | Wavelength | Principle | Applicable products | Features | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Metal | Plastic | Paper | Wood | Glass | Ceramics | Cloth | Jade | Supplement | ||||
| UV | 355nm | The reaction mechanism is achieved through photochemical ablation, that is, relying on laser energy to break the bond between atoms or molecules, so that it becomes a small molecule gasification, evaporation mark. | √ | √ | √ | √ | √ | √ | √ | √ | Flexible PCB boards, polymer materials | Cold light source, good beam quality, small spot, fine marking; wider application range; fast marking speed, high material efficiency, small size, low power consumption, etc. |
| Fiber | 1064nm | Use light energy to make the surface material undergo physical or chemical changes, thereby engraving permanent marks such as patterns, trademarks and text. | √ | Partial | √ | √ | √ | √ | Leather, polymer materials | The photoelectric conversion efficiency is extremely high, saving electricity; small size, small footprint; no chiller is required, completely air-cooled; long life, extremely high repetition frequency. | ||
| CO2 | 10.6um | Use a laser beam to irradiate the surface of the material, and the light energy curtain is instantly converted into heat energy, so that the surface of the material is instantly partially melted or even vaporized, thereby forming a mark. | Partial | √ | √ | √ | √ | √ | √ | Rubber, crystal, artificial stone | Laser marking is clear and permanent, fast, high yield, pollution-free, maintenance-free and low cost. | |
| Green light | 532nm | The green light laser marking machine uses side pumping. | √ | √ | Reflective materials such as gold and silver | Small spot, more concentrated energy, high electro-optical conversion efficiency, good beam quality, clear contrast. | ||||||
| Infrared picosecond | 1064nm | Picosecond laser has the characteristics of ultra-short pulse width, ultra-high instantaneous power, and ultra-small focusing area. | √ | √ | √ | √ | √ | √ | √ | √ | Brittle material cutting | High frequency punch width is narrow and the frequency is high, which is suitable for fine marking or flying marking. |

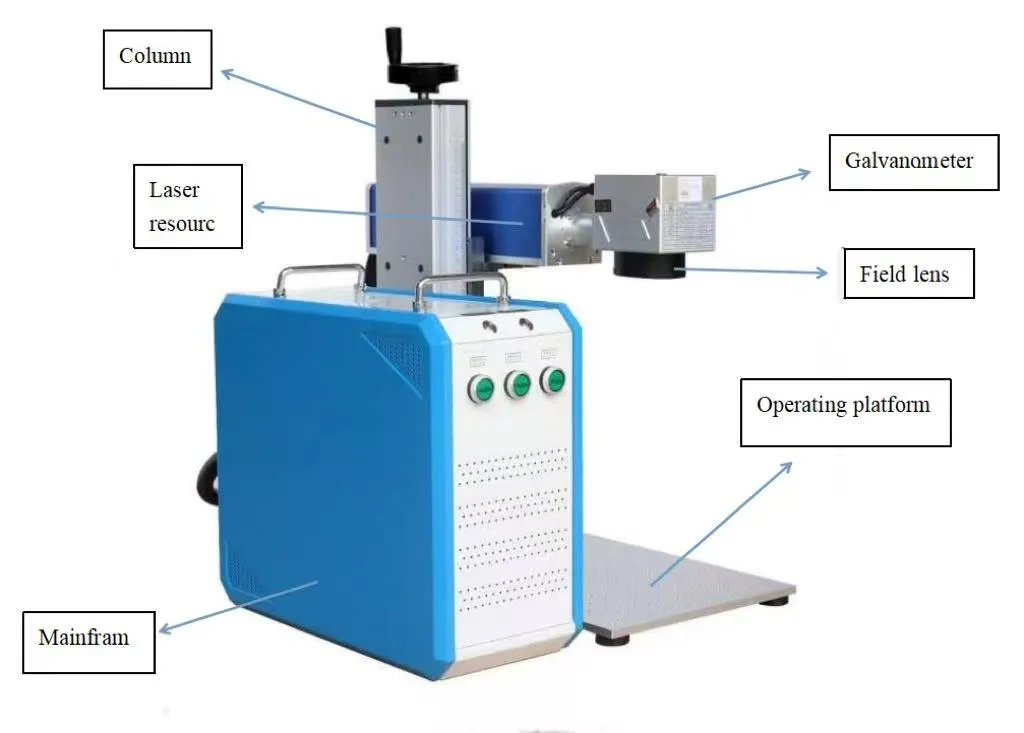

Perfect replica marking. Equipped with high-performance micro motor, fast marking speed, stable operation, high precision and longer service life.
Precise marking range. The use of high-performance lenses has good light perception, uniform lighting, light volume, and is not afraid of environmental challenges.
Precise, stable and smooth. High-performance rulers and more accurate marking and positioning. High-quality benchmarks make the lifting column stable and smooth.
Professional and convenient. 25X25 hole spacing allows you to better position. Combine the modules to achieve more marking needs. Multi-station marking with software improves work efficiency.

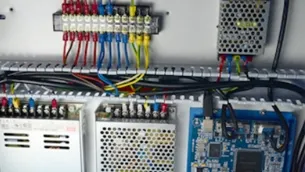

Professional and convenient. Simple and fast control system, humanized control switch. Safe and effective anti-leakage setting, equipped with USB interface.
Standardization, craftsmanship. Implement strict installation standards, pursue details, be safer and more efficient, and good quality will accompany you for a long time.
