Basic Info
- Model NO.20-100W
- CustomizedNon-Customized
- Standard ComponentStandard Component
- TypeLaser Generator
- Wattage Selection50-200W
- Operating ModePulse
- Polarization StateRandom
- Beam Quality1.5square Meter
- Specification400*300*150mm
- HS Code9027509090
Packaging & Delivery
- Package Size40.00cm * 30.00cm * 15.00cm
- Package Gross Weight10.000kg
Product Description

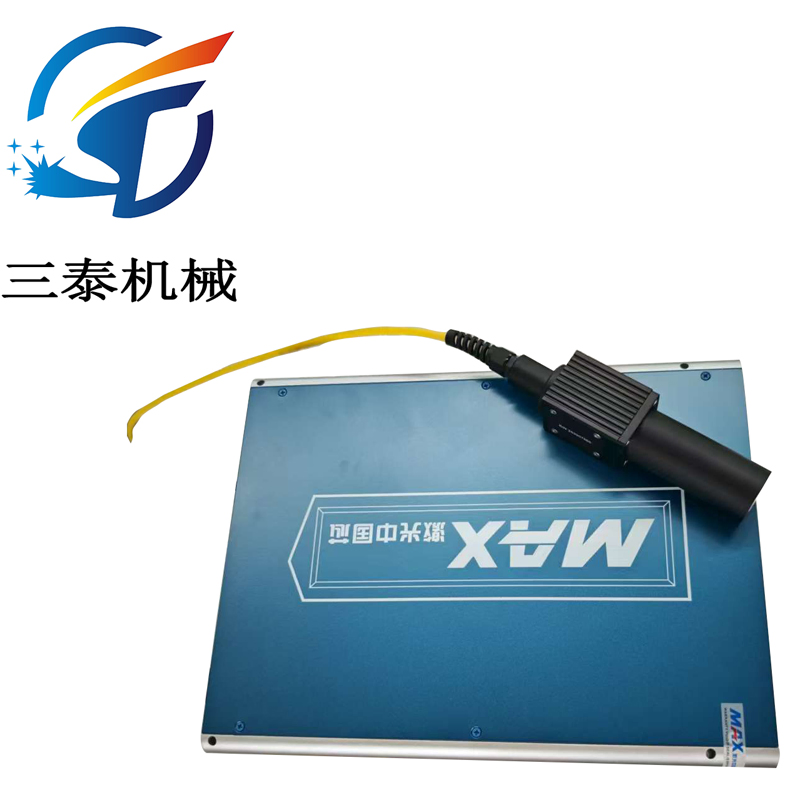

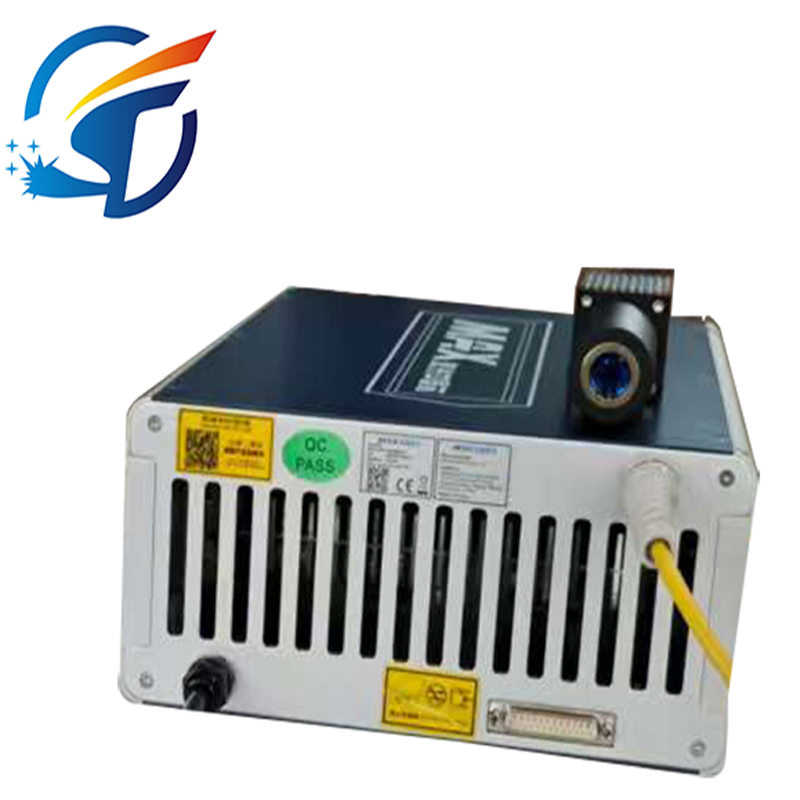

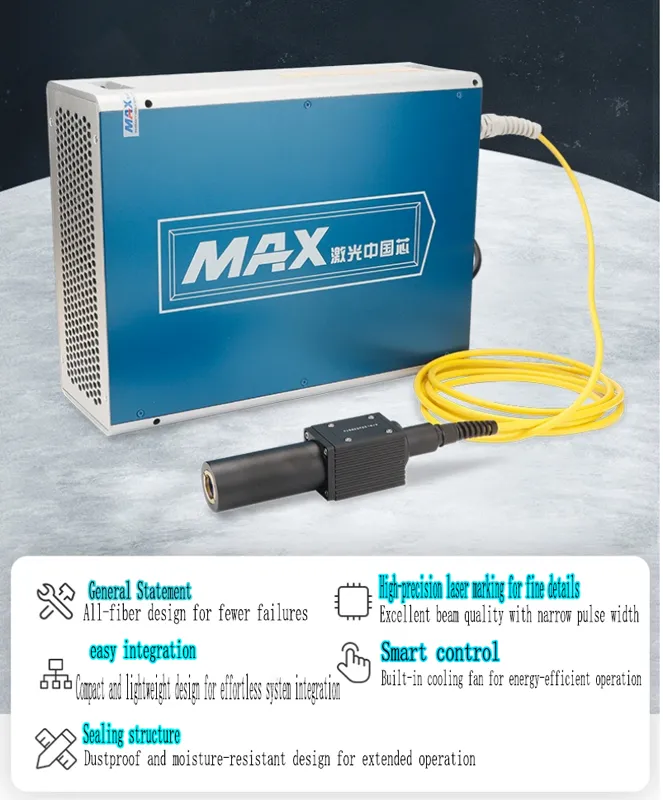

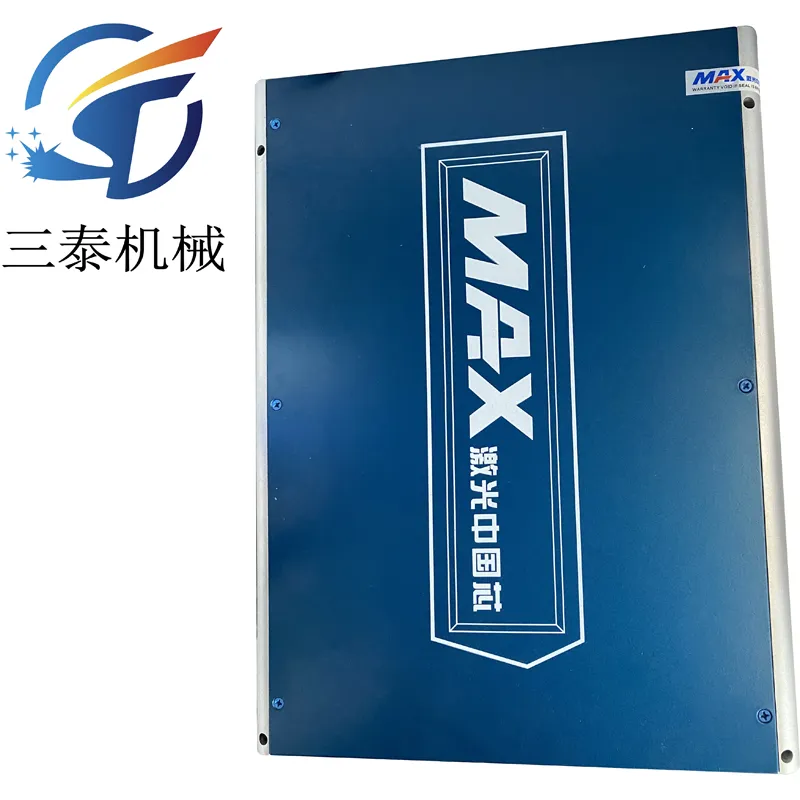

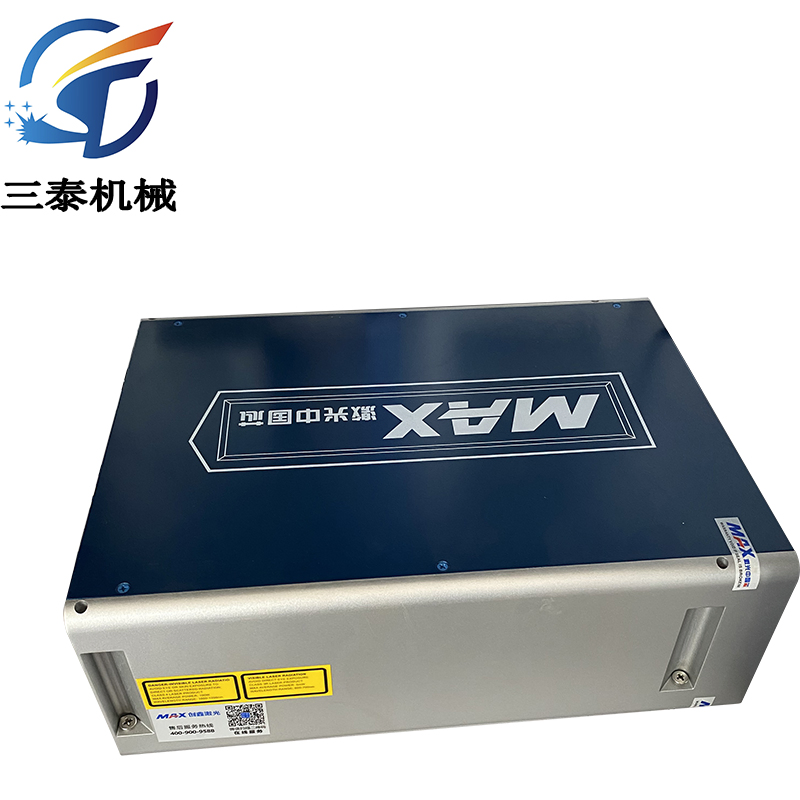

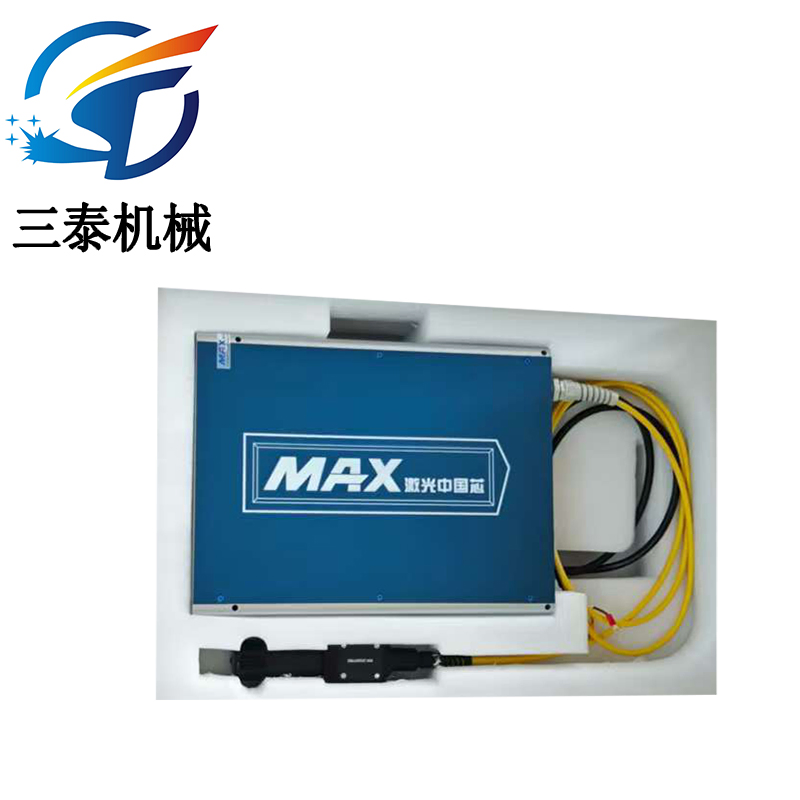

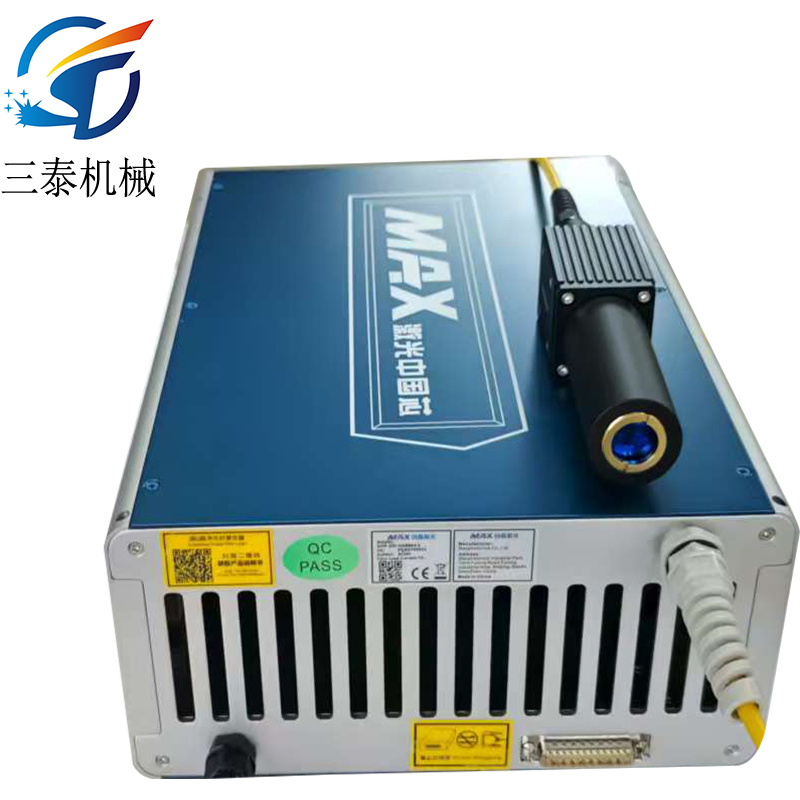

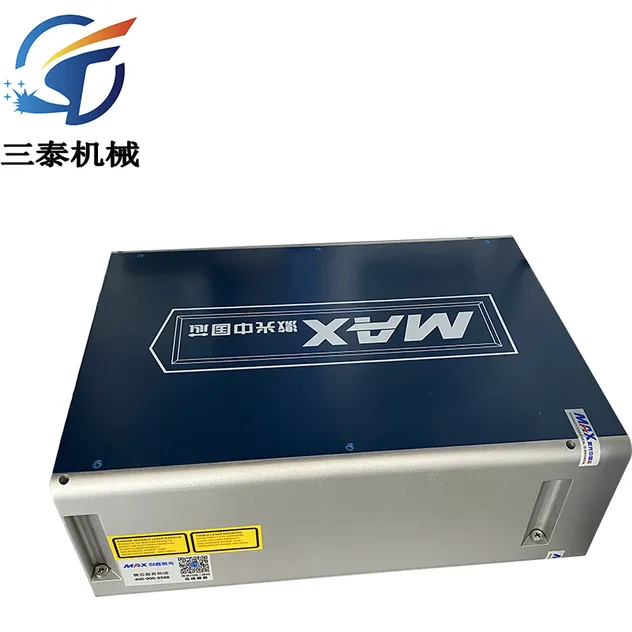

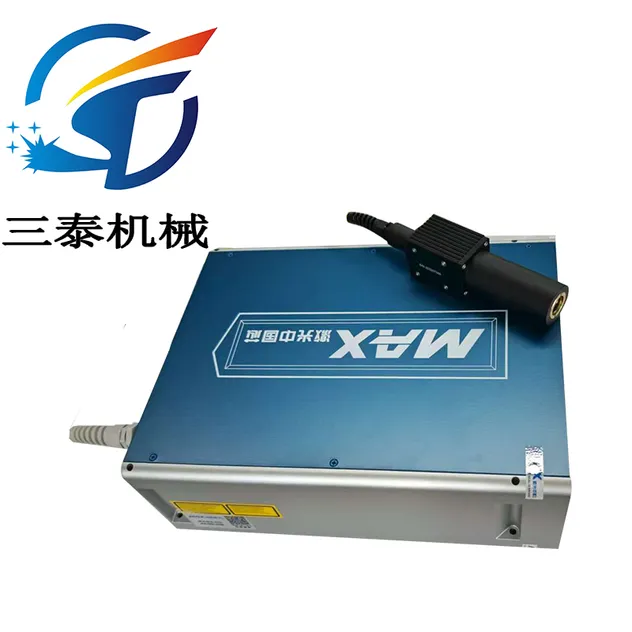

■ Laser Marking System Light Source

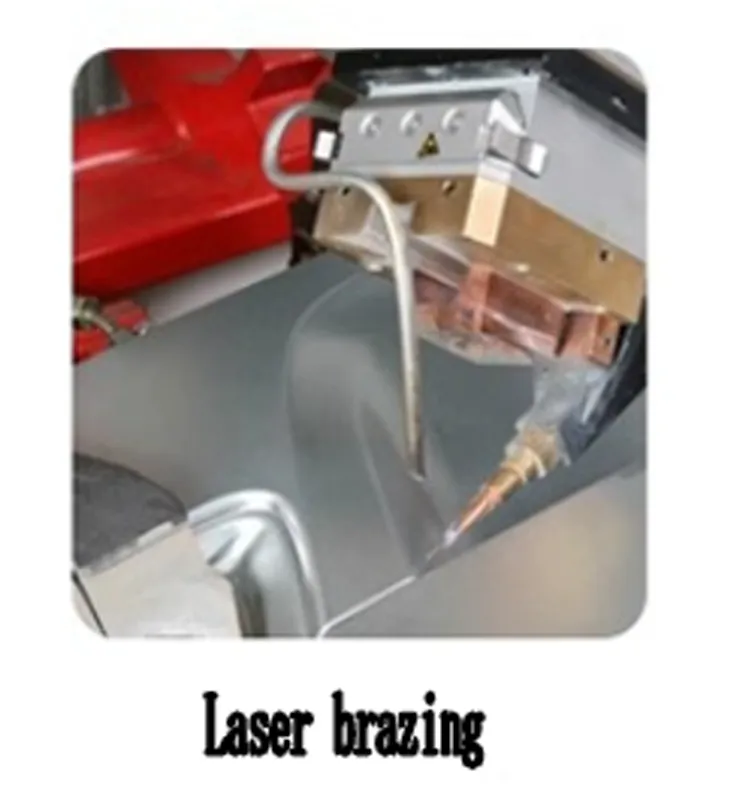

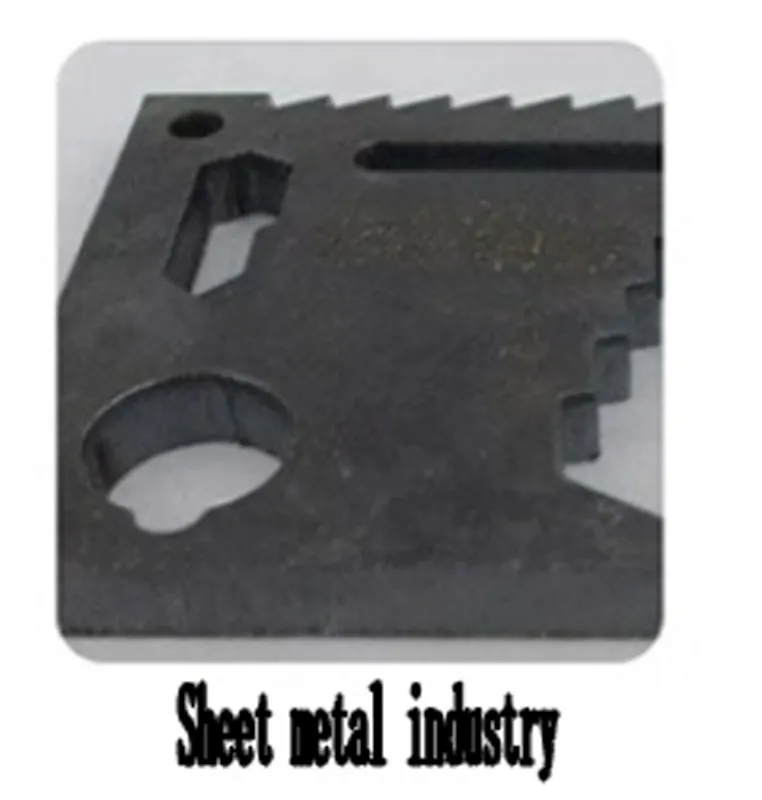

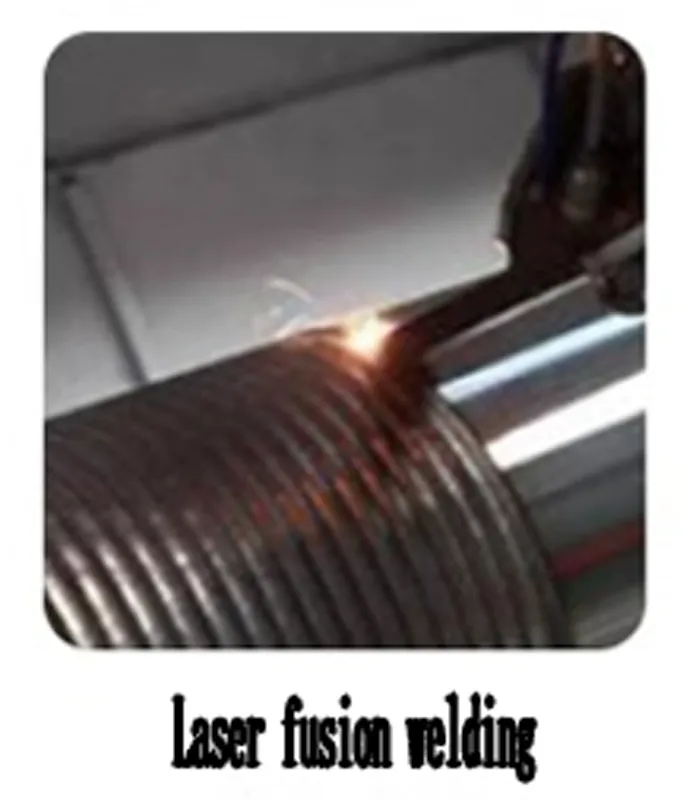

A fiber laser is a type of laser that uses rare-earth-doped optical fiber as the gain medium, offering advantages such as high efficiency, excellent beam quality, long lifespan, and low maintenance. Its working principle involves using a pump source (e.g., diode lasers) to excite rare-earth ions (e.g., ytterbium, erbium) in the fiber, generating high-intensity laser output. Fiber lasers are widely used in industrial processing (e.g., cutting, welding, marking), telecommunications, medical applications, and scientific research, particularly excelling in high-power precision machining.
Specification
Key Configurations
- Average optical power pnom (W)50-200W
- Working modelPulse
- PolarizationRandom
- Beam Quality M²1.5/1.8
- Center Wavelength (nm)1064±5nm
- Spectral Bandwidth 3dB (nm)5~10
- Power Adjustment Range (%)10~100
- Single Pulse Energy (mJ)0.45~1.5
- Optical Pulse Width FWHM (ns)100~140
- Pulse Repetition Frequency (kHz)10~170
- Output Power Instability (%)5
- Output Beam Diameter (mm)7.5 (6~9) (1/e²)
- Output Beam Ellipticity (%)90
- Laser On Time (μs)110~140
Technical Specifications
(Custom configurations available upon request. Example specifications below:)
| Parameter Set A |
Parameter Set B |
| Model |
50W |
Power Adjustment Range (%) |
10~100 |
| Average Optical Power Pnom (W) |
50 |
Pulse Repetition Frequency (kHz) |
33~80 |
| Operation Mode |
Pulsed |
Output Power Instability (%) |
5 |
| Polarization |
Random |
Output Beam Diameter (mm) |
7.5 (6~9) (1/e²) |
| Beam Quality M² |
1.8 |
Laser On Time (μs) |
110~140 |
| Center Wavelength (nm) |
1064±5nm |
Laser Off Time (μs) |
110~150 |
| Spectral Bandwidth 3dB (nm) |
5~10 |
Fiber Cable Length (m) |
2.5 (1.9~3) |
After Sales Service
- Standard Warranty12 months or 2,000 operating hours (whichever comes first)
- Extended WarrantyOptional coverage up to 12 months
- TrainingOn-site or remote operation/maintenance training
FAQ
Q1: How can I choose the most suitable machines?
A1: Please let us know your machining demand or machine size, and we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the products drawing, and we will choose the most suitable machines for you.
Q2: What is your minimum order quantity and warranty?
A2: Our MOQ is one set, and the warranty is one year. We also offer lifetime service support for the machines.
Q3: How to ensure the quality?
A3: 1. Firstly, we choose the best material for the processing.
2. During and after processing, we will inspect the finished parts.
3. Once the machine is finished, our quality control team will test it based on customer requests.
Q4: What are your trade terms?
A4: FOB, CFR, CIF, or other standard delivery terms are all acceptable.
Q5: When is the delivery time?
A5: We will deliver within 15-60 working days after receiving your deposit. If some special machines require longer lead times, we will advise you accordingly.
Q6: How can I request a quote and confirm an order?
A6: Please contact us for a quote, and then confirm your order by issuing a purchase order (PO).
