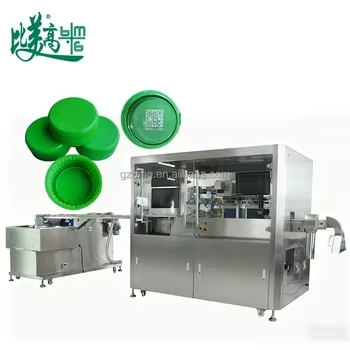

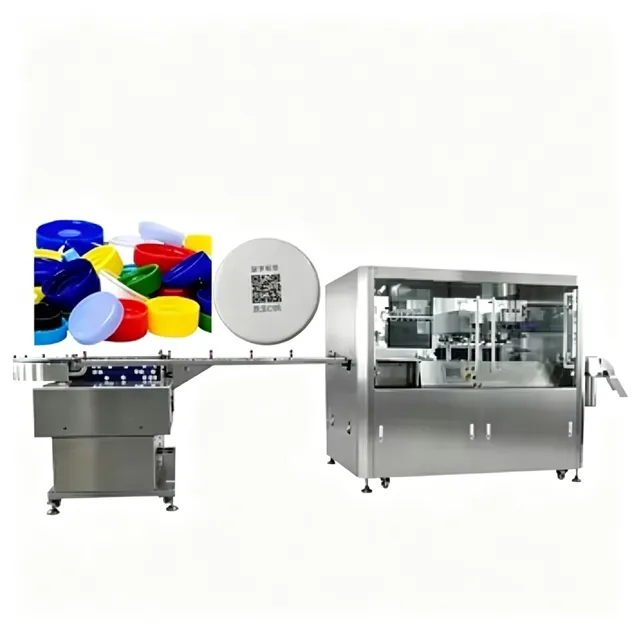

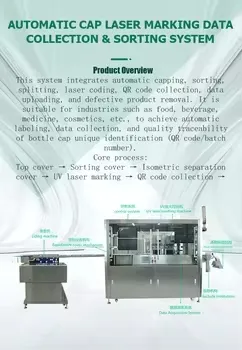

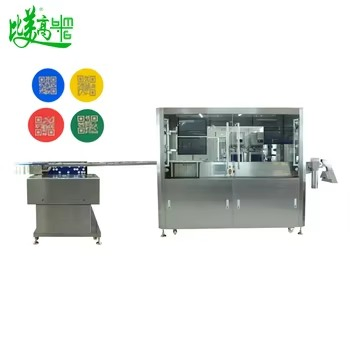

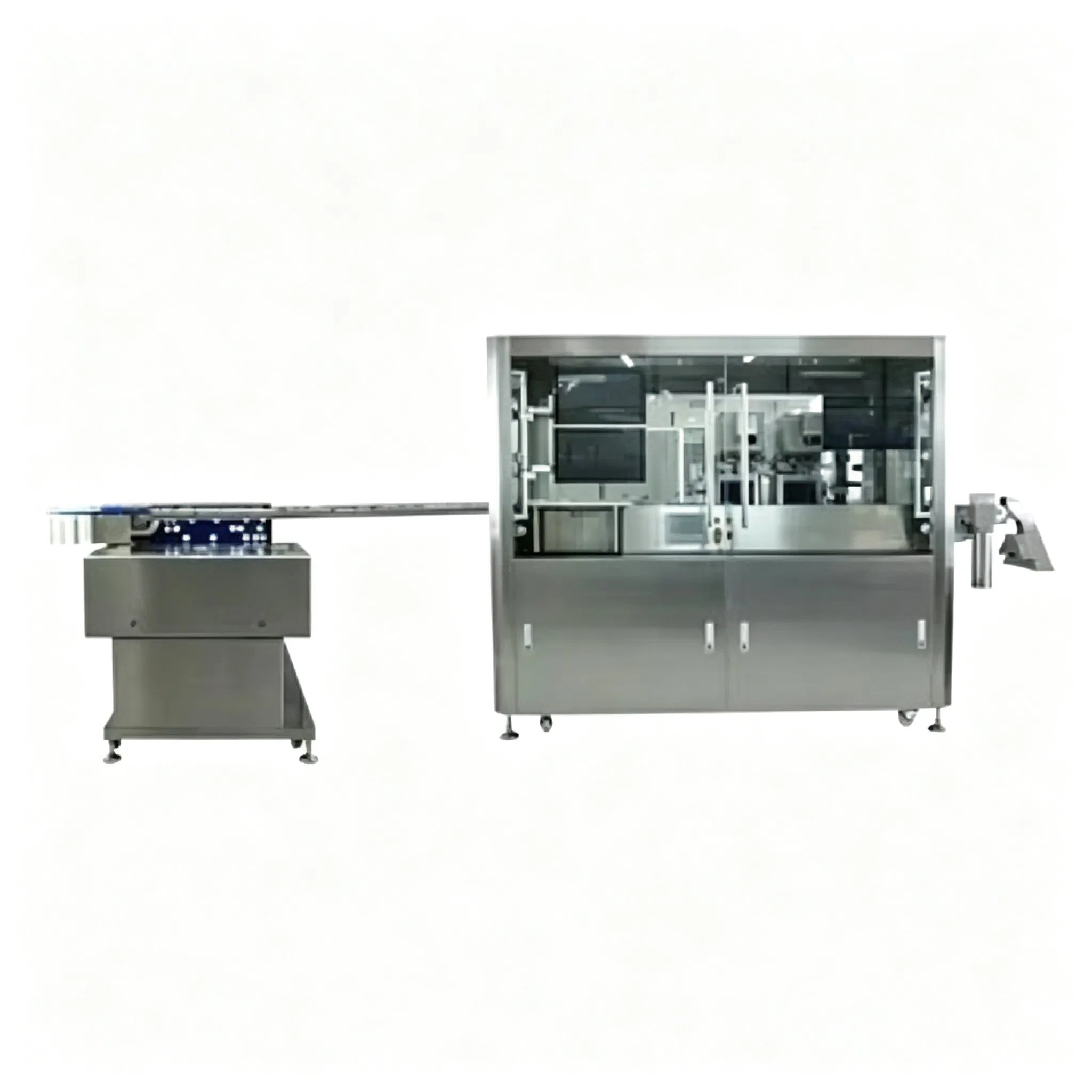

This all-in-one laser marking machine is EAC certified and specially developed for the Russian compliance market. It integrates automatic cap feeding, dual-station laser marking, CCD code reading, data association, defect inspection and automatic rejection system. Equipped with UV laser and fiber laser, the machine supports inner and outer cap coding. It realizes GS1 Data Matrix and Chestny ZNAK honest label marking, becoming a professional online traceability equipment for packaging cap production lines.
The machine is applied for laser coding on the inner and outer surface of packaging caps. It meets Russian import compliance standards and generates official Chestny ZNAK codes for customs clearance. The CCD vision system inspects defective caps and poor coding products. Unqualified goods will be automatically rejected. It is widely suitable for daily chemical, food and beverage packaging industries, especially for factories exporting to Russia.

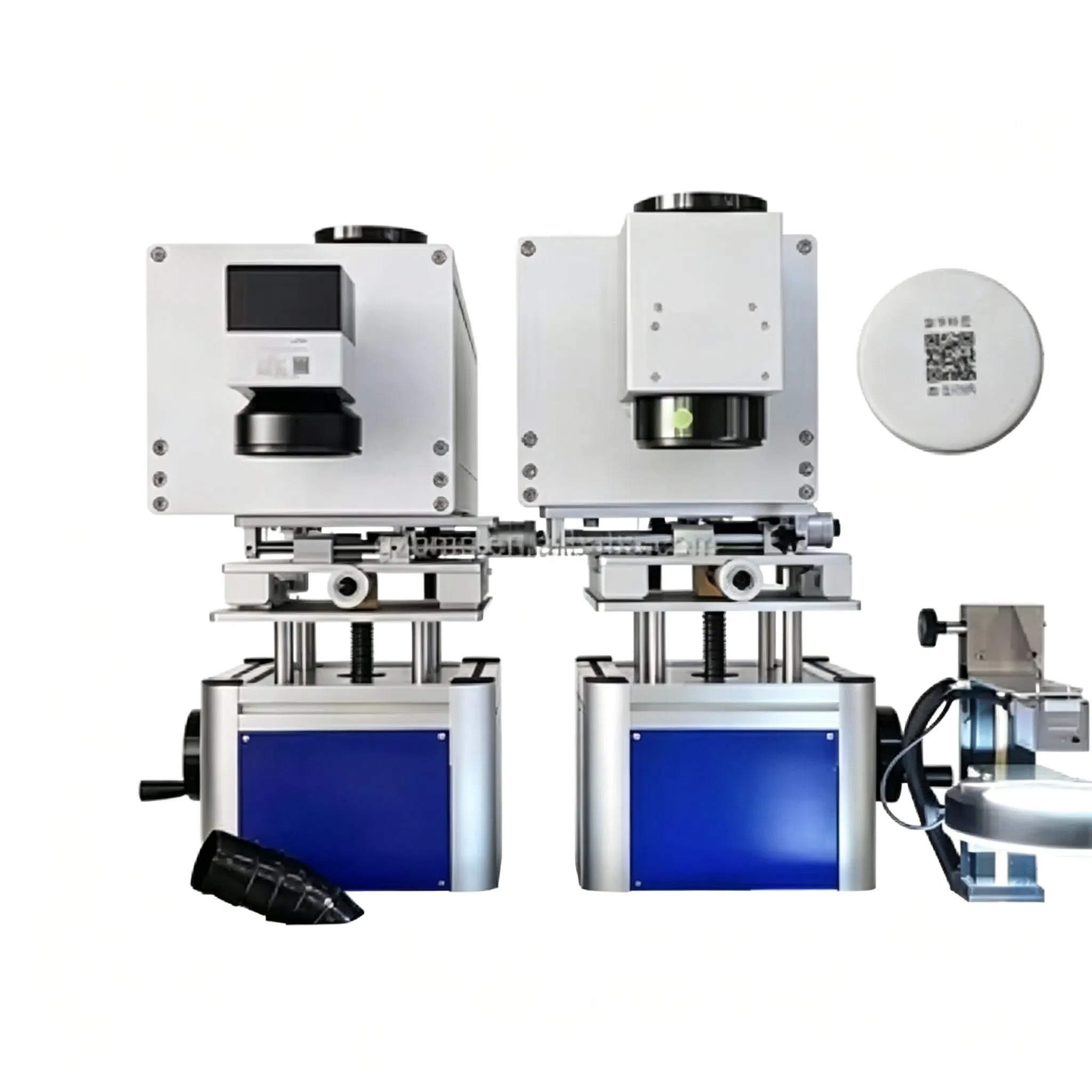

It supports GS1 and Data Matrix QR code marking to meet Russian regulatory requirements. Dual laser sources including UV laser and fiber laser adapt to different cap materials. The equipment realizes both inner and outer cap permanent marking. High-precision CCD camera reads codes and collects production data. It detects cap surface defects and eliminates blurred, missing and wrong codes. All code data is automatically bound to product information for anti-tampering traceability.

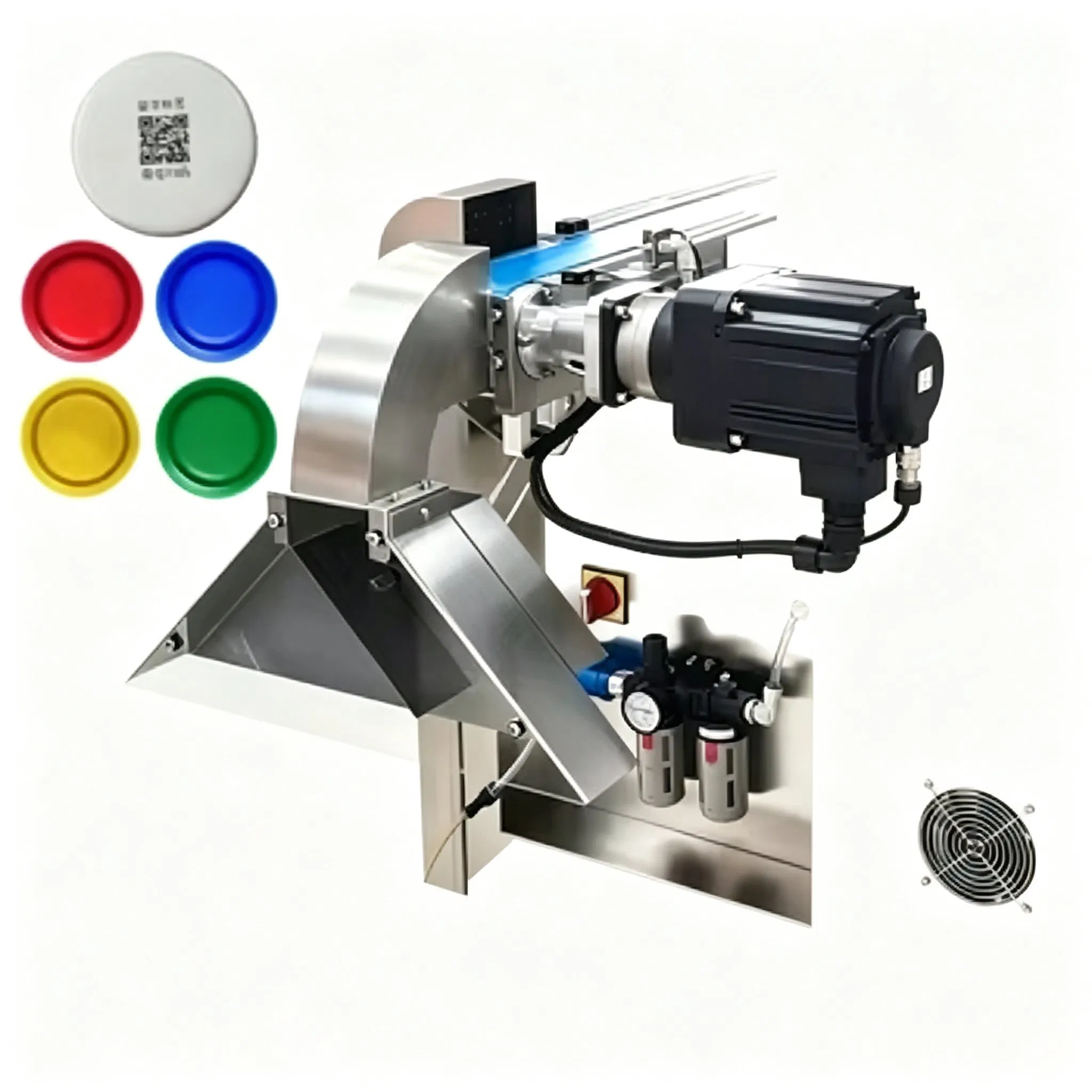

With EAC certification, the machine fully complies with Russian customs standards. The highly integrated structure combines feeding, marking, reading and rejecting functions. Dual-station laser design greatly improves working speed. Intelligent visual algorithm ensures stable defect detection accuracy. Customized feeding mechanism fits different cap sizes and shapes.
This compliant coding machine simplifies customs clearance for Russian export. Fully automatic operation reduces labor sorting and inspection costs. Automatic rejection effectively avoids defective caps flowing into the market. Dual laser configuration makes the machine compatible with plastic and metal caps. Encrypted traceability data prevents product tampering and cross-regional diversion. It is a reliable integrated marking and inspection machine for modern packaging manufacturers.
| Laser wavelength | 355 um |
| Average output power | 15W |
| Beam quality | m2<1 |
| Modulation frequency | 1KHZ-200KHZ |
| Engraving depth | 0.01mm-0.2mm(subject to the actual product) |
| Minimum line width | 0.02mm |
| Minimum character | 0.1mm |
| Repeatability accuracy | +0.05mm |
| Total machine power consumption | 700W |
| Ambient temperature | 5-45°C |
| Humidity | Relative humidity 95%RH non-condensation |
| Operating System | EZCADJ |
| Operating language | English |
| Font Support | Supports all TTF fonts, including dedicated fonts for laser marking |
| Maximum linear writing speed | 15,000 mm/s |
| Cooling system | Forced air cooling |
| Power supply | Single-phase, 220VAC, 1KVA |
| Marking range | 110mmX110mm or larger (optional) |
| Interface | USB, RS232 |
| Operating system | Windows 10 |
| Anti-duplication detection software | Patent No. :201510915664.5-V1 |
| Camera brand | Hikvision |
| Camera resolution | 1.3 million pixels |
| Scanning range | 100mmx100mm |
| Human-machine interface | 15-inch display screen |
| Operating language | English |
| Light source | LED-Ring light source |
| Signal line | 5 meters |
| Control module | Built-in Integration |
| Communication interface | Network port, USB, serial port |
| Appearance and structure | 304 stainless steel |
| Sensor | Color mark |
| Power supply | Single-phase, 220VAC, 1KVA |
Established in 2009, we specialize in producing various CO2, UV laser, and Fiber laser marking machines, providing one-stop solutions integrated with sorting, traceability, anti-counterfeiting, visual inspection, labeling, printing, paging, and packaging case association functions. We possess a complete technical team covering optics, electronics, software development, mechanical design, electronic control development, and dedicated technical application support services. Our products serve core industries including medicine, beverage, food, hardware, auto parts, electronics, household appliances, plastics, and glass products. We proudly export our systems to over 50 countries and regions globally, including Azerbaijan, Vietnam, India, Dubai, Saudi Arabia, Russia, Australia, and Colombia.
