| Model NO. | BMG-UV-X330 |
| Laser Visibility | Invisible |
| Applicable Material | Metal |
| Cooling System | Water Cooling |
| Technical Class | Pulse Laser |
| Laser Wavelength | Fiber Laser |
| Laser Classification | Solid Laser |
| Type | Optical Fiber Laser Marking Machine |
| Marking Method | Scanning Marking |
| Marke Speed | 12000-15000 mm/S |
| Marke Depth | 0.01-0.1 mm |
| Processing Accuracy | 0.01mm |
| Product Name | Milk Powder Can Coding Inspection Machine |
| Application | Qr Code Laser Engraving Machine |
| Marking Position | Can Top ,Can Side ,Can Bottom |
| Function | Honest Label Printing System |
| Keywords | Comprehensive Anti-Counterfeiting and Coding Syste |
| Marking Content | Qr Code,Character,Data etc |
| Applicable Products | All Kinds of Milk Powder Cans |
| Applicable Industries | Food, Beverage, Medical, Cosmetics,Household Chemi |
| Optional Code Type | Qr Code, Barcode, Date, Batch Number, Custom Mark |
| Certification | EAC ,CE |
| Specification | Customized according to customers |
| Trademark | BMG |
| Package Size | 550.00cm * 600.00cm * 700.00cm |
| Package Gross Weight | 80.000kg |

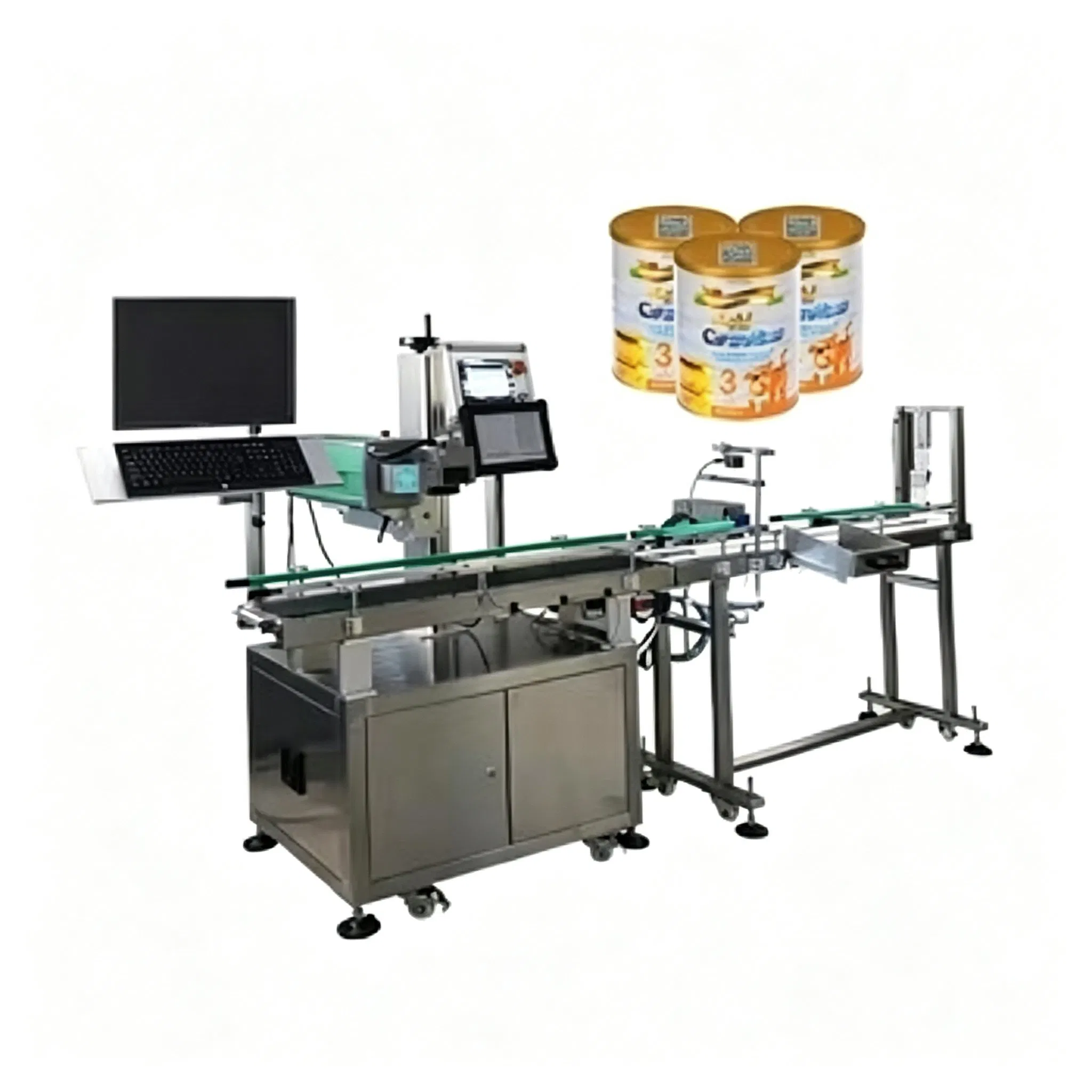

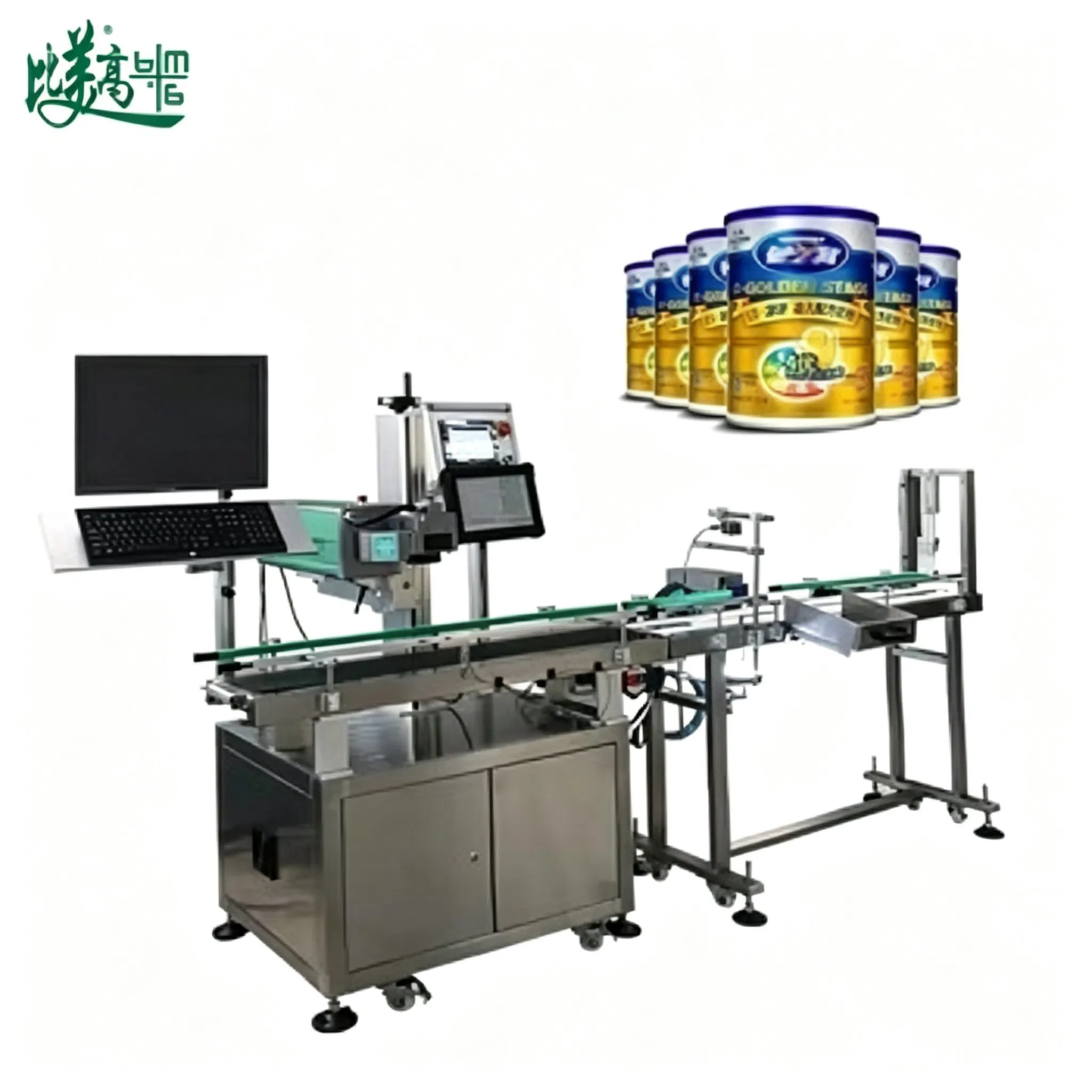

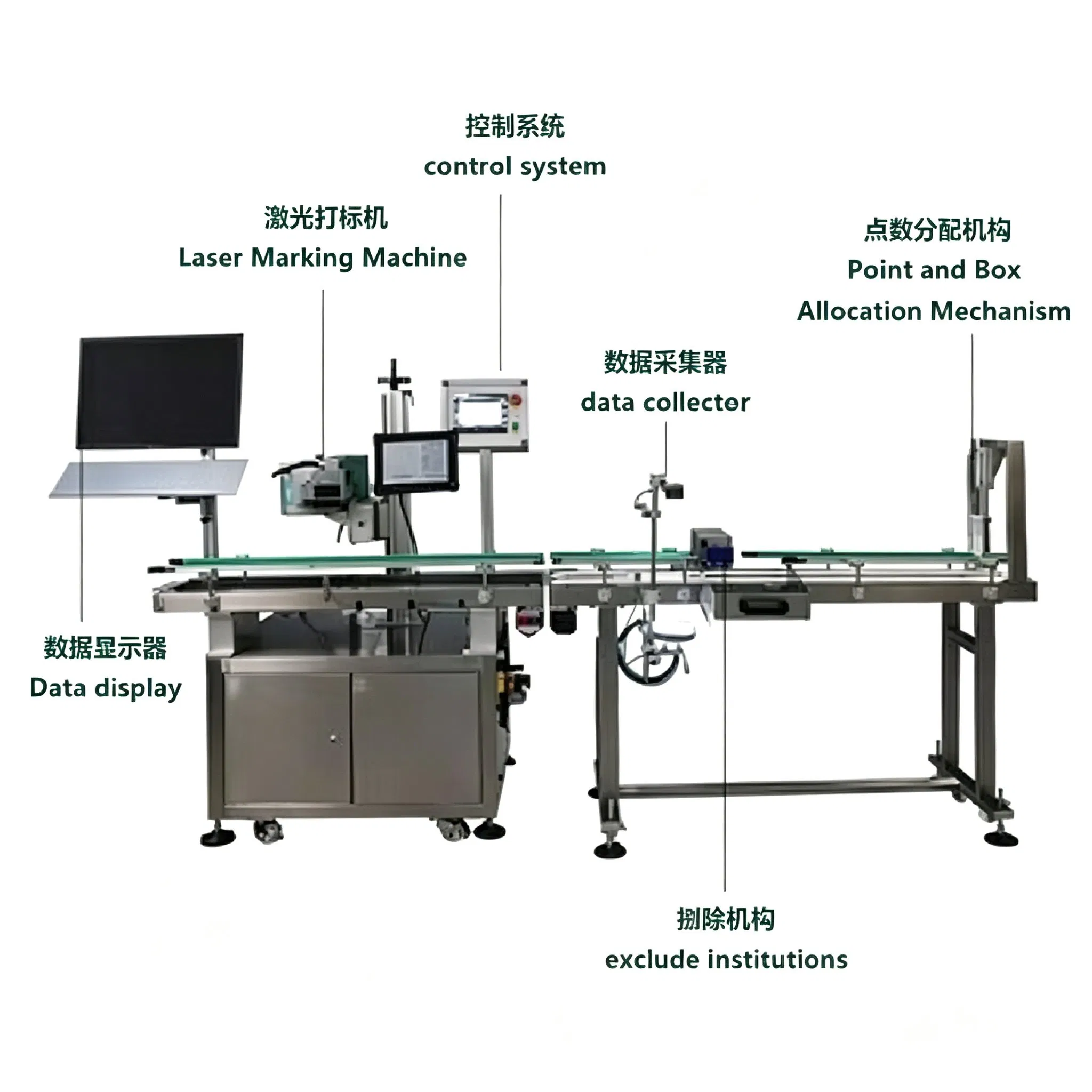

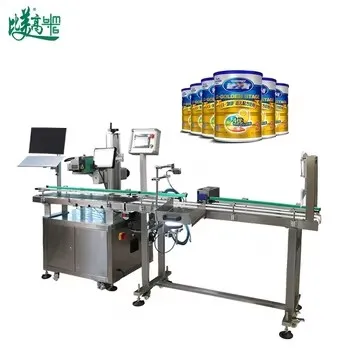

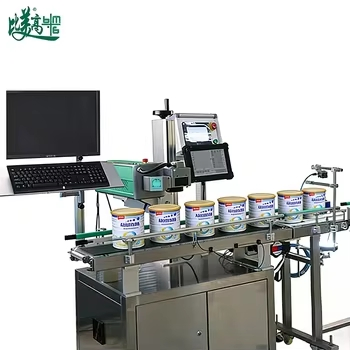

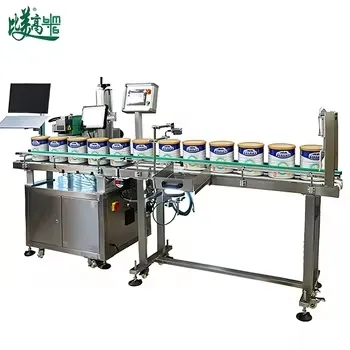

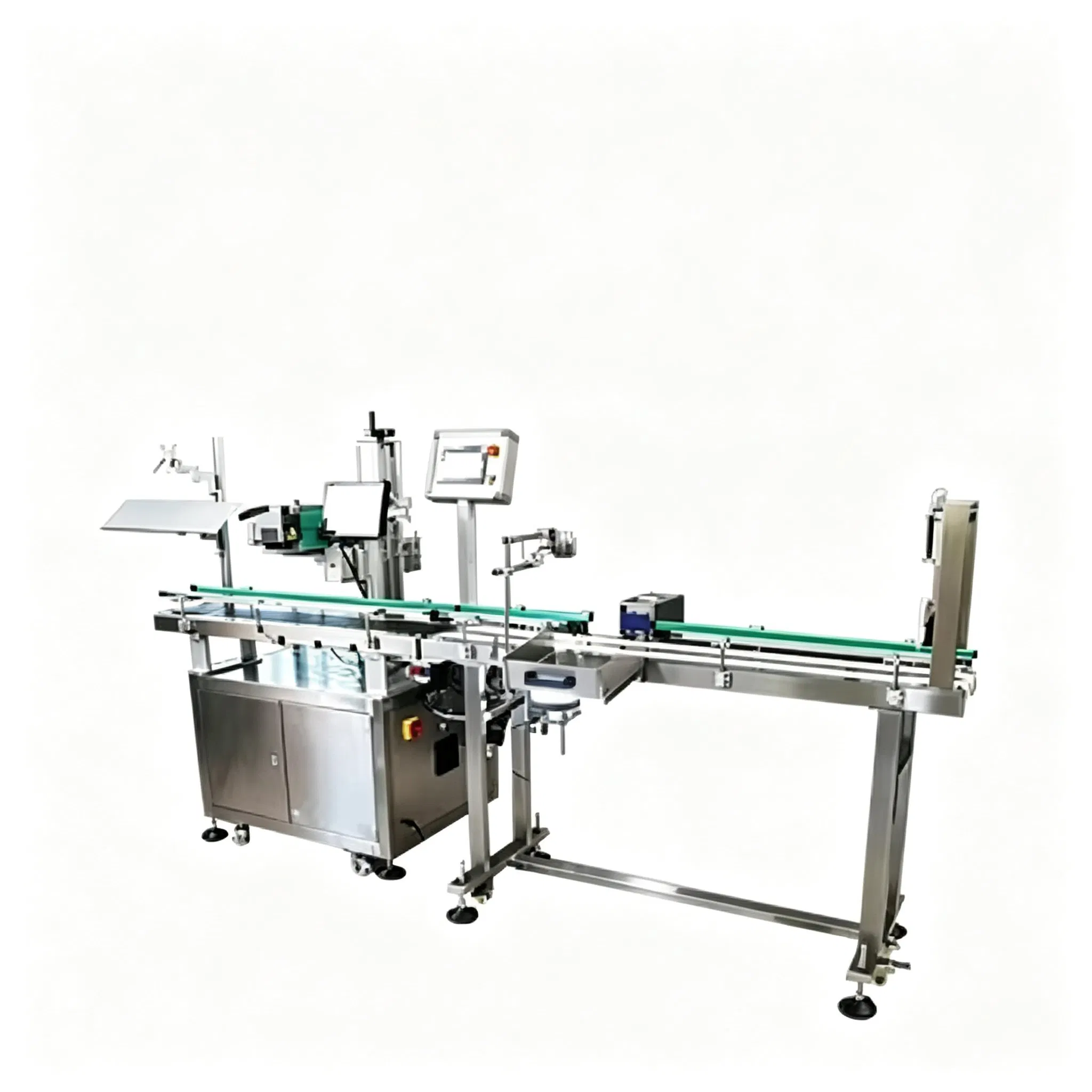

It supports official Chestny ZNAK coding for Russian food supervision. Multi-angle laser marking realizes dead-angle-free engraving on round cans. Multiple code formats are available, including QR codes, barcodes, date and batch codes. The system automatically collects and associates can data for one-item-one-code management. Intelligent code inspection rejects blurry, missing and wrong codes. It builds a complete food traceability system for transparent production monitoring.

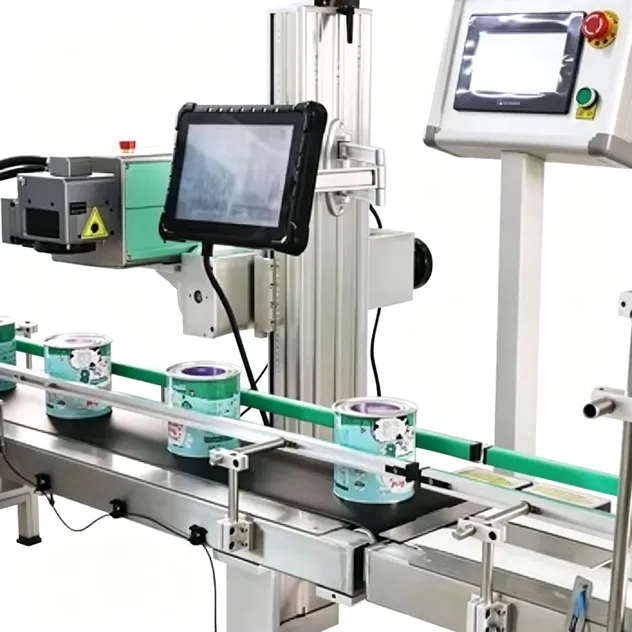

Fully compliant with Russian honest marking standards, the machine ensures safe customs clearance. Optimized laser beam creates permanent clear marks on metal cans. Flexible multi-angle marking adapts to various round tank containers. Intelligent data matching realizes automatic data recording without manual work. The compact integrated structure saves production line space.
This compliant coding machine simplifies customs clearance for Russian export. Fully automatic operation reduces labor sorting and inspection costs. Automatic rejection effectively avoids defective caps flowing into the market. Dual laser configuration makes the machine compatible with plastic and metal caps. Encrypted traceability data prevents product tampering and cross-regional diversion. It is a reliable integrated marking and inspection machine for modern packaging manufacturers.

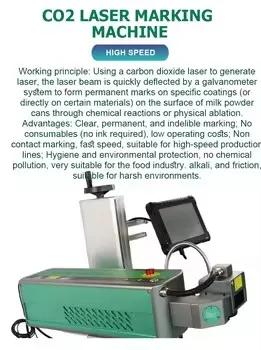

| PRODUCT PARAMETERS | |
|---|---|
| Laser wavelength | 10.6 um |
| Average output power | 30W |
| Beam quality | m2<1 |
| Modulation frequency | 1KHZ-200KHZ |
| Engraving depth | 0.01mm-0.2mm (subject to the actual product) |
| Minimum line width | 0.02mm |
| Minimum character | 0.1mm |
| Repeatability accuracy | +0.05mm |
| The power consumption of the entire machine is | 700W |
| Ambient temperature | 5-45°C |
| Humidity | Relative humidity 95%RH non-condensation |
| Operating System | EZCADJ |
| Operating language | English |
| Font | Supports all TTF fonts, including dedicated fonts for laser marking |
| Maximum linear writing speed | 15,000 mm/s |
| Cooling system | forced air cooling |
| Power supply | Single-phase, 220VAC, 1KVA |
| Marking range | 110mmX110mm or larger (optional) |
| Interface | USB, RS232 |
| VISUAL INSPECTION SYSTEM | |
|---|---|
| Operating system | Windows 10 |
| Anti-duplication detection software | Patent No. : 201510915664.5-V1 |
| Camera brand | Hikvision |
| Camera power | 1.3 million pixels |
| Scanning range | 100mmx100mm |
| Human-machine interface | 15-inch display screen |
| Operating language | English |
| Light source | LED-Ring light source |
| Signal line | 5 meters |
| Control module | Built-in Integration |
| Communication interface | network port, USB, serial port |
| Appearance and structure | 304 stainless steel |
| Sensor | Color mark |
| Power supply | Single-phase, 220VAC, 1KVA |
Established in 2009, we specialize in producing various CO2, UV laser, and Fiber laser marking machines, providing one-stop solutions with sorting, traceability, anti-counterfeit, visual inspection, labeling, printing, paging, and cases association functions. Our company has a complete technical team covering optics, electronics, software development, mechanical design, electronic control development, and technical application services. Our products are exported to over 50 countries and regions worldwide, including Azerbaijan, Vietnam, India, Dubai, Saudi Arabia, Russia, Australia, and Colombia.
A1: Yes. The system is specifically engineered to generate and mark standard, customs-compliant Chestny ZNAK codes to meet Russian food and beverage import regulations.
A2: The machine is designed to perform precise laser marking on metal cans, covering marking positions such as the top, side, and bottom of the can.
A3: The visual inspection system features automatic code detection that continuously scans markings. Any fuzzy, incorrect, or missing codes are instantly identified, and the defective products are automatically rejected from the line.
A4: It supports various coding options including QR codes, traditional barcodes, production dates, batch numbers, custom identification marks, and characters.
A5: This system is fully certified with CE and EAC standards, making it compliant with international safety and quality protocols.
A6: While the default configuration features water cooling for high-efficiency operations, forced air cooling configurations are also supported depending on custom production needs.
