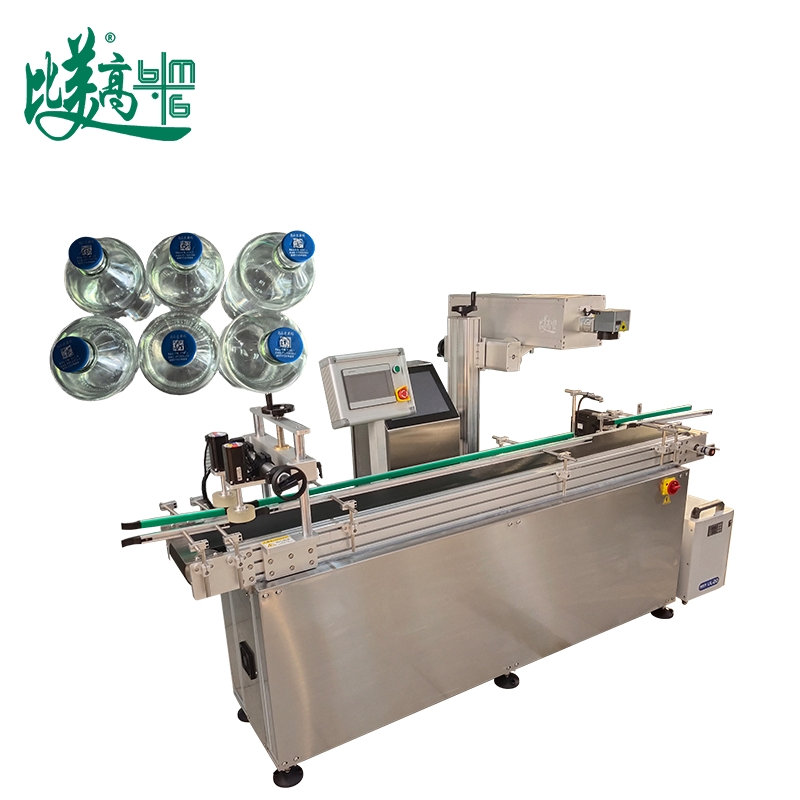

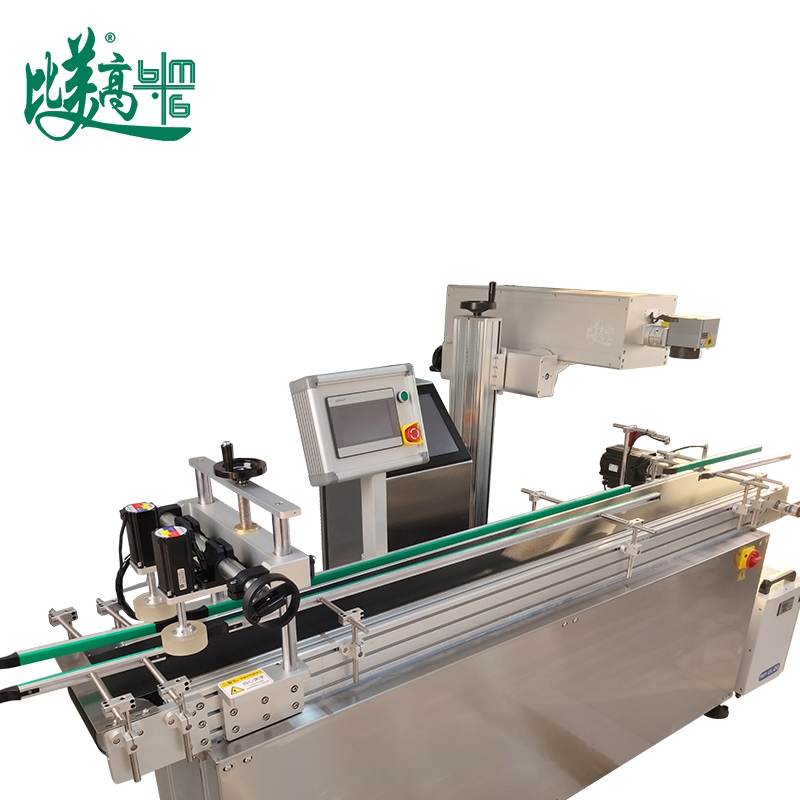

Automatic Glass Bottle Singulation Conveyor & UV/CO2 Laser Marking Integrated System
Automatic Glass Bottle Singulation Conveyor & UV/CO2 Laser Marking Integrated System
Automatic Glass Bottle Singulation Conveyor & UV/CO2 Laser Marking Integrated System
Automatic Glass Bottle Singulation Conveyor & UV/CO2 Laser Marking Integrated System
Automatic Glass Bottle Singulation Conveyor & UV/CO2 Laser Marking Integrated System
1 / 5
Automatic Glass Bottle Singulation Conveyor & UV/CO2 Laser Marking Integrated System
Automatic Glass Bottle Singulation Conveyor & UV/CO2 Laser Marking Integrated System
Automatic Glass Bottle Singulation Conveyor & UV/CO2 Laser Marking Integrated System
Automatic Glass Bottle Singulation Conveyor & UV/CO2 Laser Marking Integrated System
Automatic Glass Bottle Singulation Conveyor & UV/CO2 Laser Marking Integrated System

Automatic Glass Bottle Singulation Conveyor & UV/CO2 Laser Marking Integrated System

Customization: Available
After-sales Service: Video Technical Support
Warranty: 1 Year
Send Inquiry

Product Description

Basic Info.
Model NO.glass bottle marking
Laser VisibilityInvisible
Applicable MaterialPlastic/Glass/Metal
Cooling SystemWater Cooling
Technical ClassPulse Laser
Laser WavelengthDeep Ultraviolet
Laser ClassificationSolid Laser
TypeUV Laser Marking Machine
Marking MethodScanning Marking
Repeatability Accuracy±0.05mm
Engraving Depth0.01mm-0.2mm
Operating SystemEzcadj
Max Linearwriting Speed15,000 mm/S
Marking Range110x110mm or Larger
KeywordsUV Laser Marking
ApplicationAnti-Counterfeiting System
FeatureHonest Label Printing System
AdvantageComprehensive Anti-Counterfeiting
FunctionIntegrated Anti-Counterfeiting
Applicable IndustriesBeverage, Cosmetic & Daily
CertificatesEAC Certified
Transport PackageWooden Case
SpecificationCustomized
TrademarkBMG
OriginChina
HS Code8456110090
Packaging & Delivery
Package Size350.00cm * 450.00cm * 600.00cm
Package Gross Weight74.000kg
Product Description

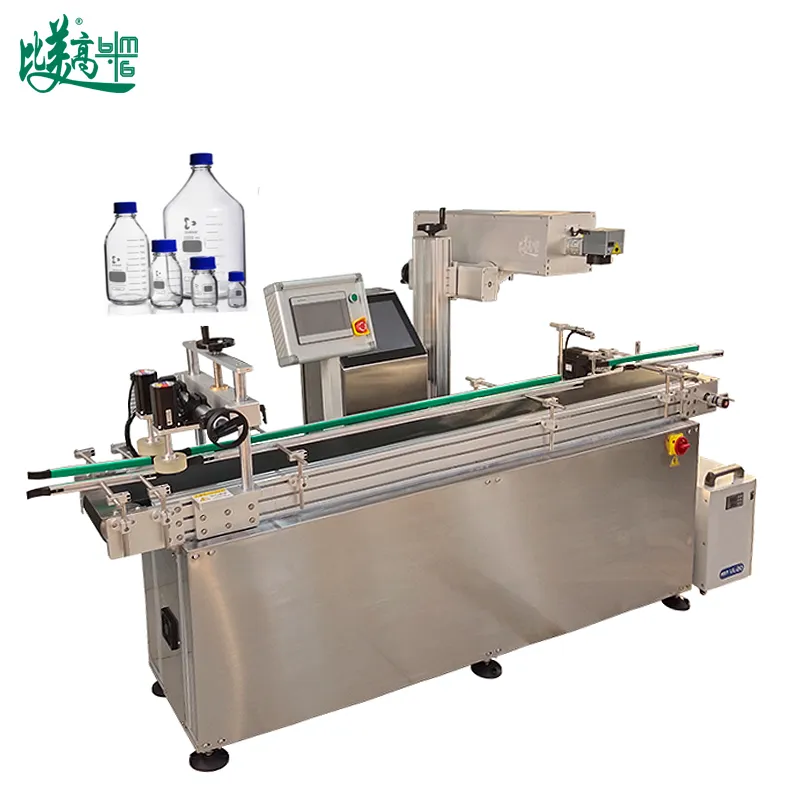

Automatic Glass Bottle Singulation Conveyor & UV Laser Marking Integrated System
Automatic Paging UV Laser Marking Machine For Industrial Coding
Product Overview:
This automatic paging UV laser marking machine is an efficient combined automation equipment. It consists of an automatic separating mechanism and a high-precision UV laser generator. Equipped with intelligent sensors, the machine is suitable for thin materials such as paper, plastic and metal foil. It also supports marking for bottles and cans. As a multi-functional industrial laser machine, it meets high-speed and high-precision marking requirements for modern production lines.

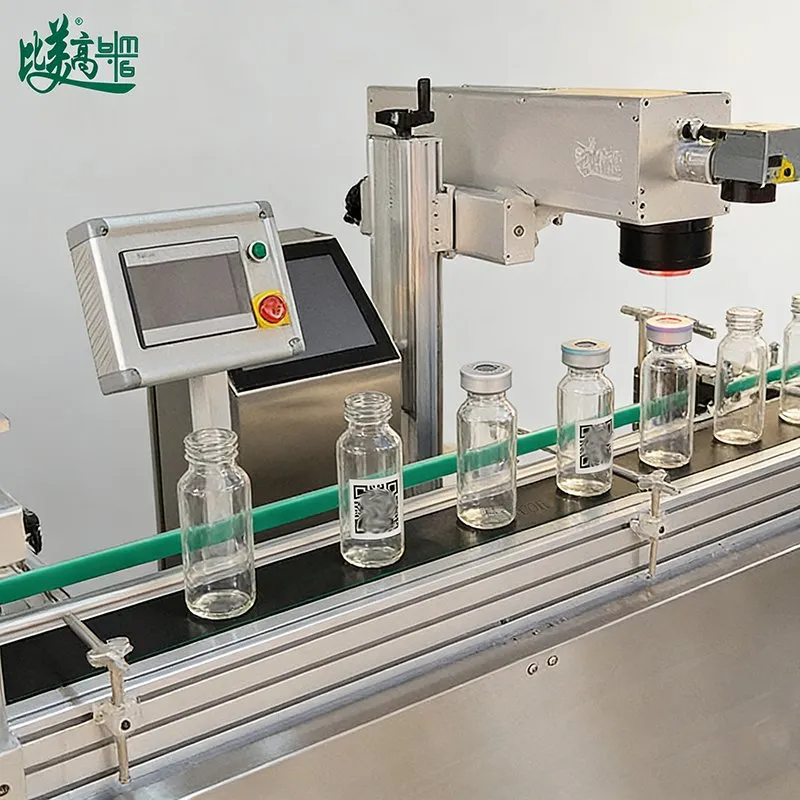

Automatic Glass Bottle Singulation Conveyor & UV Laser Marking Integrated System
Application Scope
The machine is used for automatic separation and laser marking of various materials. It can carve production dates, batch codes, barcodes, QR codes and custom patterns on thin sheets and packaging containers. After bottles or cans enter the separation structure, they are evenly arranged. The sensor detects the material position and triggers laser marking automatically. It is widely applied in packaging, daily chemical, food and electronic industries.

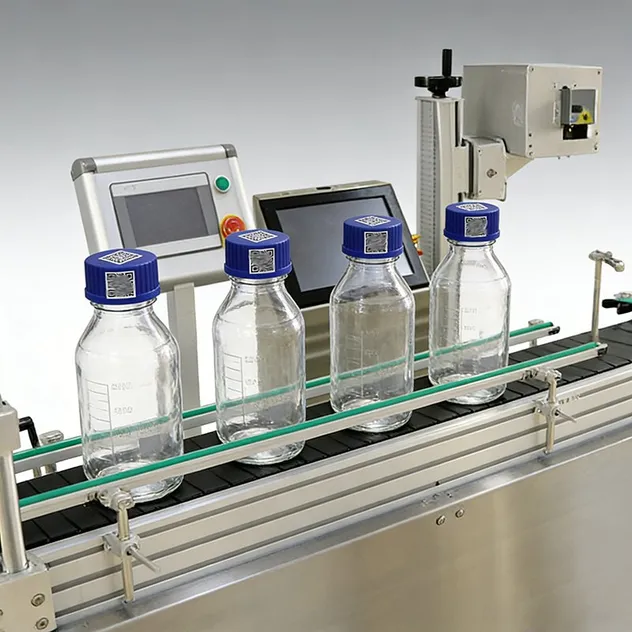

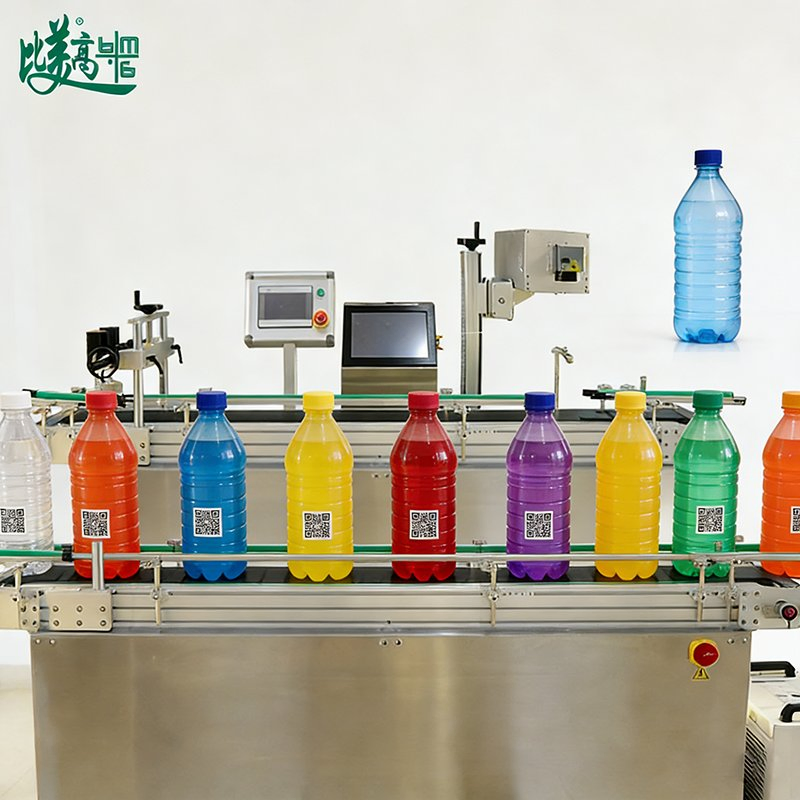

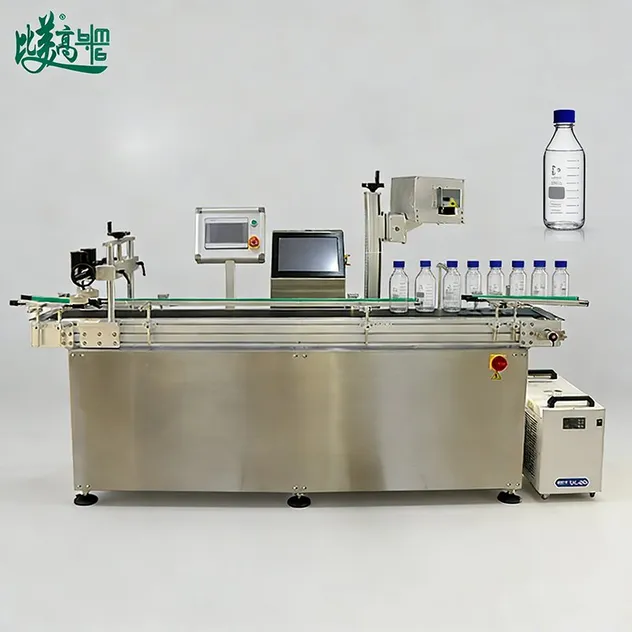

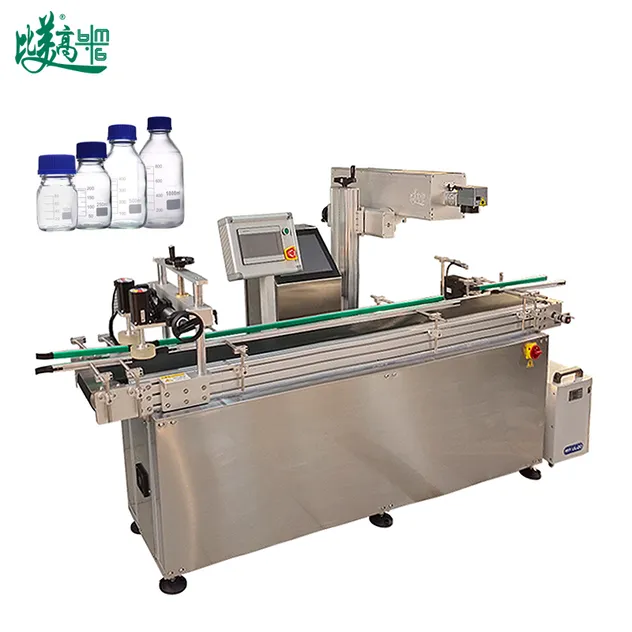

Laser Marking Detail 1 Laser Marking Detail 2 Laser Marking Detail 3
Core Functions
The automatic paging system realizes material separation without manual operation. High-precision UV laser ensures delicate and clear marking effect. It is compatible with paper, plastic, metal foil and various bottle containers. The machine supports QR codes, barcodes, dates, patterns and personalized texts. High-sensitivity sensors precisely locate materials and trigger laser beams instantly. The equipment runs in continuous circulation from feeding, marking to discharging.
Product Features
Integrated structural design combines paging and laser marking to save workspace. Sensitive inductive sensors ensure fast and accurate positioning. UV cold laser processing keeps material surface smooth without burning marks. The machine has strong universality for both thin materials and round containers. Stable circulating operation ensures low failure rate during long-time production.
Product Advantages
This automatic laser machine greatly reduces labor cost for material sorting and marking. Continuous cyclic operation improves production efficiency for mass orders. It covers multiple materials including sheets, films and packaging cans. All laser marks are permanent, wear-resistant and not easy to erase. The intelligent control system simplifies operation and daily maintenance. It is an economical and reliable coding machine for diversified industrial manufacturing.

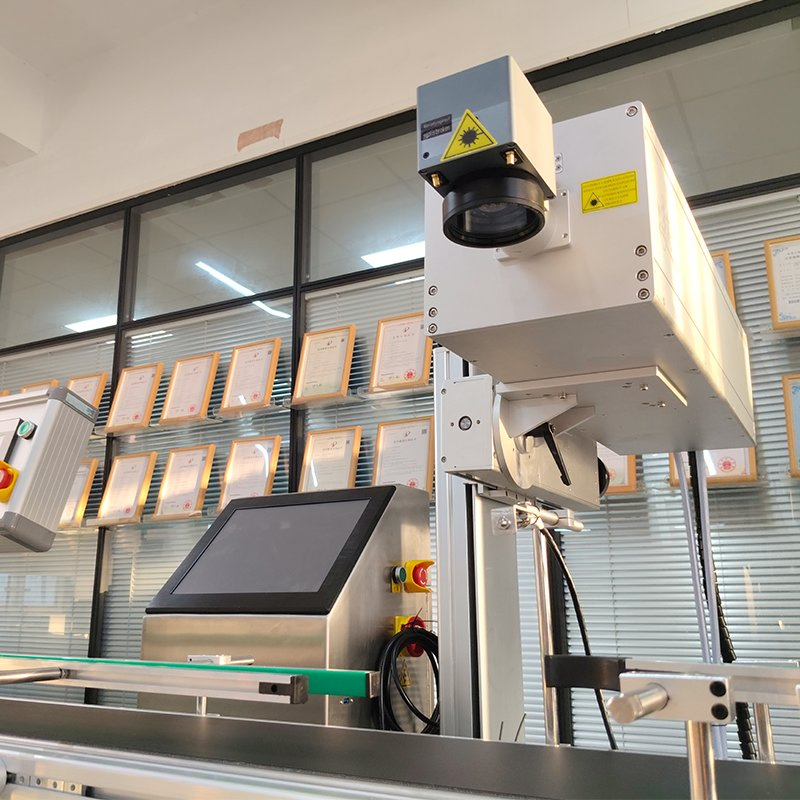

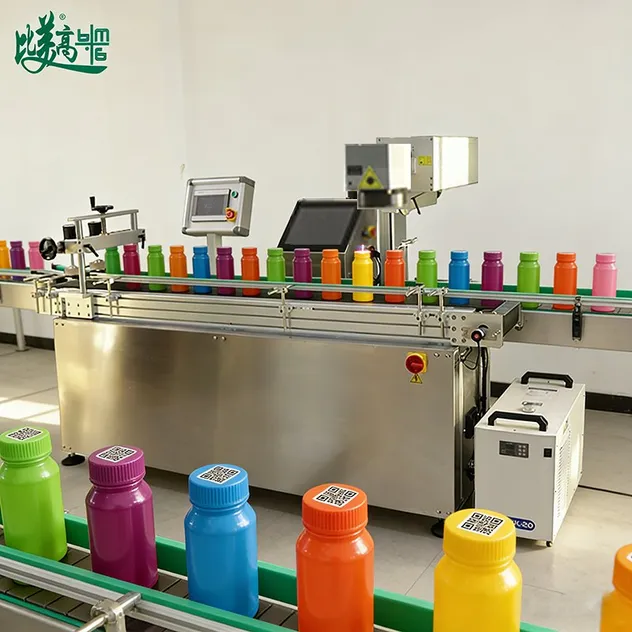

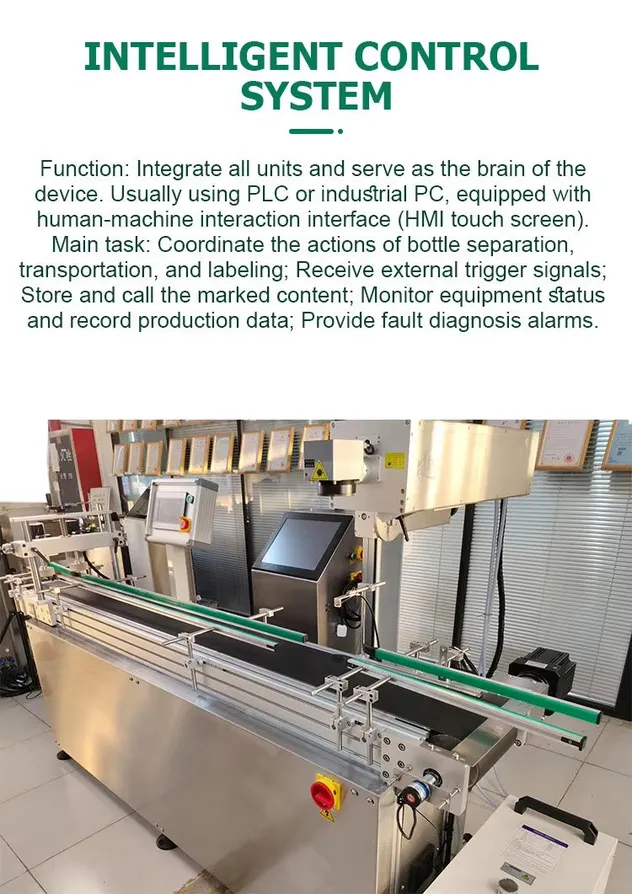

Integration System Detail 1 Integration System Detail 2 Integration System Detail 3
Technical Specifications
15W ULTRAVIOLET LASER MARKING MACHINE
Laser wavelength355 um
Average output power15W
Beam qualitym2<1
Modulation frequency1KHZ-200KHZ
Engraving depth0.01mm-0.2mm(subject to the actual product)
Minimum line width0.02mm
Minimum character0.1mm
Repeatability accuracy+0.05mm
Whole machine power consumption700W
Ambient temperature5-45°C
HumidityRelative humidity 95%RH non-condensation
Operating SystemEZCADJ
Operating languageEnglish
FontSupports all TTF fonts, including dedicated laser marking fonts
Maximum linearwriting speed15,000 mm/s
Cooling systemforced air cooling
Power supplySingle-phase, 220VAC, 1KVA
Marking range110mmX110mm or larger (optional)
InterfaceUSB, RS232
VISUAL INSPECTION SYSTEM
Operating systemWindows 10
Anti-duplication detection softwarePatent No. :201510915664.5-V1
Camera brandHIkvislon
Camera power1.3 million pixels
Scanning range100mmx100mm
Human-machine interface15-inch display screen
Operating languageEnglish
Light sourceLED-Ring light source
Signal line5 meters
Control moduleBuilt-in Integration
Communication interfacenetwork port, USB, serial port
Appearance and structure304 stainless steel
SensorColor mark
Power supplySingle-phase. 220VAC, 1KVA
ABOUT US

Established in 2009, we specialize in producing various CO2 /UV laser /Fiber laser marking machines, providing one-stop solutions with sorting, traceability, anti-counterfeit, visual inspection, labeling, printing, paging, and case association functions. Our technical team has comprehensive expertise in optics, electronics, software development, mechanical design, electronic control development, and application services. Our products serve diverse application industries including medicine, beverage, food, hardware, auto parts, electronics, household appliances, plastic, and glass products, exporting to over 50 countries and regions worldwide.

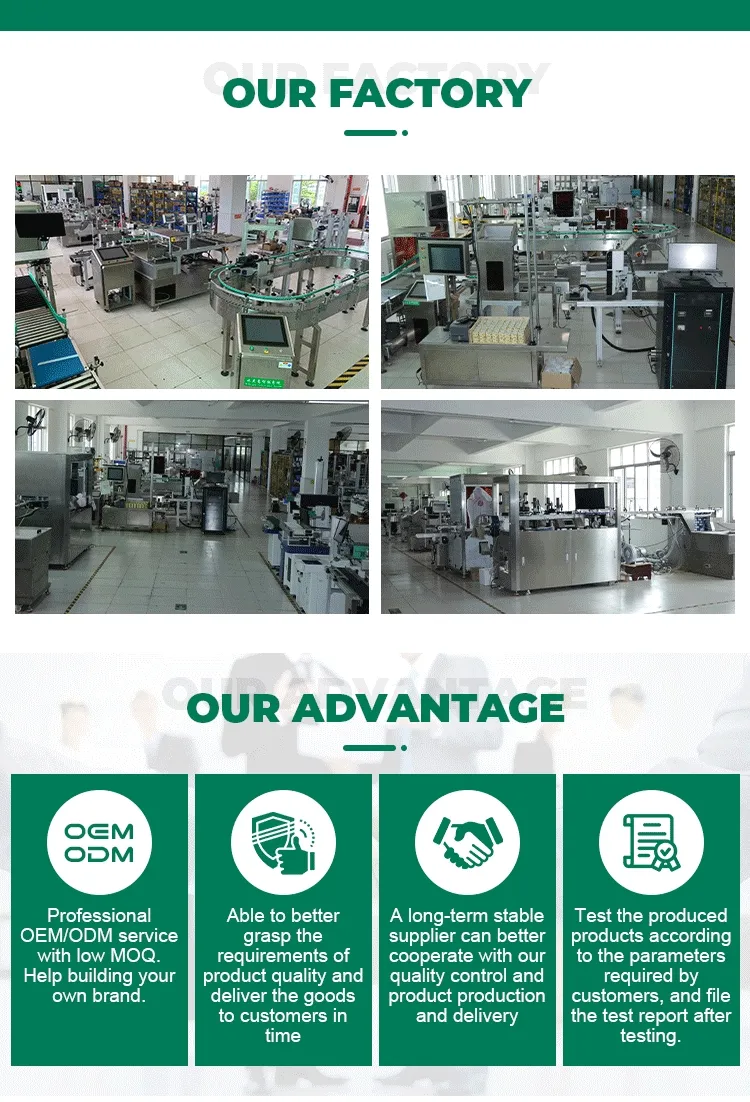

Production Facility 1 Production Facility 2 Quality Inspection Laser Machine Calibration Assembly Workshop Storage and Packing Area
Frequently Asked Questions (FAQ)
What materials can this UV laser marking machine process?
This machine is highly versatile and capable of marking on a wide variety of materials including plastics, glass, metals, paper, and metal foils. It is especially suitable for heat-sensitive materials as it uses "cold" UV laser processing to prevent surface burning.
How does the automatic separation (paging) mechanism work?
The automatic paging system separating mechanism arranges thin materials or containers evenly before they pass under the laser. Intelligent sensors detect the precise position of each item to trigger the UV laser marking instantly, ensuring continuous, automated production.
What coding content can be marked onto the products?
The system supports marking production dates, batch codes, custom patterns, alphanumeric texts, and highly-detailed barcodes or QR codes. All marks generated by the UV laser are permanent, wear-resistant, and tamper-proof.
What are the benefits of the visual inspection system?
The built-in visual inspection system runs on Windows 10 and utilizes anti-duplication detection software along with a high-definition camera. It automatically verifies and inspects marked codes in real-time to avoid duplicate coding, ensuring high accuracy and tracing capabilities.
What type of cooling system does this UV laser machine use?
According to the technical specifications, the laser machine leverages a water cooling system for internal thermal management, while forced air cooling helps stabilize the system components to enable continuous, long-term industrial operations.
