| Laser Visibility | Invisible |
| Applicable Material | Nonmetal |
| Cooling System | Water Cooling |
| Technical Class | Pulse Laser |
| Laser Wavelength | Deep Ultraviolet |
| Laser Classification | Solid Laser |
| Type | UV Laser Marking Machine |
| Marking Method | Scanning Marking |
| Marking Depth | 0.01-0.1 mm |
| Marking Content | Character,Data |
| Marking Speed | 12000-15000 mm/S |
| Performance Feature | Integrated Anti-Counterfeiting and Marking System |
| Core Hardware | Honest Marking Marking Editing Software |
| Custom Service | Example of Traceability Process in Production |
| Power | 10W 20W 30W 50W |
| Keywords | Automatic Laser Marking Machine |
| Applicable Industries | Automatic Optical Inspection System |
| Application | Data Matrix Two-Dimensional Marking System |
| Product Name | UV Laser Engraving Machine |
| Core Function | Anti-Counterfeiting and Tracking System |
| Marking Feature | Honest Label Marking Solutions |
| Operation Feature | User-Friendly Interface, Simple Setup |
| Transport Package | Wooden Case |
| Specification | Customized according to customers |
| Trademark | BMG |
| Origin | China |
| HS Code | 8456110090 |
| Package Size | 550.00cm * 650.00cm * 750.00cm |
| Package Gross Weight | 74.000kg |

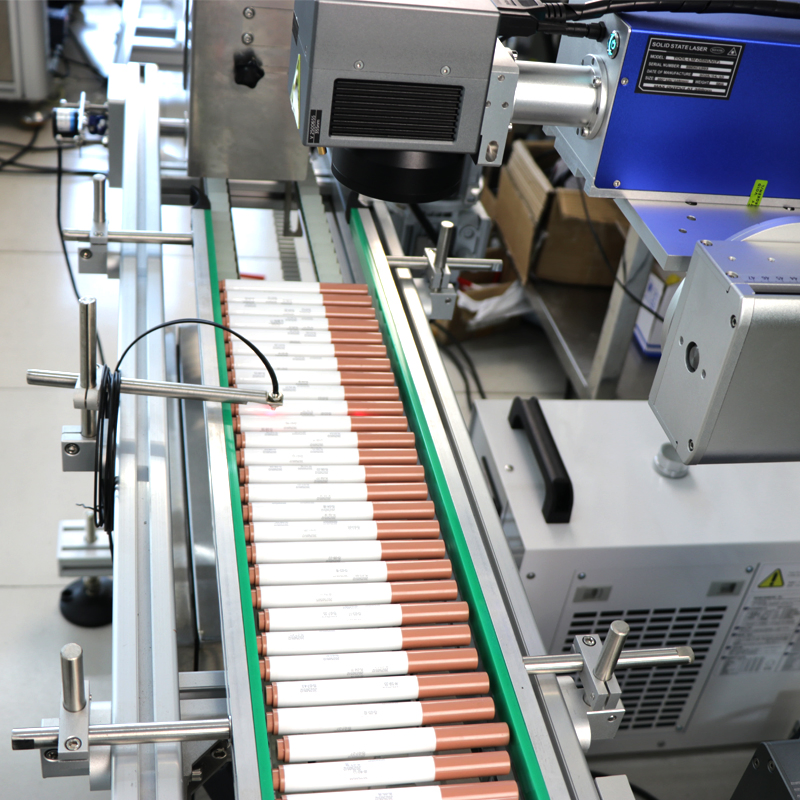

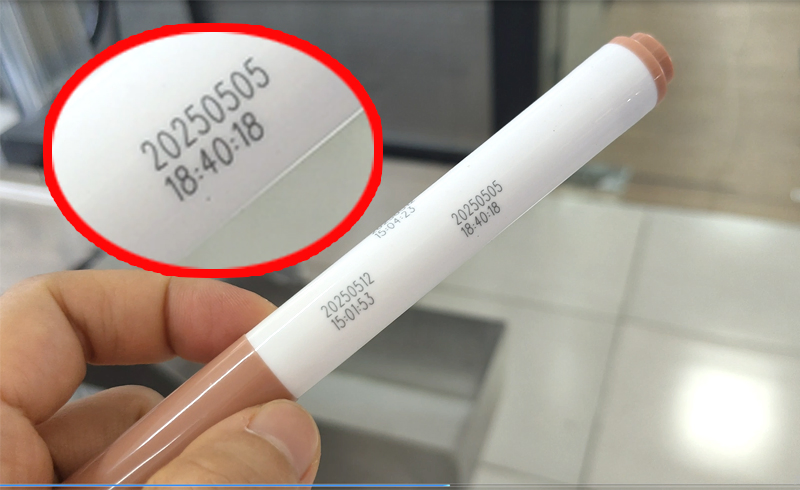

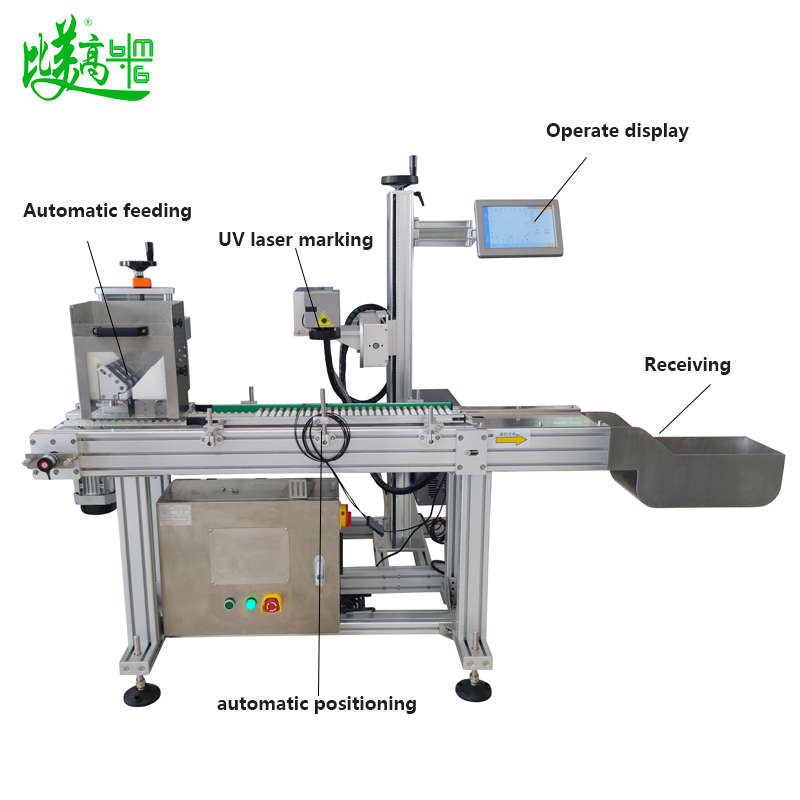

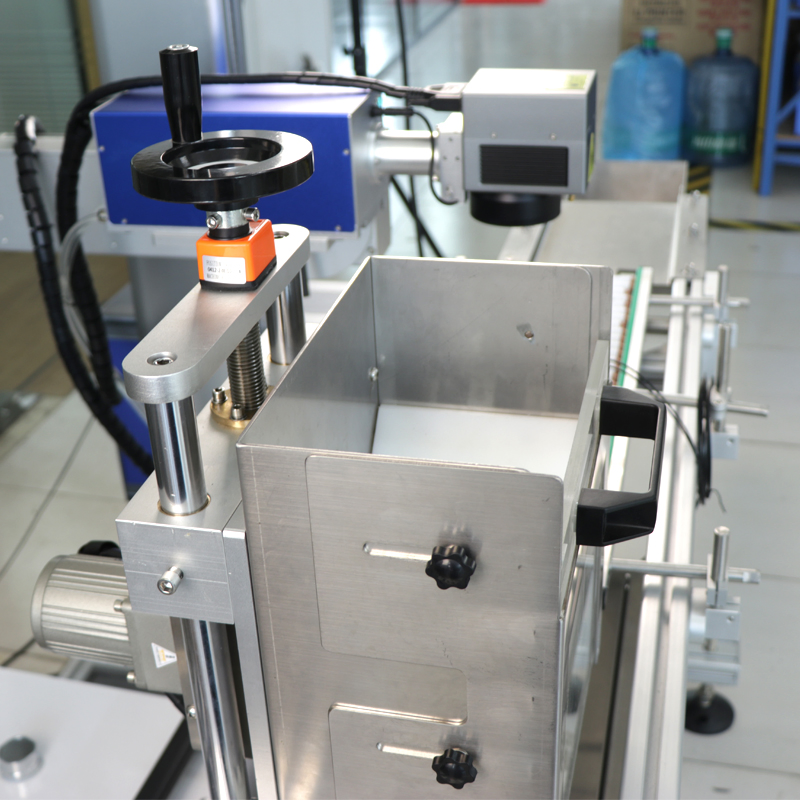

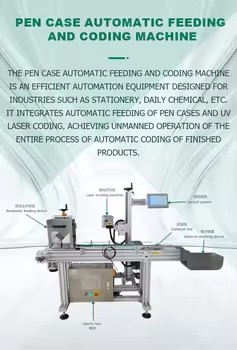

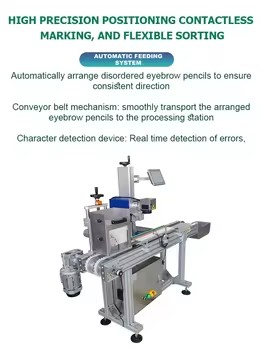

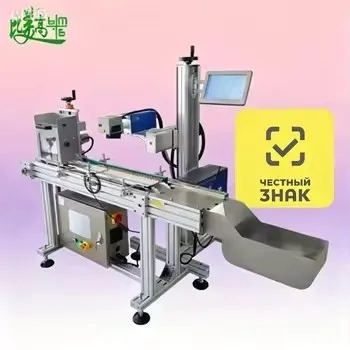

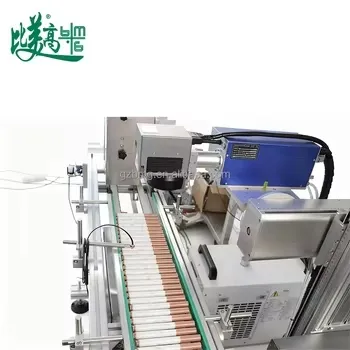

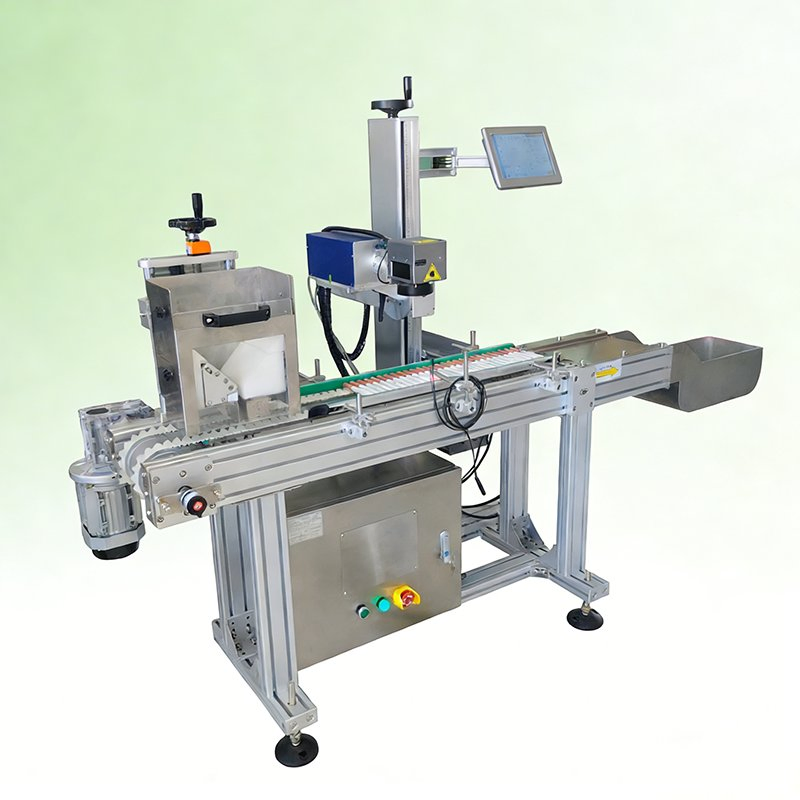

This full automatic cosmetic pen tube UV laser marking machine is equipped with industrial conveyor belt auto feeding system and high-precision visual positioning module. It supports rotational marking, logo engraving, batch number and double date code printing on eyebrow pens and cosmetic pen tubes. Adapts to PVC and various cosmetic materials with permanent marking effect. Featuring user-friendly operation and stable continuous feeding, perfectly designed for cosmetic pen tube industrial mass production lines.
| 15W ULTRAVIOLET LASER MARKING MACHINE | |
|---|---|
| Laser wavelength | 355 um |
| Average output power | 3W/5W/10W/15W/20W/30W/(Optional) |
| Beam quality | m2<1 |
| Modulation frequency | 1KHZ-200KHZ |
| Engraving depth | 0.01mm-0.2mm(subject to the actual product) |
| Minimum line width | 0.02mm |
| Minimum character | 0.1mm |
| Repeatability accuracy | +0.05mm |
| The power consumption of the entire machine is | 700W |
| Ambient temperature | 5-45°C |
| Humidity | Relative humidity 95%RH non-condensation |
| Operating System | EZCADJ |
| Operating language | English |
| Font | Supports all TTF fonts, including dedicated fonts for laser marking |
| Maximum linear writing speed | 15,000 mm/s |
| Cooling system | forced air cooling |
| Power supply | Single-phase, 220VAC, 1KVA |
| Marking range | 110mmX110mm or larger (optional) |
| Interface | USB, RS232 |

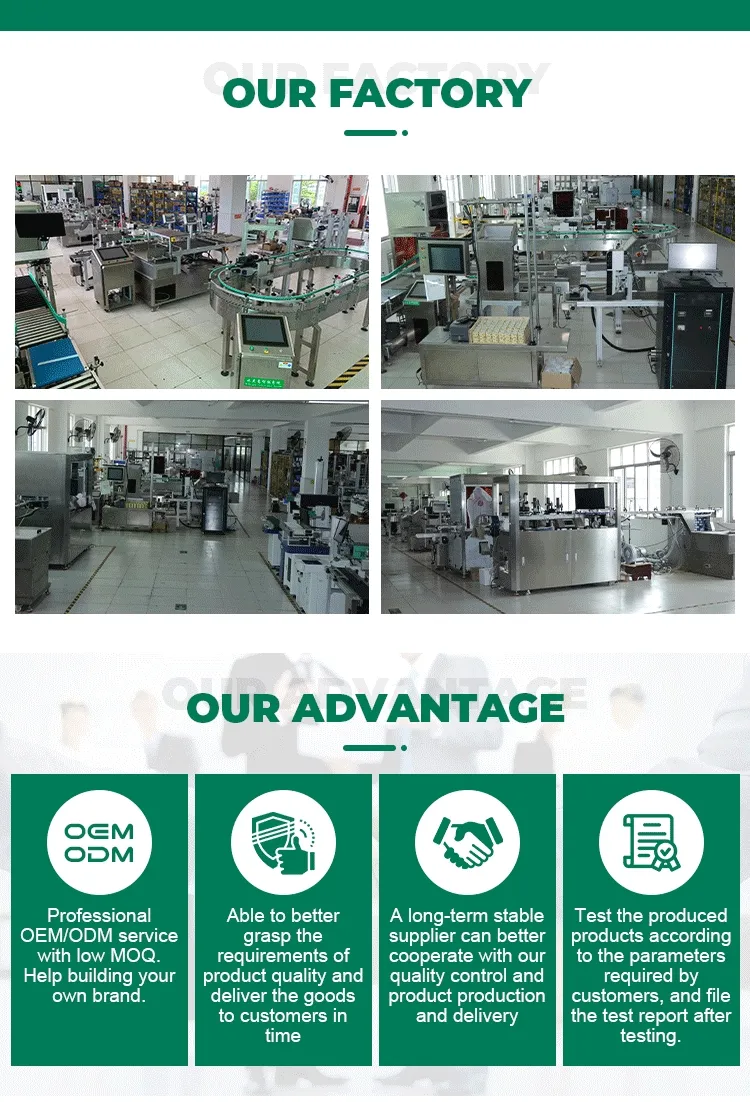

Established in 2009, we specialize in producing various CO2 /UV laser /Fiber laser marking machine, providing one-stop solutions with sorting, traceability, anti-counterfeit, visual inspection, labeling, printing, paging, cases association functions etc. Our company has a complete technical team of optics, electronics, software development, mechanical design, electronic control development and technical application services. Main application industries: medicine, beverage, food, hardware, auto parts, electronic, household appliances, plastic, glass products etc. metal or non-metallic materials. Our products export to over 50 countries and regions like Azerbaijan, Vietnam, India, Dubai, Saudi Arabia, Russia, Australia, Columbia etc.
