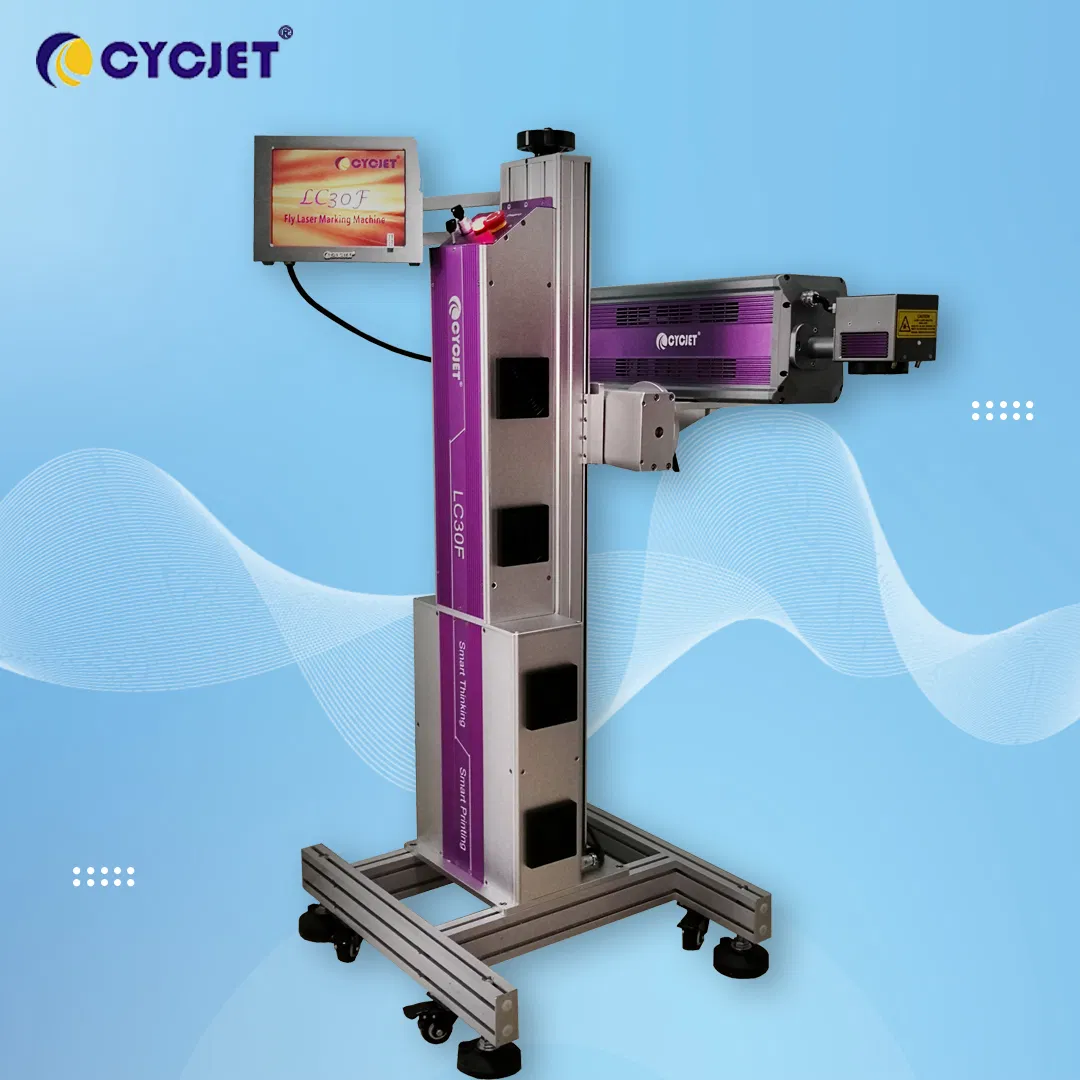

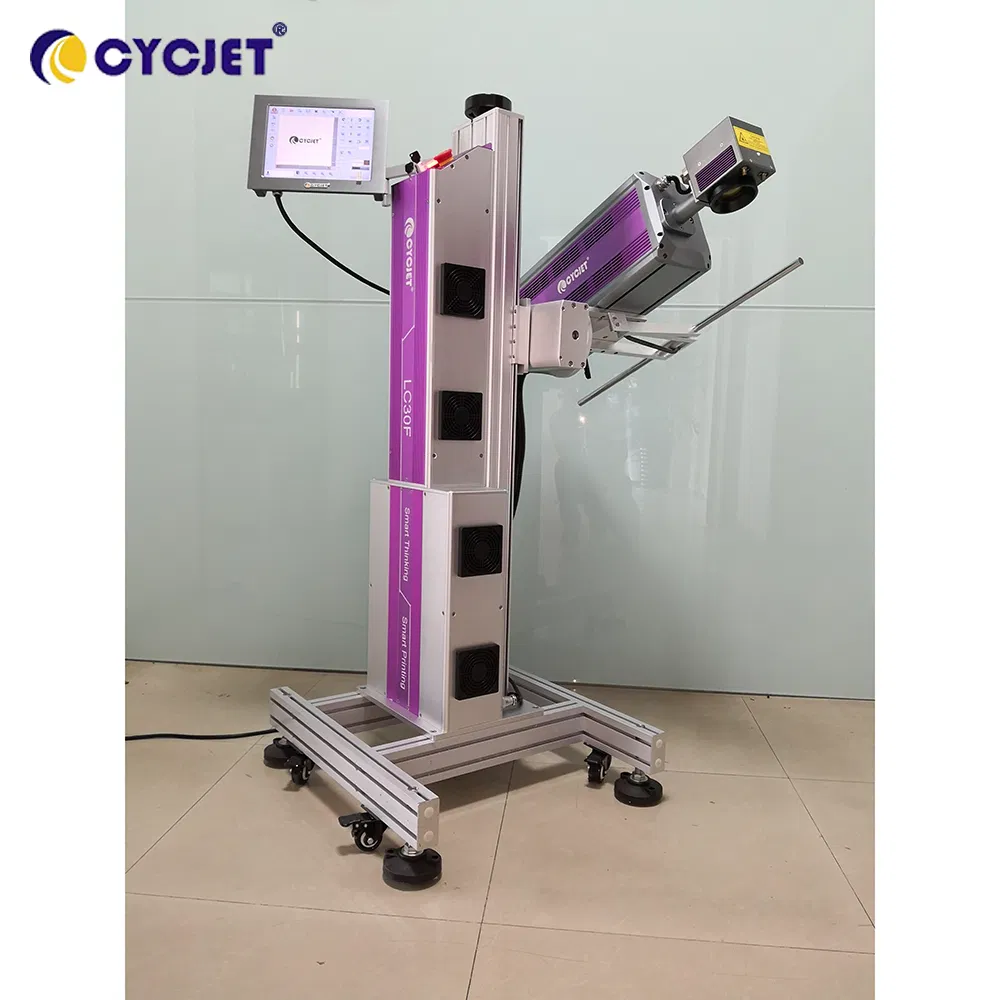

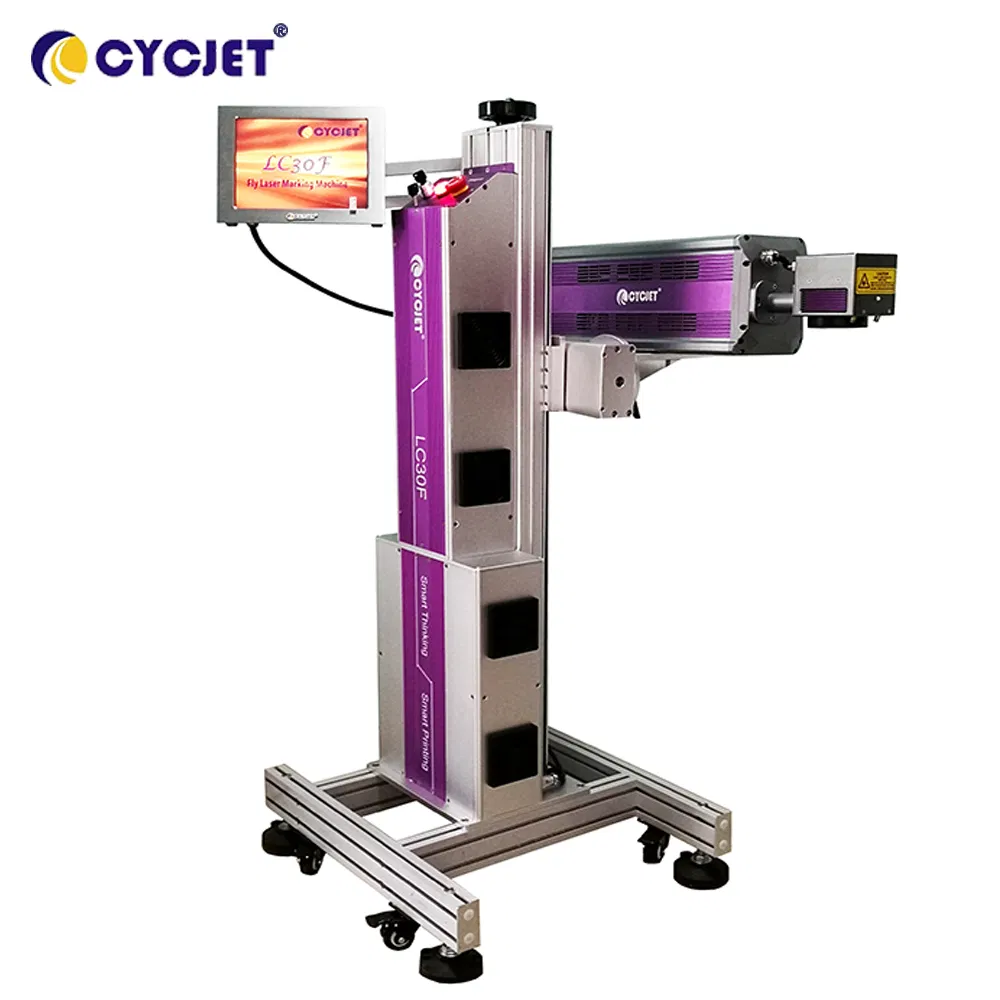

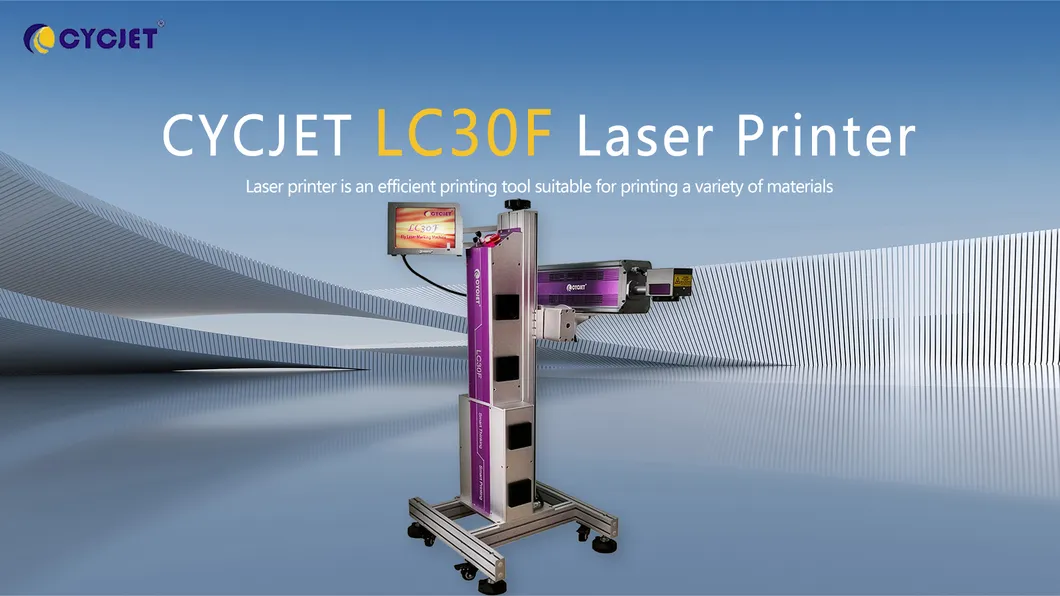

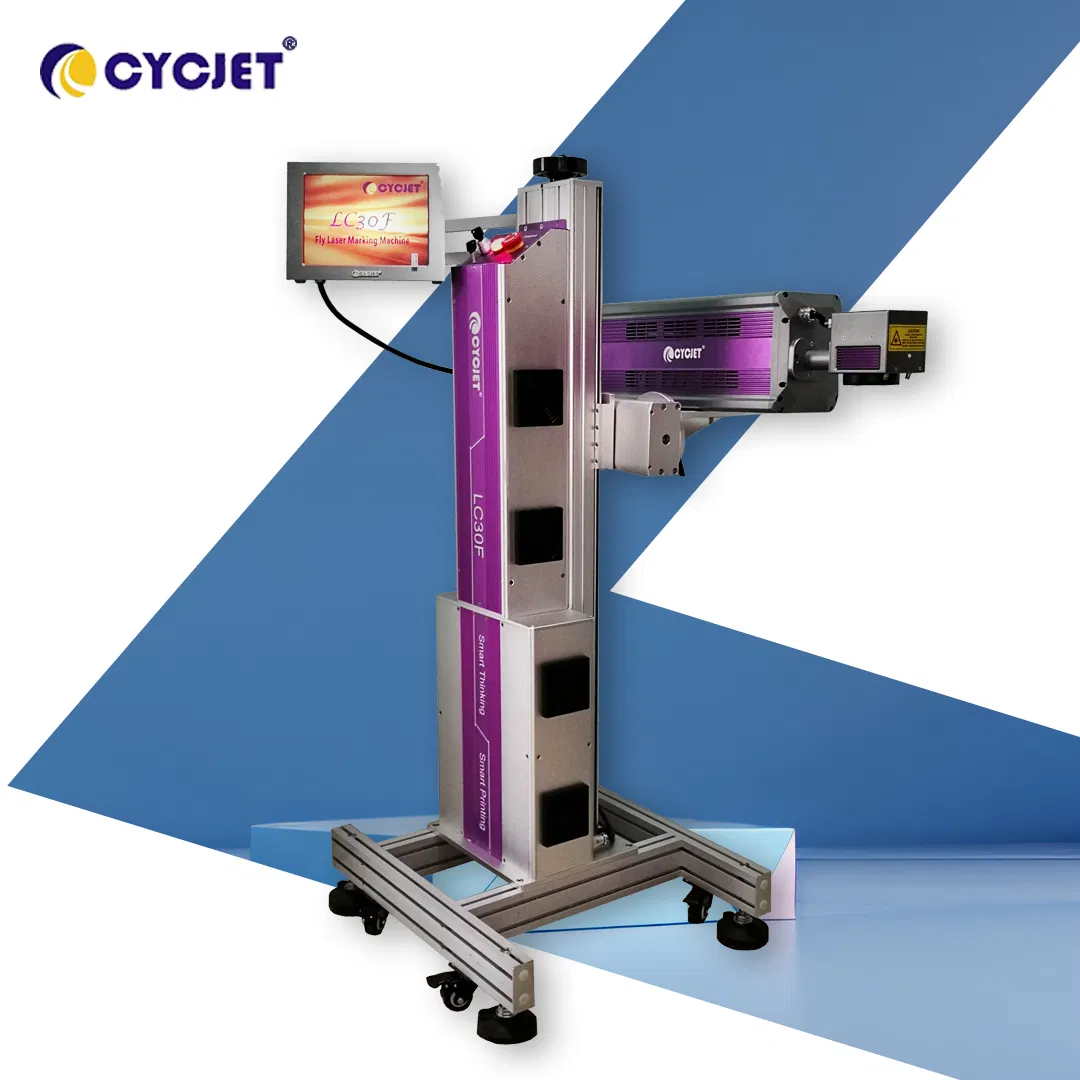

Cycjet LC30f Fiber Laser Marker - Industrial Metal Engraving System

Customization:	Available
After-sales Service:	Video Technical Support
Warranty:	1year

Basic Info

Model NO.

LC30F

Laser Visibility

Visible

Applicable Material

Nonmetal

Cooling System

Air Cooling

Technical Class

Continuous Wave Laser

Laser Wavelength

Fiber Laser

Laser Classification

Solid Laser

Type

Optical Fiber Laser Marking Machine

Marking Method

Scanning Marking

Name

Fiber Laser Machine

Laser Type

Fiber Divice

Operation System

English

Capacity Optional

10/20/30/50W

Warranty Valid

18 Month

Marking Area

110*100mm

Transport Package

Wooden Case with Foam

Specification

154X55X56cm

HS Code

8456100090

Production Capacity

300set/Month

Product Description

LC30f Fiber Laser Marker - Industrial Metal Engraving System

Characters:

Laser oscillation in the fiber optical wave, low dissipation, good stability and is not affected by external dust gas and mechanical looseness, the output of a laser beam is stable.
100000 hours of zero-maintenance.
Processing speed is 2 to 3 times the traditional laser marking machine.
Wind cooling fiber laser, no consumables, low maintenance, high photoelectric conversion rate, low consumption (800 W) or less, use cost.
Integrated design, small size (there are a whole cabinet and portable optional).
Environmental adaptation ability strong can be in vibration, shock, dust, humidity environment continuous work, easy to implement with optical fiber coupling, which can realize remote work.
Bar code, QR code, graphics, text rules and irregular marking serial number, etc.
Software running on WINDOWS platform, Chinese/English interface, can be compatible with AUTOCAD, CORELDRAW, PHOTOSHOP software, such as PLT, PCW, DXF, BMP, etc, but also can be used directly SHX, TTF font.

Application Scope:

Suitable for electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, etc.

Advantage:

Perfect design software, easy to learn and operation
Less Mechanical Failure
Operation Status: Fly and Standstill
The PVC, PPR, PE Pipe Code will change color after mark, the demonstration of effects is better than ink printer.
The code cannot move or erase it
No consumer goods, less production cost

After-sale Service:

Warranty Valid: 12 Month
Online or Spot Training

Parameters:

Beam quality M2: <2
Laser wavelength: 1064 nm
Air cooling
Pulse frequency: 20 KHZ - 100 KHZ
Marking range: 110 mm x 110 mm (can be customized)
Marking Speed: 7000mm/s
Marking Depth: ≤0.3mm
Marking Line Width: 0.01-0.2mm (based on difference material)
Min character Size: 0.015mm
Repeat accuracy: +/- 0.003 mm
Marking area locating: Red-light locating system
Power supply: AC 100-260 v 50/60 hz
Power: ≤800W

Product Parameters

LC30f Fiber Laser Marker - Industrial Metal Engraving System Specifications

Model	LC30F
Frame Material	ALUM
Laser Type	Specialized High-speed CO2 Laser
Power	≥30W
Laser Wavelength	930nm/1064nm/1020nm
Galvanometer Deflection	High precision dual dimensional scanning system
Master Control	Highly integrated board with 10 inch color touch screen
Operating System	LINUX based with high speed marking software
Cooling System	Air Cooling System
Focus Distance	135mm (Customized available)
Minimum Line Width	0.012mm
Repeatability Accurate Positioning	0.003mm
Marking Line Type	Dot matrix, bold, vector all in one (both dot matrix and vector)
Marking Area	Standard 110x110mm (Customized available)
Marking Height	Standard character height 110mm
Marking Length	Unlimited
Typeface	Chinese, English, Arabic, Russian, Spanish, Faris, Italian etc. (Customized available)
Marking Content	Number, logo, image, letter, serial number, system date & time, etc.
File Format	CNF, PLT, JPG, CRD, BMP
Barcode Type	CODE39, CODE128, CODE126, QR, Z-Code
Power Supply	100-220V/50-60HZ
Power Consumption	600W
Gross weight	110kg
Package Size	135X75X47cm
Environmental Requirement	External Temperature 0°C-45°C; humidity≤95%; non-condensing; no shaking

Product Features & Applications

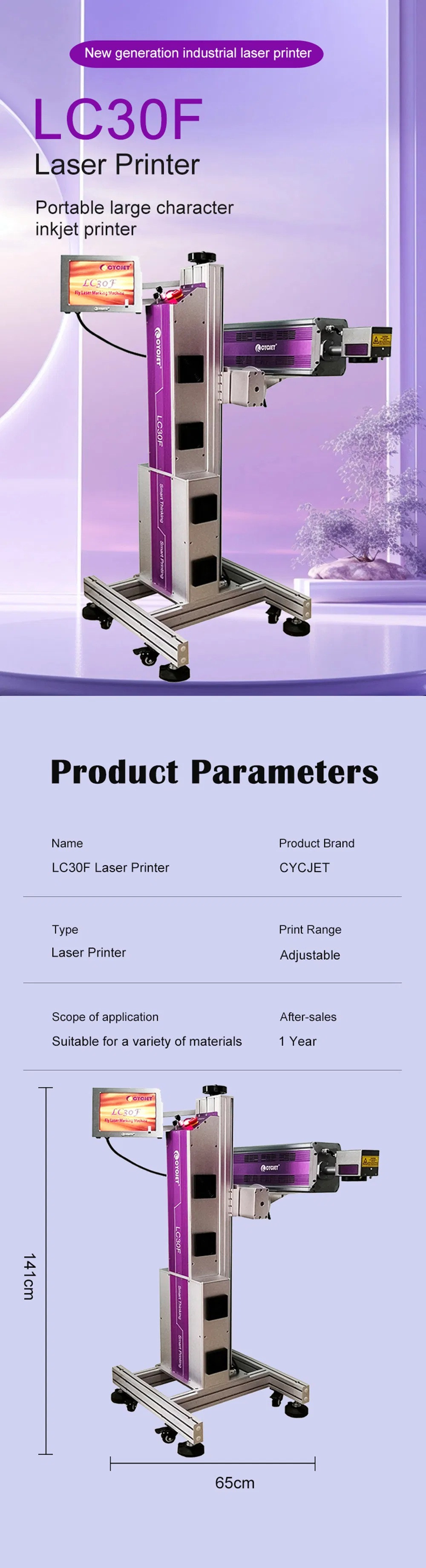

LC30f Fiber Laser Marker - Detailed Engineering and Applications

Our Advantages

Fiber Laser Marker - Quality Control and Process

Fiber Laser Marker - Performance Advantages

Packaging & Shipping

LC30f Fiber Laser Marker - Solid Wooden Case Packing

LC30f Fiber Laser Marker - Storage and Shipping Logistics

Frequently Asked Questions

1What materials can the marking machine mark on?

The system can print on many different materials like paper, plastic, metal, fabric, cloth, concrete, wood, glass, ceramic, etc. Different ink supplies meet different material requirements.

2What information can the system print? Can it print logos or QR codes?

The high-resolution printing system can print not only numbers and letters, but also brand logos, symbols, barcodes, QR codes, as well as real-time date/time, serial numbers, group numbers, etc.

3What is the available font size?

The industrial printing system with a single printhead can print up to a maximum height of 71mm, and the minimum font height is 2mm. Two or more printheads can be assembled to achieve larger font sizes.

4How many lines can be printed in total?

The portable printing machine can mark multiple lines within the maximum printing height. As more lines are added, the font size will adjust to be smaller.

5What is the warranty policy?

A one-year warranty is provided for the printing system. For any quality issues that occur during the warranty period, spare parts will be sent free of charge.

6What support is provided if I struggle to operate the machine?

A USB flash drive is supplied with the machine, containing step-by-step operation videos. Additionally, online video consultations are available to provide direct instruction.
