High-Precision Industrial Fiber Laser Engraving System for Marking

Customization:	Available
After-sales Service:	7*24 Hours
Warranty:	1 Year

Basic Information

Model NO.LE-01

ApplicationLeather Industry, Printing & Packaging, Molds & Dies

Cooling SystemAir Cooling

Technical ClassContinuous Wave Laser

Automatic GradeAutomatic

Applicable MaterialMetal

TypeOscillating Mirror

Laser ClassificationFiber Laser

Engraving MethodVector Engraving

Marking Area100mm*100mm

Marking Speed300 Characters/Sec (Height = 0.039")

Laser Output Power20W

Pulse Repetition Frequency1.6kHz to 1000kHz

Repetition Accuracy±2.5μm

Power Consumption500W

Alignment LaserRed Diode (650nm)

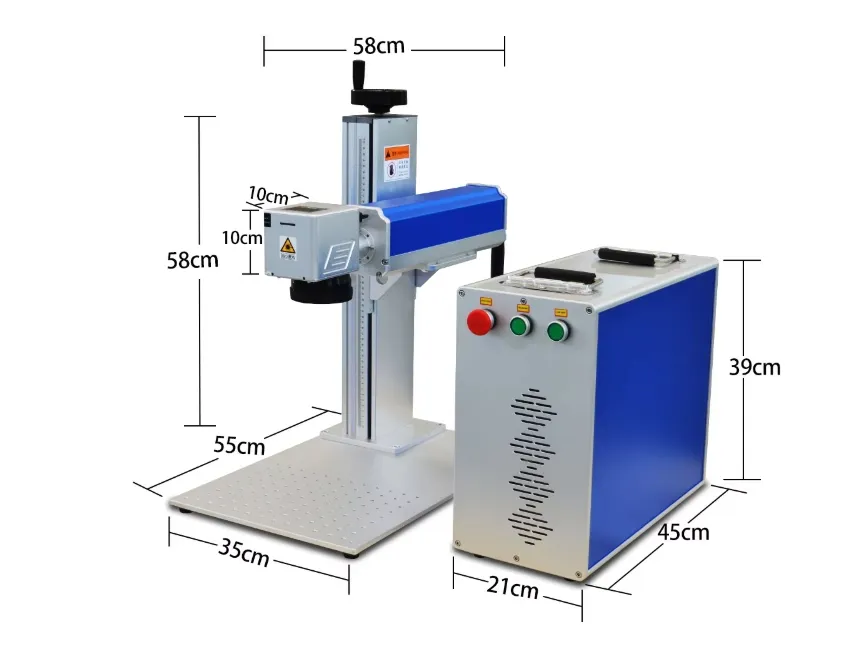

Dimensions550mm × 790mm × 760mm

Transport PackageAir Freight

Specification550mm × 790mm × 760mm

OriginChina

Production Capacity100

Product Description

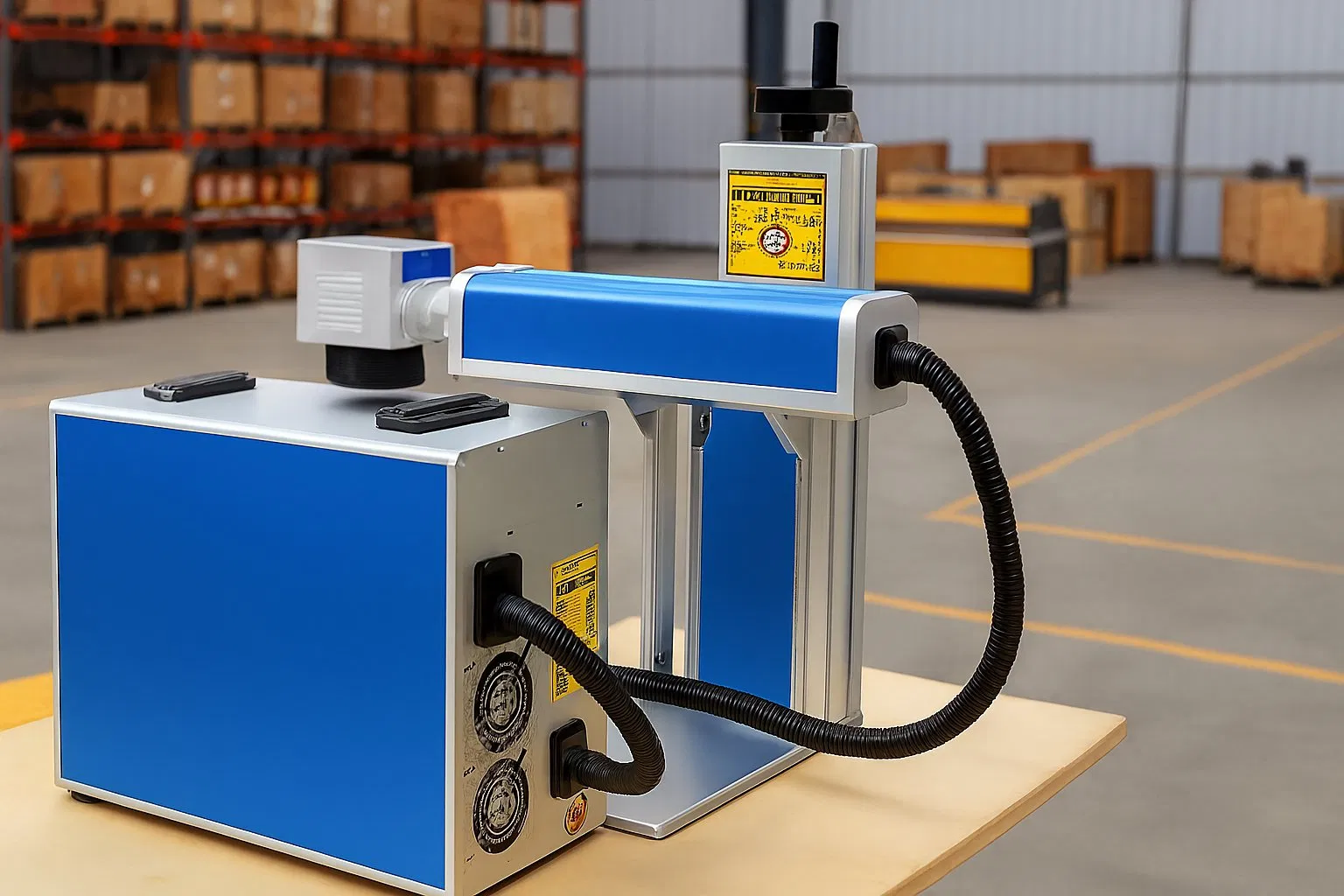

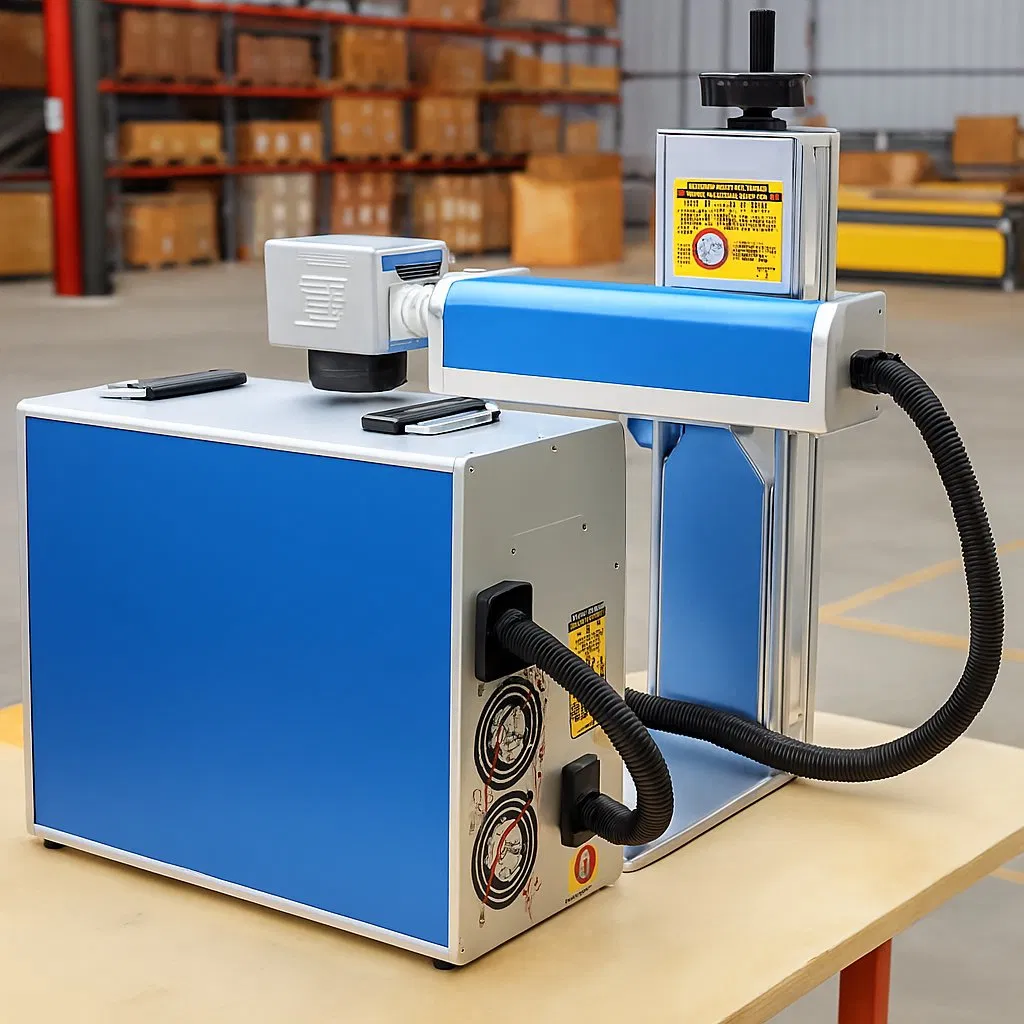

G20 Fiber Laser Engraving System: High-Precision Marking and Engraving for Industrial Applications

The G20 is a robust, air-cooled fiber laser engraving machine engineered for deep engraving, high-contrast marking, and precision etching on a wide range of materials. Combining a high-quality 20W laser source with exceptional beam quality, it delivers clean, durable marks on metals, plastics, and ceramics. Designed for reliability and ease of use, the G20 is the ideal solution for applications requiring permanent identification, deep serial numbers, or intricate designs in high-volume production environments.

High-Precision Industrial Fiber Laser Engraving System for Marking

Parameter	Details	Parameter	Details
Model NO.	HM005	Condition	New
Certification	ISO	Warranty	12 Months
Automatic Grade	Automatic	Installation	Vertical
Driven Type	Electric	Transport Package	Customized or Wooden Box Packaging
Production Capacity	1	-	-

Product Parameters

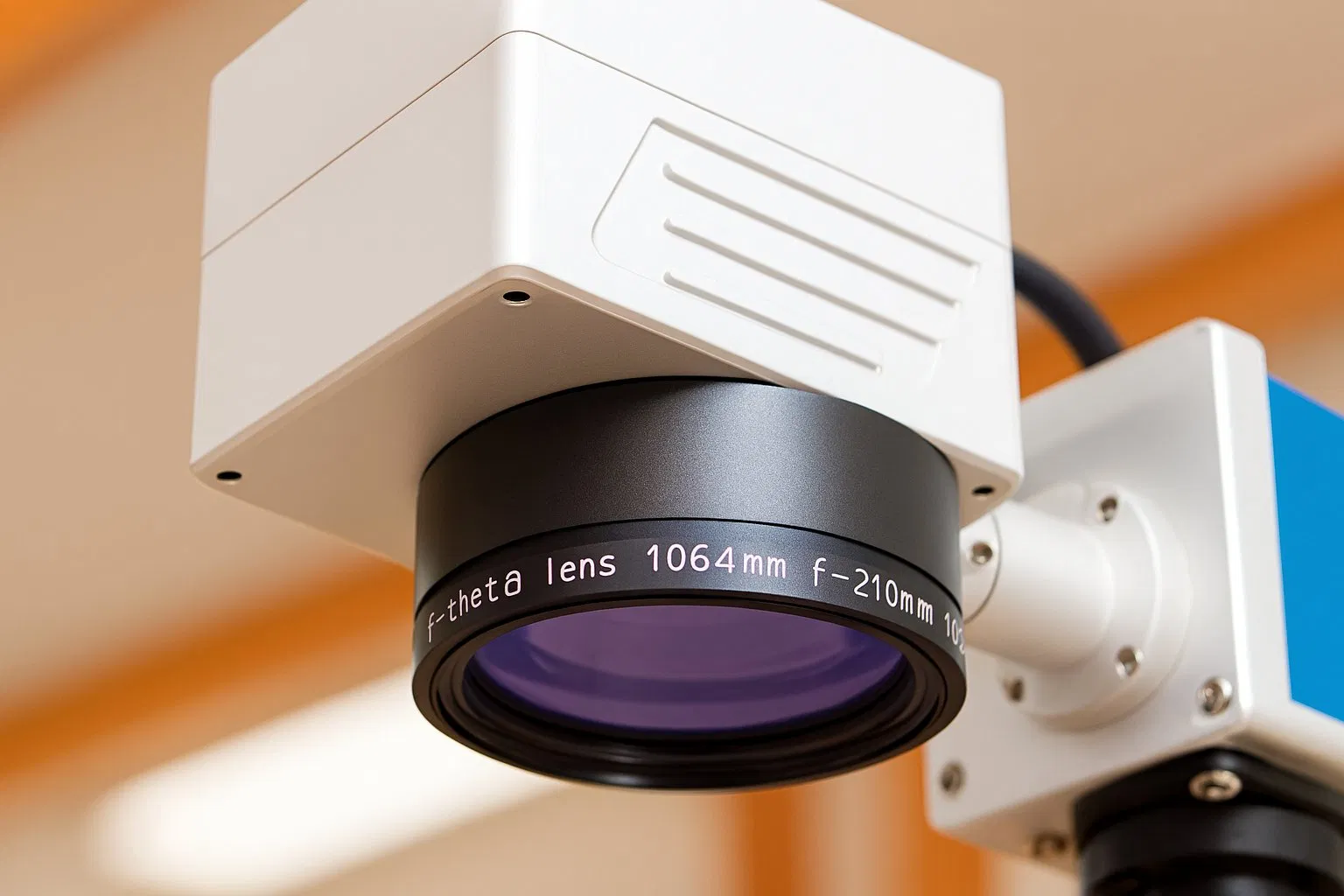

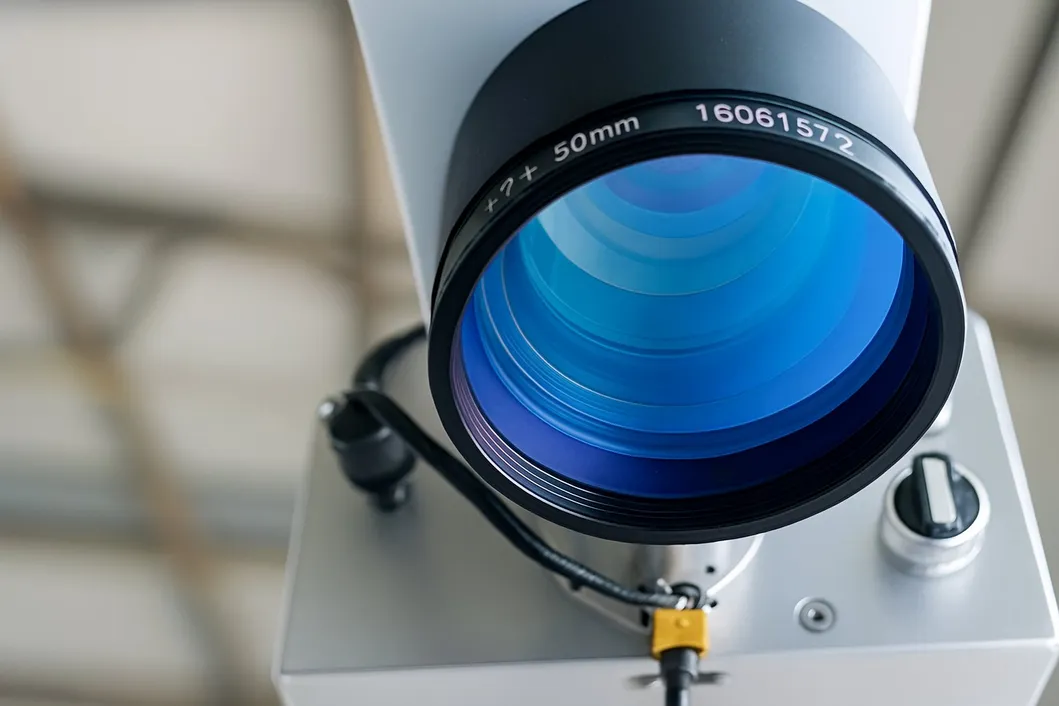

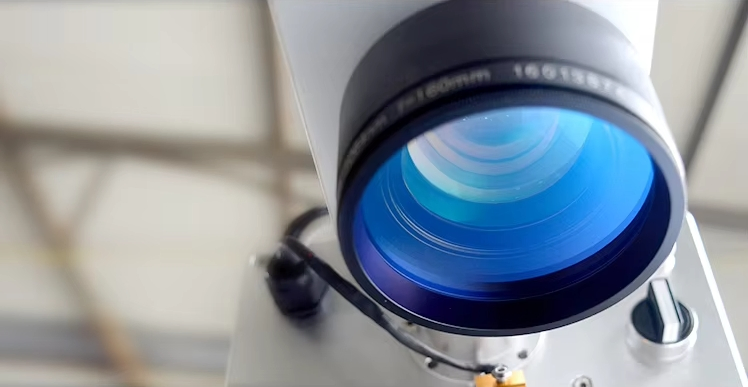

F-Theta Lens Features

The F-Theta lens is the core component that enables high-speed, precision laser engraving. Its key features are:

Flat-Field Focus: Ensures the laser beam remains perfectly sharp and in focus across the entire engraving area, from center to edge.
High-Speed & Precision: Works with galvanometer scanners to achieve extremely fast engraving speeds (thousands of mm/s) with exceptional positional accuracy.
Consistent Spot Quality: Maintains a uniform beam size and shape everywhere on the target, guaranteeing even engraving depth and line width.
Defined Work Area: The focal length (e.g., F160mm) determines the size of the engraving field and the level of detail-shorter for fine detail, longer for a larger area.

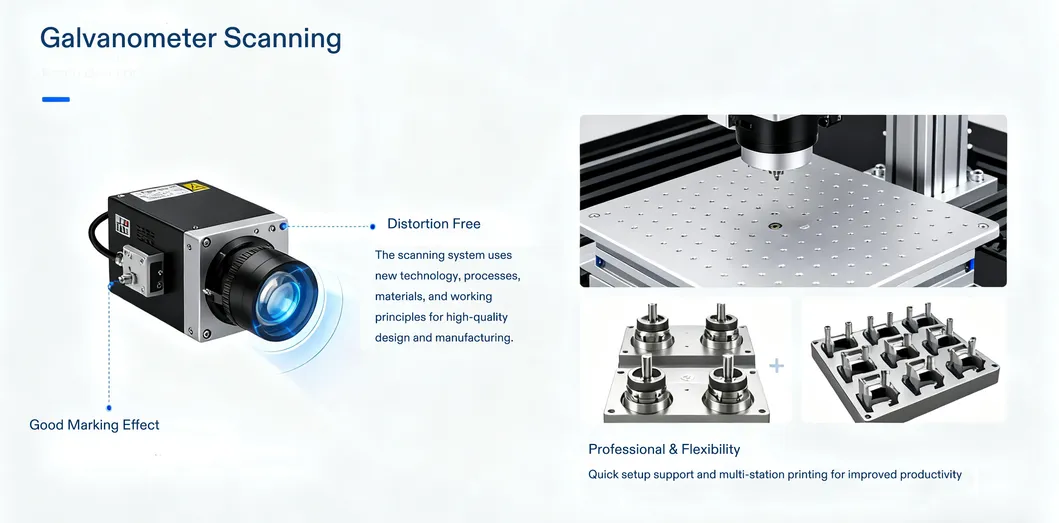

Galvanometer Scanner

A system of fast, precise mirrors that steer the laser beam. It's the reason laser engravers can move at high speeds without physically moving the laser head.

Function: Directs the laser beam across the work surface.
Components: Two motorized mirrors (X and Y axis).
Key Advantage: Extremely high speed compared to mechanical CNC systems.
Works With: The F-Theta lens, which focuses the steered beam onto a flat plane.

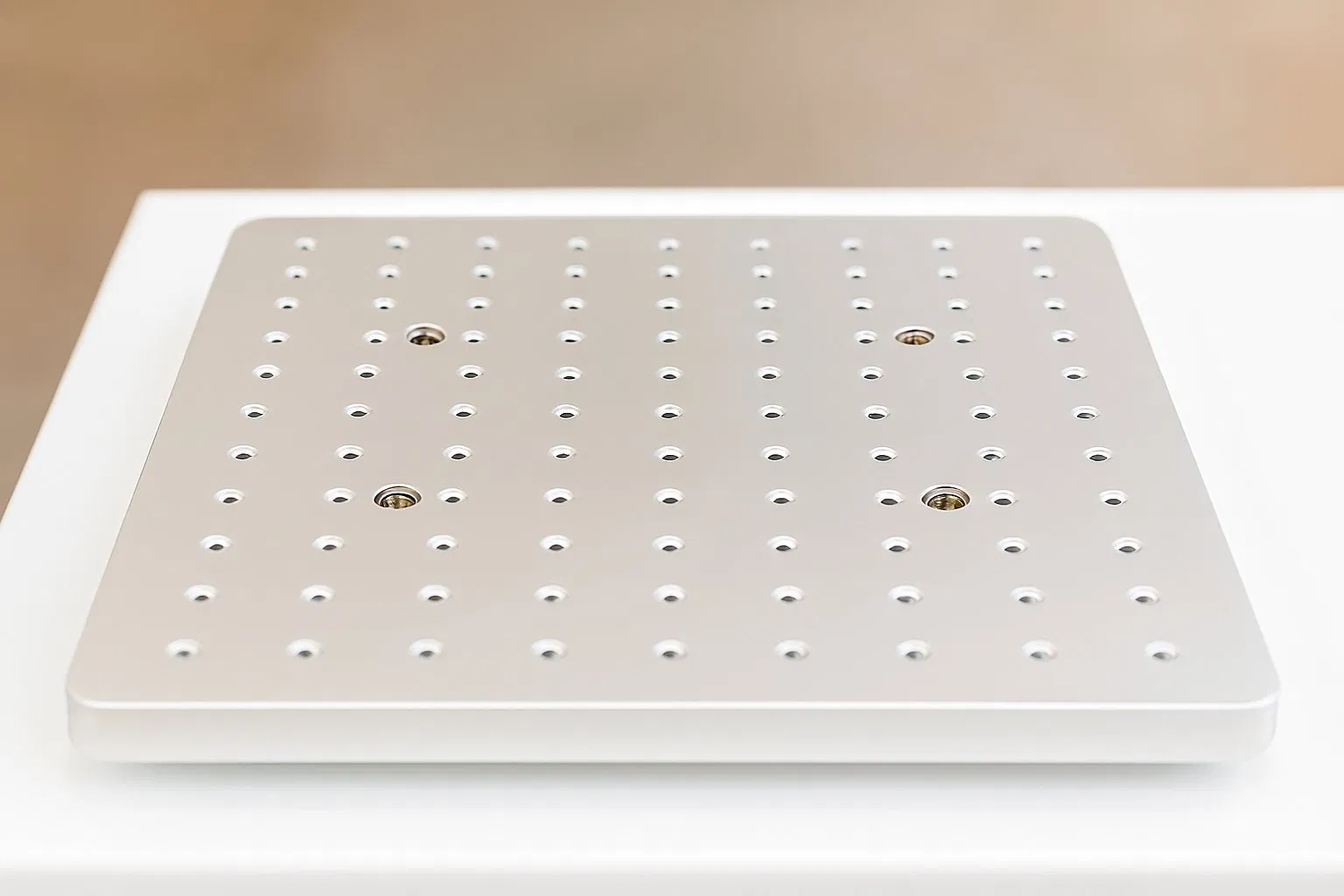

Deformation Heat Dissipation Table Details

Table Properties

Durability & Stability: Resists deformation under heat and mechanical stress, ensuring long-term flatness for consistent focus.
Heat Dissipation: Excellent thermal conductivity helps dissipate heat from the laser process, protecting sensitive materials.
Lightweight & Strong: Provides a robust platform while being easier to handle than steel.
Corrosion Resistance: Withstands oxidation, extending the table's lifespan in various environments.
Customizable: Can be machined with mounting holes (T-slots, threaded holes) for fixtures, jigs, and vacuum systems to hold workpieces securely.

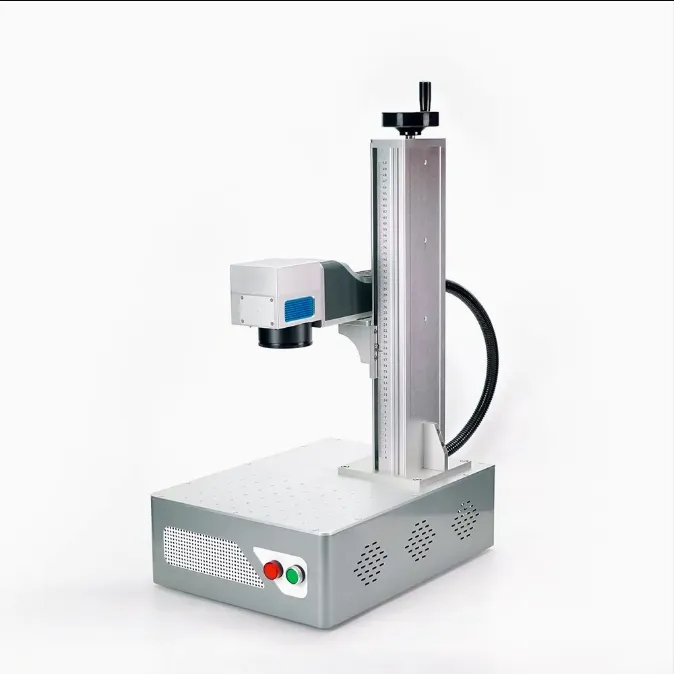

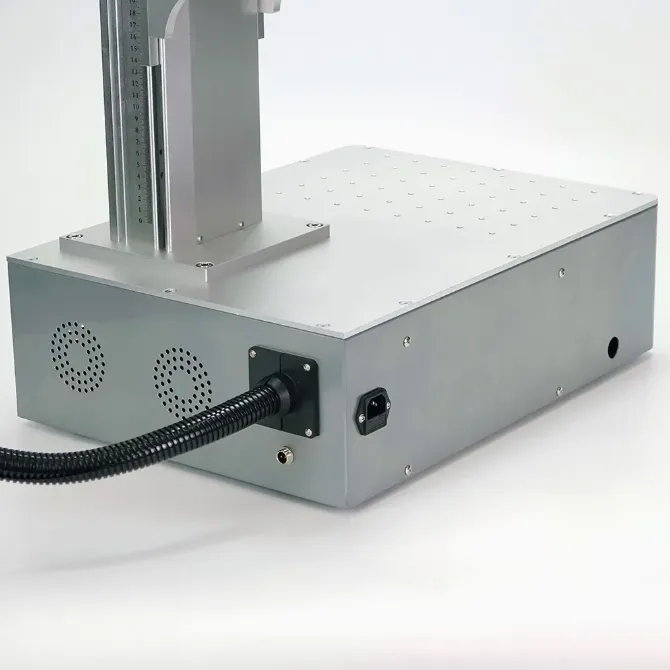

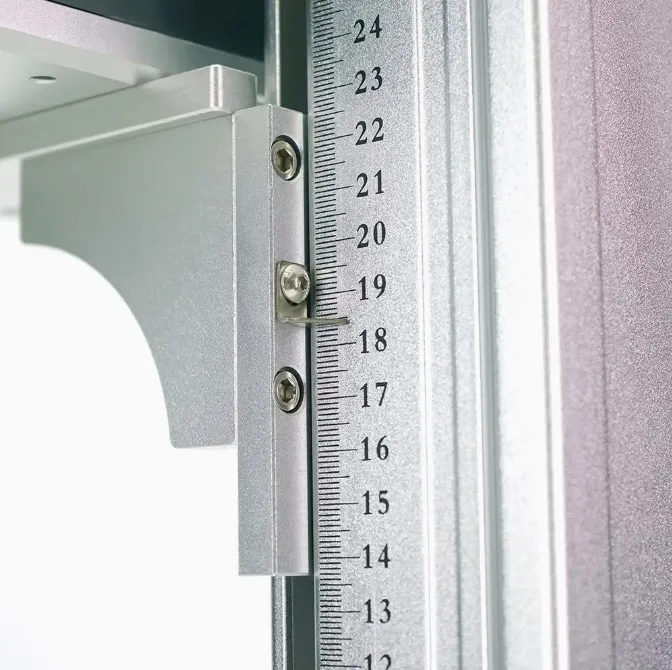

Detailed Photos

Key Features & Benefits

High-Precision Engraving: Achieve sharp, detailed engravings with a minimum line width of 50µm. The excellent beam quality (M²<1.6) guarantees superior edge definition for even the most complex graphics and fine text.
Optimized for Deep Engraving: With a marking depth of up to 0.4mm (0.016"), this machine is perfectly suited for applications requiring deep, tactile serial numbers or durable logos that can withstand harsh environments.
Compact, Industrial-Grade Design: The integrated air-cooling system makes the G20 a versatile, plug-and-play solution that saves valuable floor space and simplifies integration into any workshop or production line.
Built for Reliability & Uptime: An integrated backward reflecting isolator protects the laser from harmful reflections, ensuring long-term stability and minimizing maintenance, while the solid construction guarantees consistent performance.
Fast Cycle Times: High-speed engraving of up to 7,000 mm/s (22.97 ft/s) maximizes productivity, making it perfect for both custom one-off jobs and high-volume batch processing.

Certifications

We are an ISO 9001-certified manufacturer and innovator specializing in semiconductor equipment, with 6 registered utility model patents (UM Patents) in China. Our patented technologies cover:

Semiconductor annealing systems
Cleaning equipment for semiconductor etching
UV debonding machines

Backed by ISO 9001 quality management, we ensure high precision, reliability, and efficiency in semiconductor manufacturing processes. Our R&D-driven solutions enhance production yield and cost-effectiveness for global clients in IC packaging, MEMS, and advanced wafer processing.

Specifications

Parameter Item	Standard Specs (F160)	Optional Specs (F254)
Model	G20
Laser Output Power	20W
Focus Lens	F160 (Standard)	F254 (Optional)
Marking Area	3.9'' × 3.9''	6.3'' × 6.3''
Marking Speed	300 characters/sec, height=0.039''	300 characters/sec, height=0.039''
Min. Character Size	0.01''	0.02''
Min. Line Width	50μm	90μm
Wave Length	1064nm
Beam Quality M2	<1.6
Power Stability (8h)	<±1% rms
Pulse Repetition Frequency	1.6kHz - 1000kHz
Marking Depth	≤0.016''
Marking Linear Speed	≤22.97'/s
Repetition Accuracy	±0.0001''
Power Consumption	500W
Indication Light	Red light wavelength = 650nm
Cooling Mode	Air cooling
Running Temperature	15ºC - 35ºC
Electrical Source Requirement	110-220V/ 50Hz (60Hz) / 4A
*Dimensions (LWH)*	1.8' × 2.6' × 2.5'
Weight	121 KG

Exhibition & Customers

Exhibition floor and customers visiting booths

Field Applications

This versatile engraver is perfect for:

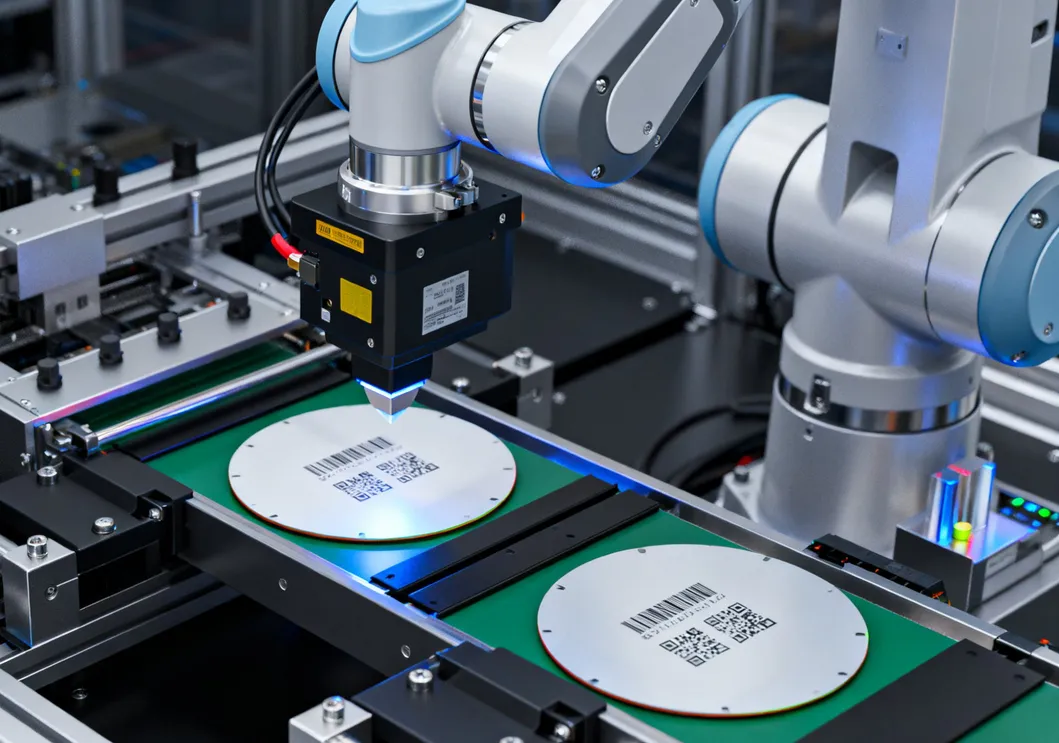

Industrial Part Engraving: Deep serial numbers, VIN codes, and data matrix codes on automotive and aerospace components.
Tool Identification: Permanent, wear-resistant branding and tracking information on tools and molds.
Customization & Personalization: Engraving logos, designs, and text on promotional products, awards, and electronic enclosures.

Frequently Asked Questions

Q1: How to choose a suitable machine?

A1: You can tell us the working piece material, size, and your application request. We will recommend the most suitable machine based on our extensive field experience.

Q2: What is the warranty period for this fiber laser engraving system?

A2: The equipment comes with a standard 12-month (one year) warranty along with 24 hours online professional technical support to assist you.

Q3: What cooling method does this laser system utilize?

A3: The G20 model utilizes an integrated air cooling system. This enables highly efficient heat dissipation while eliminating the need for bulky external water chillers.

Q4: What is the marking speed and engraving accuracy of the G20?

A4: It achieves a high-precision repetition accuracy of ±2.5μm and a high-speed marking performance of up to 300 characters per second (with a character height of 0.039").

Q5: What are the main applicable materials and field applications for this model?

A5: This fiber laser is primarily applicable for metals, plastics, and ceramics. It is extensively used for deep serial numbering, VIN coding on automotive or aerospace parts, tool identification, and personalization of awards or promo items.

Q6: What is the power consumption and electrical supply requirement?

A6: The G20 fiber laser engraving system operates with a power consumption of 500W, and requires an electrical source of 110-220V/50Hz (or 60Hz)/4A.
