Lansu 3W UV Vision Laser Engraving System for Plastic Parts

Specifications & Package Details

Basic Info

Model NO.	UV
Laser Visibility	Visible
Applicable Material	Plastic
Cooling System	Water Cooling
Technical Class	Continuous Wave Laser
Laser Wavelength	355mm
Laser Classification	Gaseous Laser
Type	UV Laser Marking Machine
Marking Method	Scanning Marking
Model	Ls-Sjuv-5/10/20/25W
Laser Power	5/10/20/25W
Marking Speed	≤7000mm/s
Minimum Linewidth	0.01mm
Minimum Character	0.05mm
Repeatability	±0.01mm
Power Supply	AC220V/50Hz
Capture Time	≤0.2s
Origin	China
Production Capacity	5000 Pieces/Year

Packaging & Delivery

Transport Package	Wooden Box
Specification	1.151.051.55m
Package Size	115.00cm * 105.00cm * 155.00cm
Package Gross Weight	178.000kg

Product Description

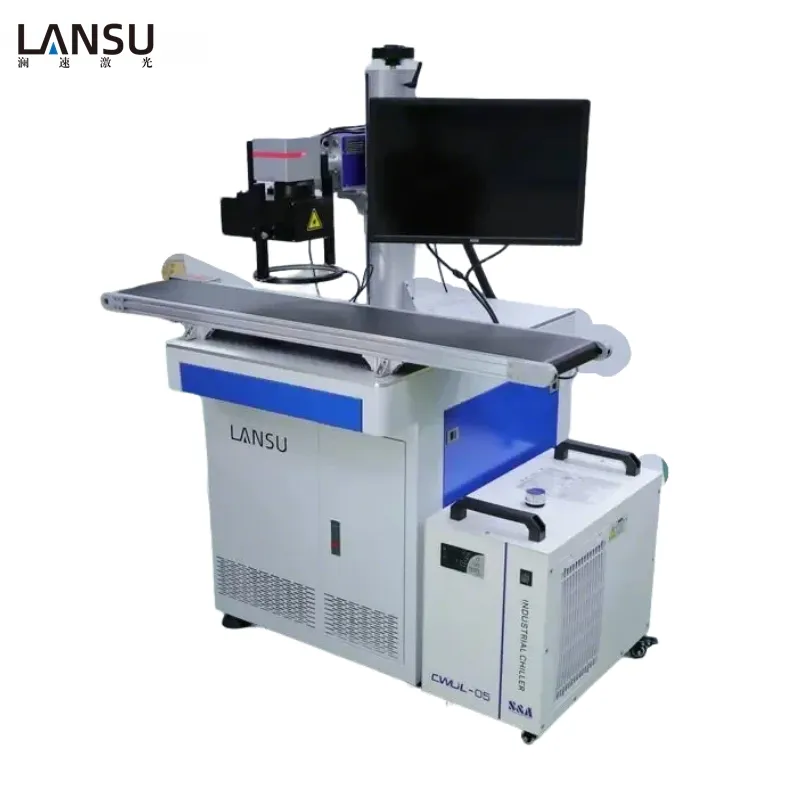

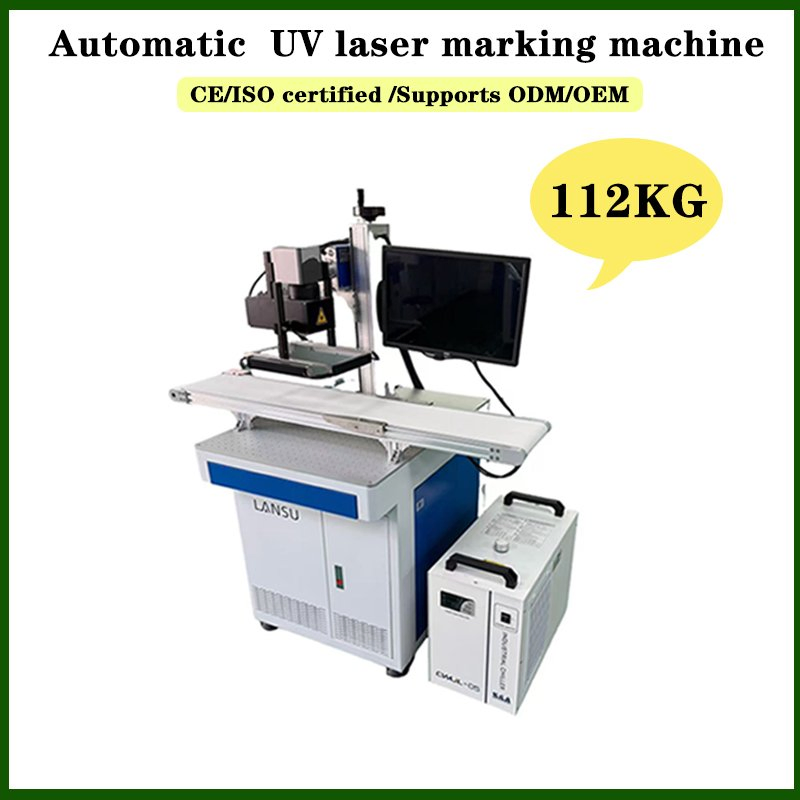

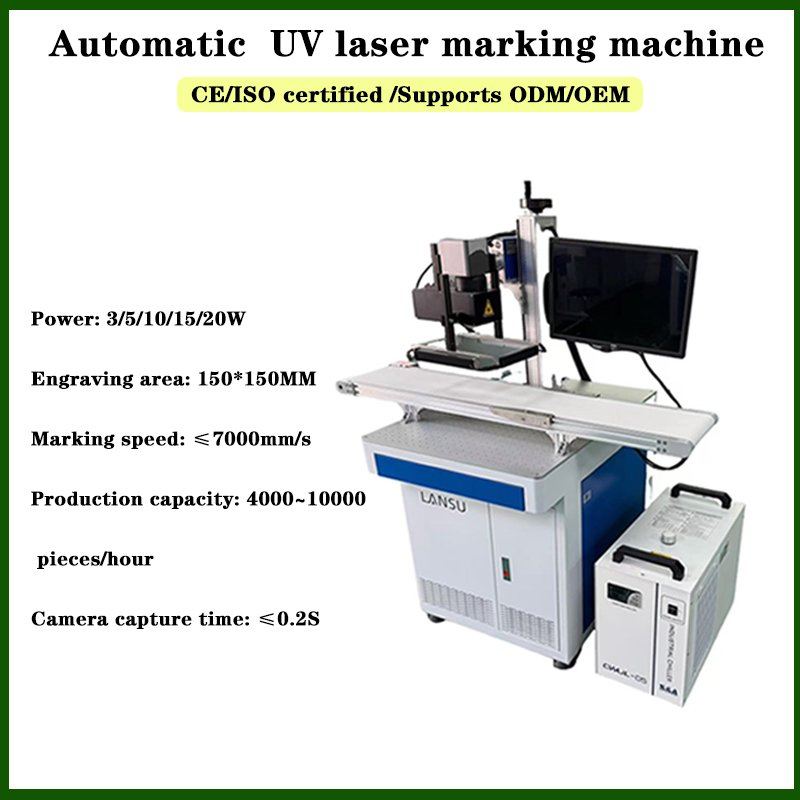

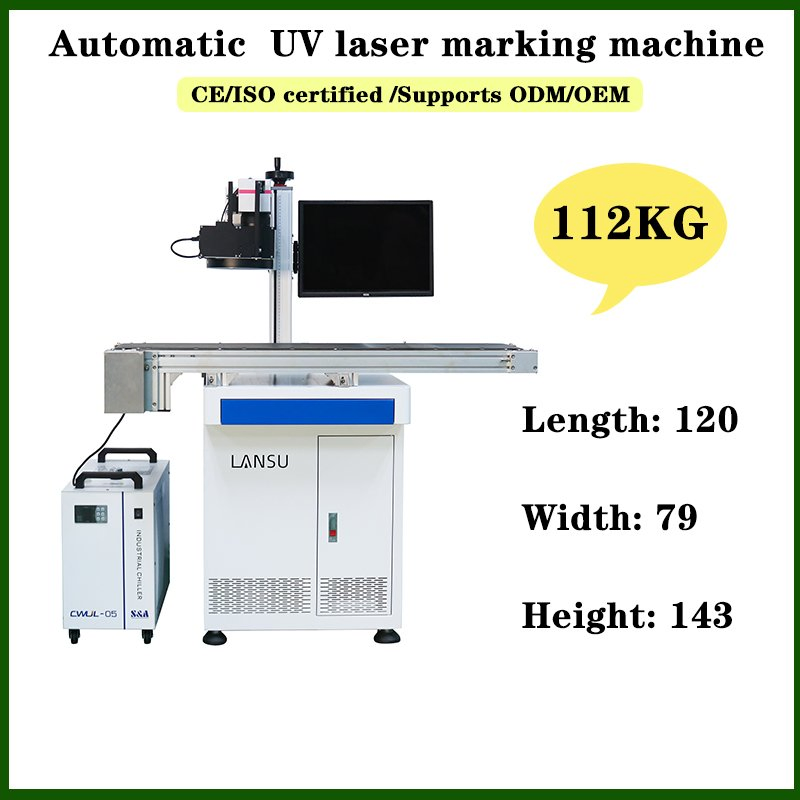

UV Vision Laser Engraving System for Plastic Parts

Packed size

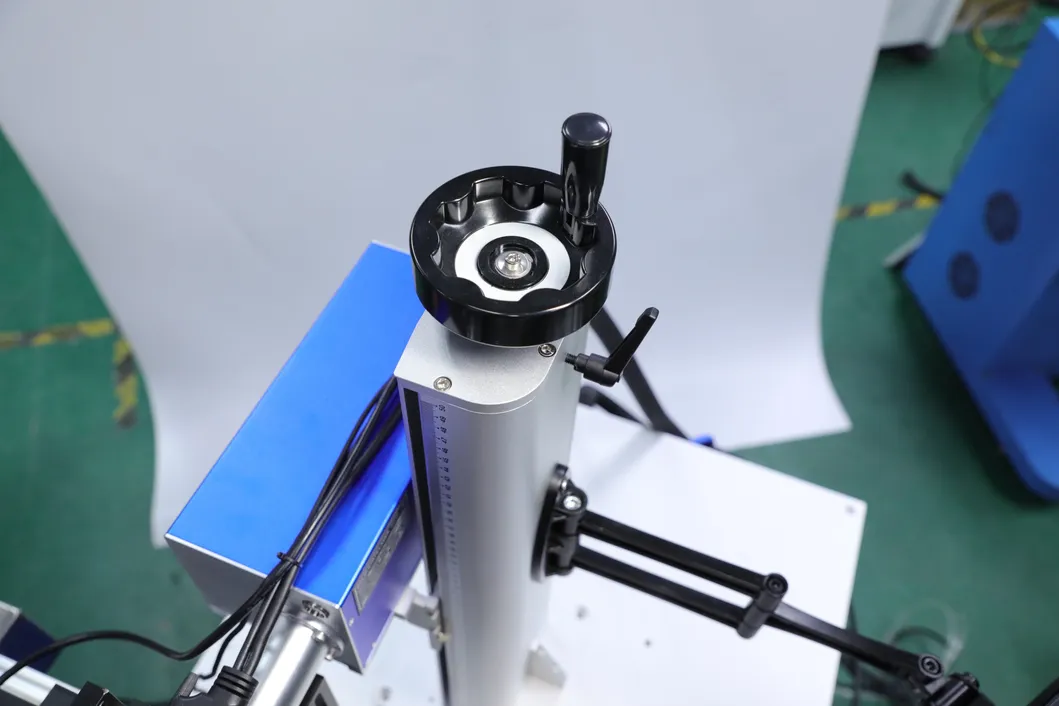

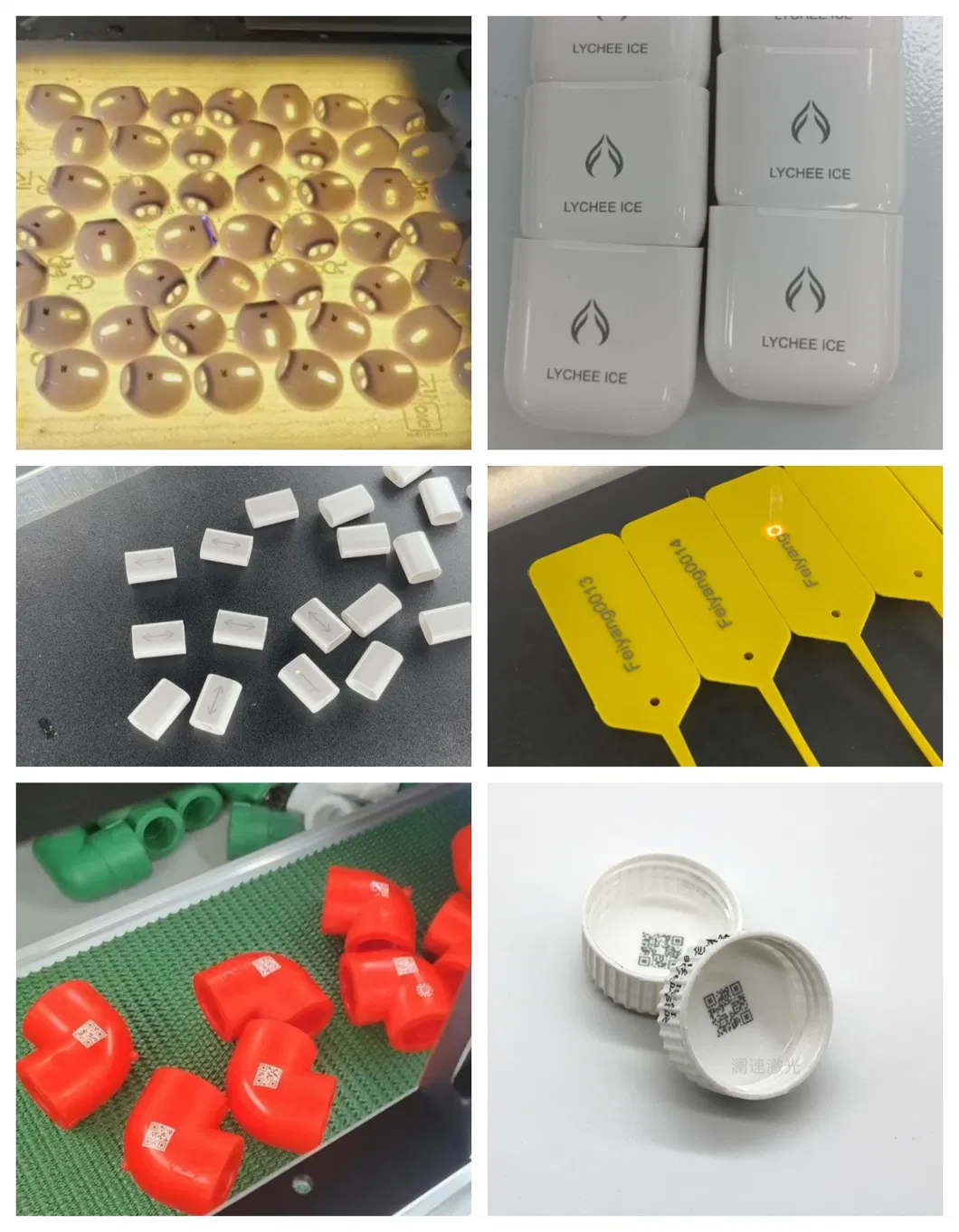

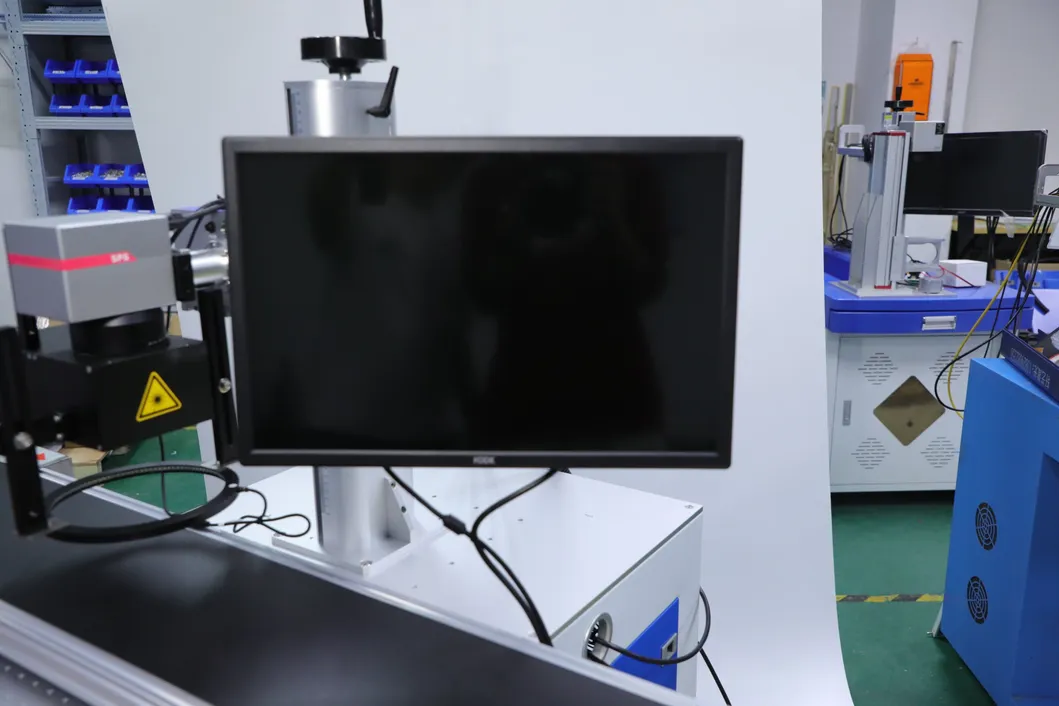

UV Vision Laser Engraving System Detailed View

Product features:

Improve production efficiency, achieve rapid positioning, marking multiple products at a time, can also carry out automatic assembly line feeding, visual positioning and marking after positioning.

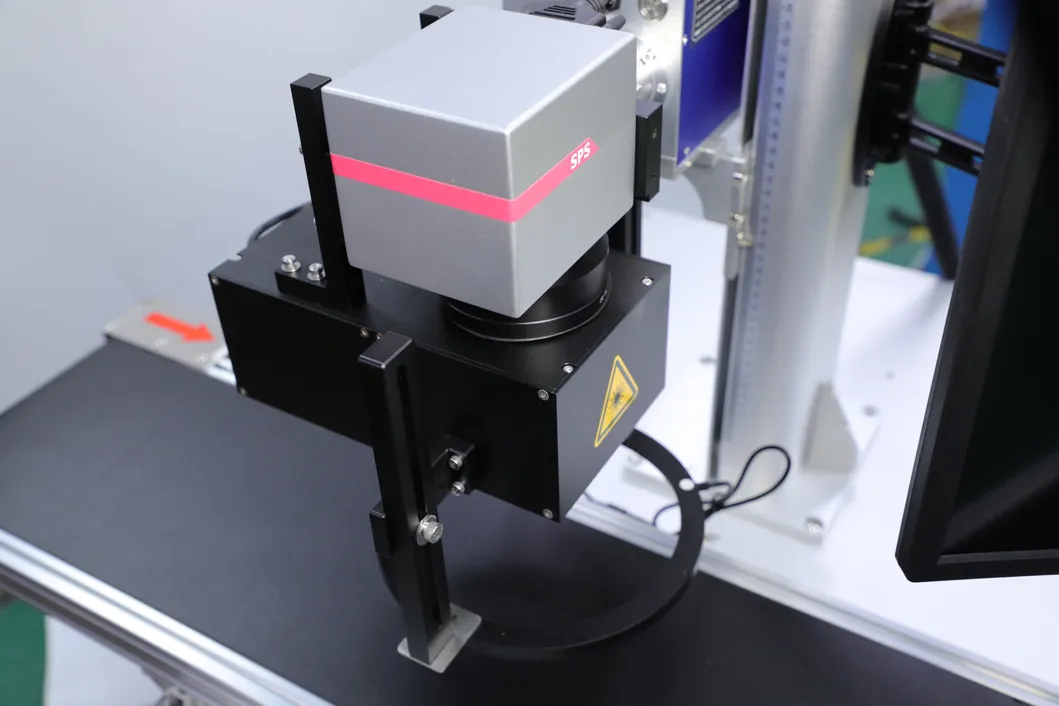

High precision positioning and marking, the combination of marking machine and CCD vision can achieve high-precision positioning and marking in the case of any angle, any number and any position.
To improve the production efficiency, by cooperating with the vibration plate, assembly line, XY platform and other parts, the unmanned and automatic production can be realized, and the product quality can be greatly improved.

Through computer programming, the marking content, patterns, text, QR codes, etc. can be easily and quickly changed and adjusted. It can meet the marking requirements of different products and batches without the need to change molds or make complex equipment adjustments. It has strong flexibility and adaptability.

Due to the reduction of errors and uncertainties caused by manual operation, the automated laser marking machine can ensure the stable and consistent marking quality of each product, improve the overall quality and consistency of the products, and help enhance the brand image and market competitiveness of enterprises.

Applicable materials:

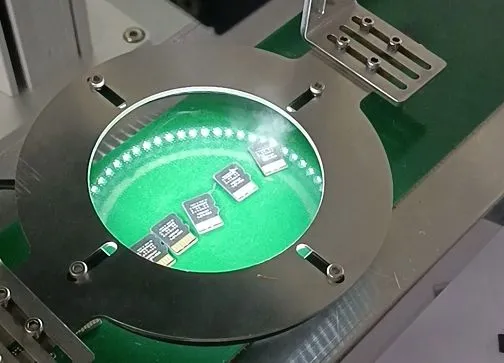

It is mainly applicable to the marking of small or extremely small items with heavy workload, difficult feeding and positioning, diversity and complexity of work pieces, such as IC, small screw, resistance, etc.

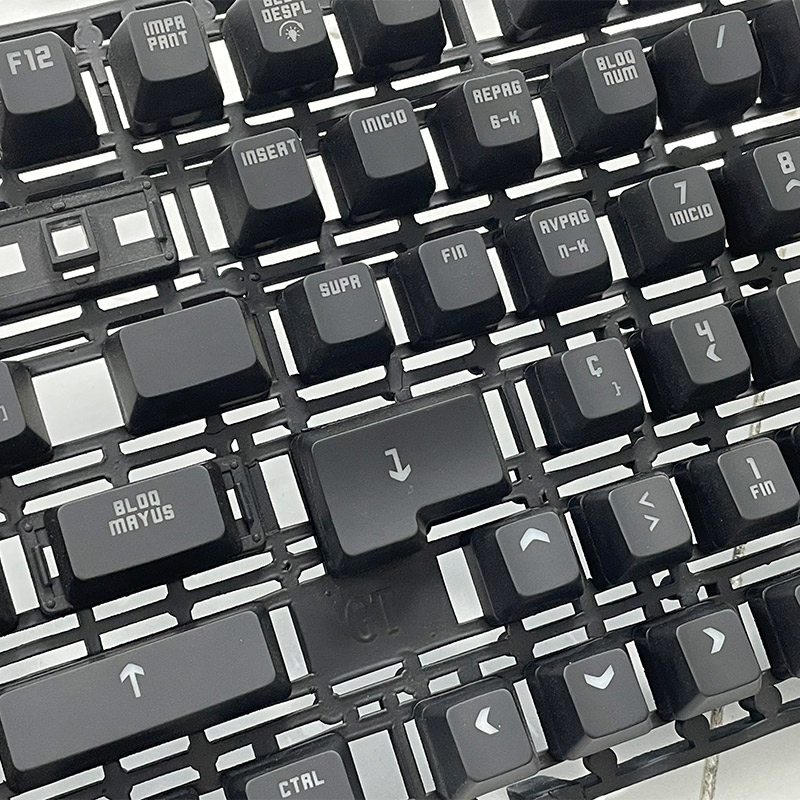

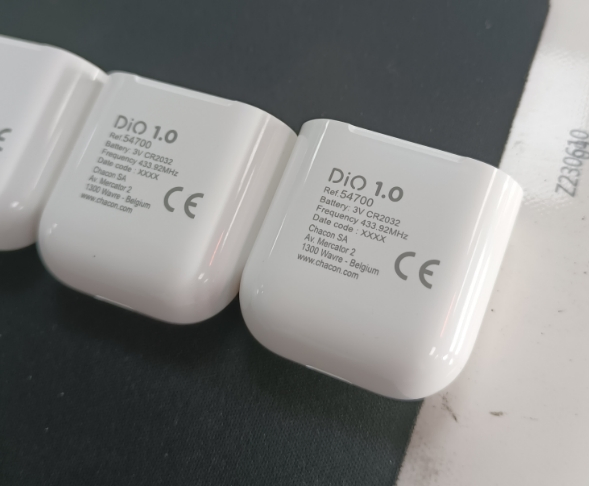

The vast majority of plastics of the same size and specification with flat engraved surfaces (such as ABS, PP, PC, PA, TPU, etc.).

Technical Parameters

Parameter Item	Technical Details
Model	LS-SJUV-5/10/20/25W
Laser power	5/10/20/25W
Marking area	150mm×150mm (optional)
Marking speed	≤7000mm/s
Minimum linewidth	0.01mm
Minimum character	0.05mm
Repeatability	±0.01mm
Power supply	AC220V/50Hz
Output	4000 ∼ 10000pcs/h
Capture time	≤0.2s
Cooling mode	Water cooling

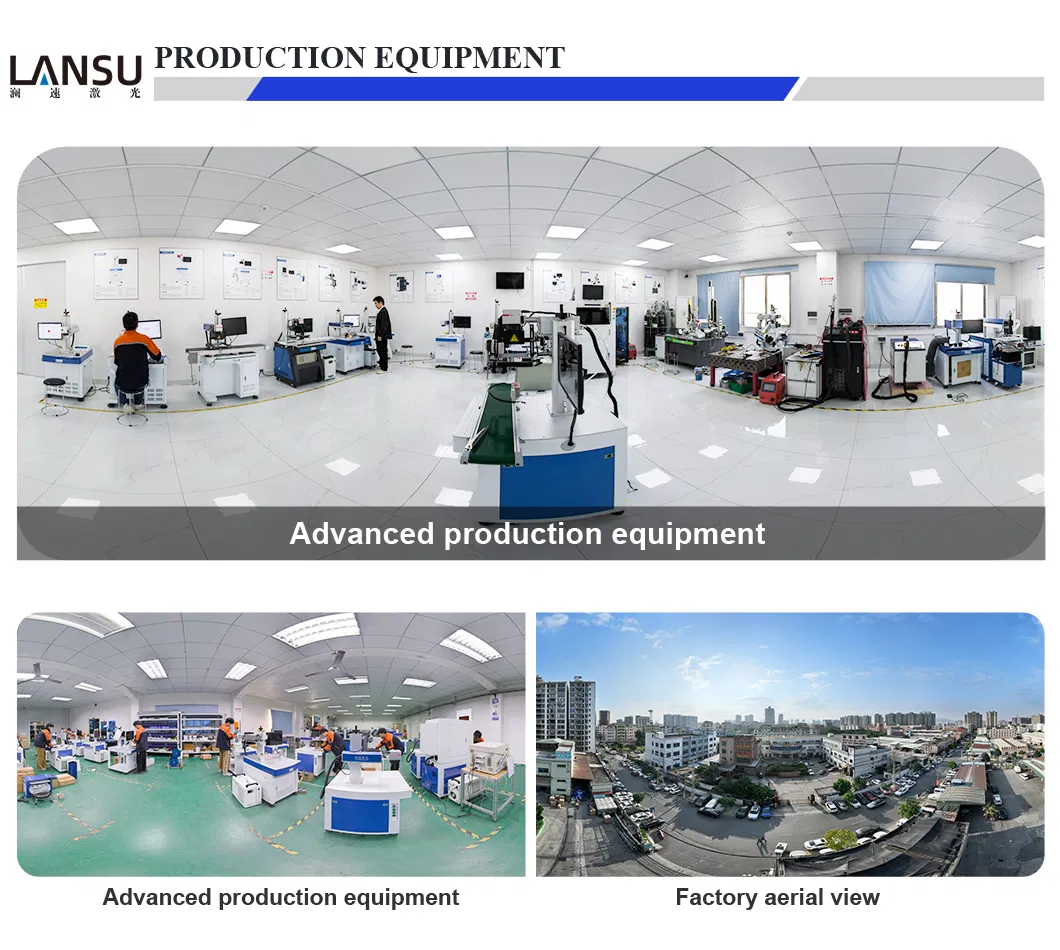

Factory Gallery

Frequently Asked Questions (FAQ)

1. What materials are suitable for this UV Laser Marking Machine?

This system is ideal for marking small or extremely small components such as ICs, small screws, and resistors. It is highly compatible with the vast majority of plastics with flat engraved surfaces, including ABS, PP, PC, PA, and TPU.

2. How does the CCD vision system enhance production efficiency?

By integrating CCD vision with the marking engine, the machine achieves rapid positioning and high-precision marking at any angle, position, or quantity. This allows the marking of multiple products at once and supports unmanned, automated production.

3. What quality control procedures are implemented?

We ensure maximum product reliability by producing sample runs prior to beginning mass production and carrying out rigorous, 100% final inspections on every system before shipment.

4. Why should I choose your laser systems over other suppliers?

Our equipment is built with high-specification industry components, allowing for continuous 24-hour daily operation and providing an exceptional service life of up to 100,000 hours with stable, high-precision results.

5. Which delivery terms and payment options are supported?

We support a wide array of terms including FOB, CFR, CIF, EXW, FAS, FCA, CPT, DDP, DDU, DAF, DES. Accepted payment types include T/T, L/C, MoneyGram, Credit Card, PayPal, and Western Union. We conduct support in multiple languages including English, Spanish, German, French, Portuguese, and more.
