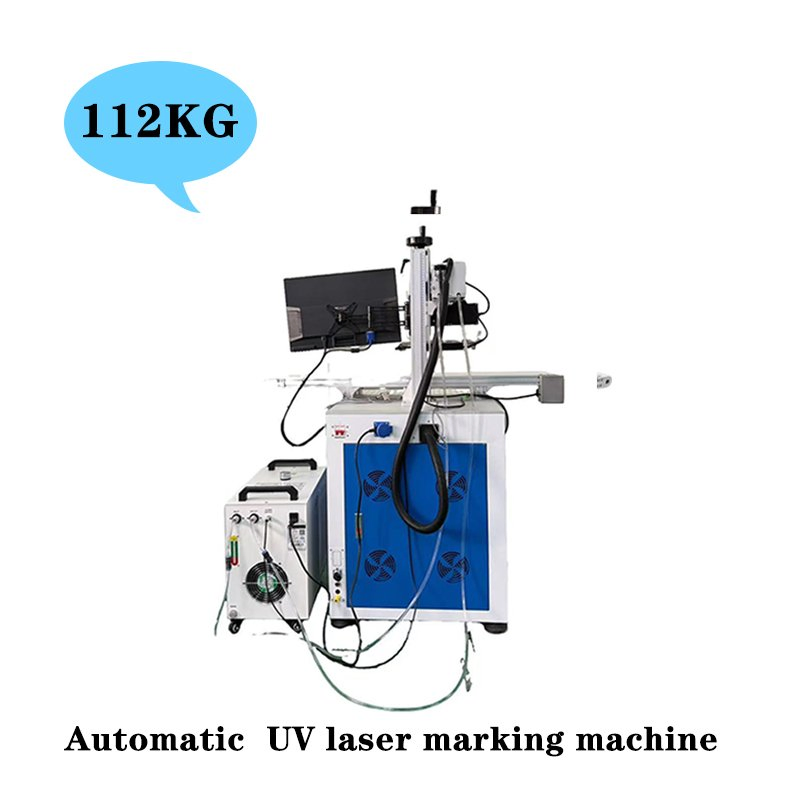

Achieve rapid positioning, marking multiple products at a time. It can also carry out automatic assembly line feeding, visual positioning, and marking after positioning.

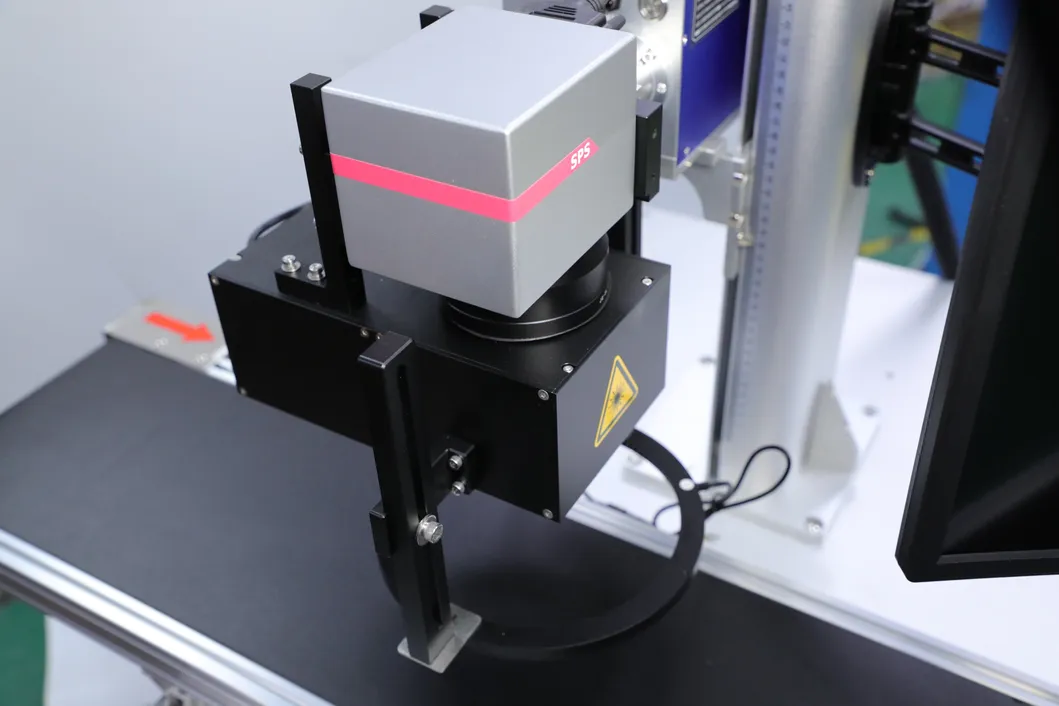

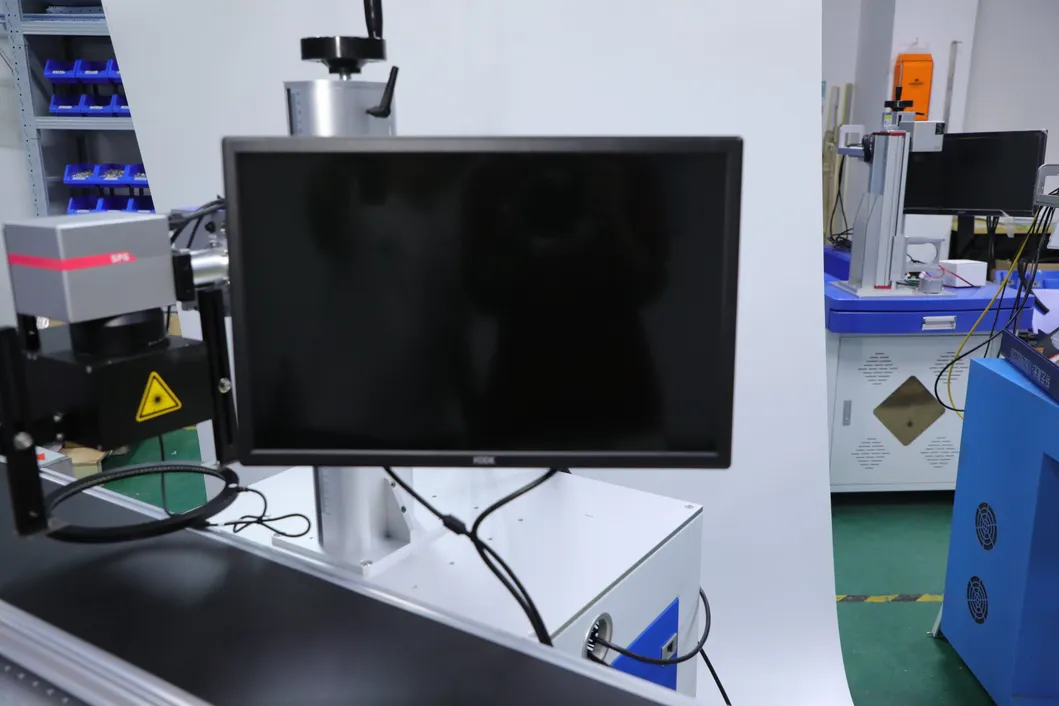

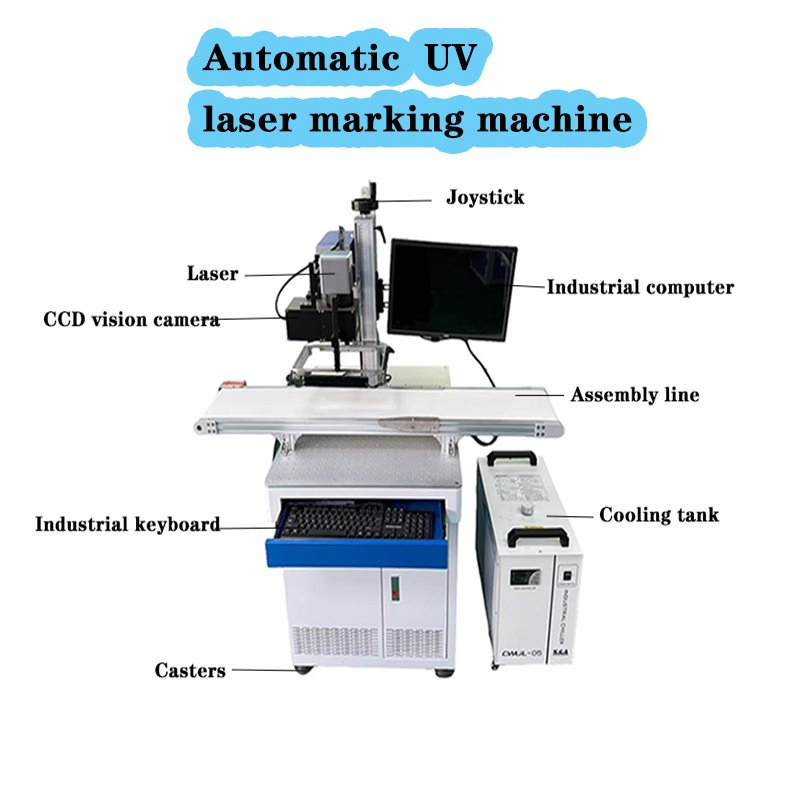

The combination of the marking machine and CCD vision achieves high-precision positioning and marking in the case of any angle, any quantity, and any position.
By cooperating with the vibration plate, assembly line, XY platform, and other parts, unmanned and automatic production can be realized, and the product quality can be greatly improved.
Through computer programming, the marking content, patterns, text, QR codes, etc. can be easily and quickly changed and adjusted. It can meet the marking requirements of different products and batches without the need to change molds or make complex equipment adjustments. It has strong flexibility and adaptability.
Due to the reduction of errors and uncertainties caused by manual operation, the automated laser marking machine can ensure the stable and consistent marking quality of each product, improve the overall quality and consistency of the products, and help enhance the brand image and market competitiveness of enterprises.

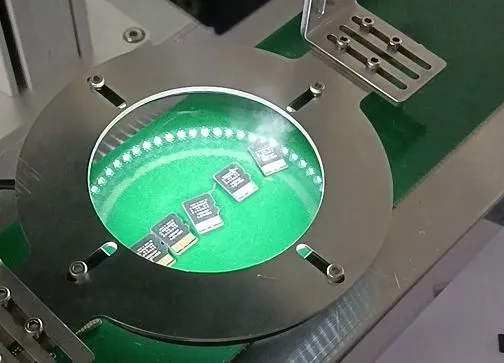

It is mainly applicable to the marking of small or extremely small items with heavy workload, difficult feeding and positioning, diversity, and complexity of workpieces, such as IC, small screws, resistance, etc.

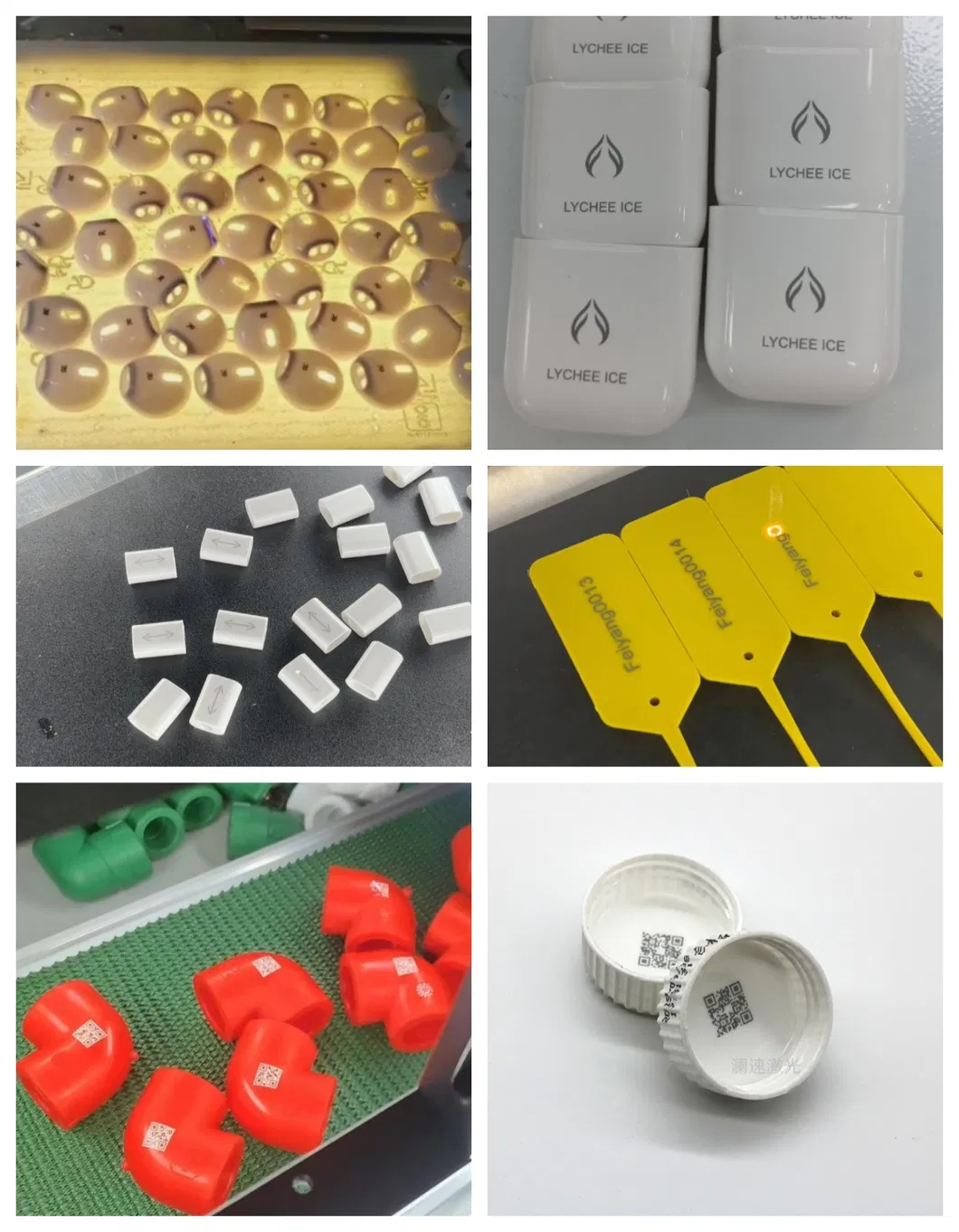

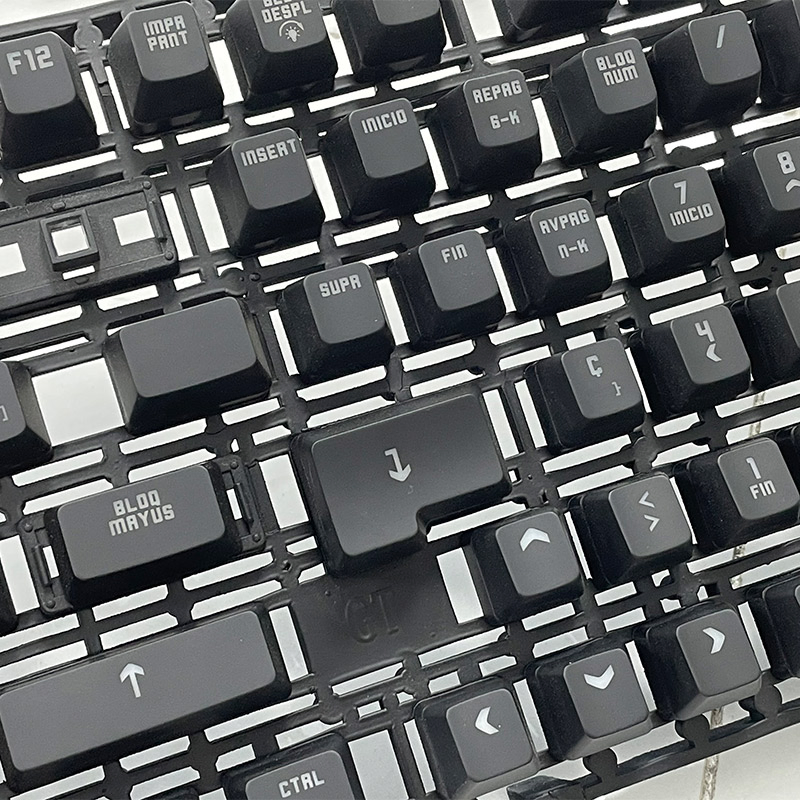

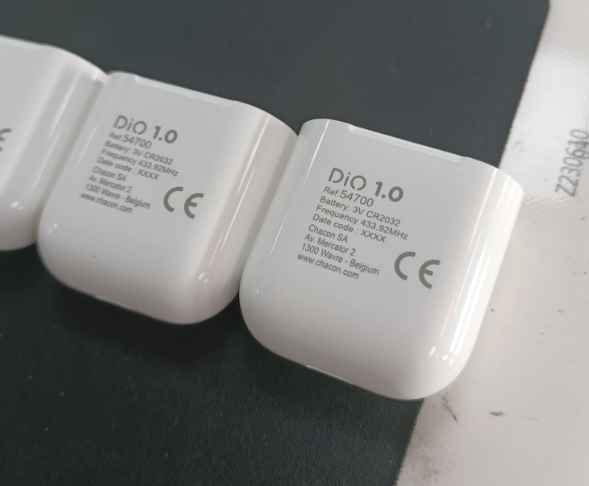

The vast majority of plastics of the same size and specification with flat engraved surfaces (such as ABS, PP, PC, PA, TPU, etc.).
| Model | LS-SJUV-5/10/20/25W |
| Laser power | 5/10/20/25W |
| Marking area | 150mm×150mm (optional) |
| Marking speed | ≤7000mm/s |
| Minimum linewidth | 0.01mm |
| Minimum character | 0.05mm |
| Repeatability | ±0.01mm |
| Power supply | AC220V/50Hz |
| Output | 4000 ∽ 10000pcs/h |
| Capture time | ≤0.2s |
| Cooling mode | Water cooling |
