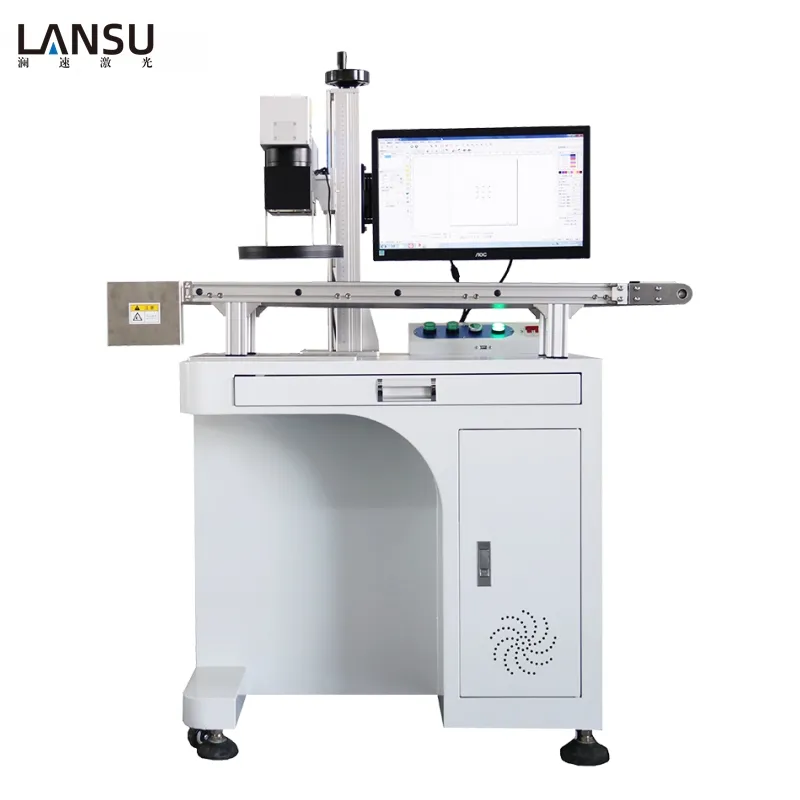

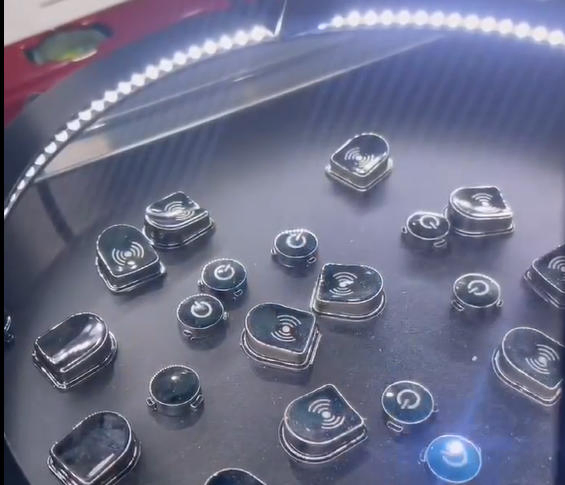

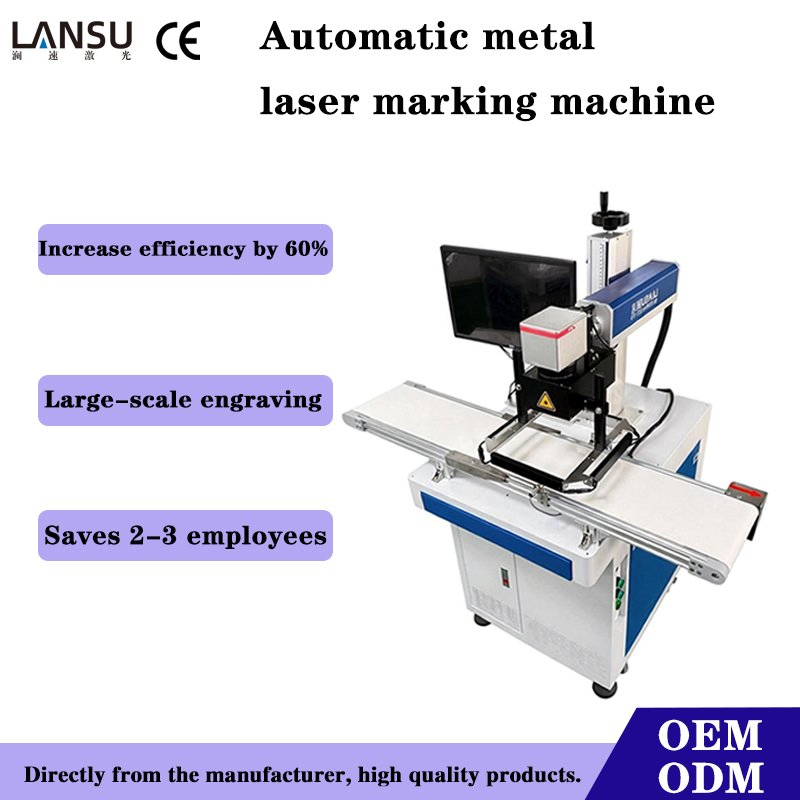

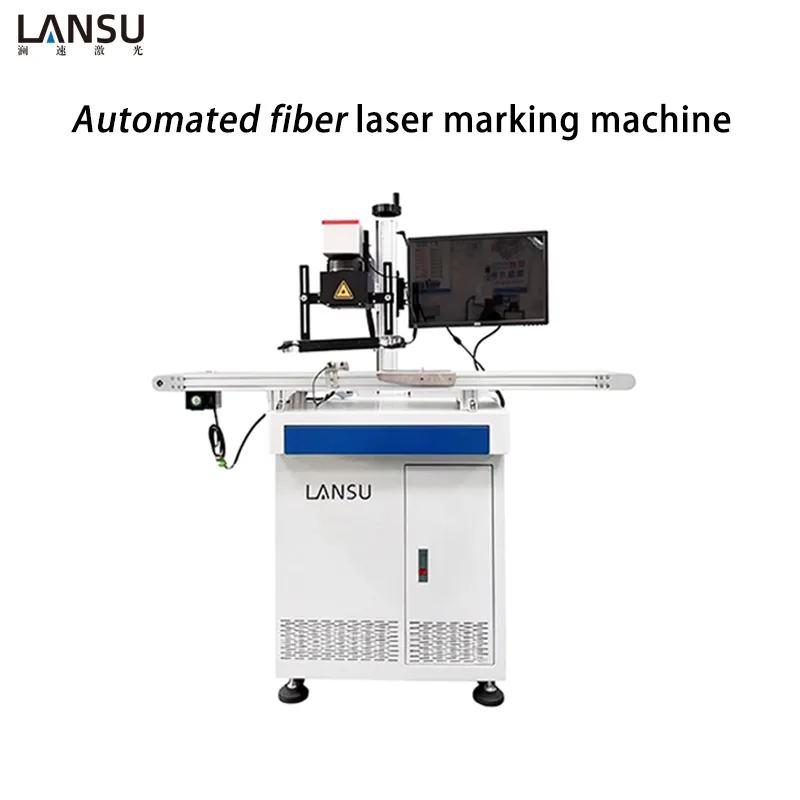

Efficiency Improvement: Achieve rapid positioning and marking of multiple products at a single time. It can also support automatic assembly line feeding, visual positioning, and marking.

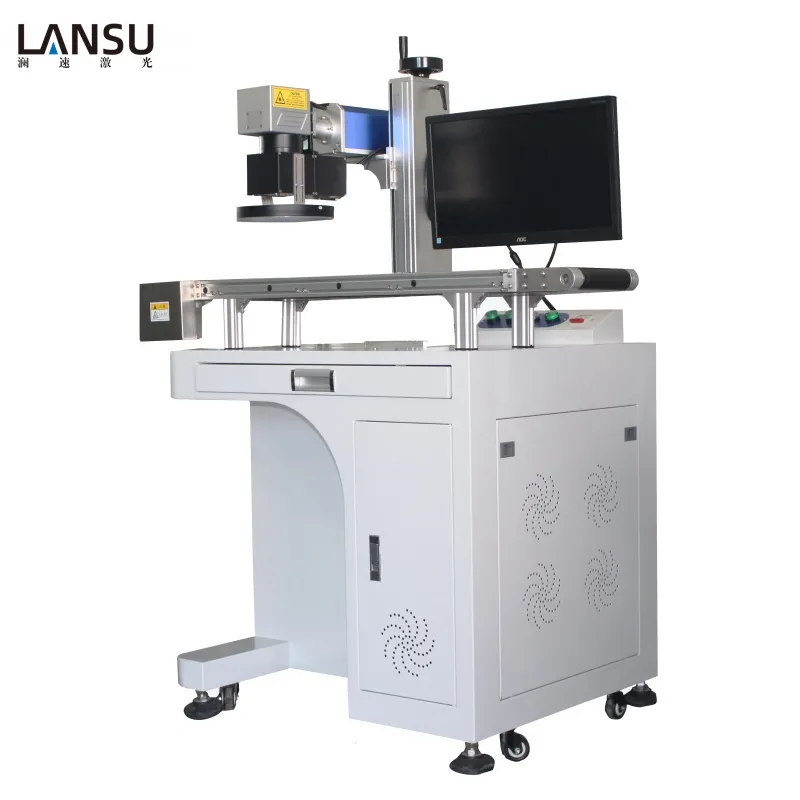

High Precision Positioning: The combination of the marking machine and CCD vision enables high-precision positioning and marking at any angle, quantity, and position.

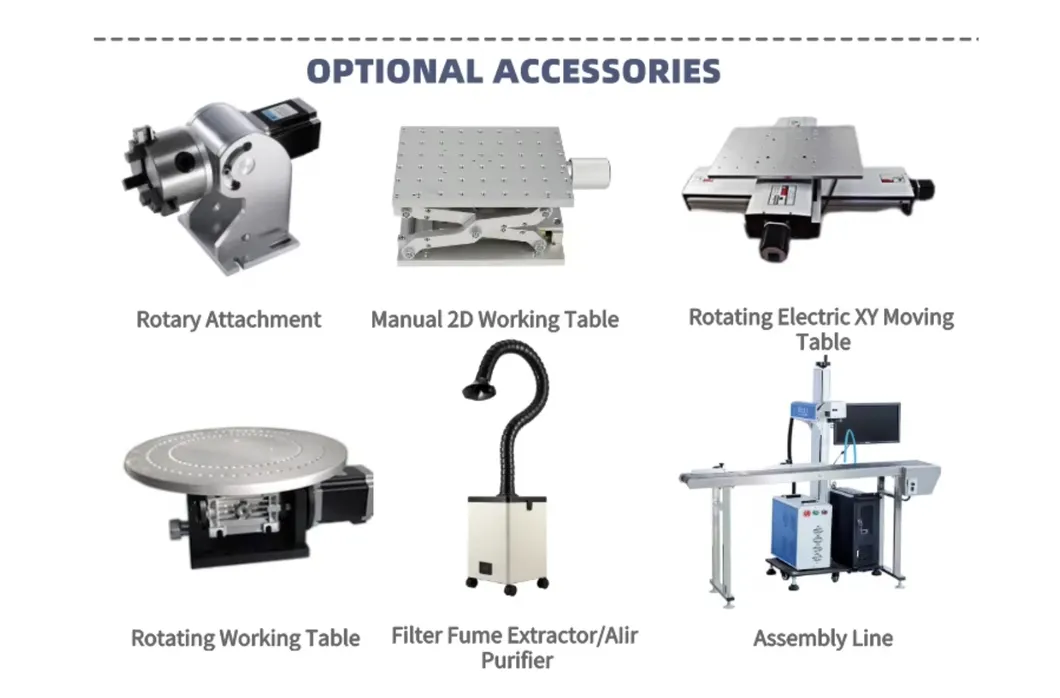

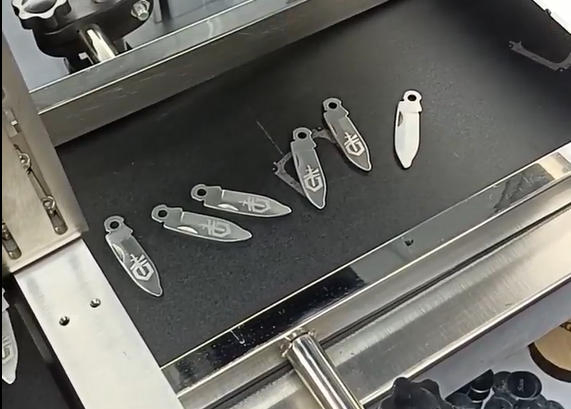

Automation Integration: By cooperating with vibration plates, assembly lines, XY platforms, and other components, unmanned and automatic production can be realized to enhance product quality.
Through computer programming, the marking content, patterns, text, QR codes, etc. can be easily and quickly changed and adjusted. It meets the marking requirements of different products and batches without the need to change molds or make complex equipment adjustments, offering strong flexibility and adaptability.
Due to the reduction of errors and uncertainties caused by manual operation, the automated laser marking machine ensures stable and consistent marking quality for each product, improving the overall consistency of the products, and helping enhance the brand image and market competitiveness of enterprises.

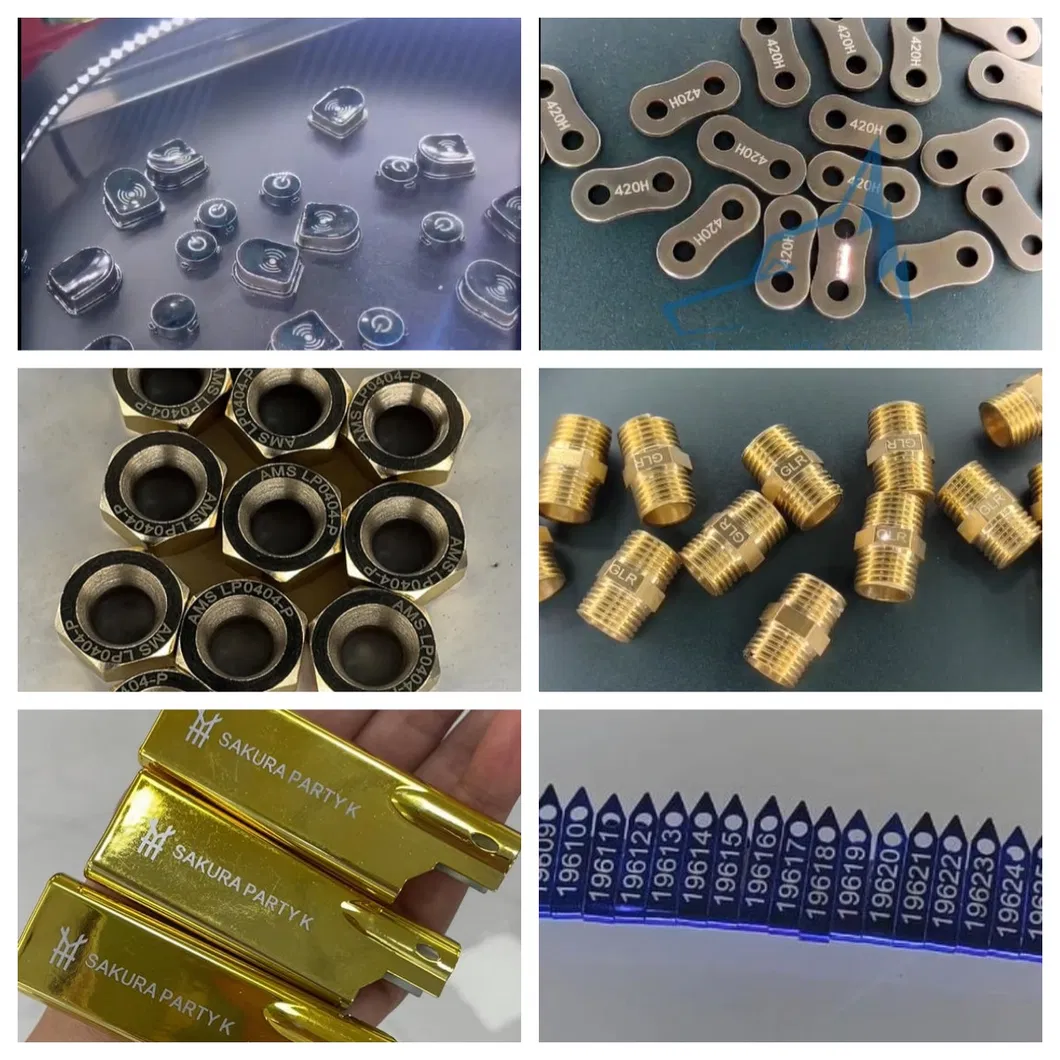

Small & Complex Items: Mainly applicable to the marking of small or extremely small items with heavy workload, difficult feeding and positioning, and complexity of work pieces, such as IC, small screws, resistance, etc.
Plastics: The vast majority of plastics of the same size and specification with flat engraved surfaces (such as ABS, PP, PC, PA, TPU, etc.).
| System Specifications | |
|---|---|
| Laser source | Raycus/ Max/ GZ/ JPT |
| Laser wavelength | 1064nm |
| Frequency range | 20-100KHz |
| Pulse width range | 200ns |
| Marking speed | ≤7000mm/s |
| Minimum line width | 0.02mm |
| Minimum character | 0.05mm |
| Repeatability | ±0.01 mm |
| Operating Specifications | |
|---|---|
| Marking area | 150*150mm (optional) |
| Cooling mode | Air cooling |
| Working power supply | AC220V/50Hz |
| Expected Service Life | 100,000 hr |
| Required Operating Environment | <70% Humidity and 40-95°F (5-35°C) |
| Software | EZCAD |
| Warranty | 1 year |
| Lead time | 7 working days |
We serve the Domestic Market (50.00%), Western Europe (20.00%), Southeast Asia (20.00%), and North America (10.00%).
We always provide a pre-production sample before mass production and perform a final inspection before shipment.
You can purchase Laser Marking Machines, Laser Welding Machines, Laser Engraving Machines, Laser Cutting Machines, and Laser Cleaning Machines.
Our machines can work continuously for 24 hours with a life span of up to 100,000 hours. Our configuration uses top-tier components, ensuring the system stability and marking results are highly reliable.
