| Model NO. | UV-X330 |
| Laser Visibility | Invisible |
| Applicable Material | Nonmetal |
| Cooling System | Water Cooling |
| Technical Class | Pulse Laser |
| Laser Wavelength | Deep Ultraviolet |
| Laser Classification | Solid Laser |
| Type | UV Laser Marking Machine |
| Marking Method | Scanning Marking |
| Marking Depth | 0.01-0.1 mm |
| Marking Content | Character,Data |
| Marking Speed | 12000-15000 mm/S |
| Performance Feature | Integrated Anti-Counterfeiting and Marking System |
| Core Hardware | Honest Marking Marking Editing Software |
| Custom Service | Example of Traceability Process in Production |
| Power | 10W 20W 30W 50W |
| Keywords | Automatic Laser Marking Machine |
| Applicable Industries | Automatic Optical Inspection System |
| Package Size | 550.00cm * 650.00cm * 750.00cm |
| Package Gross Weight | 74.000kg |

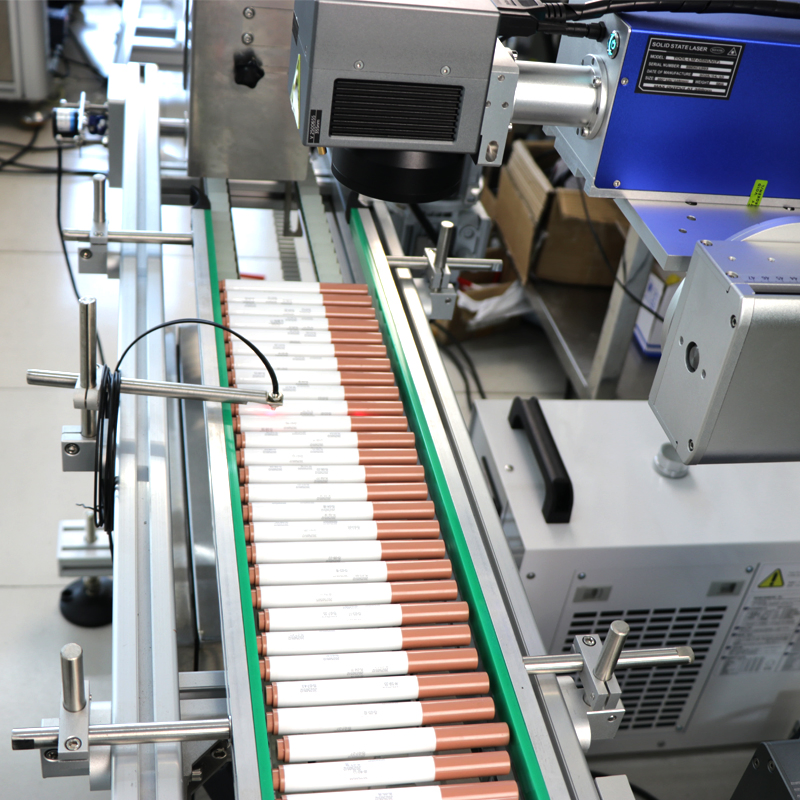

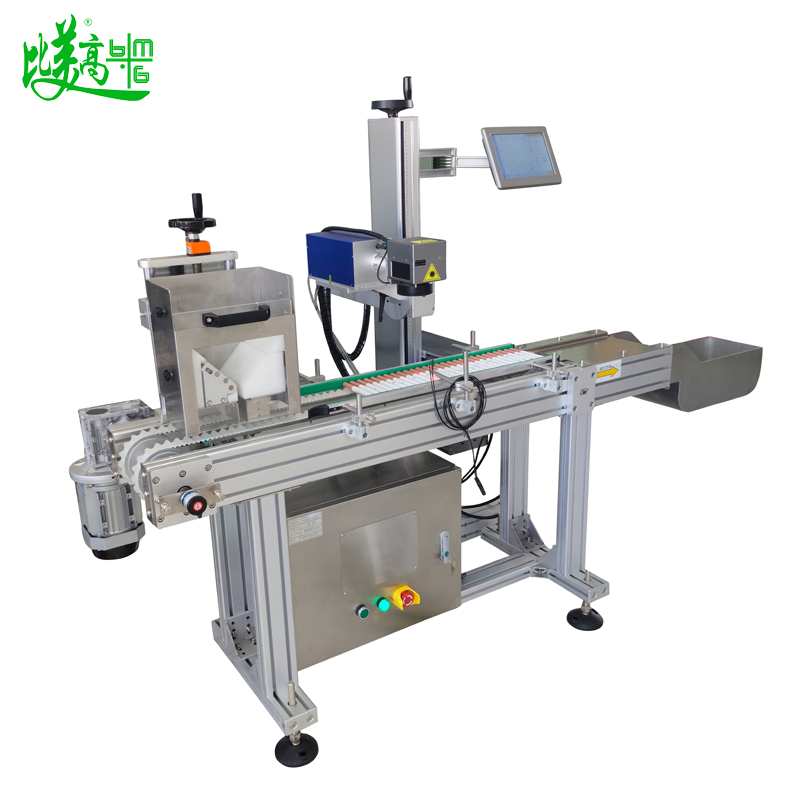

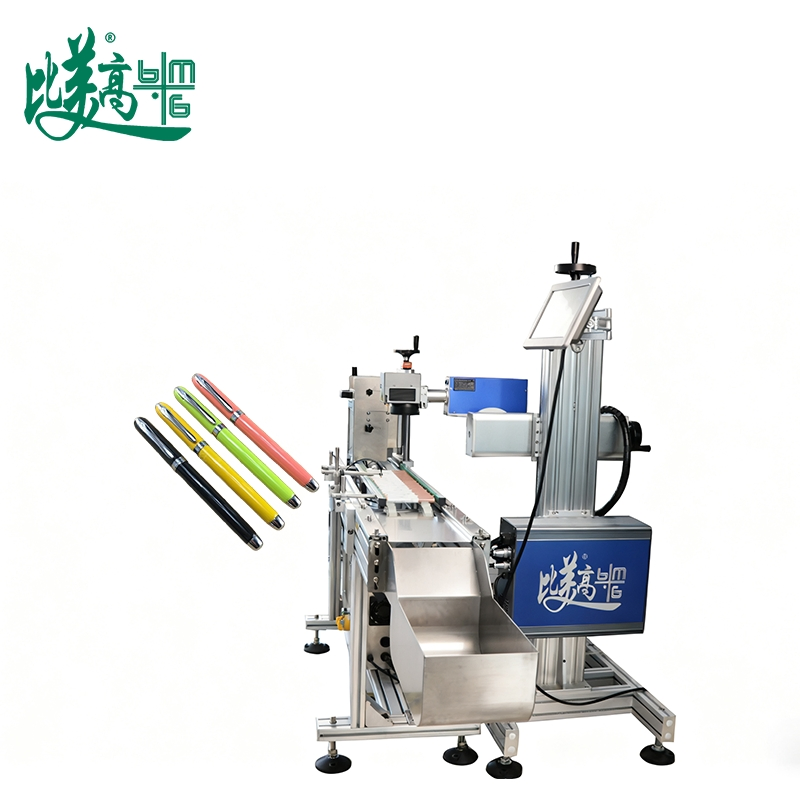

This full automatic cosmetic pen tube UV laser marking machine is equipped with industrial conveyor belt auto feeding system and high-precision visual positioning module. It supports rotational marking, logo engraving, batch number and double date code printing on eyebrow pens and cosmetic pen tubes.
Adapts to PVC and various cosmetic materials with permanent marking effect. Featuring user-friendly operation and stable continuous feeding, perfectly designed for cosmetic pen tube industrial mass production lines.

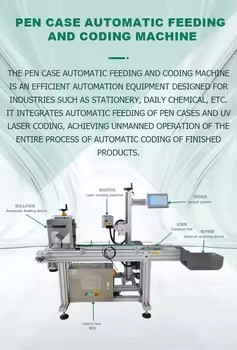

Equipped with professional customized conveyor belt feeding system, the machine realizes continuous and automatic material supply for cosmetic pen tubes and eyebrow pens. Effectively solve intermittent feeding problems in batch production, ensure stable and consistent production rhythm, greatly improve factory mass production efficiency.

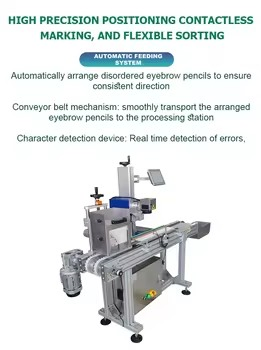

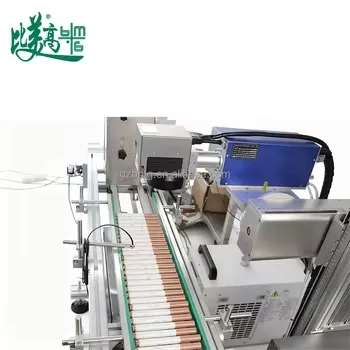

Built-in industrial visual positioning technology achieves accurate positioning for date codes, brand logos and batch codes on curved pen tube surfaces. Effectively reduce marking offset and position errors. Ensure uniform marking position and neat appearance of every cosmetic product, standardizing cosmetic packaging quality.
Adopts industrial UV cold laser marking technology, perfectly compatible with PVC and various cosmetic packaging materials. The laser engraving is ultra-clear, permanent, wear-resistant and never fade. No burning, scratching or thermal damage.

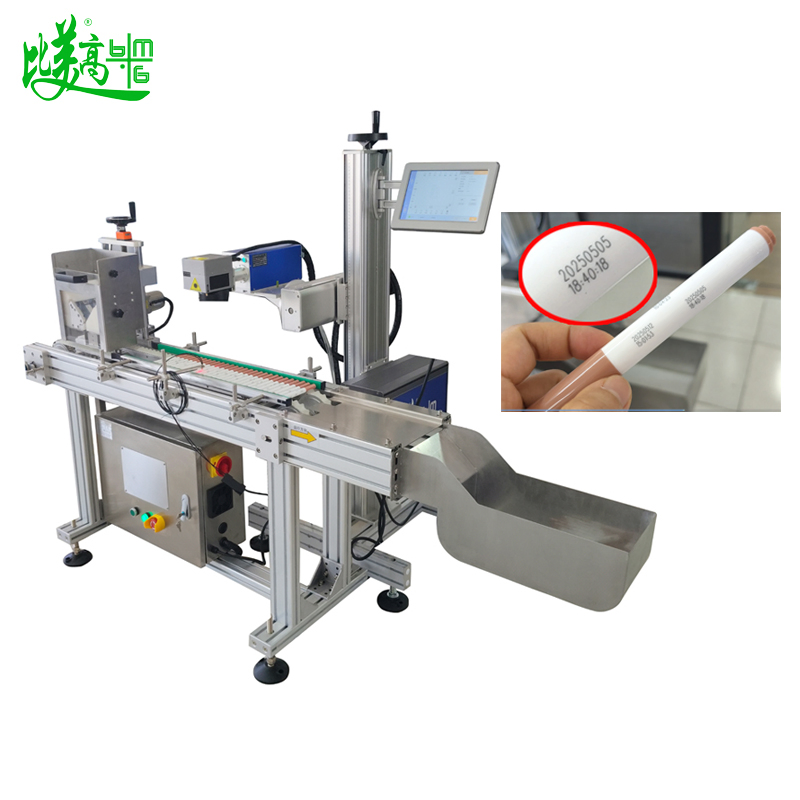

Supports 360° rotational marking for curved pen tube products, realizing seamless circumferential engraving. It meets diversified marking demands including production date, validity date double printing, batch code and brand logo.
Equipped with intuitive human-machine operation interface. Staff can complete parameter setting, content editing and equipment debugging in a short time. Requires minimal professional training.
| 15W ULTRAVIOLET LASER MARKING MACHINE | |
|---|---|
| Laser wavelength | 355 um |
| Average output power | 3W/5W/10W/15W/20W/30W/(Optional) |
| Beam quality | m2<1 |
| Modulation frequency | 1KHZ-200KHZ |
| Engraving depth | 0.01mm-0.2mm(subject to the actual product) |
| Minimum line width | 0.02mm |
| Minimum character | 0.1mm |
| Repeatability accuracy | +0.05mm |
| Power consumption of the entire machine | 700W |
| Ambient temperature | 5-45°C |
| Humidity | Relative humidity 95%RH non-condensation |
| Operating System | EZCADJ |
| Operating language | English |
| Font | Supports all TTF fonts, including dedicated fonts for laser marking |
| Maximum linear writing speed | 15,000 mm/s |
| Cooling system | forced air cooling |
| Power supply | Single-phase, 220VAC, 1KVA |
| Marking range | 110mmX110mm or larger (optional) |
| Interface | USB, RS232 |

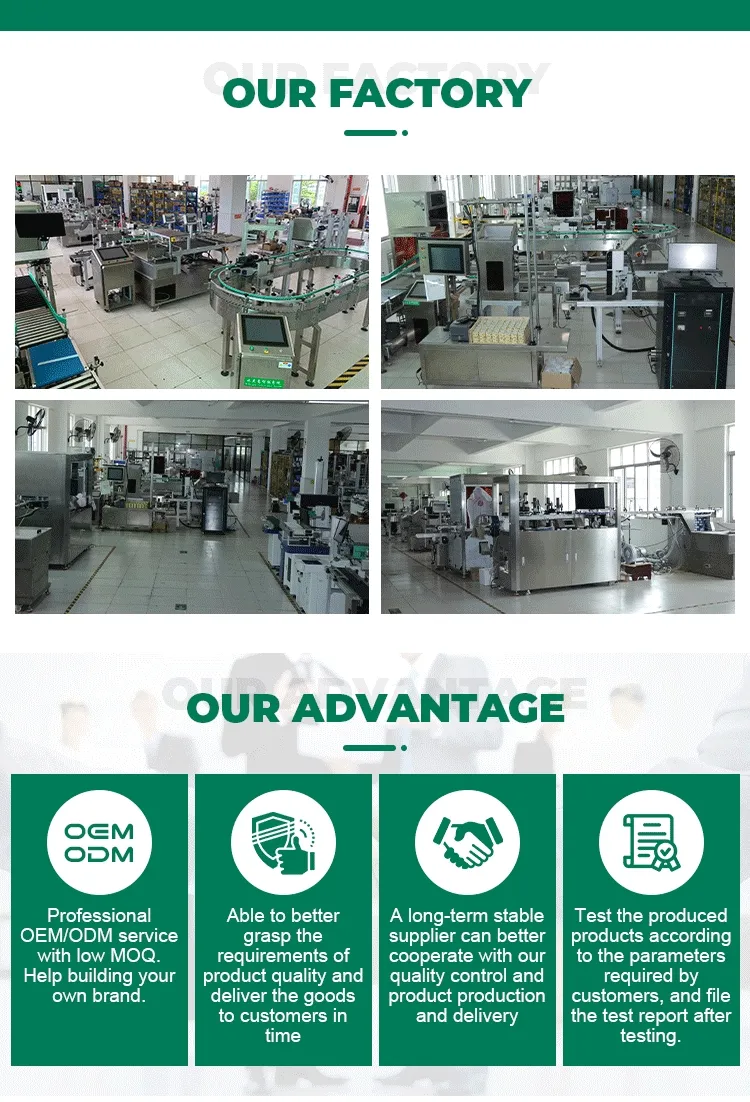

We provide one-stop solutions with sorting, traceability, anti-counterfeit, visual inspection, labeling, printing, paging, and association functions. Equipped with a complete technical team of optics, electronics, software development, mechanical design, electronic control development and technical application services, our products serve various industries worldwide including medicine, beverage, food, hardware, auto parts, electronics, household appliances, plastic, and glass products.
A1: Our UV laser marking system is highly optimized for non-metal materials. It works exceptionally well on PVC, various plastics, glass, and cosmetic packaging materials without causing thermal damage.
A2: The built-in high-precision industrial visual positioning system automatically recognizes and aligns target curved surfaces of eyebrow pens and cosmetic tubes. This eliminates marking offsets and ensures uniform branding quality.
A3: Yes, utilizing UV cold laser marking technology, it produces high-contrast, permanent markings that are wear-resistant, scratch-resistant, and will not fade over time.
A4: Yes, the machine is integrated with a customized automated feeding conveyor belt, engineered specifically for high-volume, uninterrupted industrial mass production lines.
A5: This system utilizes an advanced water-cooling setup to ensure stable continuous operation and maintain peak laser power during intensive marking routines.
A6: The machine runs on the EZCADJ control system, supporting all standard TrueType Fonts (TTF) and specialized laser marking fonts, allowing flexible content edits including date codes, logos, and barcodes.
