Home Appliance, Environmental Equipment, Textile Machinery, Food Machinery, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal and Nonmetal
Structure Type
Gantry Type
Laser Classification
Gaseous Laser
Laser Technology
Laser Control Fault Cutting
Engraving Machine Type
Laser Engraving Machine
Usage
Metal
Power
Small Power
Drive Type
Stepper Drive
Certification
SGS, CE, ISO 9001
Laser Type
CO2
Control
Automatic
Current
AC
Motor
Stepper Motor or Servo Motor
Rail
Square Rail Taiwan Hiwin
Transport Package
Plywood Packing
Specification
ce/ FDA/SGS
Origin
Shandong
HS Code
845610009
Production Capacity
50sets/Month
Product Description

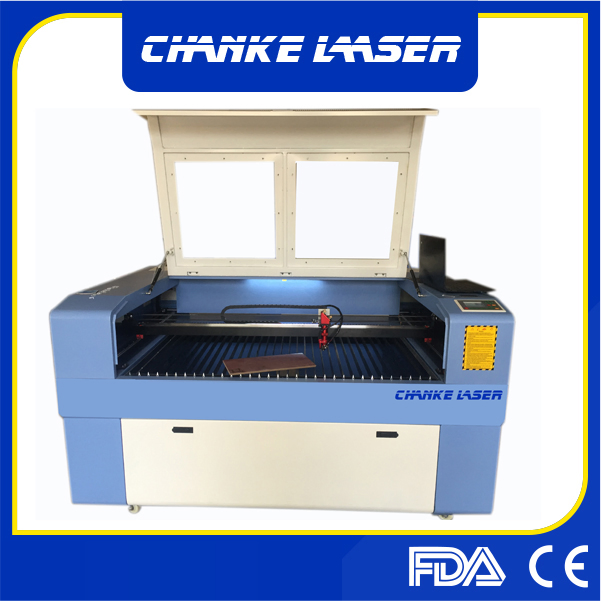

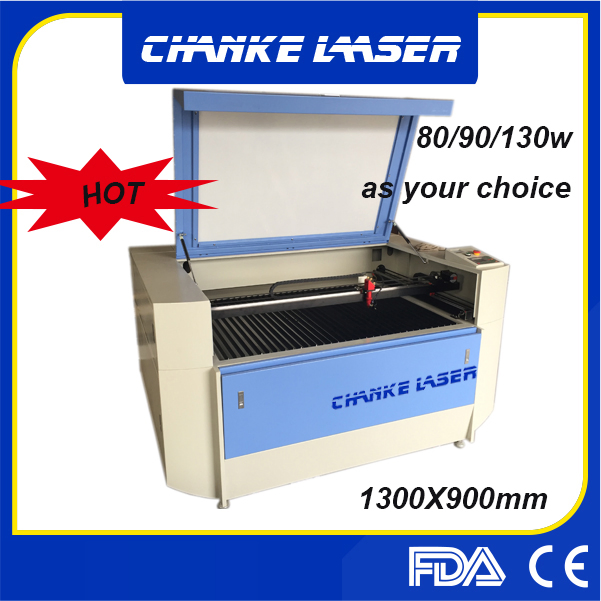

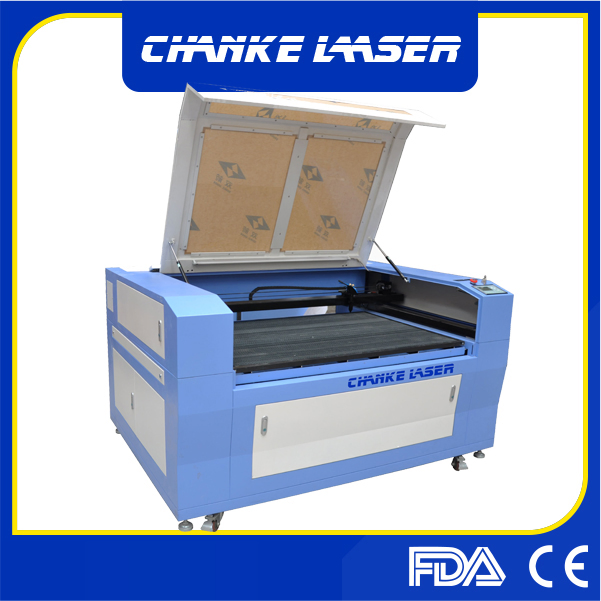

Introducing our state-of-the-art Metal and Nonmetal Laser Engraving Machine! This powerhouse boasts an impressive 1300x900mm cutting area and a robust 130W RECI (Z6) laser tube, effortlessly managing to cut 1.5mm thick sheet metal and nonmetal materials. Combining precision with versatility, it stands as the ultimate solution for all your cutting and engraving needs.
The versatility of this machine is astounding: it seamlessly cuts through both metal and nonmetal materials. Imagine effortlessly slicing through acrylic, paper, wood boards, fabric, and a myriad of other materials with unparalleled ease and precision.
But wait, there's more! This exceptional machine not only cuts but also excels at engraving—a feature often overlooked. Many clients ask, 'Can it engrave?' The answer is a resounding YES! Experience the perfect blend of cutting and engraving capabilities in one comprehensive machine.
Cutting Capabilities Across Materials

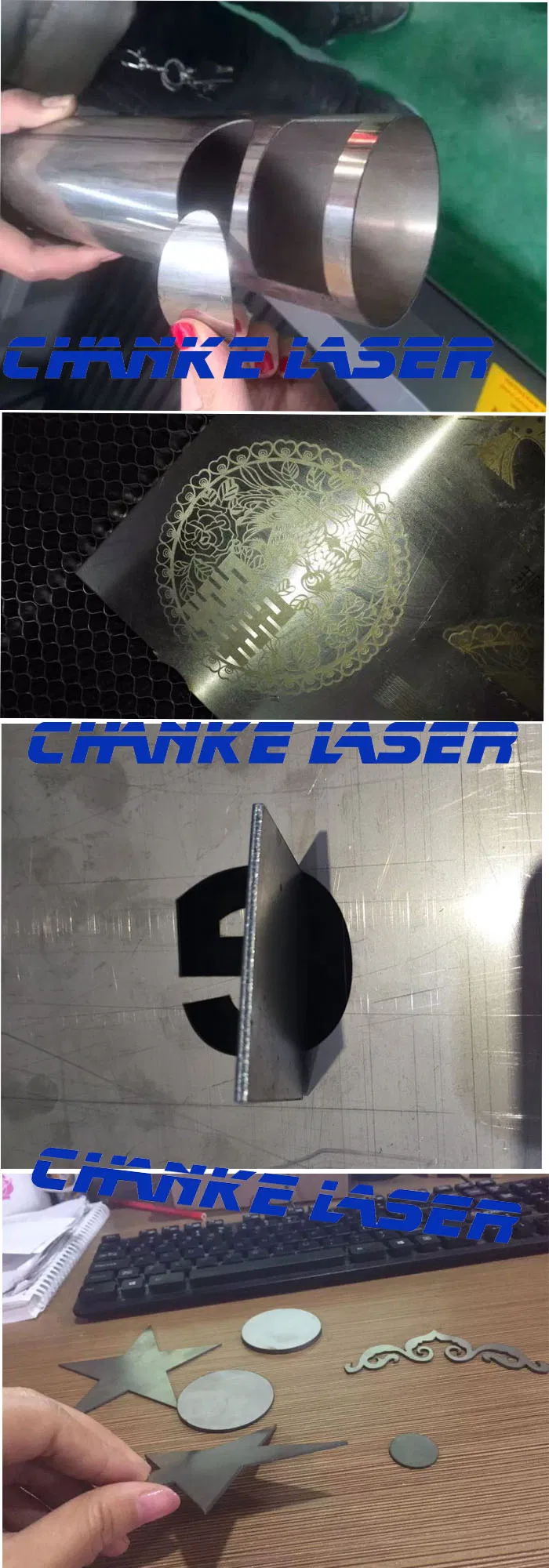

1. Metal: It confidently cuts through 1.2mm thick metal.
2. Acrylic: Achieve clean cuts up to a remarkable 25mm thickness.
3. Wood Board: It slices through 10-15mm thick wood with ease. Our 90W RECI brand (Z2) laser tube even handles 5-8mm of hardwood, such as MDF.
4. Glass: While it cannot cut glass, it excels at engraving intricate designs. For cutting glass, consider our CK6090 small CNC router or a specialized glass-cutting machine. Rest assured, for engraving, this machine delivers impeccable results.

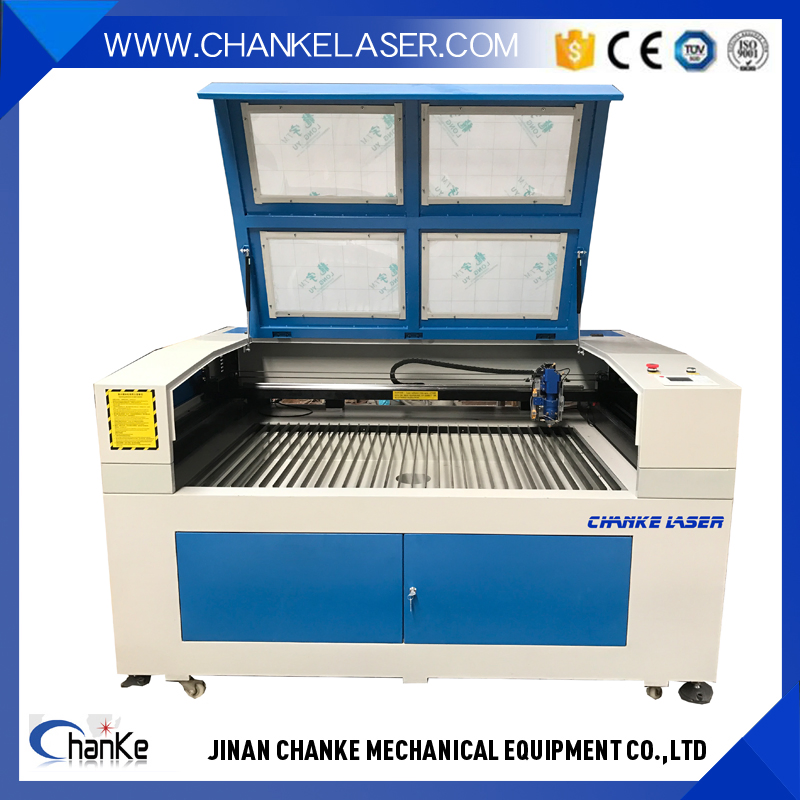

1300x900mm 130W 1.5mm Sheet Metal and Nonmetal Laser Cutter
Key System Features
Equipped with imported linear guide rails and a step motor with a speed reduction driver system, ensuring smoother and more precise cutting incisions.
Outfitted with imported focus lenses and metal reflect mirrors from America, this machine boasts formidable cutting ability and exceptional precision.
We offer a variety of colors and shapes to meet your specific needs.
Applicable Materials & Industries
Applicable Materials: Ideal for non-metal materials such as double color boards, acrylic glass, bamboo, wood, rubber, marble, granite, tiles, leather, and more.
Applicable Industries: Perfect for billboards, artistic gifts, crystal ornaments, paper-cuts, bamboo and wooden products, garments and leather, embroidery, decoration, and upholstery industries, among others.
Technical Specifications
Model
1300x900mm 130w 1.5mm sheet metal and nonmetal laser cutter
Working area
130cm*90cm / 47in*35in (L*W)
Laser power
130W
Laser type
CO2 sealed laser tube, water-cooled
Engraving speed
25-24000mm/min
Cutting speed
50-5000mm/min
Power supply
220V±10% /50HZ, 110V±10%/60HZ
Min. shaping character
Letter 1.0 x 1.0mm
Graphic format supported
BMP, PLT, DST, DXF, AI, CDR
Software supported
CorelDraw, PhotoShop, AutoCAD
Laser Output Control
1-100% software setting
Highest Scanning Precision
2000DPI
Resolution ratio
<0.01mm
Location precision
<0.01mm
Working temperature
5°C-40°C
Operating humidity
5%-95% (without condensed water)
Equipment Dimension
1650mm*1250mm*970mm/65in*49in*38 in (L*W*H)
Net Weight
350KG
Optional parts
Up-down worktable, Red light pointer, Auto focus, Rotary device, Industry chiller, DSP off-line operation with USB flash
Product Image Gallery
Frequently Asked Questions (FAQ)
Q1 What materials can this laser cutter machine cut?
This machine is capable of cutting both metal and nonmetal materials. It can handle up to 1.2mm thick metal, up to 25mm thick acrylic, and 10-15mm thick wood. It also slices through paper, wood boards, fabric, and double color boards with precision.
Q2 Can the laser engraving machine engrave on glass?
Yes, while it cannot cut through glass materials, it is highly capable of engraving intricate designs onto glass surfaces with excellent clarity and resolution.
Q3 What is the power and laser tube configuration of the CK1390?
The CK1390 model features a robust 130W RECI (Z6) laser tube designed for high cutting performance. It also supports optional configurations, including a 90W RECI (Z2) laser tube.
Q4 What software and file formats are compatible with this machine?
The system supports popular graphic formats including BMP, PLT, DST, DXF, AI, and CDR. It works seamlessly with industry-standard design software such as CorelDraw, PhotoShop, and AutoCAD.
Q5 What standard components ensure the cutting precision of this system?
The machine is built with imported linear guide rails, a high-efficiency stepper motor with a speed reduction driver system, imported focus lenses, and metal reflect mirrors sourced from America to guarantee precision and durability.
