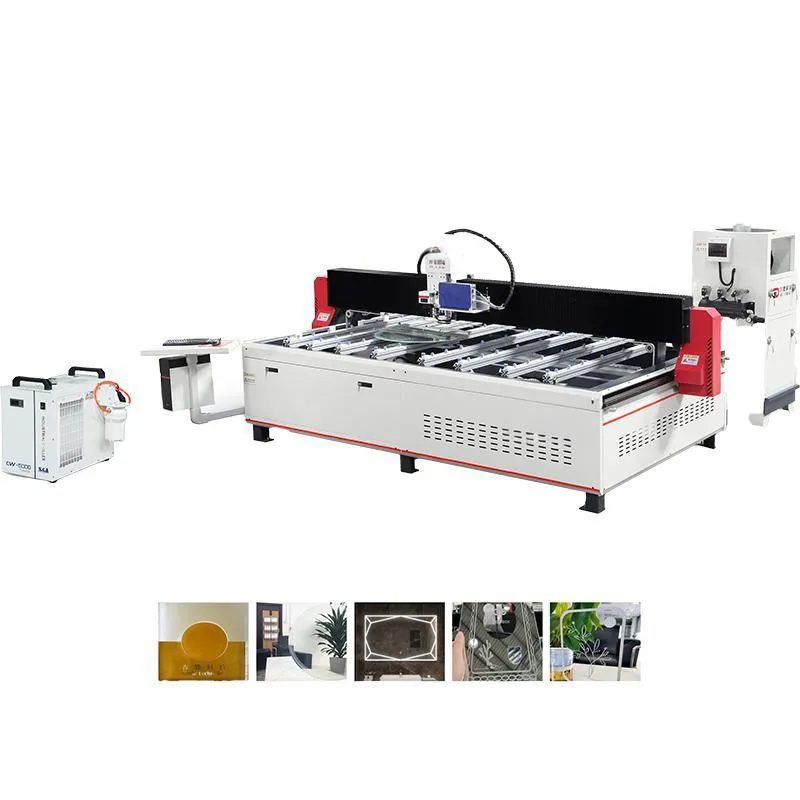

Next-Gen Intelligent Mirror Laser Engraving System for Art, Jewelry & Industrial Design

Customization:	Available
Certification:	CE, ISO
Glass Thickness:	Option

Send Inquiry

Product Description

Basic Specifications

Model NO. 1350

Voltage Option

Warranty One Year Warranty

Machine Condition New

Power 6.8kw

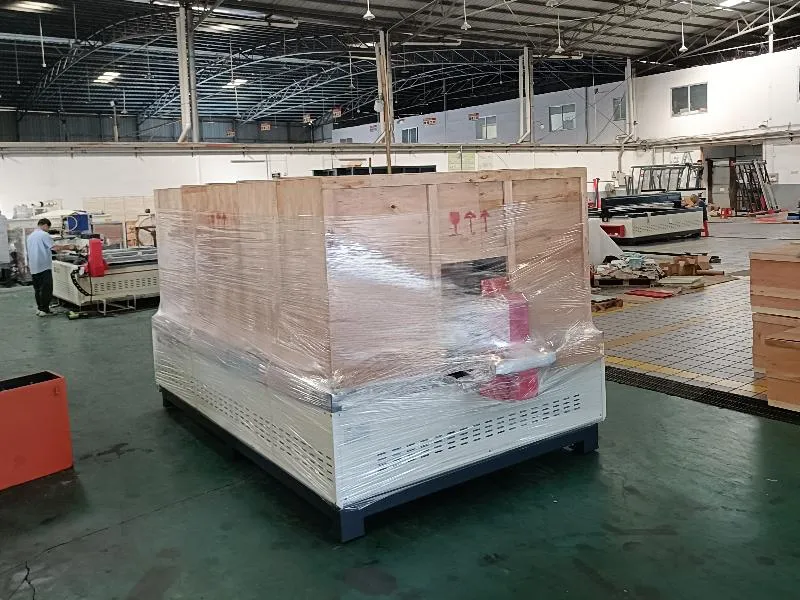

Transport Package Suit for Sea

Specification 1500*3000mm

Origin China

Can be used for mirror paint peeling, Low E glass film removal, masking effect, drilling. Not only suitable for white glass, colored glass, mirrors, but also for surface marking of most plastics and various alloy materials such as stainless steel, alumina, copper, etc.

Key Functions

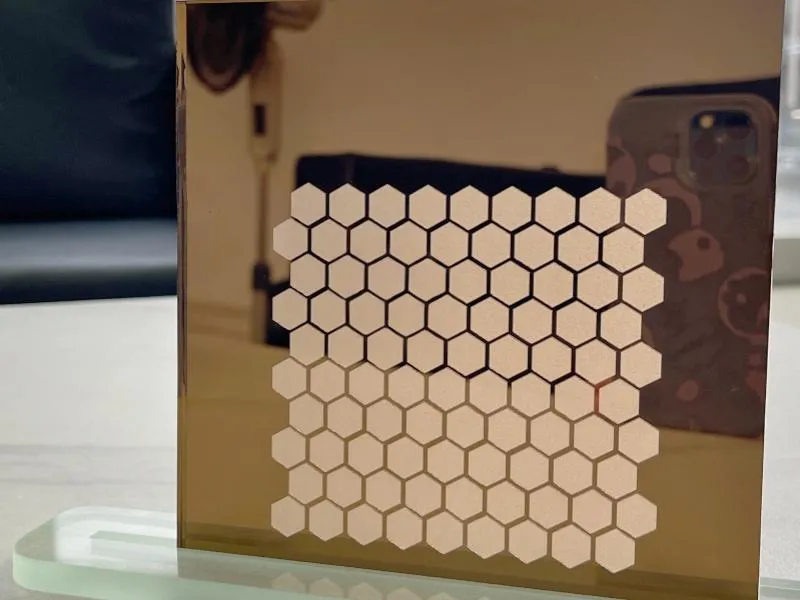

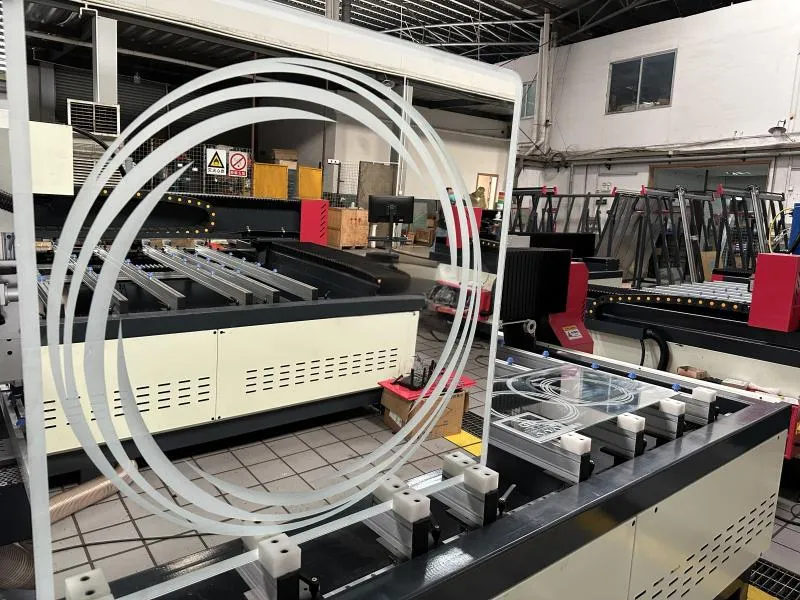

Sandblasting & Frosting

Achieve professional sandblasting and frosting effects efficiently on multiple surfaces.

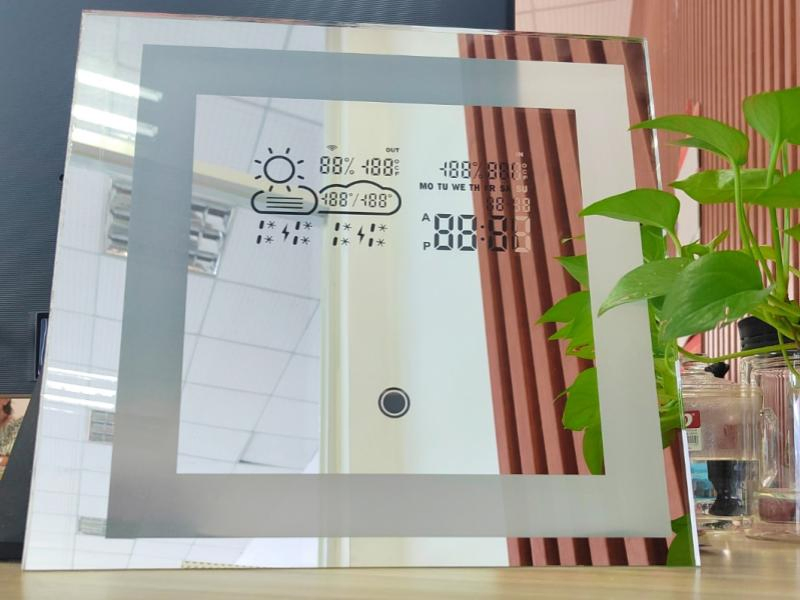

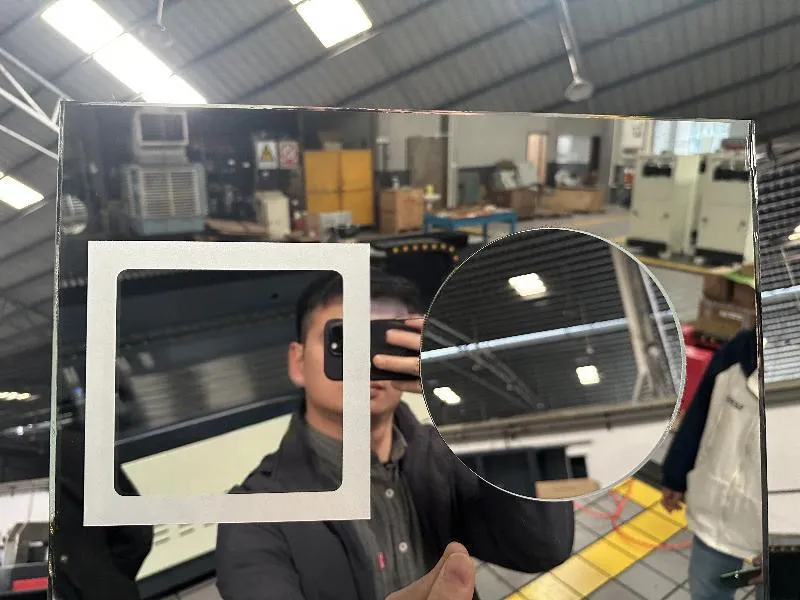

Coating Removal

Effective removal of coatings for clean and high-definition transparency effects.

Precision Drilling

Create accurate circular holes or other customized geometries with laser processing.

Specifications & Parameters

Model	Machine size	Max. glass size	Glass/Mirror thickness	Loading CMB	Weight
GDL1225-V.3	3000×2300mm	1220×2500mm	3~8mm	19.8	2200kg
GDL1525-V.3	4000*2300mm	1500×2500mm	3~8mm	21	2400kg
GDL1530-V.3	4500*2300mm	1500×3000mm	3~8mm	22.8	3000kg

Features & Advantages

Using fiber laser, with good beam quality, high power stability, low power consumption, and long service life.

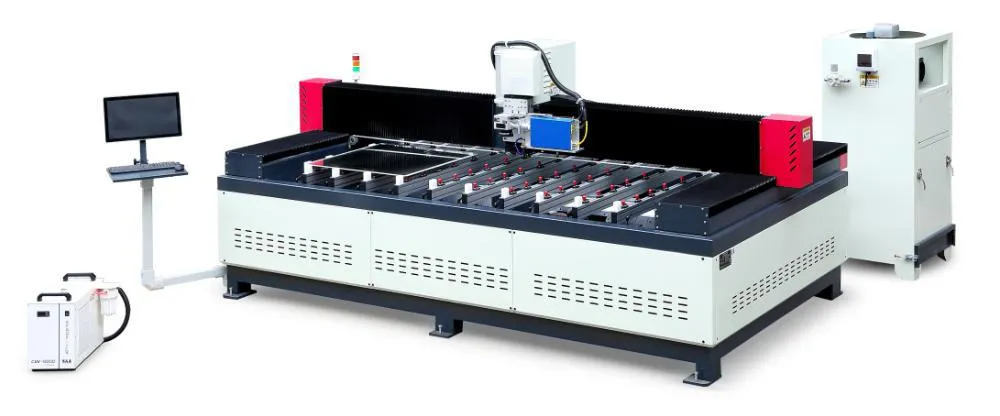

Gantry structure, high-strength welded frame, overall stress relief treatment, good rigidity, small deformation.

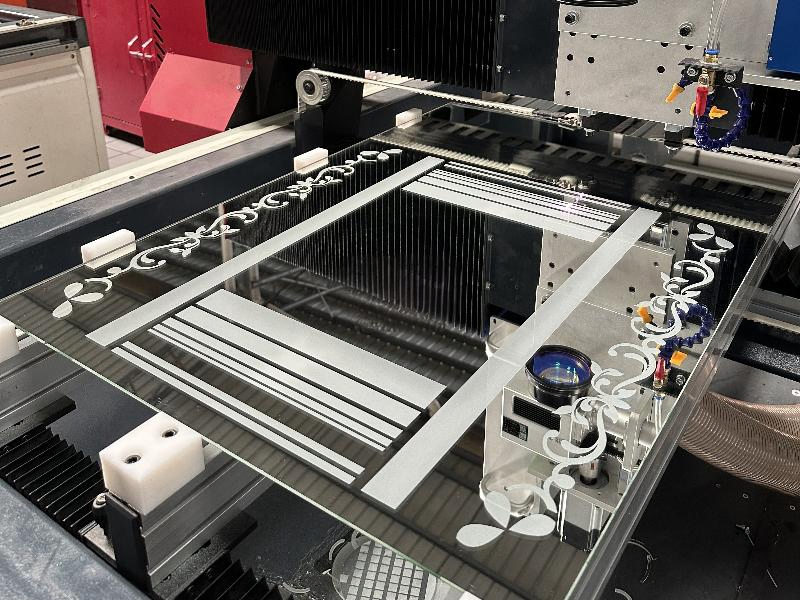

Aviation aluminum strip platform, high horizontal precision, hollow structure, equipped with tracking dust removal system, good dust removal effect.
High precision servo motor drive, equipped with high-precision transmission mechanism, high installation accuracy, large transmission torque, small transmission error, good dynamic characteristics.
Large automatic lifting Z-axis worktable ensures high-quality processing of plates of different thicknesses and materials, with fewer fault points and high stability.
The independently developed continuous carving technology can carve any pattern on surfaces of different thicknesses and materials. All process parameters of the pattern can be fully digitally controlled, greatly reducing manual intervention and making the operation intelligent and simple.
Sandblasting, paint removal, and drilling can be performed simultaneously in one go.

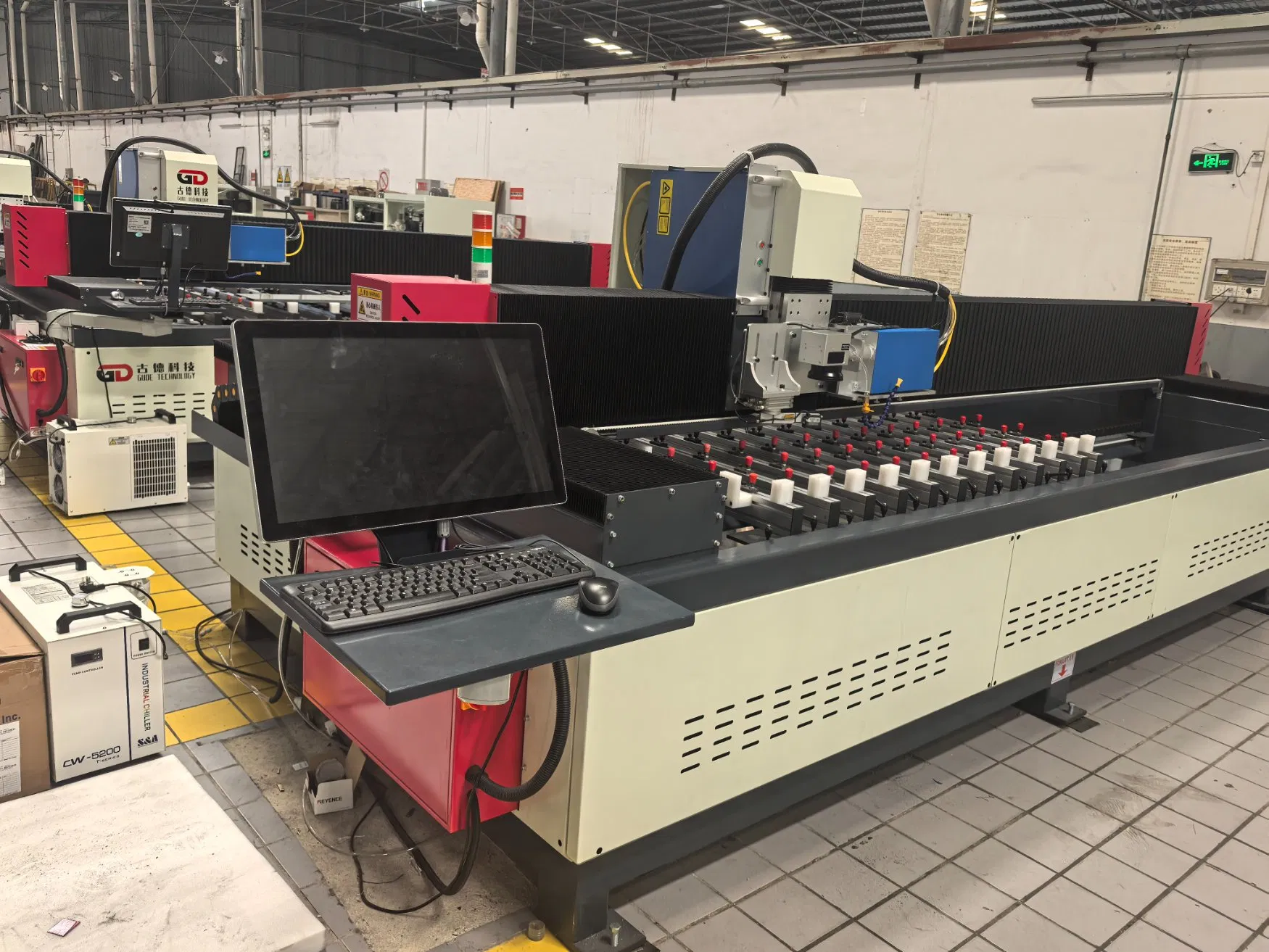

Product Gallery

Frequently Asked Questions

What materials can this machine process?

This machine is suitable for processing white glass, colored glass, mirrors, most plastics, and various alloy materials such as stainless steel, alumina, and copper.

What are the primary applications of this laser system?

It is designed for mirror paint peeling, Low E glass film removal, masking effects, sandblasting/frosting effects, and drilling holes or custom shapes.

Can it perform multiple processes at the same time?

Yes, the system allows sandblasting, paint removal, and drilling to be performed simultaneously in a single operation.

What glass/mirror thicknesses are supported?

The standard models support working on glass and mirror thicknesses ranging from 3mm to 8mm.

How does the machine maintain stable accuracy?

It features a high-strength welded gantry structure with overall stress relief treatment, driven by a high-precision servo motor and transmission mechanism to ensure small deformation and high dynamic response.

What kind of laser source does the machine use?

It utilizes a high-performance fiber laser source, which offers excellent beam quality, high power stability, low power consumption, and an extended service life.
