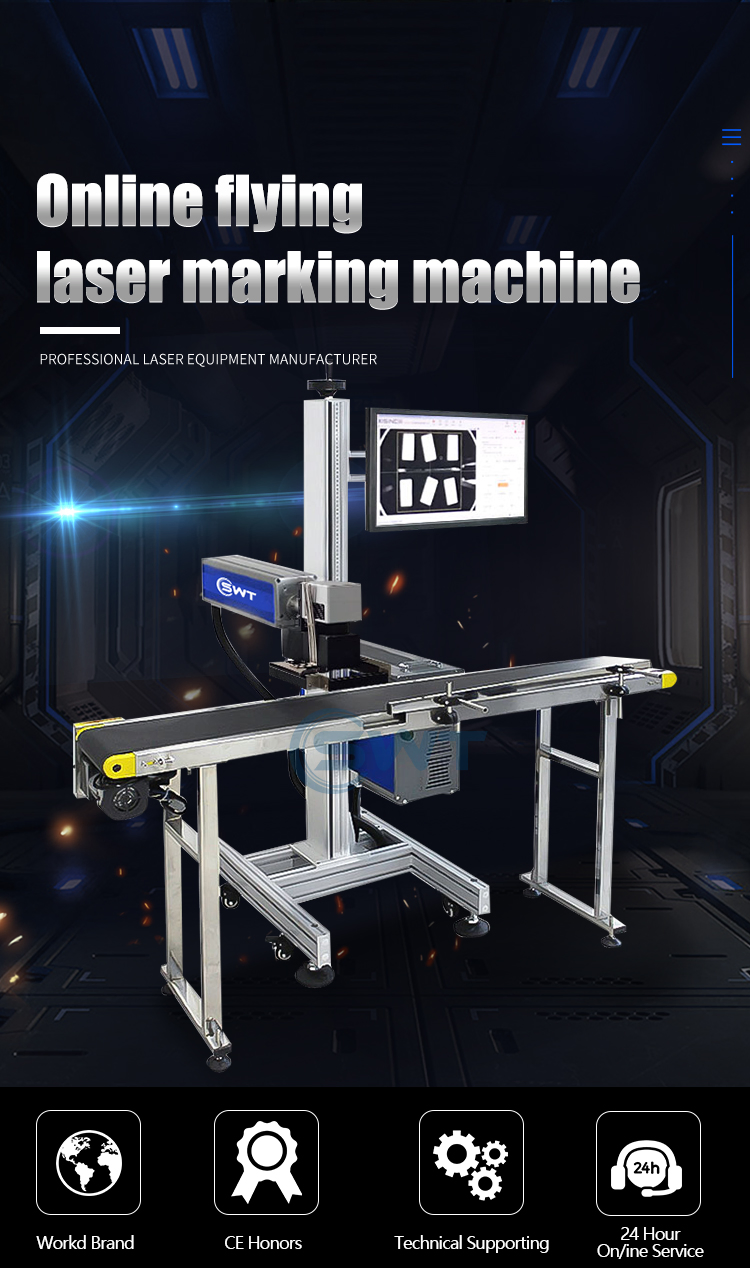

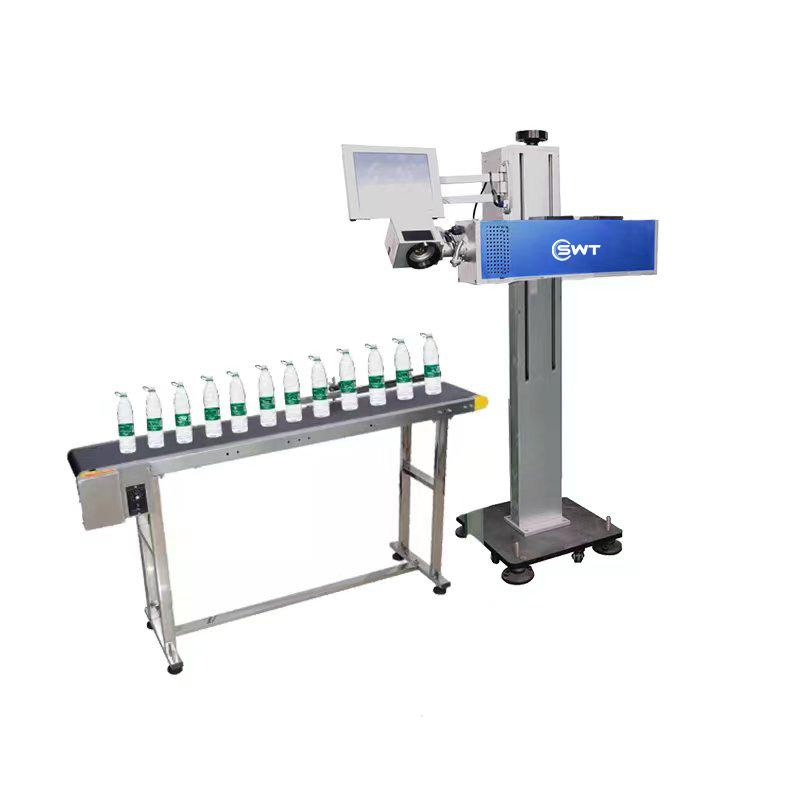

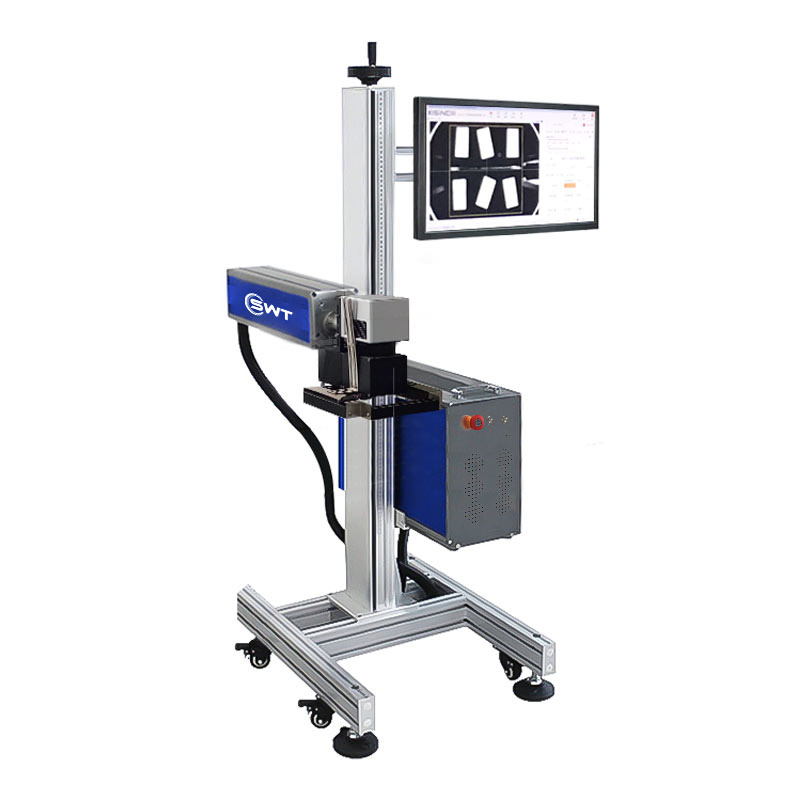

Fiber Laser Marking Machine - Main Features:
Technical Data:
| Technical Parameter | |
|---|---|
| Item / Model | SWT-DB (20/30/50/60/70/100W) |
| Laser source | Domestic Raycus(Germany IPG/China Raycus/MAX/JPT Mopa color marking for optional) |
| Laser power | 20w, 30w, 50w, 60w , 70w, 100w |
| Laser type | Fiber laser |
| Graphic Format Supported | PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF |
| Marking speed | ≤9000mm/S |
| Max. Marking Depth | ≤0.4mm |
| Laser Wavelength | 1064nm |
| Marking lines | 1-10 marking lines(in the marking area) |
| Minimum line width | 0.01mm |
| Minimum character | 0.15mm |
| Resolution ratio | 0.01mm |
| Graphic format supported | BMP, PLT, DST, DXF, AI |
| Software supported | CorelDraw, Photoshop, AutoCAD |
| Equipment Dimensions | 420*320*800mm |
| Net Weight | 45 KGS / 55KGS (different model has different weight, detailed can be confirmed with sellers) |
| Unit Power | ≤500W |

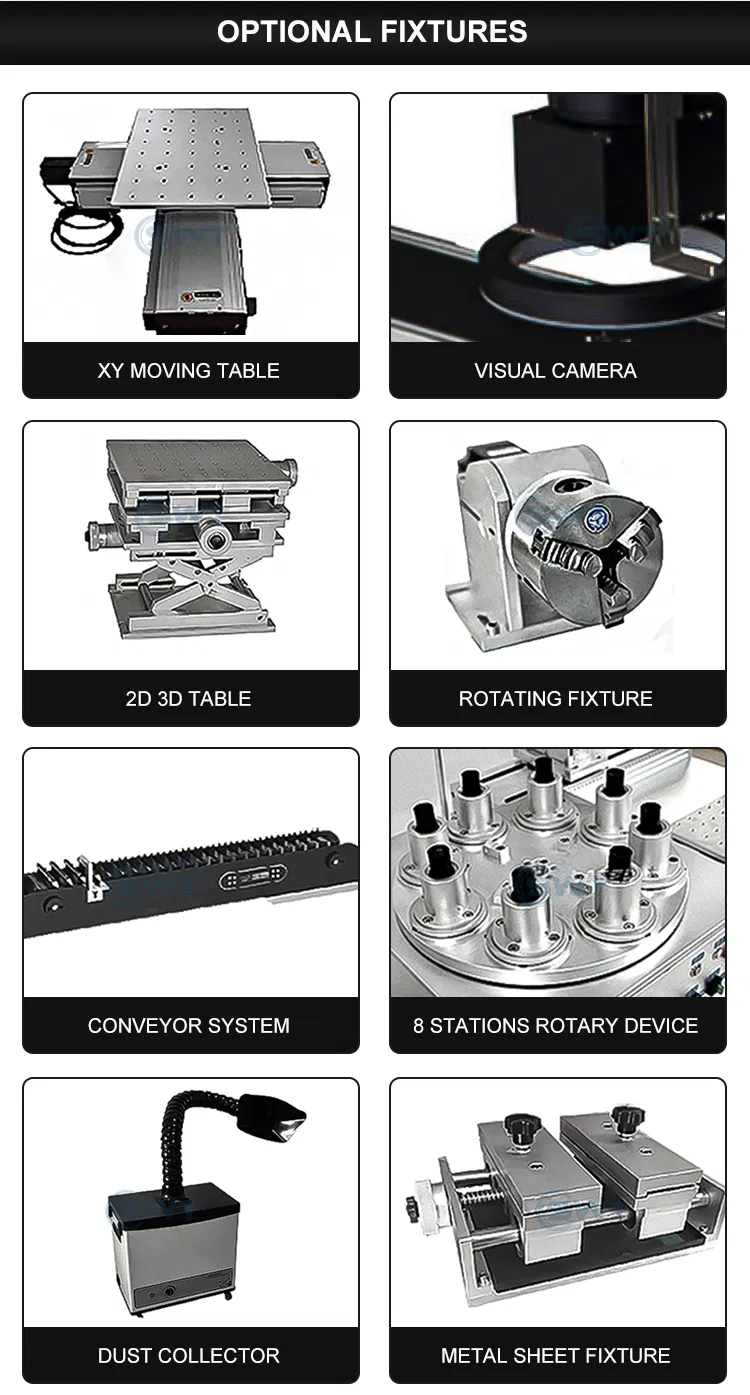

| Optional Spare Parts | Rotary/Protection glasses/outside red light/night light and so on. |
A: We are a factory. And we have been in the laser field for more than 10 years.
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
A: Yes, we could offer the sample for free charge, but customers should pay the courier cost.
A: Payment <= 5000USD, 100% in advance. Payment >= 5000USD, 30% T/T in advance, balance before shipment.
A: It is suitable for metal and most other materials.
A: The marking speed is ≤9000mm/S, and the maximum marking depth is ≤0.4mm.
