Number Coding Online Laser Printer Machine for Optical Fiber Board

Customization:	Available
Laser Visibility:	Visible
Applicable Material:	Metal

Basic Specifications

Model NO. LC30F-Plus

Cooling System Air Cooling

Technical Class Pulse Laser

Laser Wavelength CO2 Laser

Laser Classification Gaseous Laser

Type CO2 Laser Marking Machine

Marking Method Scanning Marking

Name Flying PVC Card Laser Marking Machine

Application Carton

Capacity 10/20/30/50W

Laser Device CO2

Pulse Frequency 20 kHz - 100 kHz

Transport Package Wooden Case with Foam

Specification 155X55X56cm

HS Code 8456110090

Production Capacity 300 units/Month

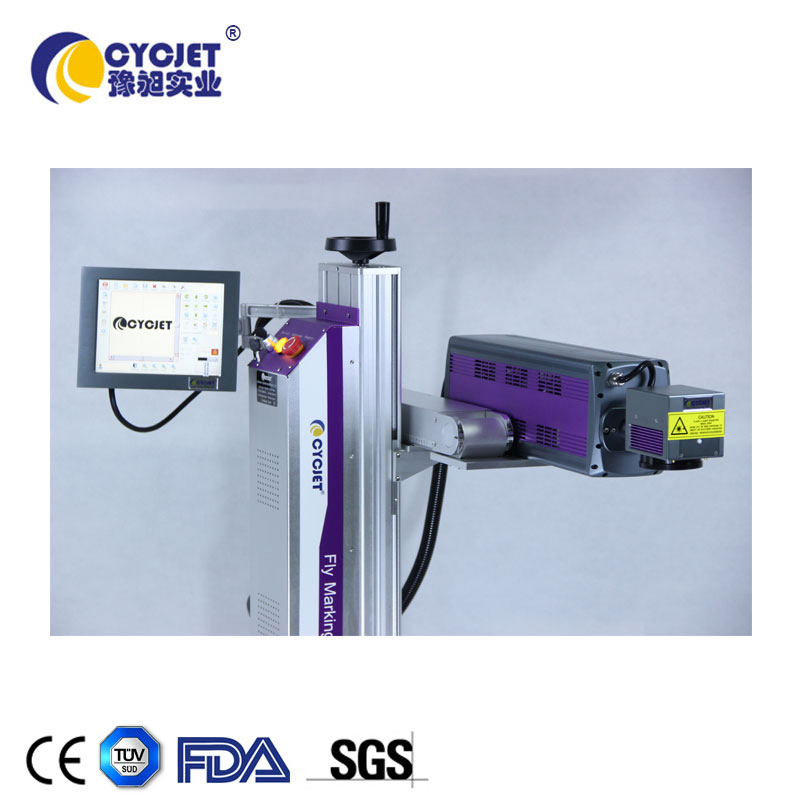

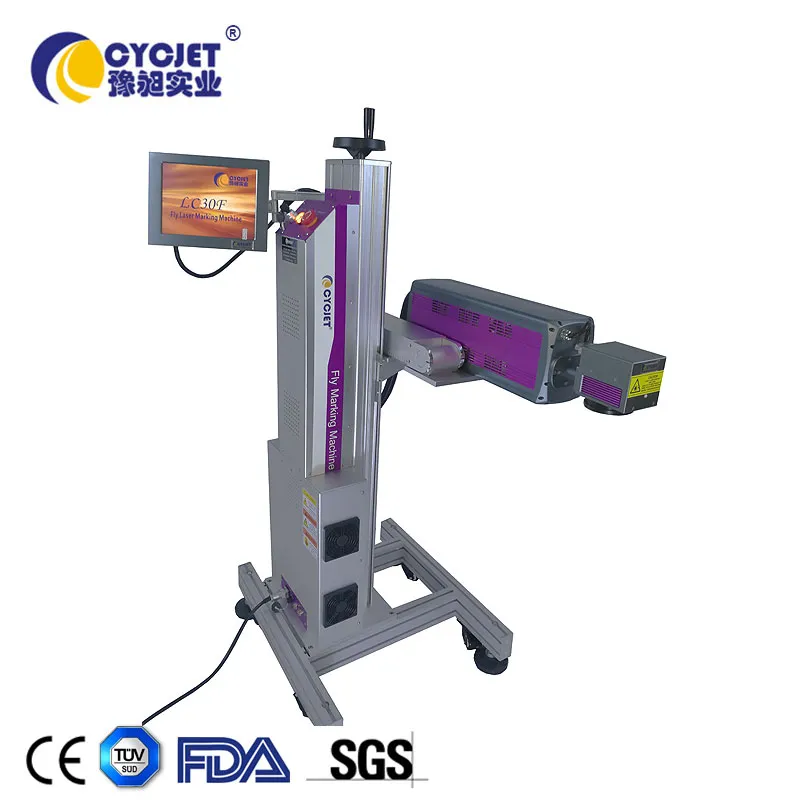

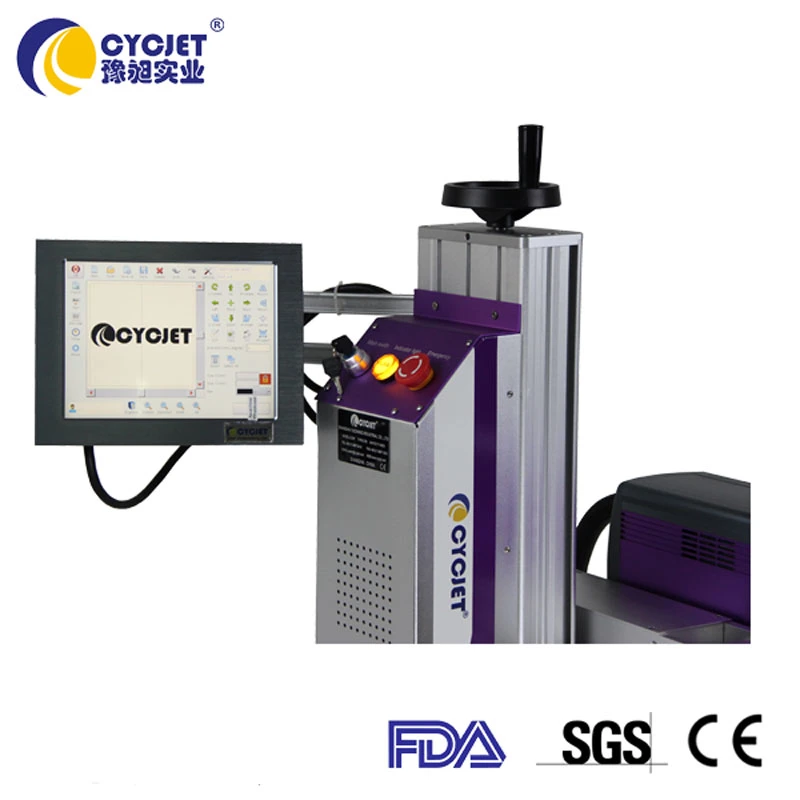

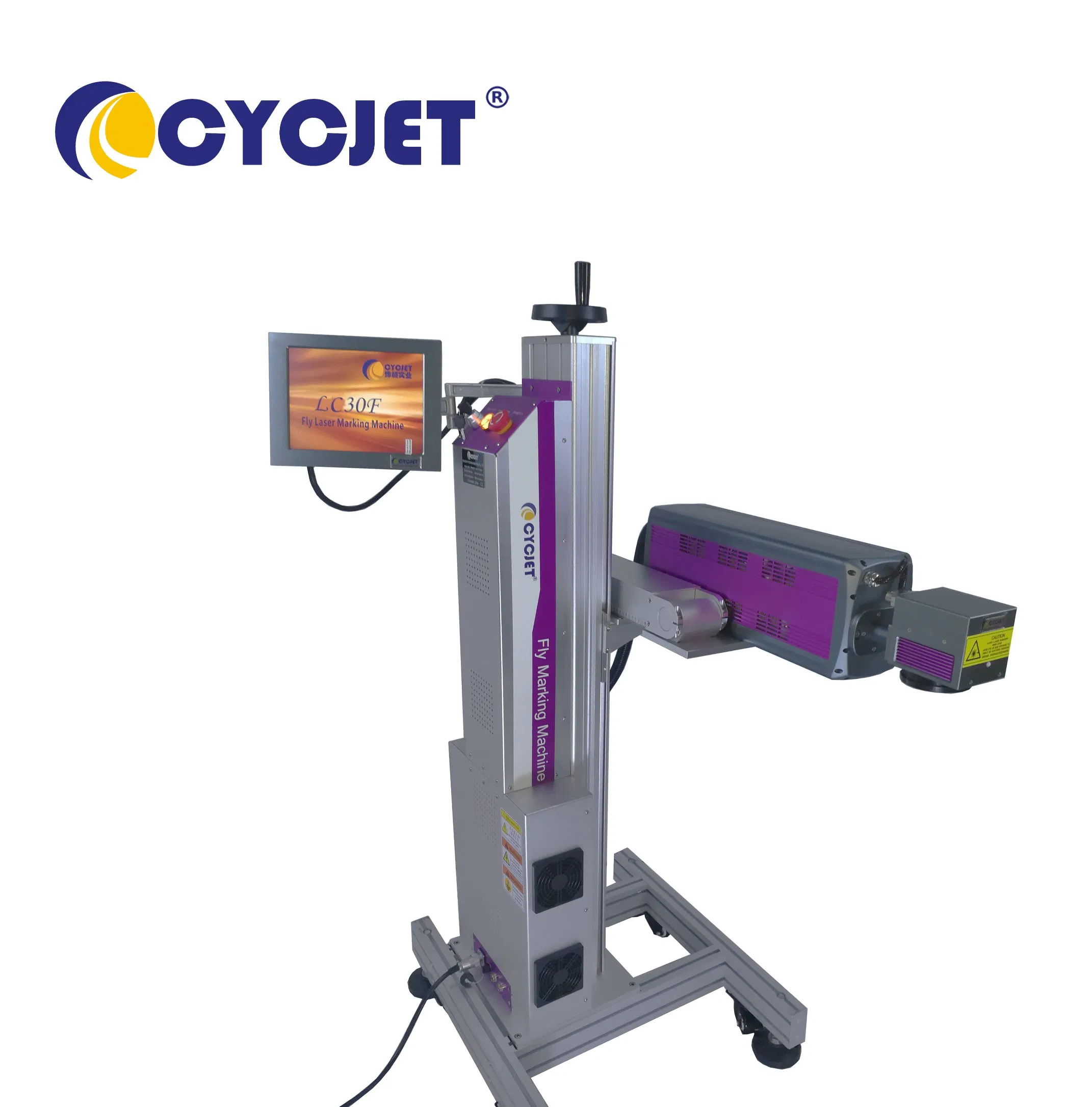

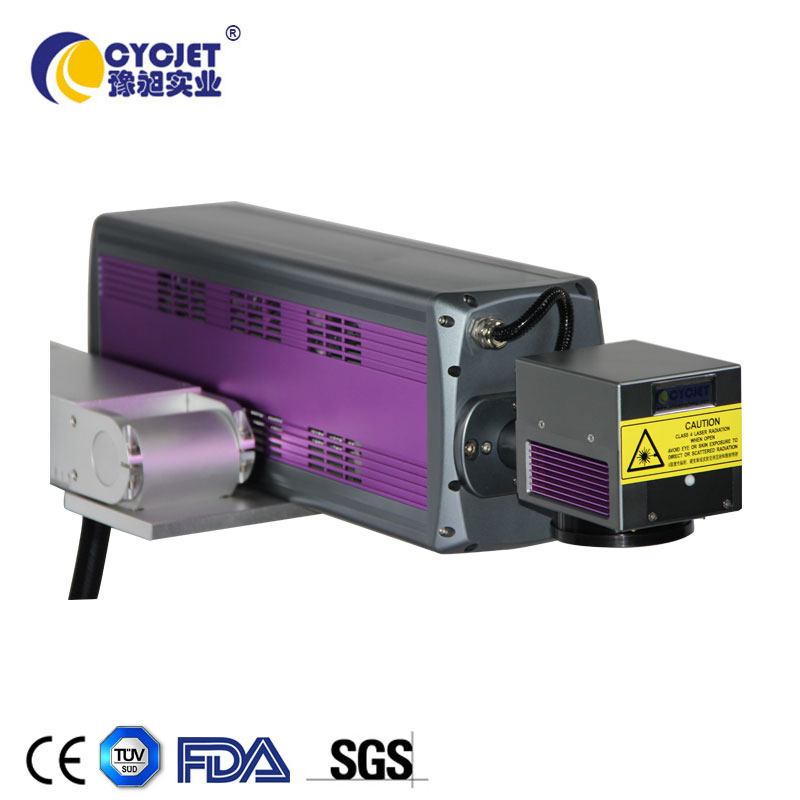

LC30F High Quality CO2 Fly Laser Marking Machine

Laser oscillation in the fiber optical wave, low dissipation, good stability, and is not affected by external dust, gas, and mechanical looseness. The output of the laser beam is highly stable.
Offers up to 100,000 hours of zero-maintenance operation.
Processing speed is 2 to 3 times faster than traditional laser marking machines.
Wind cooling fiber laser system: no consumables, low maintenance, high photoelectric conversion rate, and low power consumption (800W or less).
Integrated and compact design with portable configuration options.
Strong environmental adaptability: operates continuously in vibration, shock, dust, and humid environments. Easy to implement with optical fiber coupling for remote work capability.
Supports bar codes, QR codes, graphics, text rules, irregular marking, serial numbers, and more.
Runs on Windows platform. Compatible with AutoCAD, CorelDRAW, Photoshop (supporting PLT, PCW, DXF, BMP, etc.), and directly utilizes SHX and TTF fonts.

Number Coding Online Laser Printer Machine for Optical Fiber Board

Application Scope

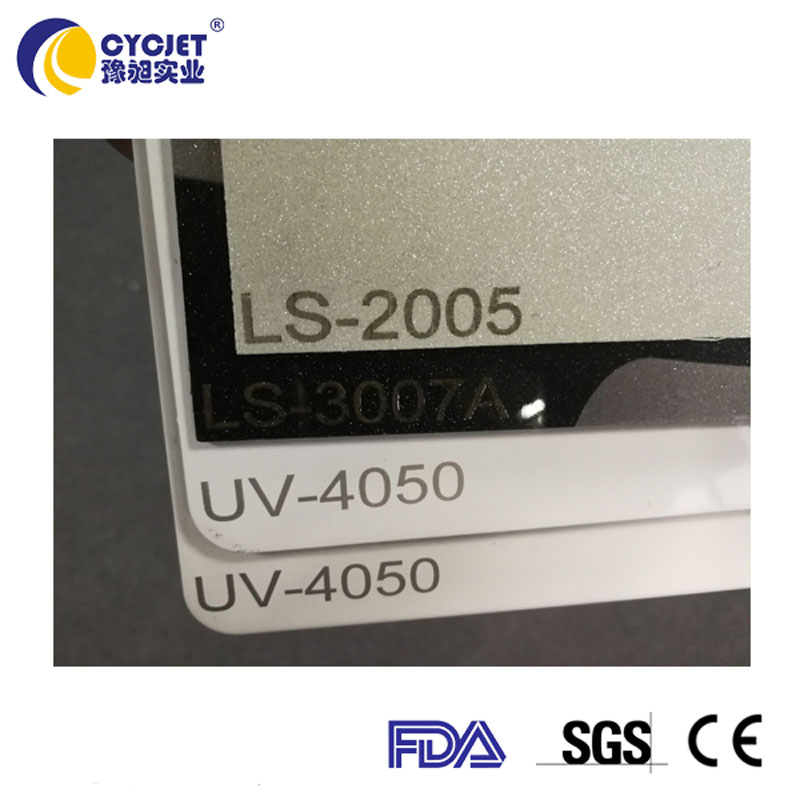

Suitable for electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications include plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, and more.

Details and Specifications

Category	Technical Parameter Specifications
Specifications	Laser Device: CO2 Output Power: 30W Beam quality M2: <2 Laser wavelength: 1064 nm Cooling: Air cooling Pulse frequency: 20 kHz - 100 kHz Marking range: 110 mm X 110 mm (customizable) Marking Speed: 7000mm/s Marking Depth: ≤0.3mm Marking Line Width: 0.01-0.2mm (based on material) Min character Size: 0.015mm Repeat accuracy: +/- 0.003 mm Marking area locating: Red-light locating system Power supply: AC 100-260 V 50/60 Hz Power: ≤800W
Delivery & Package	Delivery Time: 3-7 days after receiving Advance Payment Shipment: By Vessel or Air Plane Standard Package: Wood Carton, Carton Box

After-Sale Service

18 Months Warranty

Enjoy reliable long-term quality assurance with an eighteen-month valid warranty coverage.

Flexible Training

Support for both online training and spot on-site training to ensure your staff operates the equipment safely.

Exhibition

Frequently Asked Questions (FAQ)

What is the lifespan and maintenance requirement for the LC30F?

The machine offers up to 100,000 hours of zero-maintenance operation. The stable laser oscillation and robust construction protect the system from external dust and looseness.

What materials and products can this machine mark?

It is highly suitable for electronic components, auto parts, plastic (such as PA66 insulation), metal plates, cartons, and precision medical equipment, offering highly precise logo and code printing.

What cooling method does the LC30F-Plus use?

The machine utilizes an integrated air-cooling system, which has low maintenance costs and eliminates the need for external water cooling consumables.

Is the marking software compatible with standard design formats?

Yes, the software runs on Windows and is compatible with AutoCAD, CorelDRAW, and Photoshop. It supports formats like PLT, PCW, DXF, BMP, and can use SHX and TTF fonts directly.

What is the maximum marking speed and depth of this laser machine?

The LC30F-Plus features a scanning marking speed of up to 7000 mm/s and can reach a marking depth of ≤0.3 mm, depending on the material specifications.

What kind of after-sales service and warranty do you offer?

We offer an 18-month valid warranty along with both online and spot (on-site) technical training options to help you set up and run your production smoothly.
