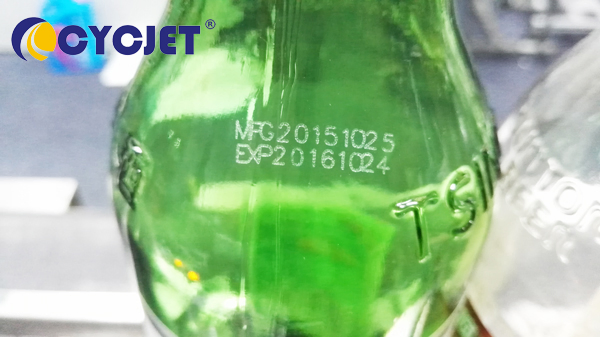

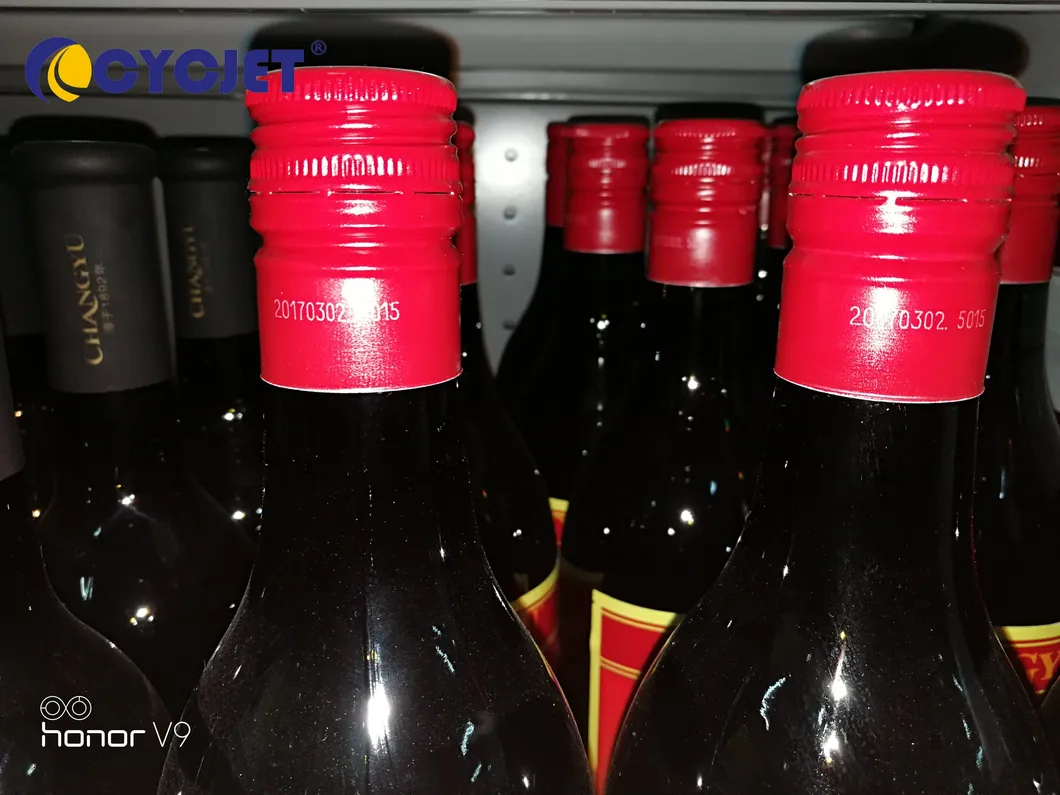

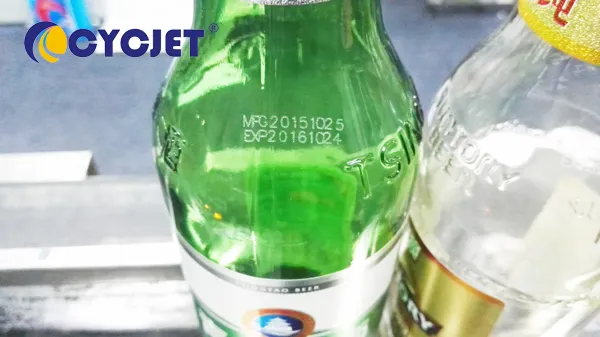

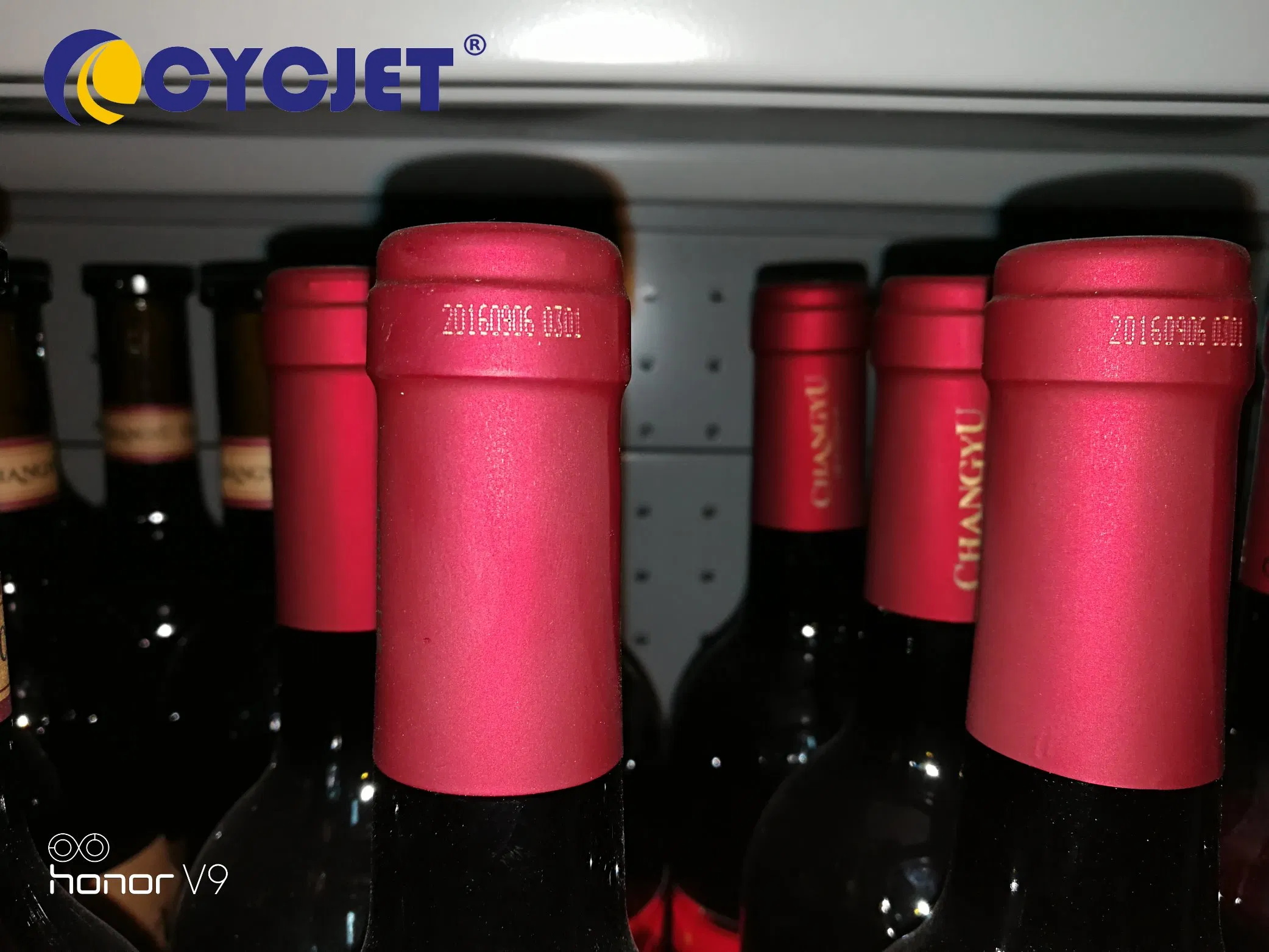

This type laser marking machine was designed for unmetal materials, such as glass, plastic bottle. Also suitable for other materials, paper, rubber etc. It could print code and information on the glass bottle when the conveyor belt running. The code can not remove and erase. The most important is laser marking machine do not need any consumer materials, less mechanical failure. It save the factory lot of production cost in future.
Also suitable for electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, etc.
| Specifications |
Output Power: 30W Beam quality M2: <2 Laser wavelength: 1064 nm Air cooling Pulse frequency: 20 KHZ - 100 KHZ Marking range: 110 mm x 110 mm (can be customized) Marking Speed: 7000mm/s Marking Depth: ≤0.3mm Marking Line Width: 0.01-0.2mm (based on difference material) Min character Size: 0.015mm Repeat accuracy: + / - 0.003 mm Marking area locating: Red-light locating system. Power supply: AC 100-260 v 50/60 hz Power: ≤800W |
|---|---|
| Delivery & Package |
Delivery Time: 3-7 days after received Advance Payment By Vessel or Air Plane Standard Package: Wood Carton, Carton Box |
T/T, LC
1. Warranty Valid: 18 Month
2. Online or Spot Training
