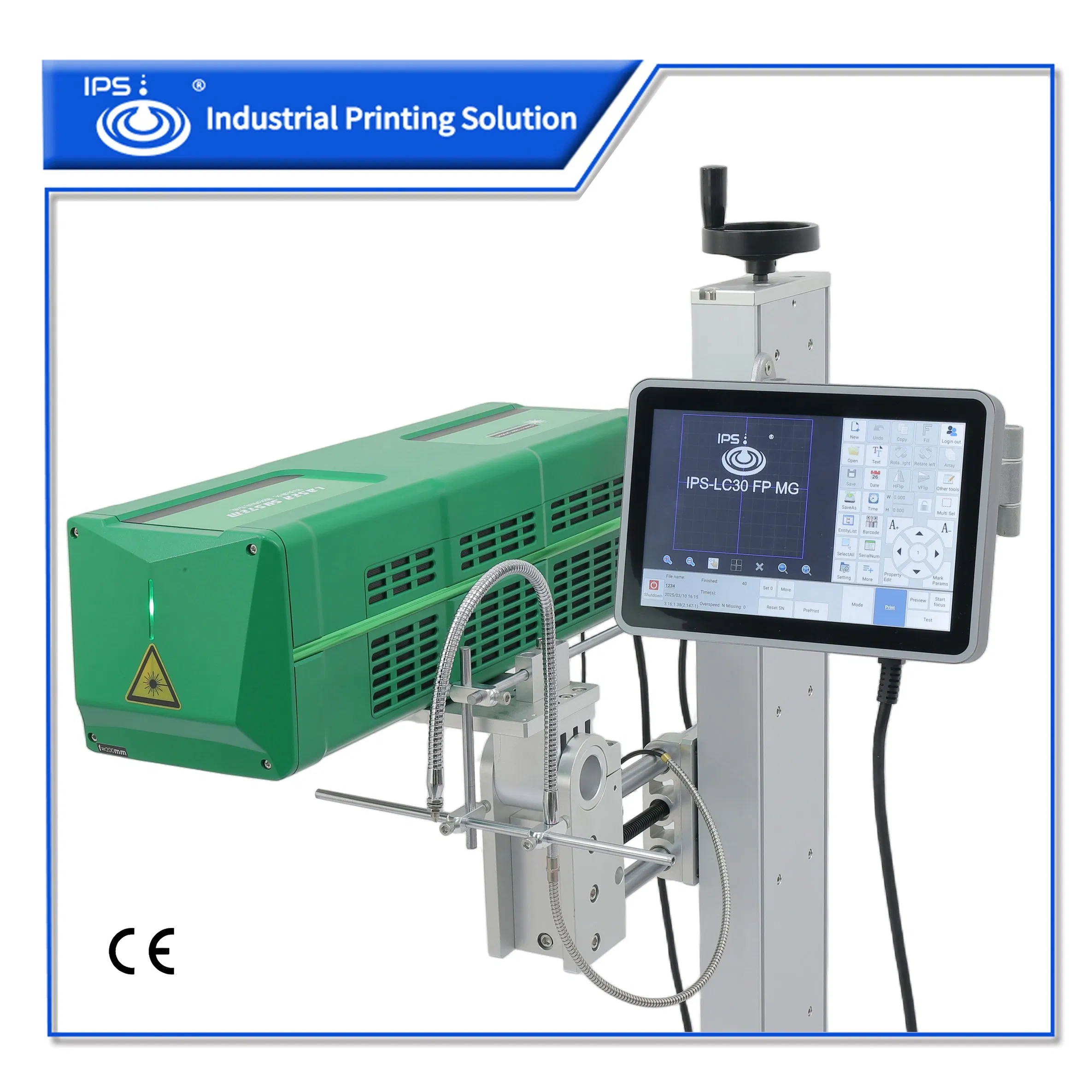

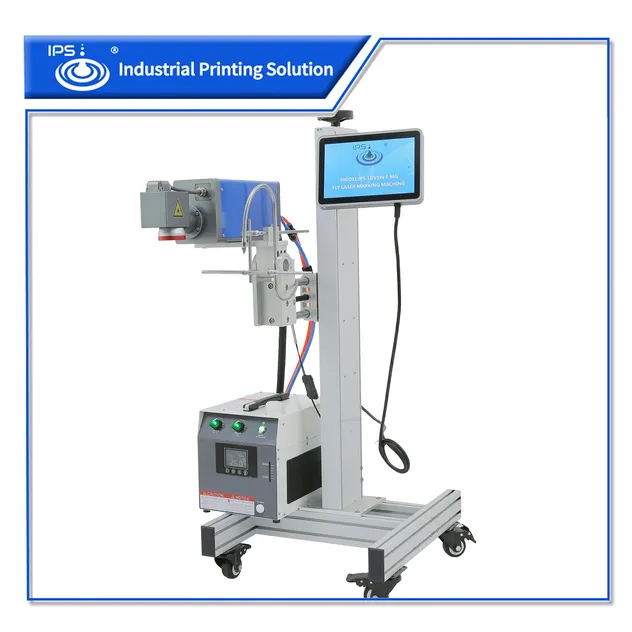

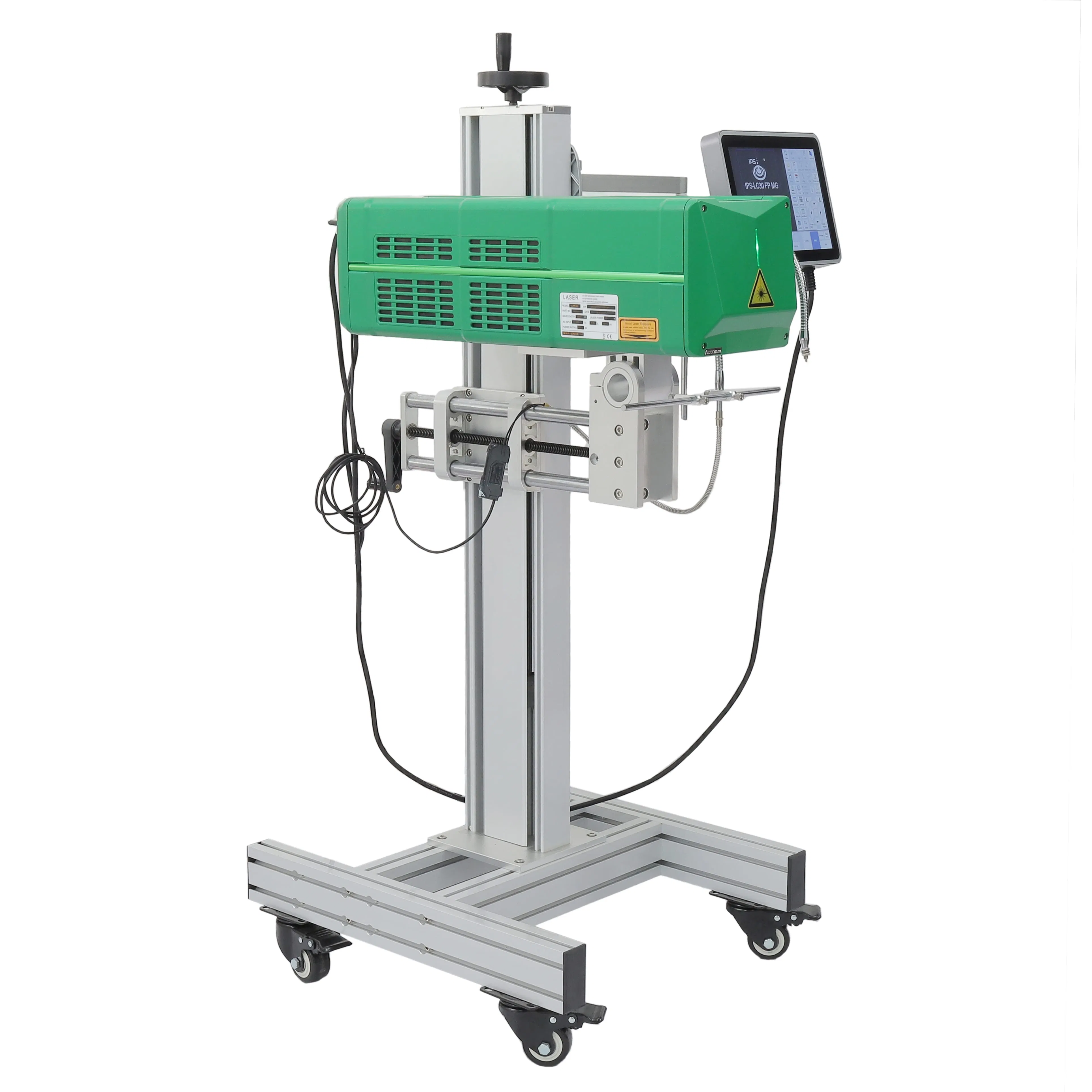

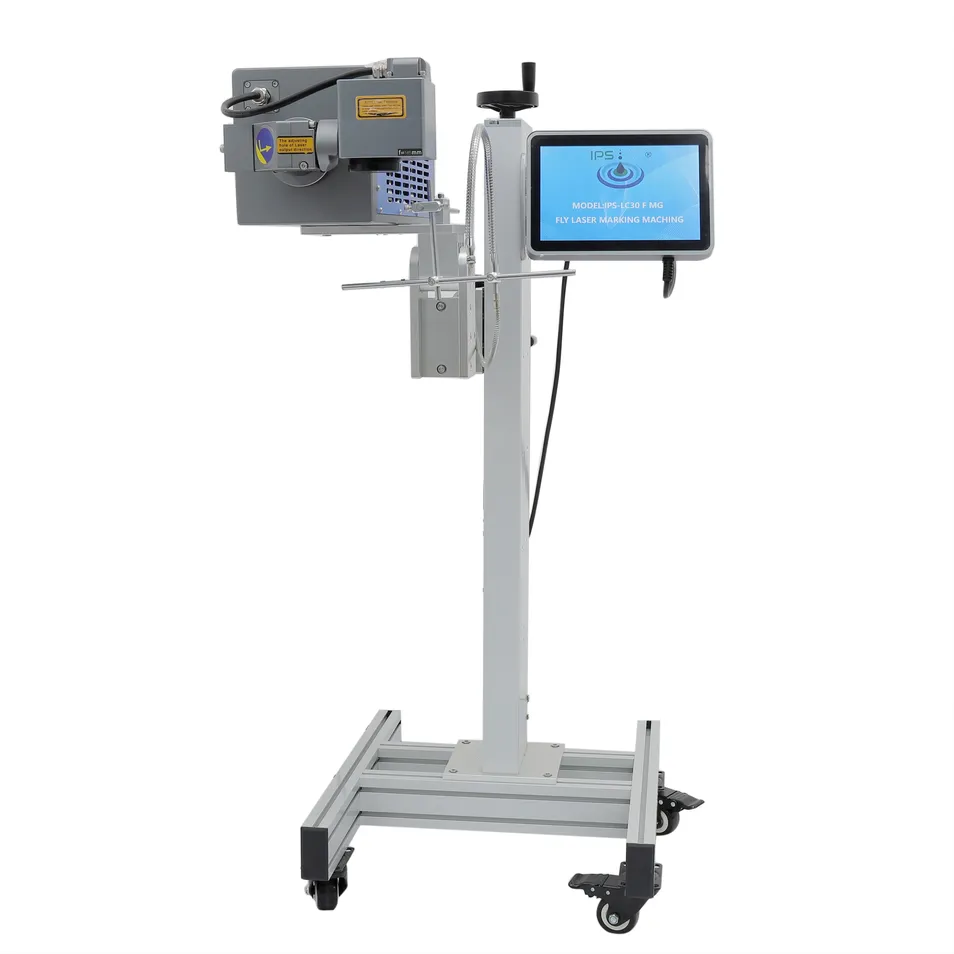

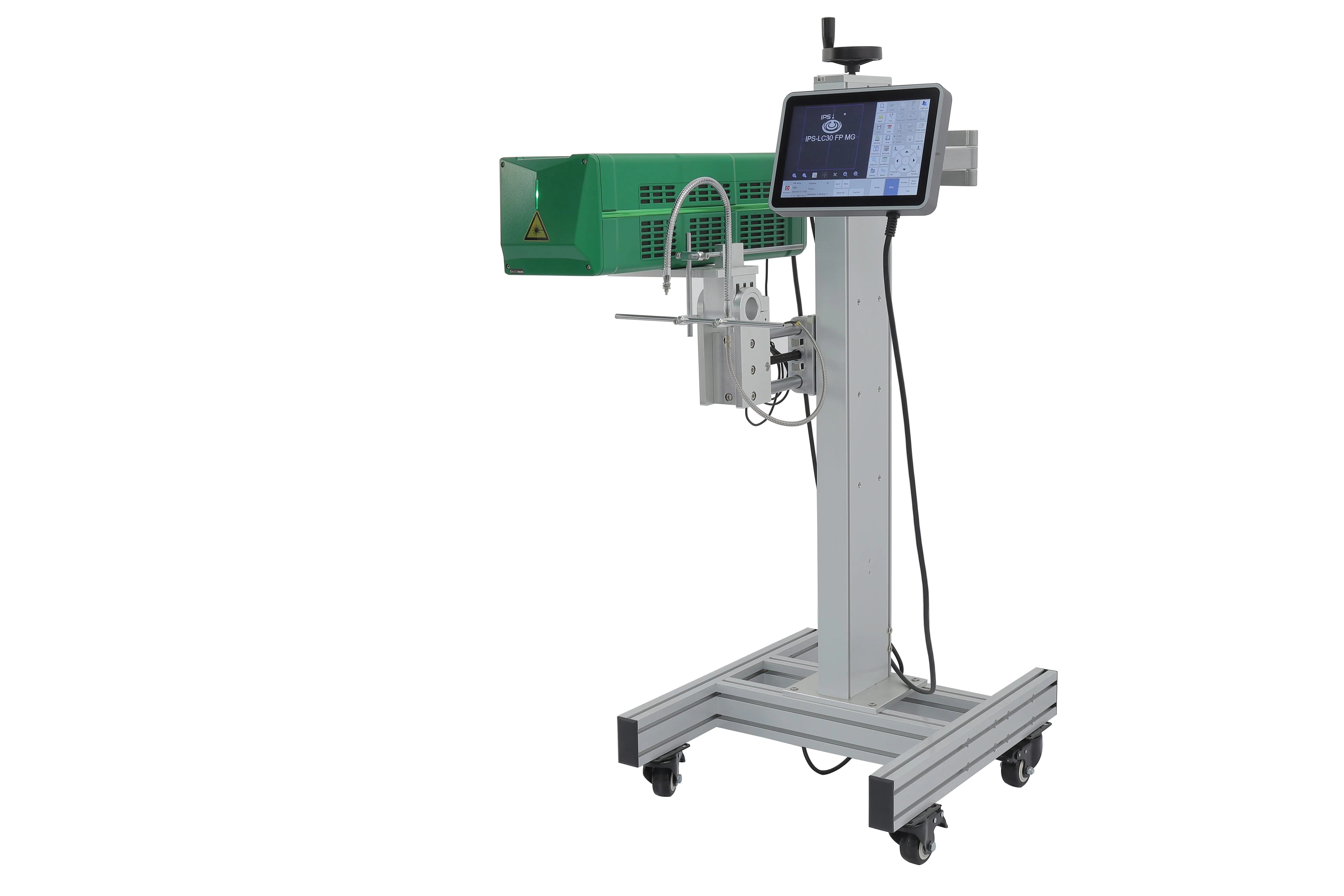

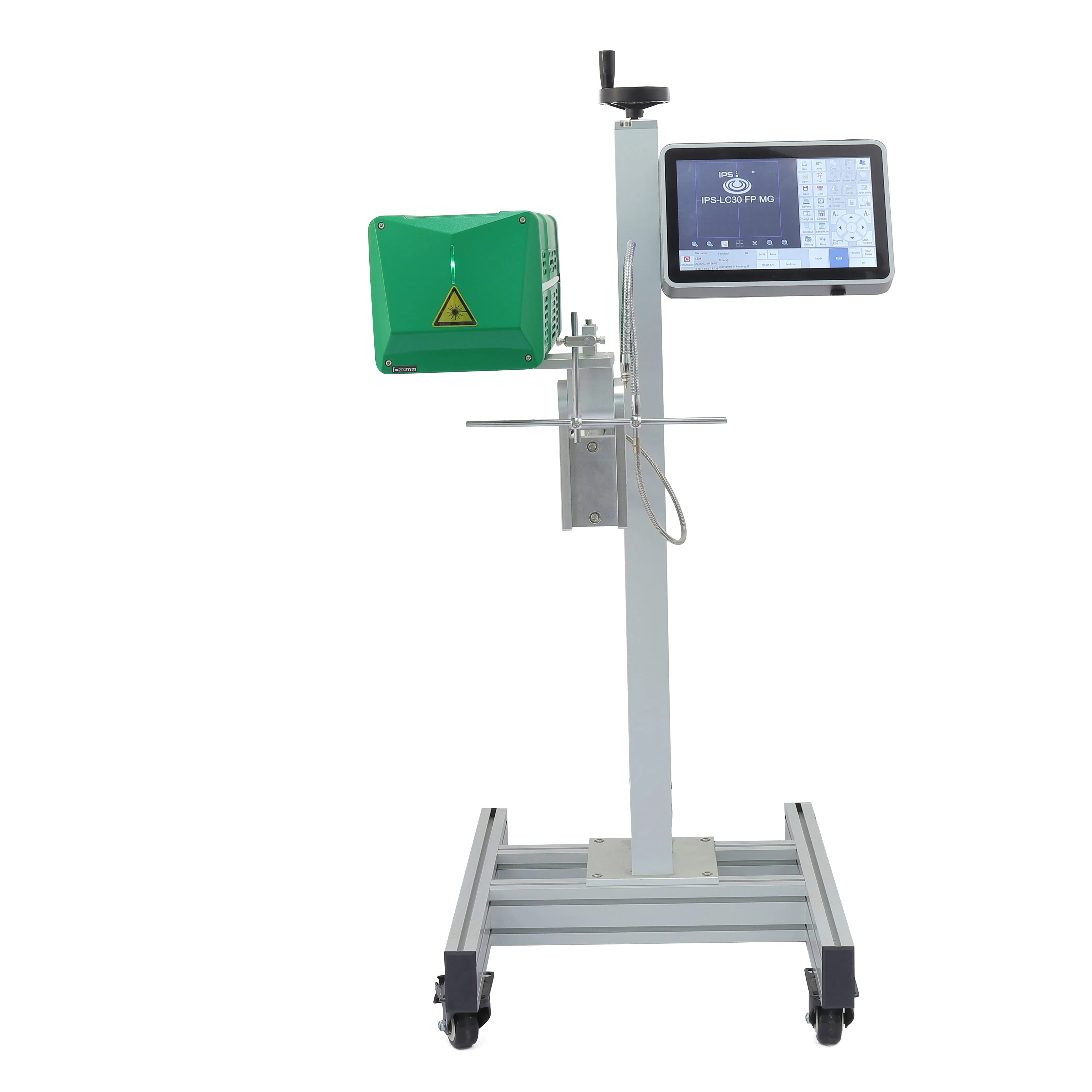

CO2 laser marking machine can mark on most non-metal material, such as bamboo, wood, paper, ABS/PVC epoxy resin, acrylic, leather, glass, ceramic, rubber and so on. It is widely used in pharmaceutical packaging, food packaging, beverage packaging, plastic, textile, leather, wood, handicrafts, electronic components, communications, watches, glasses, printing and other industries.
| Model | LC20 | LC30 | LC50 |
|---|---|---|---|
| Laser Power | 20W | 30W | 50W |
| Laser Wavelength | 10.64μm/9.3μm (mainly for transparent PET/PP/PE) | ||
| Laser Gun Model | Carbon Dioxide Laser | ||
| Focus System | Two red light with outline indication | ||
| Scanning Galvanometer | High speed Digital Motor | ||
| Repetition Accuracy | ±0.002MM | ||
| Min Linewidth | 0.01MM | ||
| Linear Speed | ≤8000MM/s | ||
| Marking Size | 70*70MM /110*110MM /175*175MM /300*300MM others | ||
| Overall Dimension | Fly57*66*155CM | ||
| Weight | Around 75 KG | ||
| Power Supply | 220V/50HZ/5A/1P | ||
| Overall Power | 300W | ||
| Cooling System | Built-In Air Cooling | ||
| Operation System | Win 7/ Win XP/ Professional Marking Software | ||
| File Format Support | Supports files directly from CORELDRAW, AUTOCAD, PHOTOSHOP. Supports AI, PLT, PCX, DXF, BMP file formats. Supports all system fonts from Windows. Supports automatic coding, serial numbers, batch numbers, real-time tracking, variable barcodes, QR codes, and databases. | ||

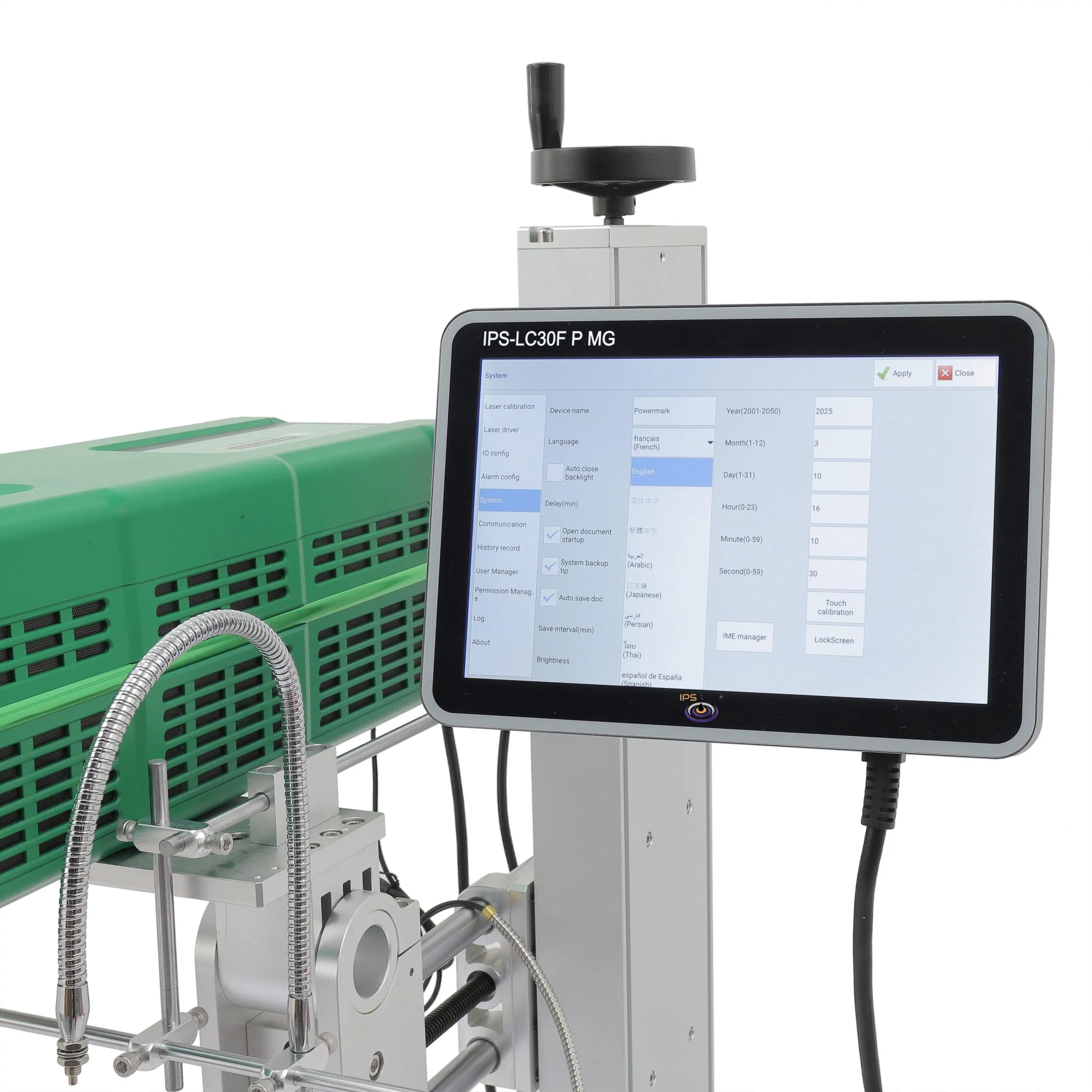

| User Interface | Fly: 10.4 Inch Touch Screen | ||
| Work Environments | Temperature: 10-40℃, Humidity: 10%-90% No Condensation | ||
We provide a full range of industrial printing solutions including CIJ Printers, DOD Printers, TIJ Printers, Laser Marking Machines, TTO Printers, consumables, and high-quality spare parts compatible with various printer brands. Our products are exported to more than 100 countries globally.
This CO2 laser marking machine is highly effective on most non-metal materials, including bamboo, wood, paper, acrylic, leather, glass, ceramics, rubber, and plastics such as ABS and PVC.
It features a compact footprint, easy integration with production lines, high marking speeds up to 8000mm/s, extreme precision (repeatability of ±0.002mm), and low running costs since it requires no inks, solvents, or other consumables.
The system runs on Windows 7 and Windows XP and is integrated with professional laser marking software. It supports direct file import from design programs like AutoCAD, CorelDRAW, and Photoshop.
The machine supports a wide array of formats, including AI, PLT, PCX, DXF, and BMP. It can generate real-time data, serial numbers, batch tracking, variable barcodes, QR codes, and connect to database resources.
This system features an integrated, built-in air-cooling setup. It avoids the need for bulky external water chillers, ensuring high mobility and stable performance within standard operational environments.
It is widely used in pharmaceutical packaging, food and beverage coding, handicrafts manufacturing, textiles, plastics, electronics components, watches, and general printing industries.
