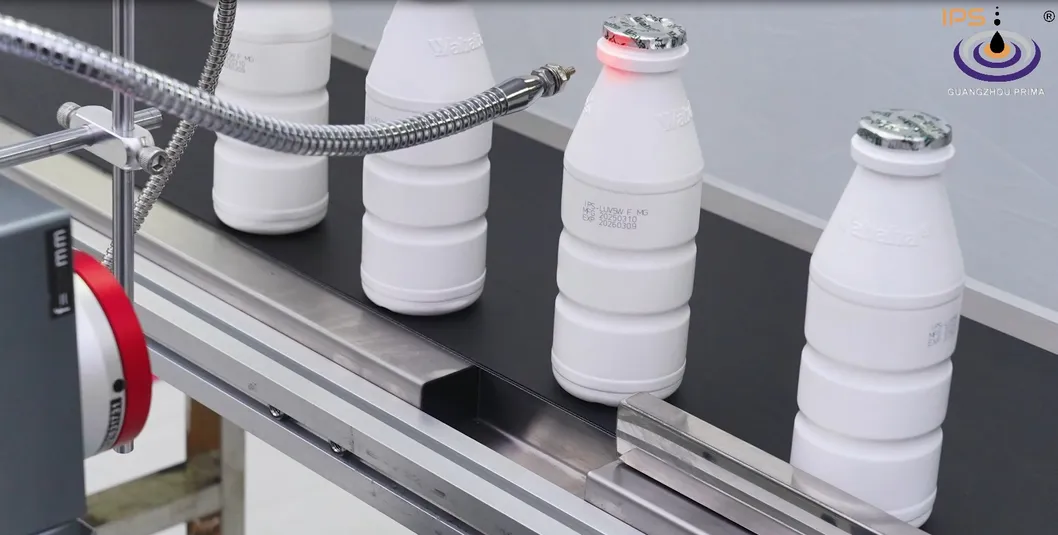

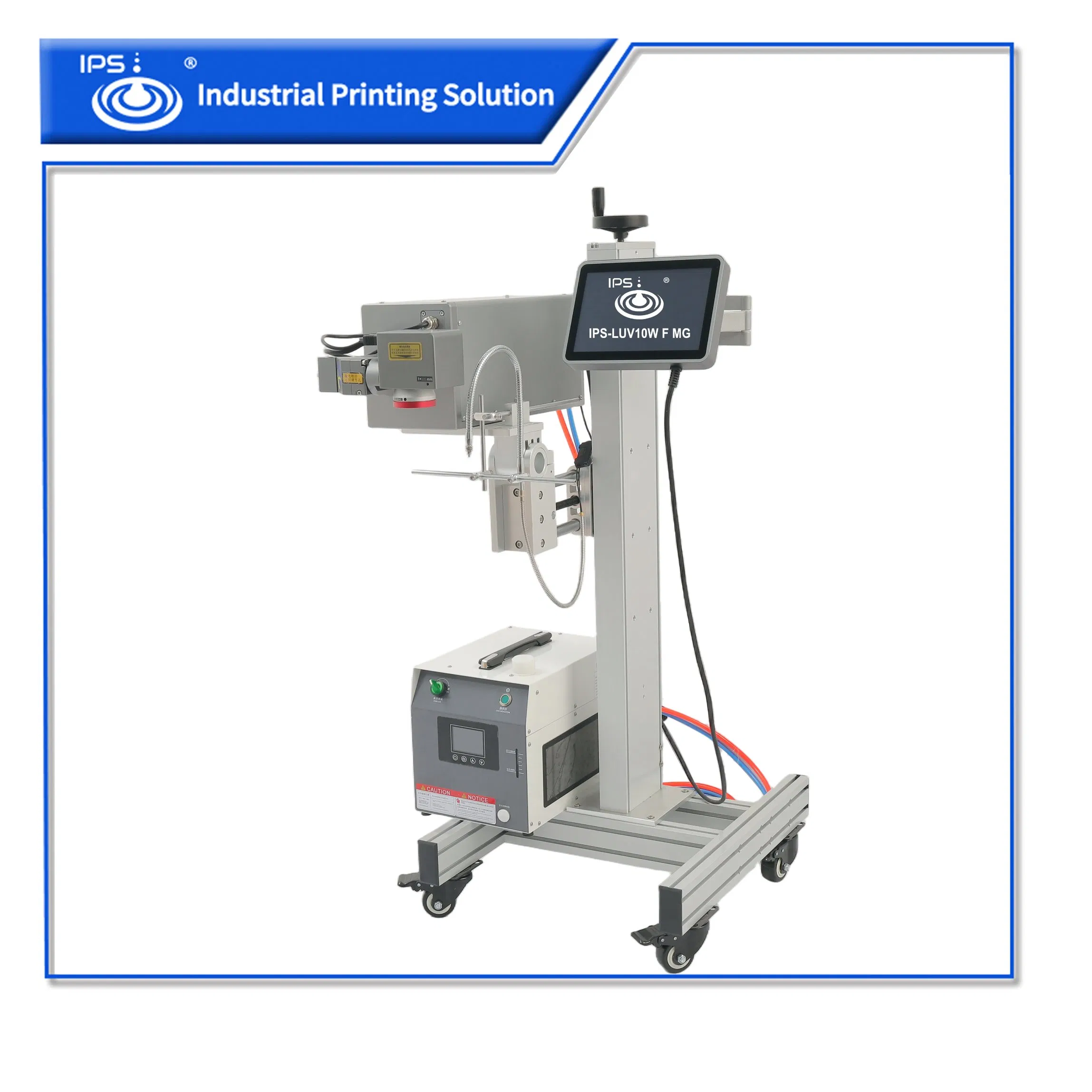

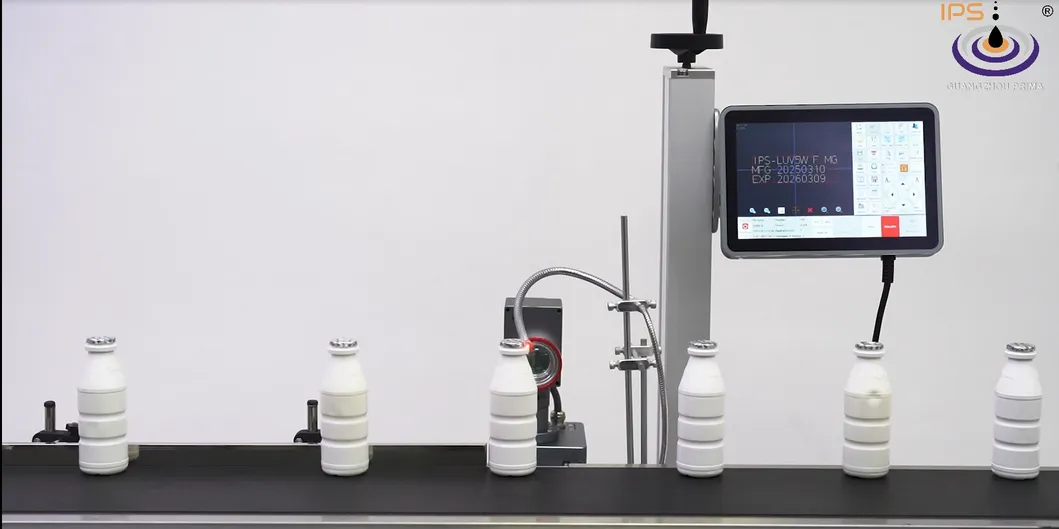

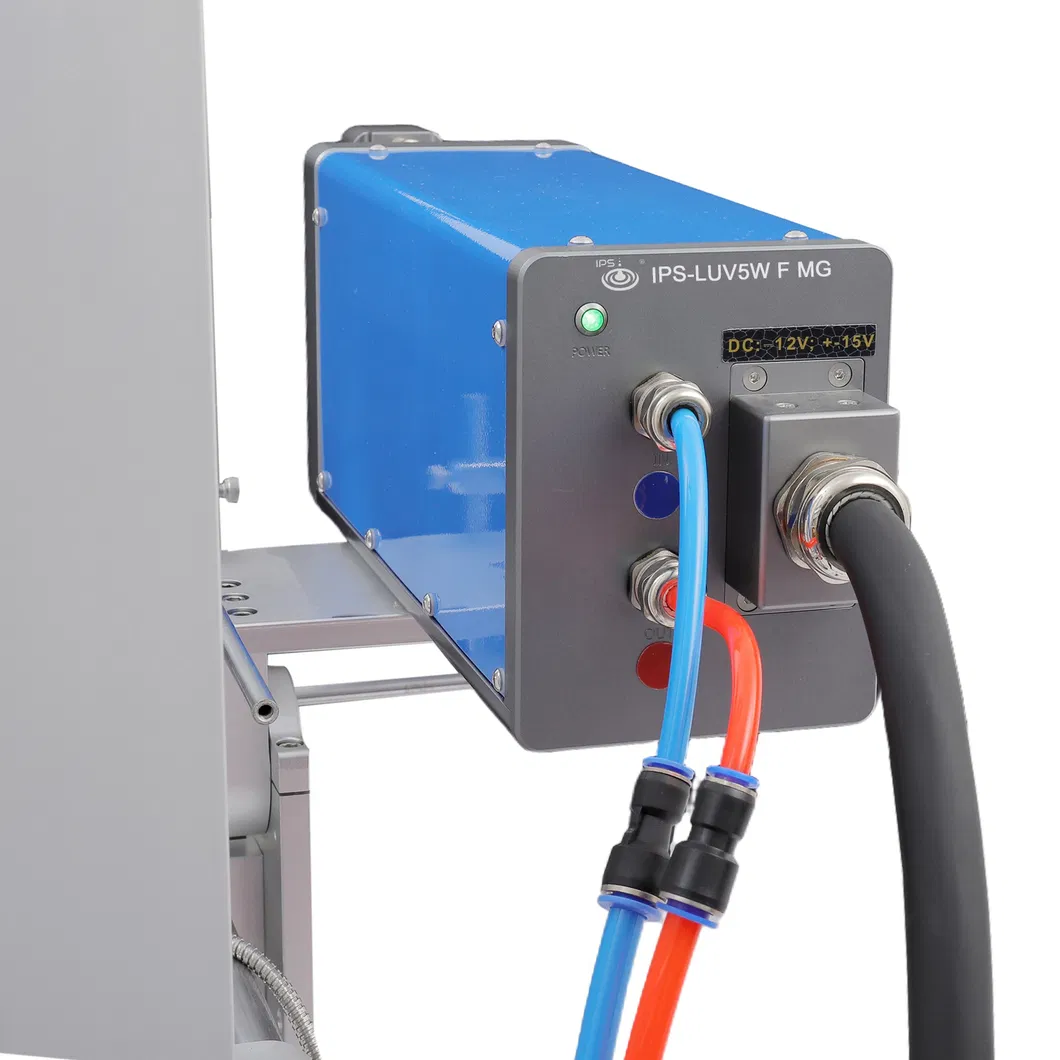

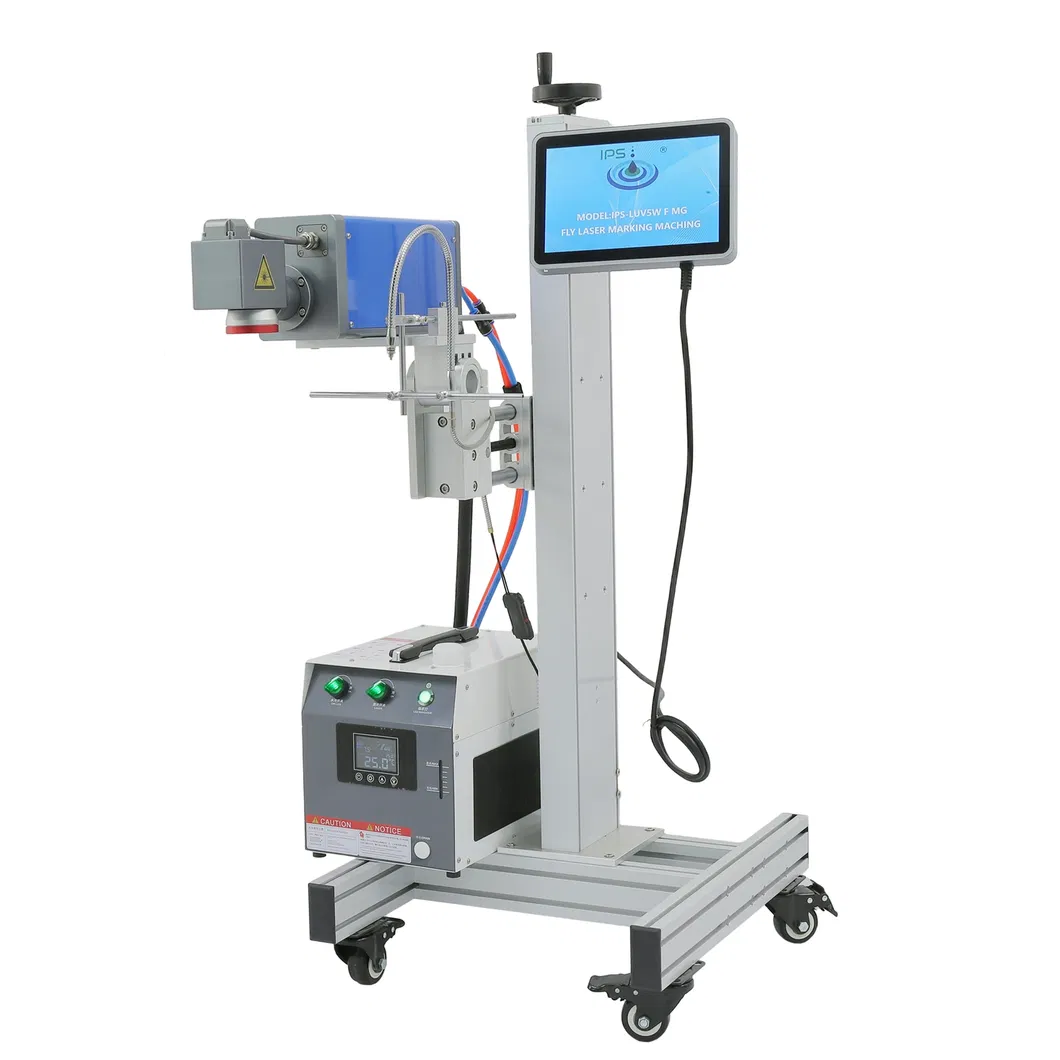

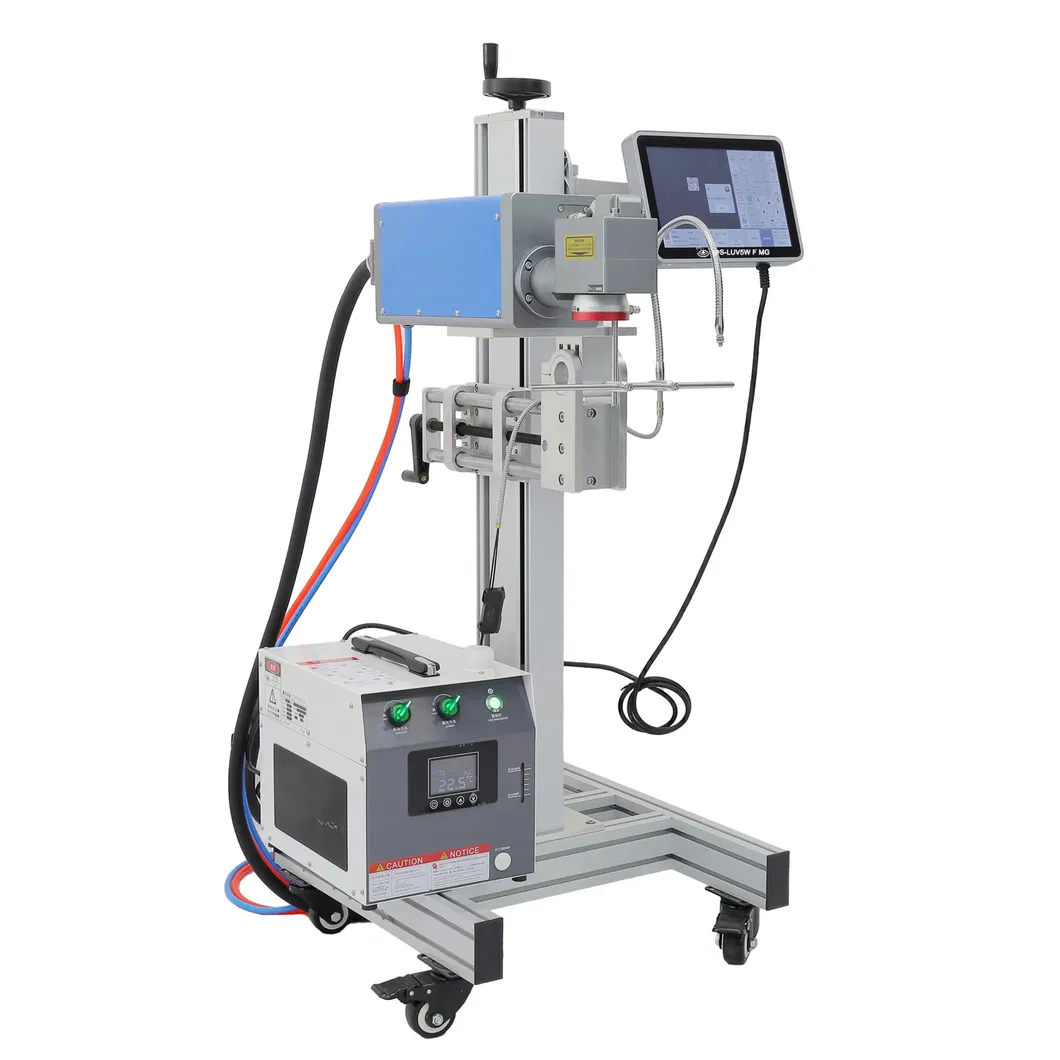

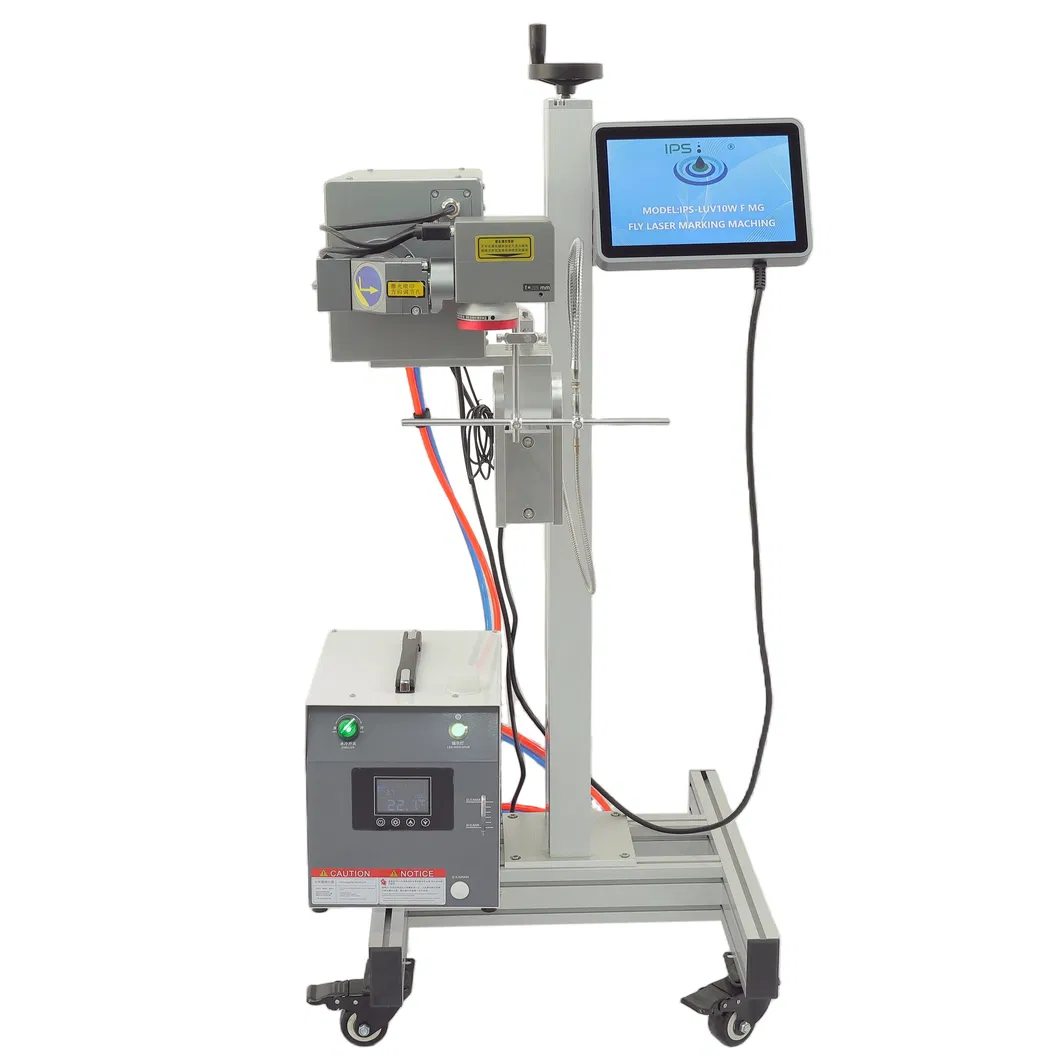

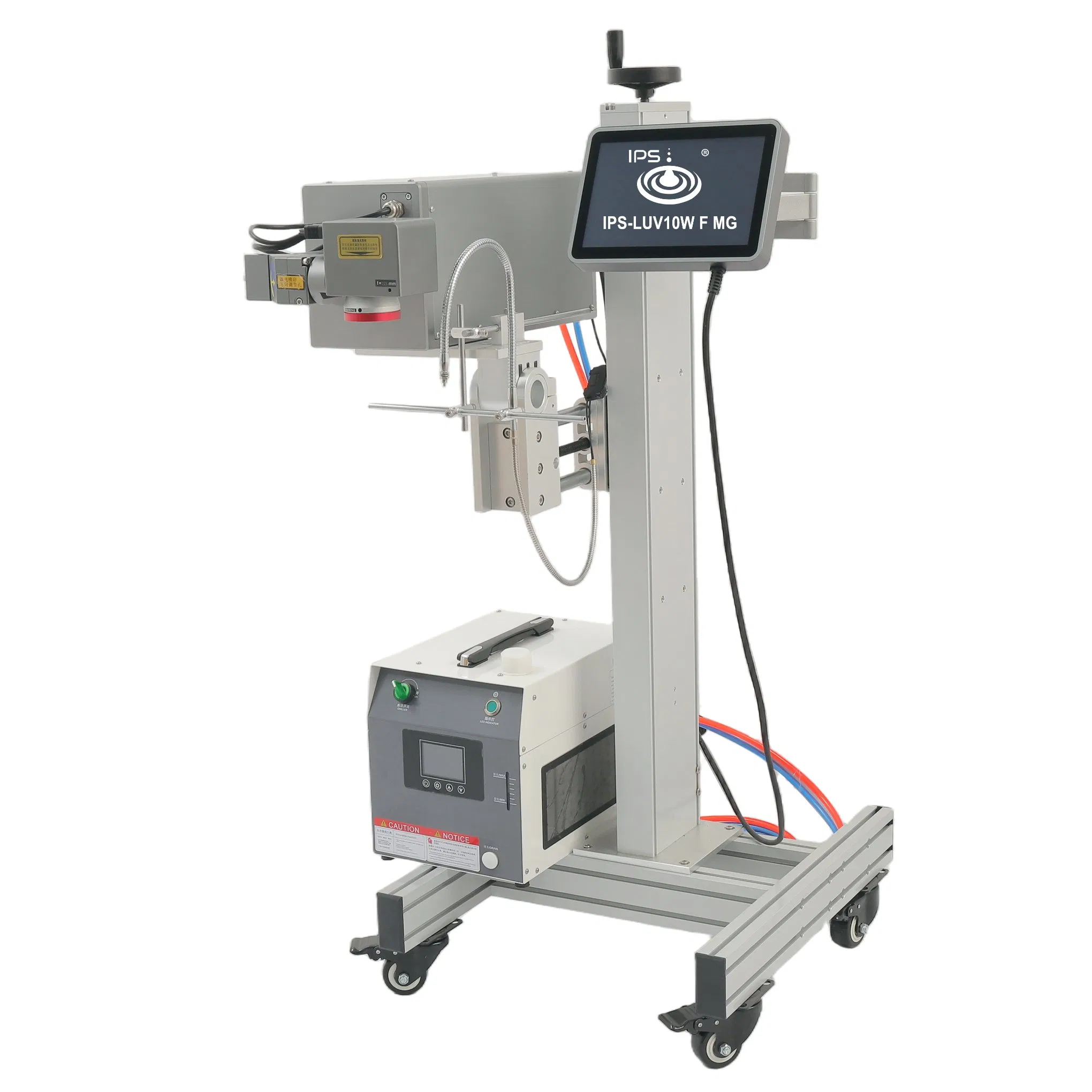

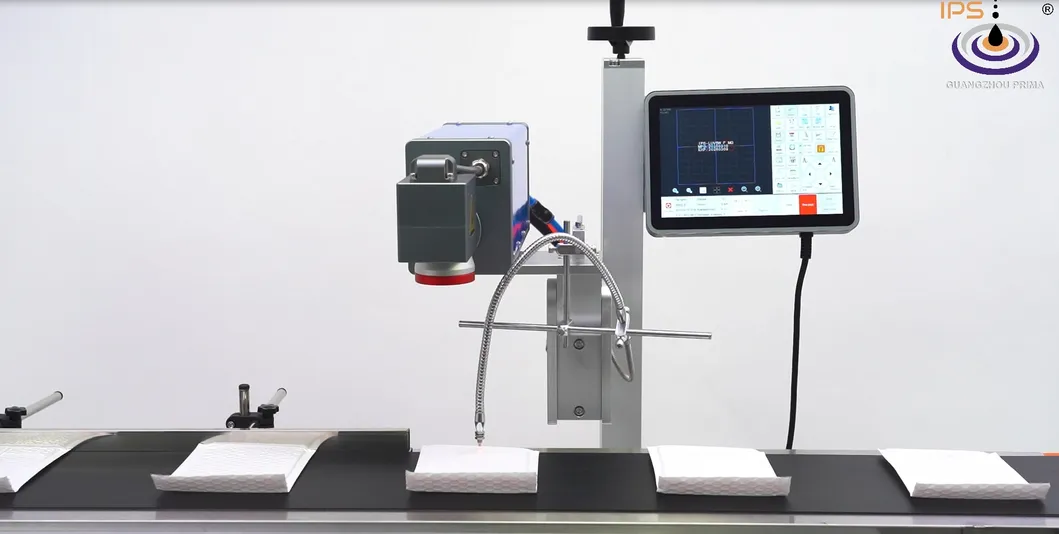

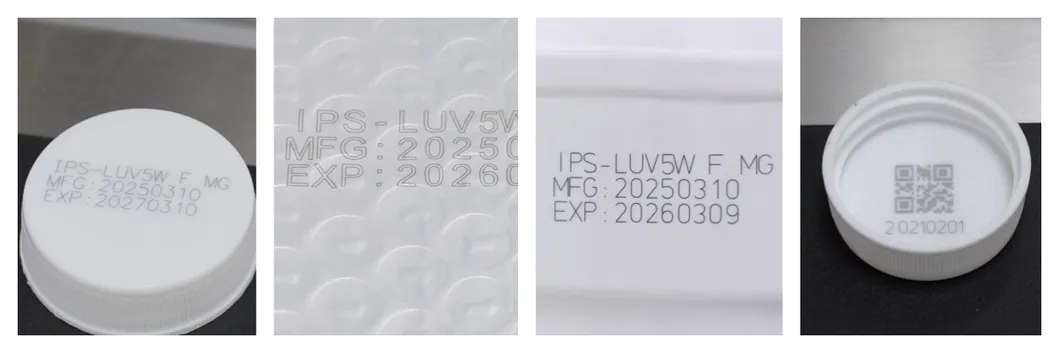

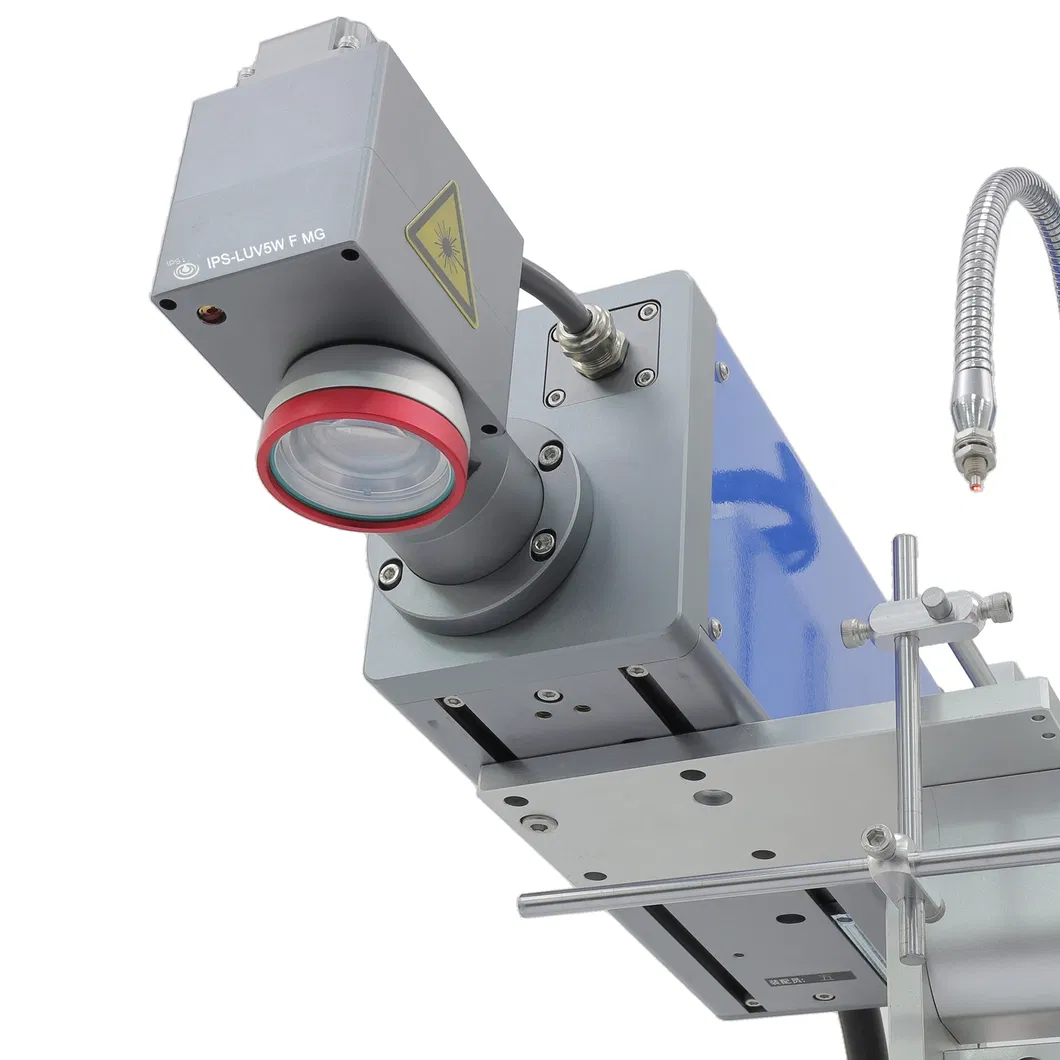

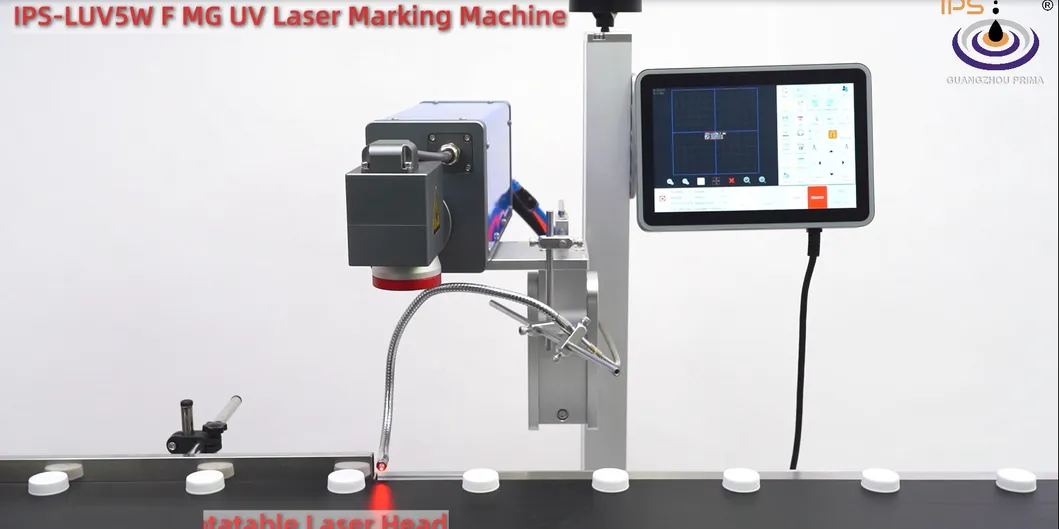

5-Watt UV Industrial Laser Printer for High Contrast Marking on HDPE/LDPE
| Parameters | IPS-LUV10W F MG | IPS-LUV5W F MG |
|---|---|---|
| Machine material | Anodized aluminum structure + spray coating | |
| Laser type | Nanosecond UV laser generator | |
| Laser Power | 10W | 5W |
| Laser Wavelength | 355nm | |
| Printing way | High-precision two-dimensional scanning method | |
| Marking Speed | ≤18000mm/s | |

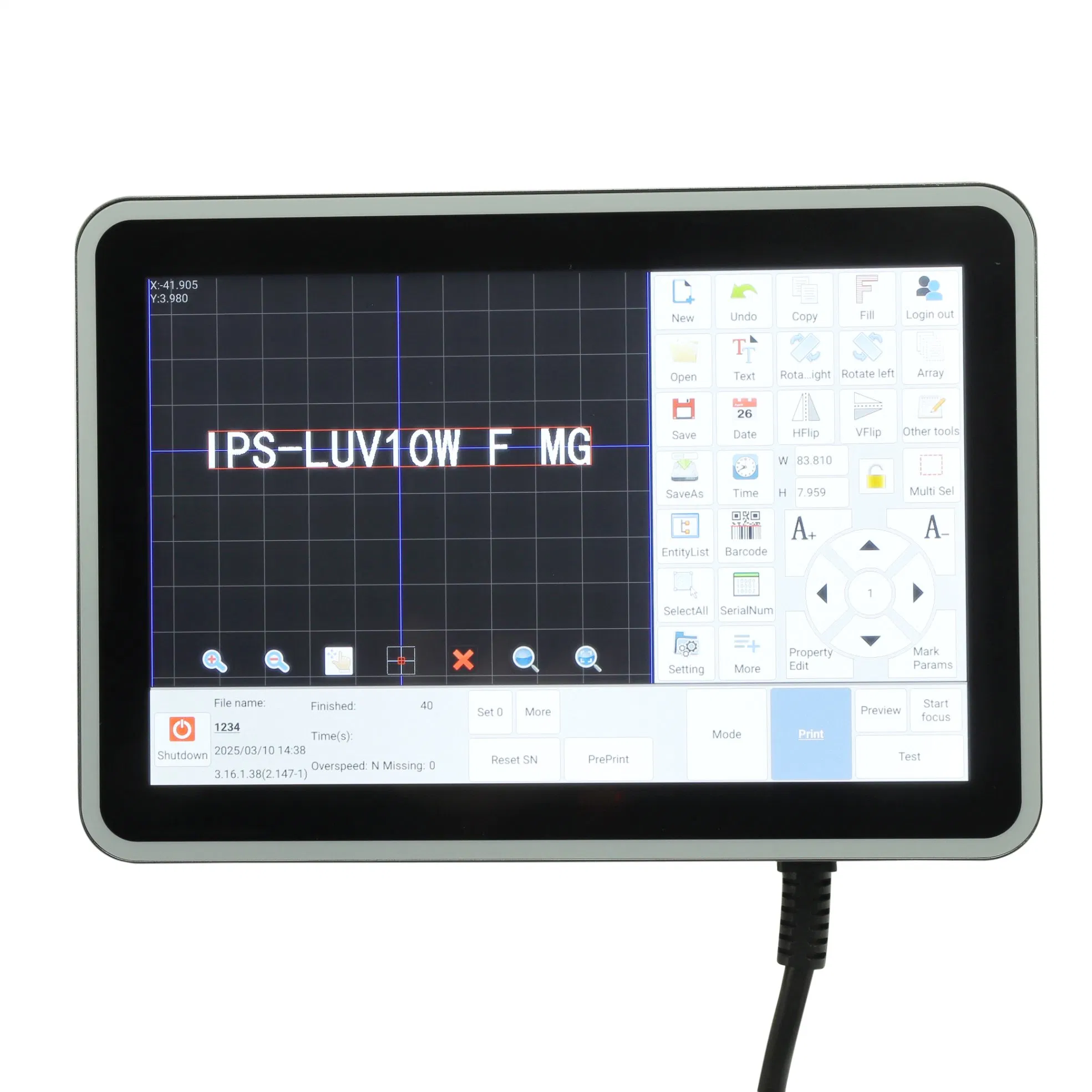

| Controller | 10.1 inch external controller | |
| Operation System | Android System | |
| Overall Power | External cooling system (water tank) | |
| Marking line type | Dot matrix and vector integrated machine | |
| Reflector size | 10mm | |
| Marking Size | Standard size: 110mm×110mm, Optional max size: 600mm x 600mm | |
| Targeting | Red light positioning, infrared focusing | |
| Lines | No limit to the number of lines within the marking range | |
| Linear Speed | 0~250m/min (Related to the product material and printing content) | |
| Language | Simplified Chinese, Traditional Chinese, English, Korean, Russian, Arabic numerals and other standard fonts | |
| File Format Support | PLT | |
| Bar code / QR code | CODE39, CODE128, CODE126, QR, DM, visual code... | |
| Power supply | 220V | |
| Overall Power Consumption | ≤800W | |
| Net weight | 14kg | |
| Interface | USB2.0 / Sensor / Encoder | |
| Enclosure rating | IP65 (Laser scanner part) | |
| Pollution level | 2 | |
| Overvoltage category | II | |
| Work Environments | 0-40ºC (When temperature is lower than 10ºC, boot time will be extended) | |

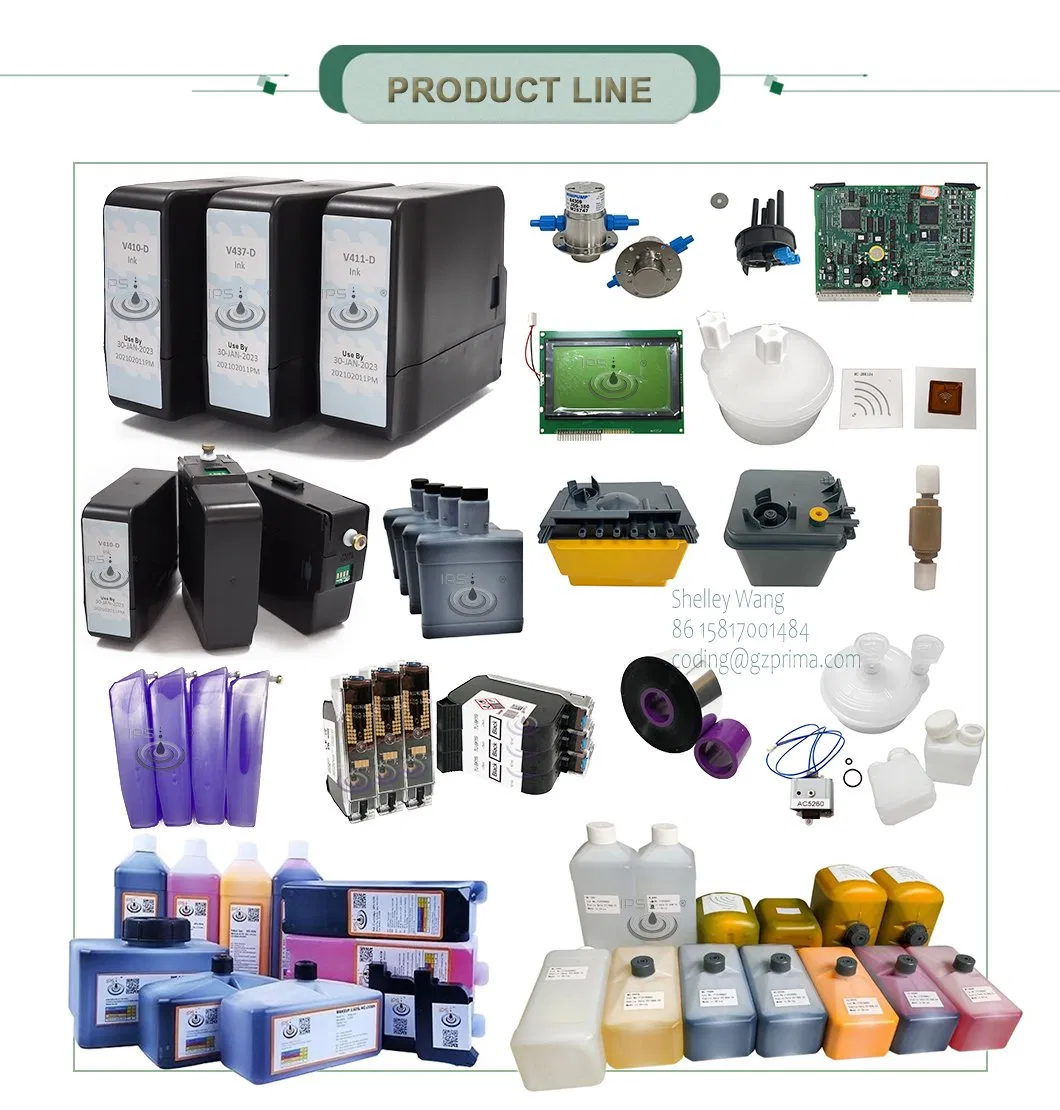

Get all the critical accessories for your printers here, including: inkcore, umbilical, CSB, PSU, pressure sensor, LCD screen, nozzle TTO printhead, solenoid valve, valve module, printhead module, EHT, filter, gear pump, gutter pump, pressure pump, vacuum pump, chip, inkcore board, keyboard, service module, empty cartridge, plastic bottles, etc.
We are a dedicated manufacturer of inkjet printers, laser marking systems, and high-performance consumables with over 10 years of industry experience, backed by a professional, specialized technical team.

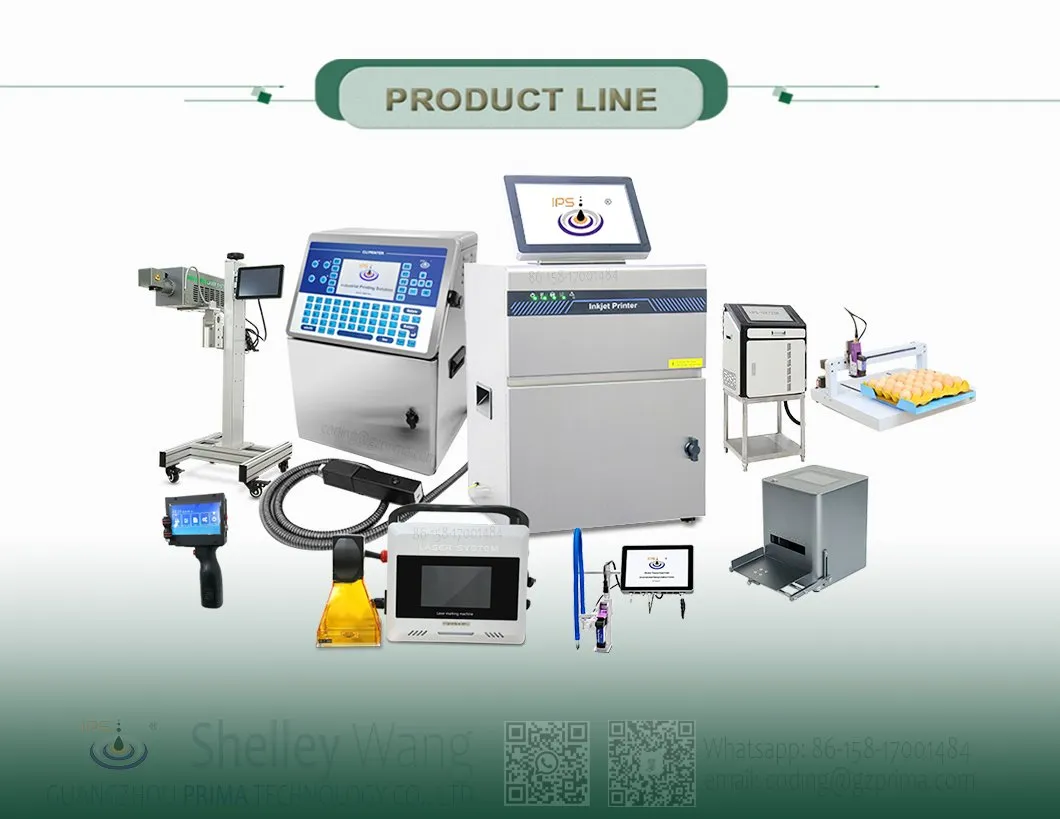

Our portfolio features:
1. Inkjet printers: CIJ, TIJ, high-resolution models, UV, and handheld devices.
2. Laser markers: Fiber, CO2, and UV laser systems.
3. Spare parts: Original and highly-compatible components for major printing brands.
4. Consumables: High-grade inks, makeups, and solvents.
5. Automation & Integration solutions: Including custom conveyor systems, feeders, and vision inspection systems.
For standard products in stock, dispatch occurs within 2 to 3 business days after receiving payment. Custom systems or large configurations require a layout period of 10 to 20 business days. Please coordinate with our support team to confirm the timeline prior to ordering.
Yes, we provide full support. If you experience queries regarding printer installation, daily operation, or parameter calibration, please contact us via email or other web inquiry support channels. We aim to provide timely and comprehensive guidance.
We offer a one-year warranty on all spare parts (excluding printheads). For authorized or regional distributors, we extend our warranty program to 18 months. All equipment supplied is certified brand new.
