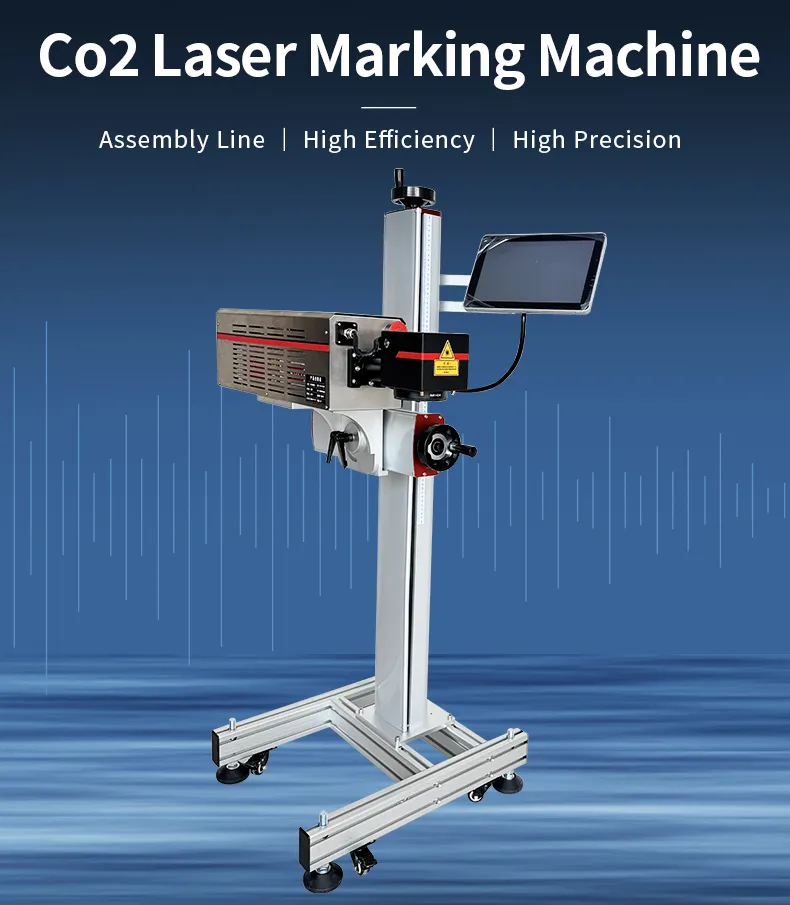

Suitable for packaging product coding and industrial product marking. Equipped with a detachable laser head, it solves the problem of limited marking position and can print text information, variable information, serial number, batch number, barcode, QR code, micro-mark and pattern. There is no limit on the number of lines of information printing and font size.
Small size design with laser penetration reaching over 90%. Suitable for harsh industrial environments, producing a more fine and uniform focused spot. Offers high transmittance, strong transparency, high definition, clear focus, and excellent marking results.
Delivers consistent, long-term performance across demanding production requirements with stable energy output.
| Laser type | CO2 Laser |
| Laser wavelength | 10.6μm |
| Laser power | 30W, 60W, 100W |
| Average power stability | ±5% |
| Marking accuracy | ≤3-5μm |

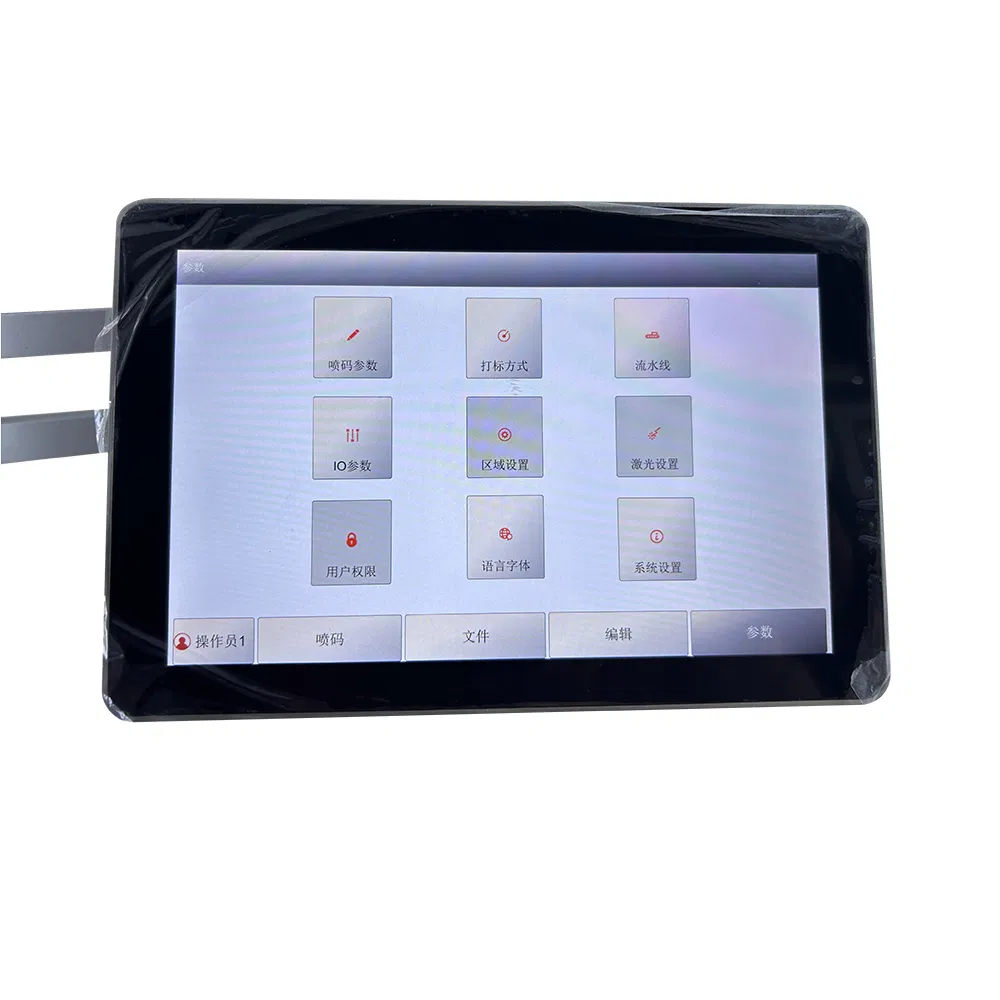

| Operating system | Embedded Touch Controller |
| Cooling method | Air cooling / Water cooling |
| Total power | 600W |
| Electricity demand | 110V/220V, 50-60Hz |
| Machine material | All-aluminum structure |
| Host weight | 23-45KG |
| Applicable industry | Food, beverages, cosmetics, daily necessities, toys, etc. |
| Marking material | Metal as steel, aluminum, copper, gold, silver, alloys; some plastic as PVC, PE, PPR, ABS, etc. |
| Marking Content | Text / QR code / barcode / pattern / date and time / logo / photo, etc. |
| Application |

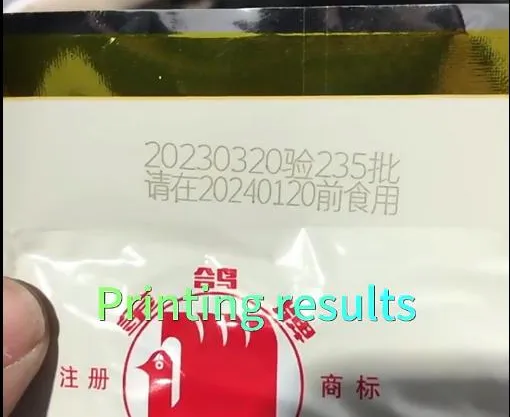

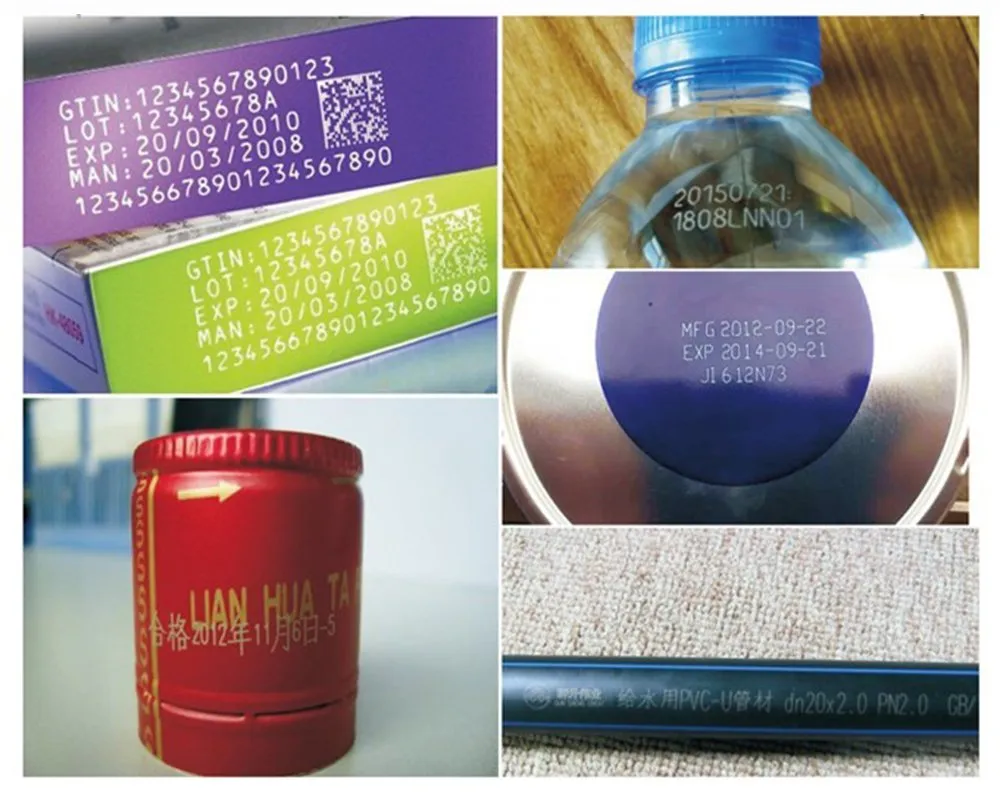

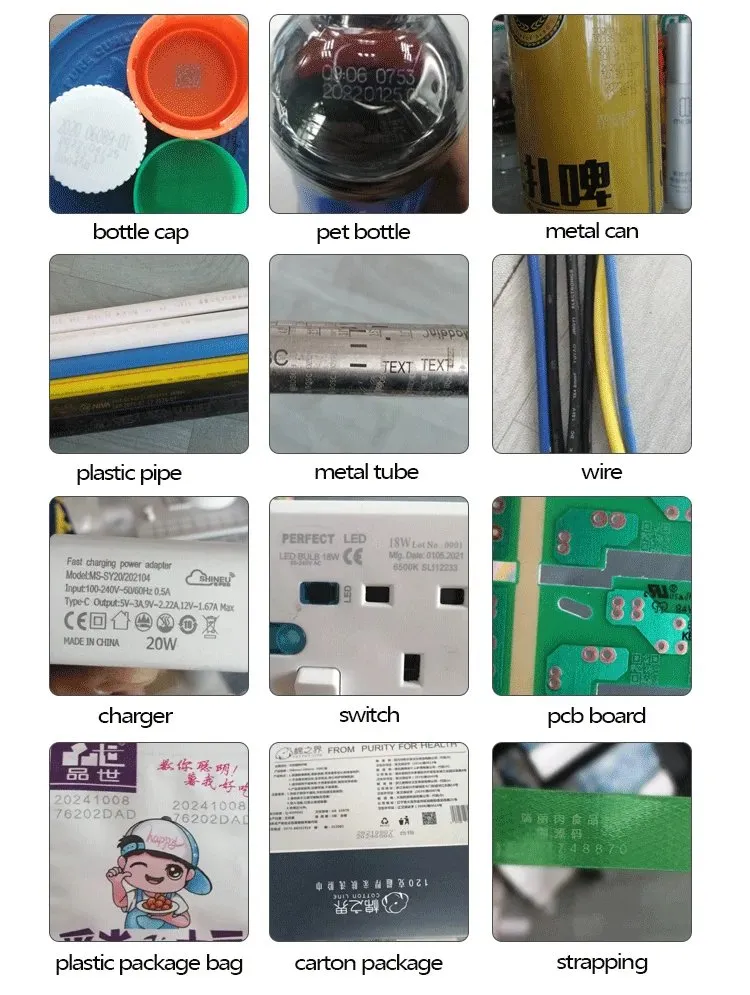

PIPE: PVC/PE/HDPE/PPR/ABS/MPP plastic pipe; metal tube Wire & Cable: plastic wire, metal cable, irrigation belt, fire water conveyance belt, etc. Package coding: food plastic bag, drink bottle cap, beer can, tin can, etc. Other: mobile phone charger, metal parts, plastic parts, etc. |

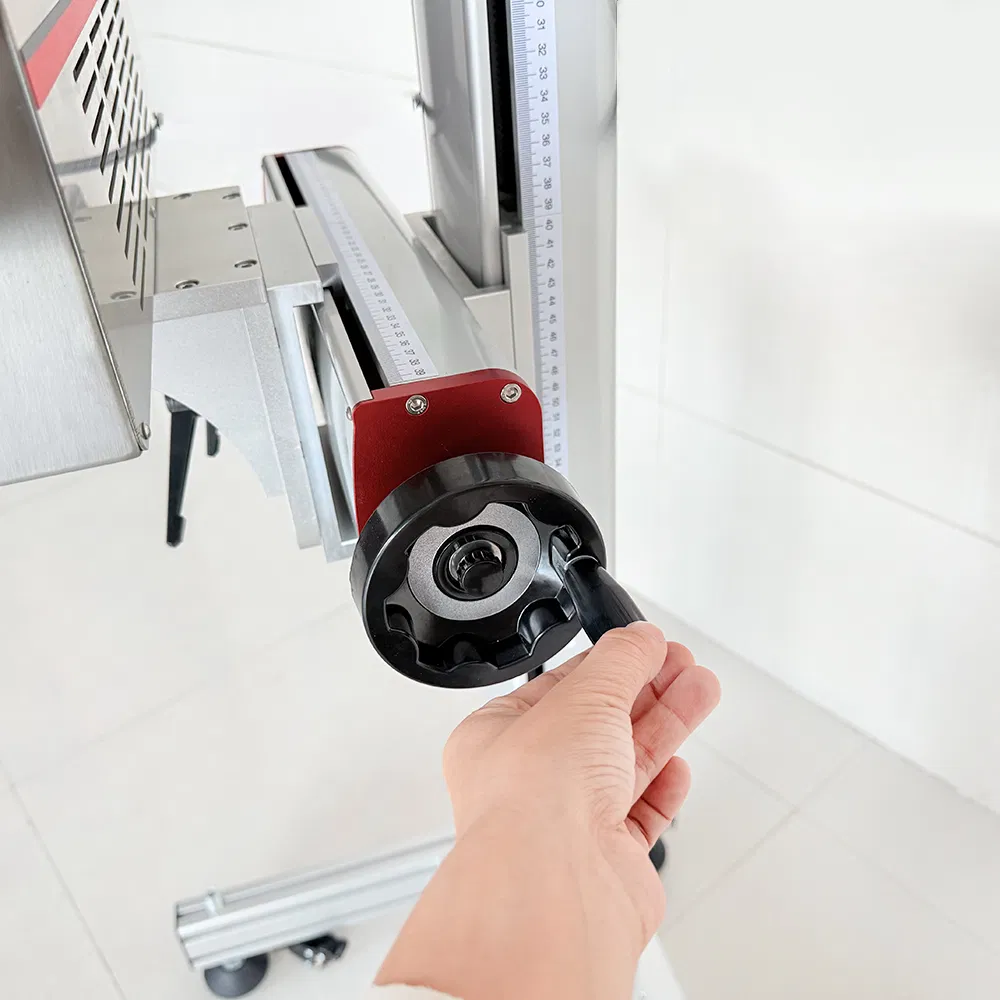

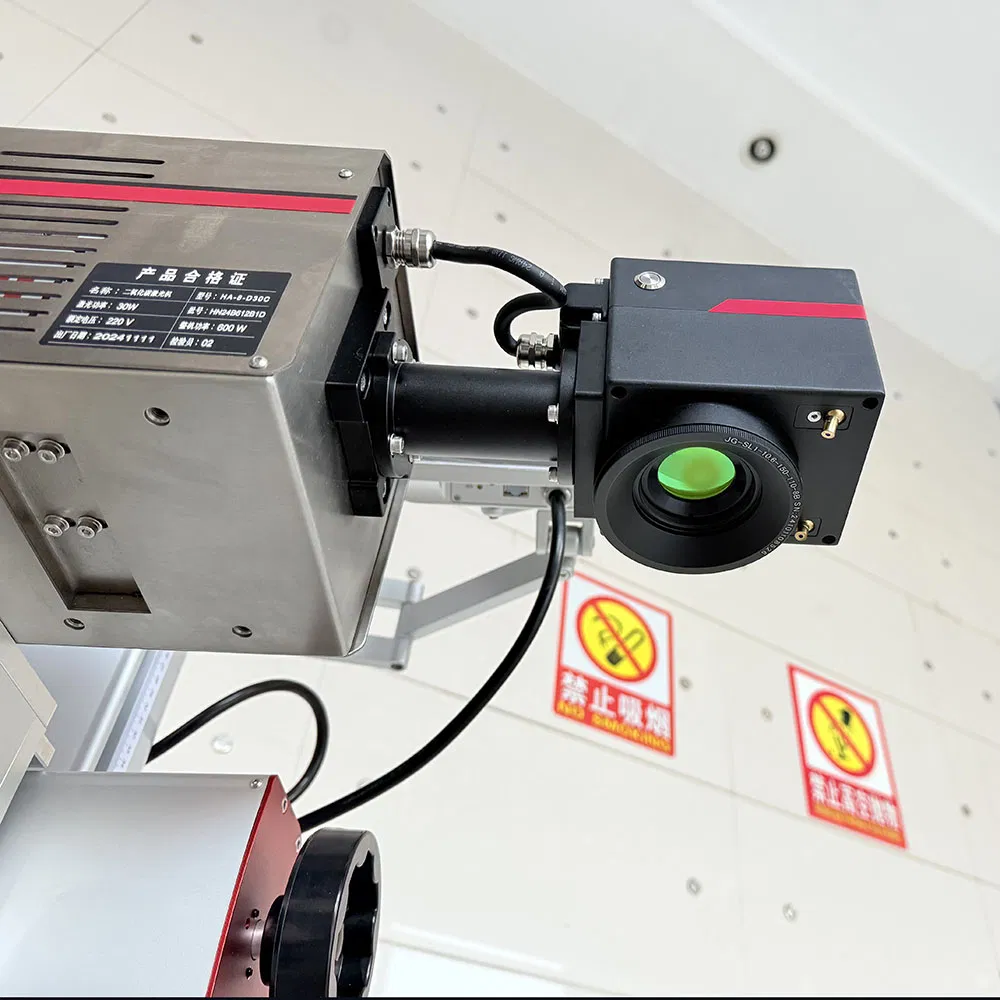

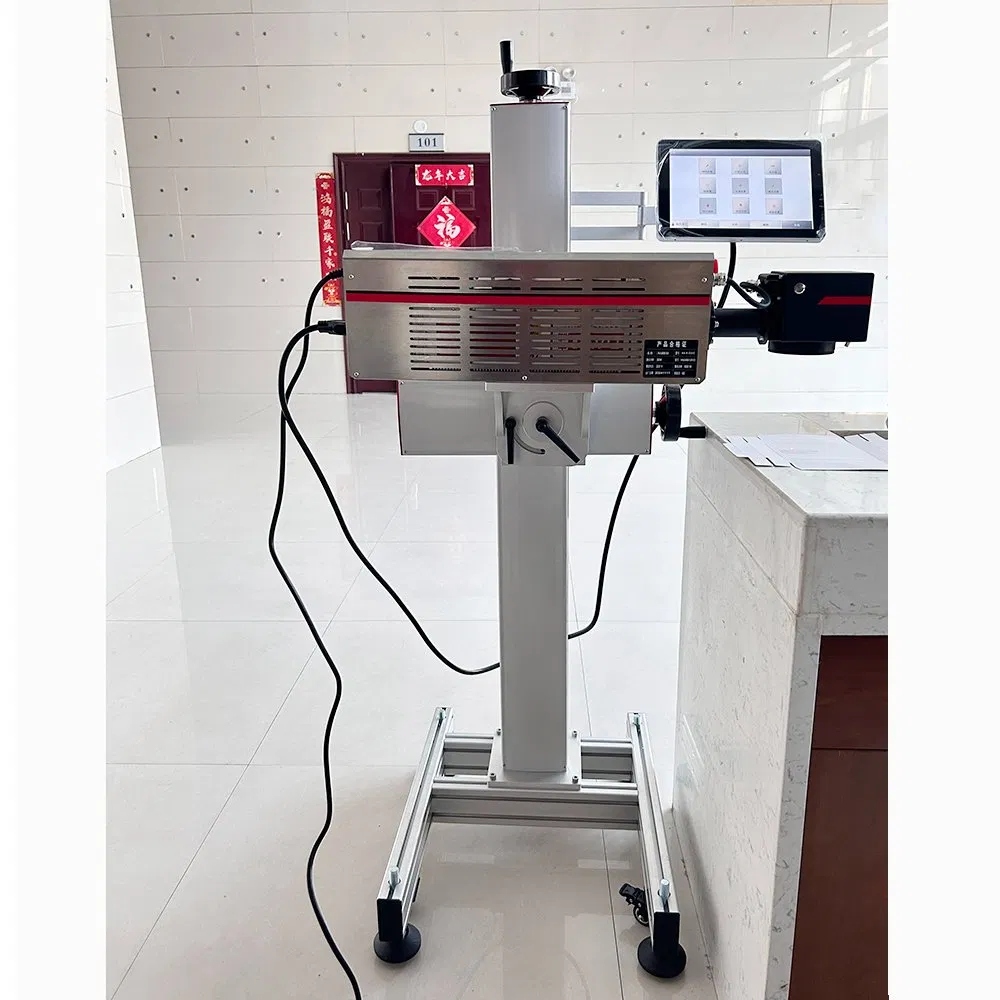

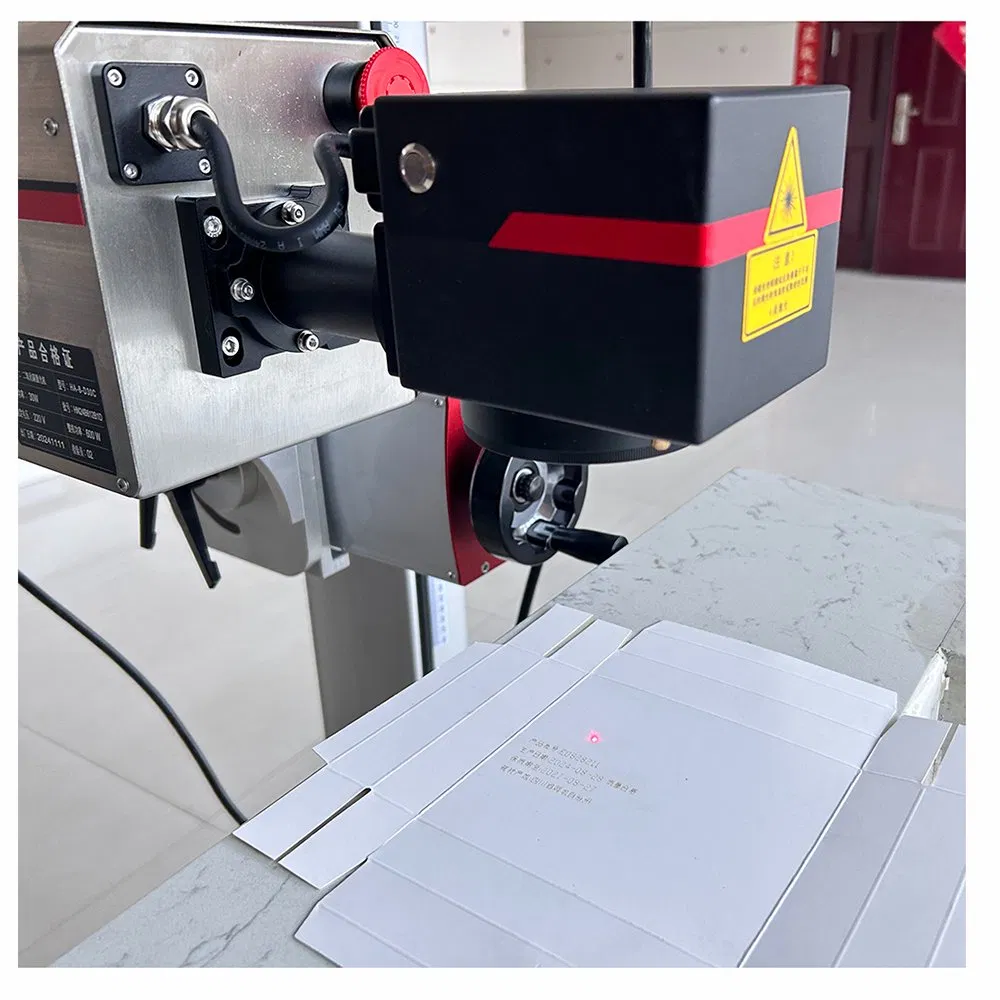

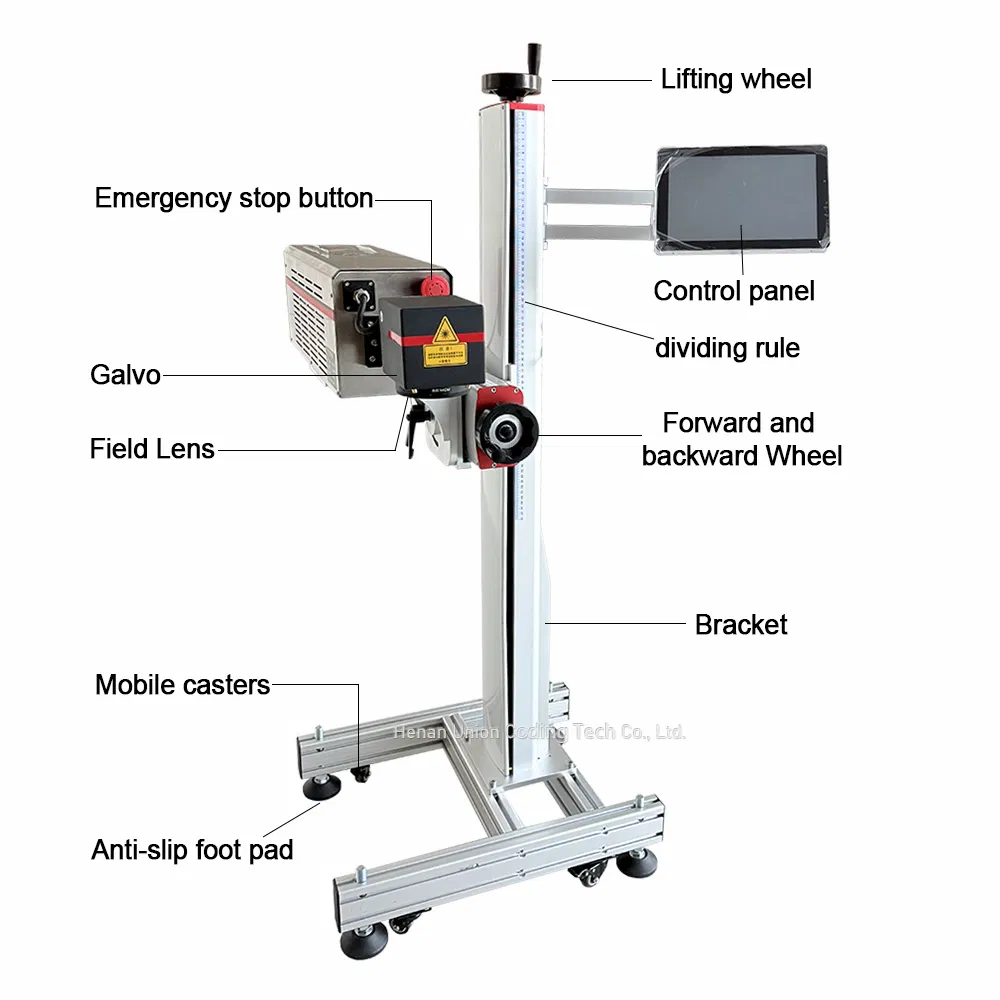

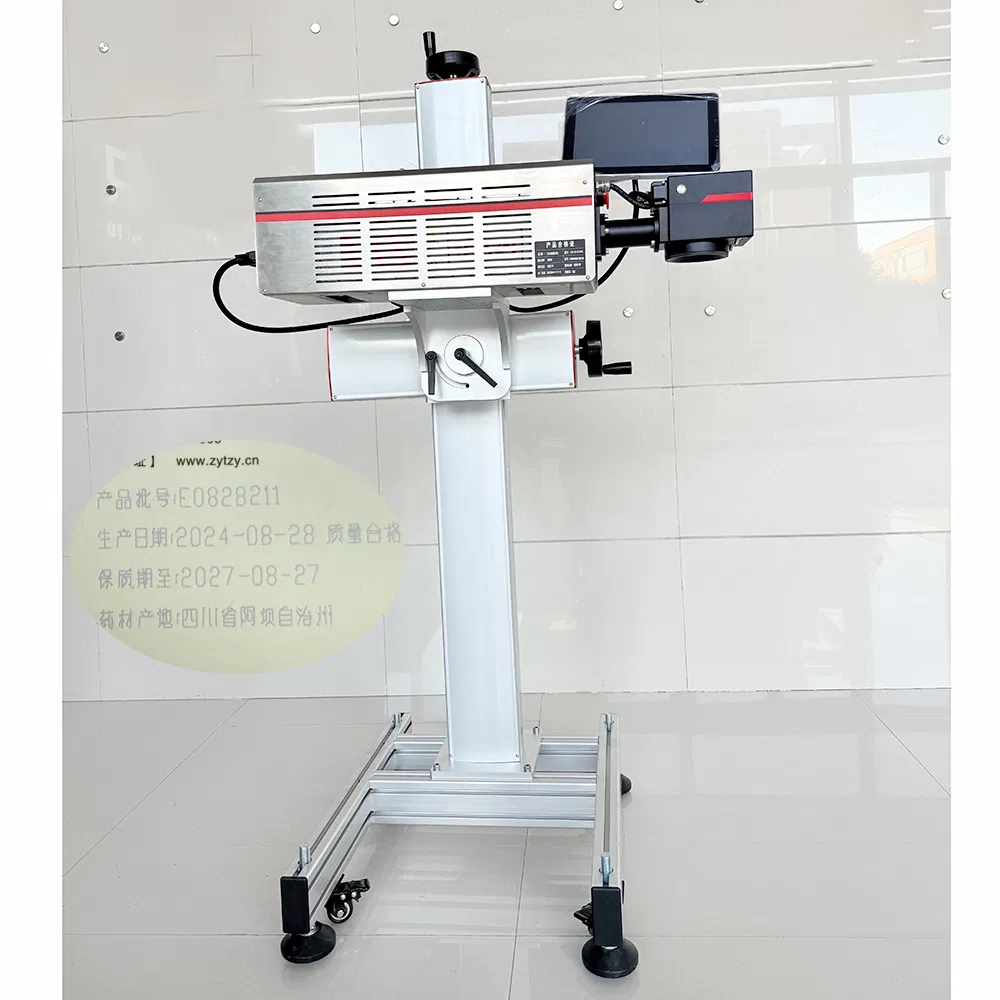

Features an integrated design, equipped with a high-speed scanning galvanometer, 360-degree rotation neck, double red light positioning, fixed focus, high power laser, and imported materials. With an up and down adjustment stroke of 1500mm and a patented structural design, it fits various workshop environments and is easy to install. Provides stable performance, high speed, low power consumption, and a compact size for a wide scope of applications.
Utilizes a compact laser printer marking head to achieve simple integration, reduce installation costs, and improve positioning flexibility.
Manufacturing Plants, Food & Beverage Factories, Printing Shops, Packaging Operations, Energy & Mining, Construction, Machinery Repair Shops, and Food & Beverage Outlets.

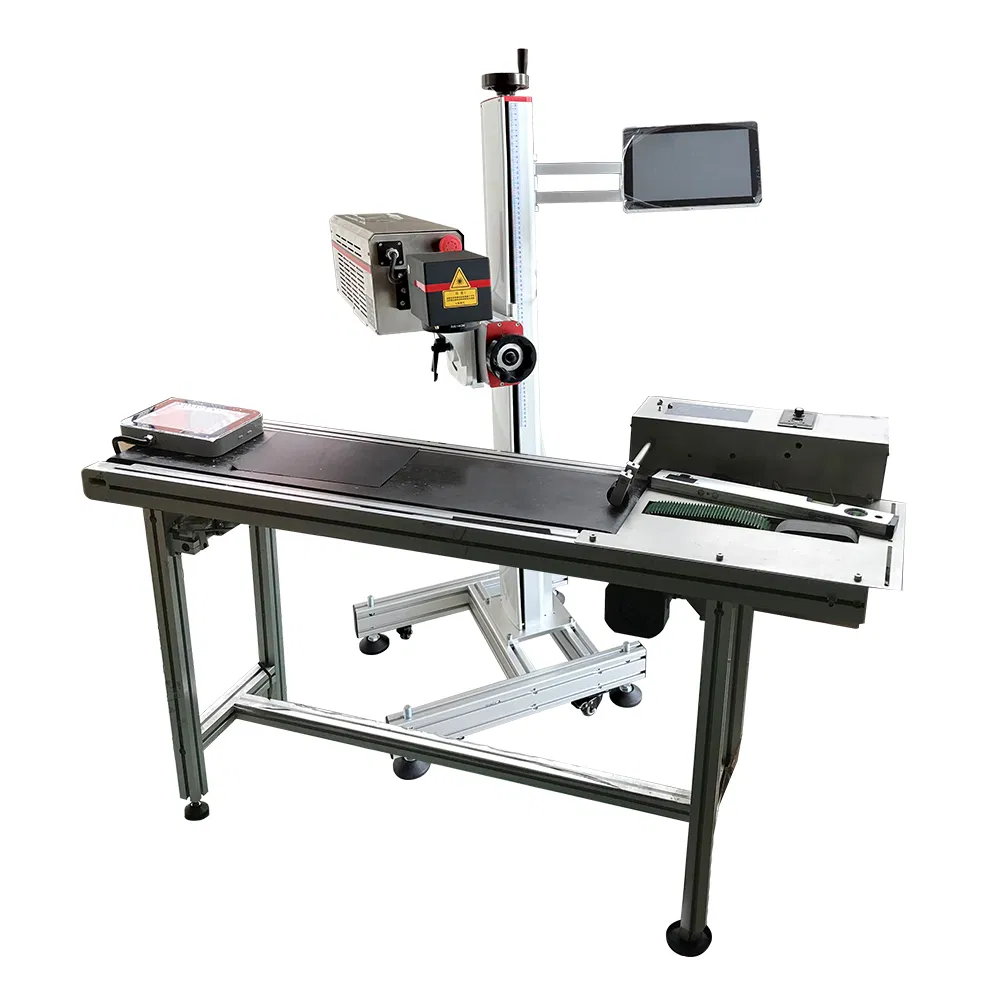

Meets future development needs by allowing laser power upgrades without replacing the entire system. High system flexibility processes various workpiece surfaces (brittle, soft, hard, surface removed):
